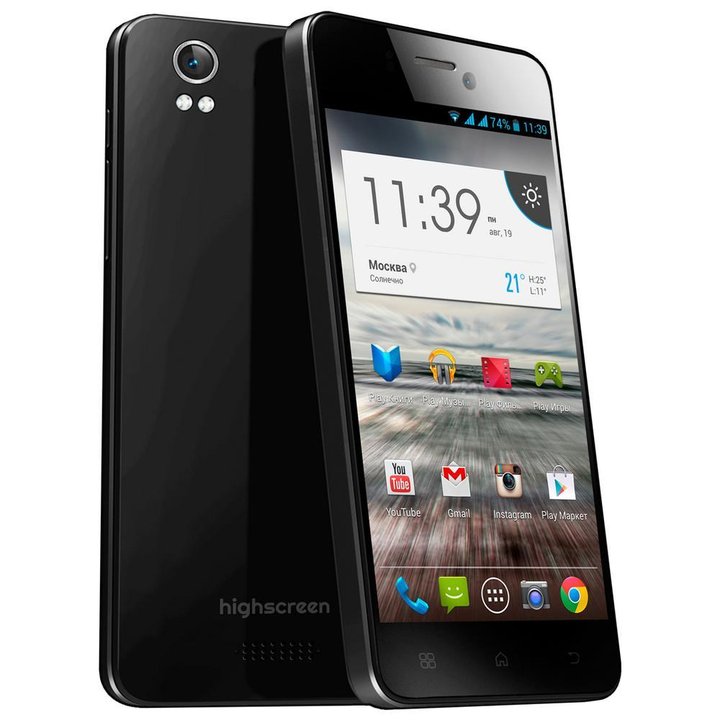

Highscreen Alpha ICE
Highscreen Alpha ICE
Teardown difficulty:
Easy
Duration:
4 min

Recommended tools

Screwdriver Torx T4 Screwdriver torx t4
Opening tool / Spudger Opening tool / spudger
Tweezers Tweezers

Disassembly/Repair of the mobile device Highscreen Alpha ICE with each step description and the required set of tools.

Vadim Popoff

Author, currently - Quality Assurance Specialist

How to disassemble Highscreen Alpha ICE, Step 1/1 How to disassemble Highscreen Alpha ICE, Step 1/2

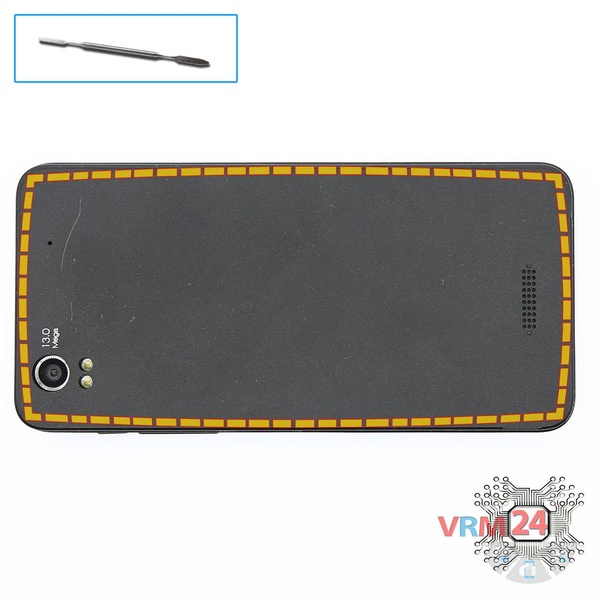

Step 1.

Open the back cover.

How to disassemble Highscreen Alpha ICE, Step 2/1 How to disassemble Highscreen Alpha ICE, Step 2/2

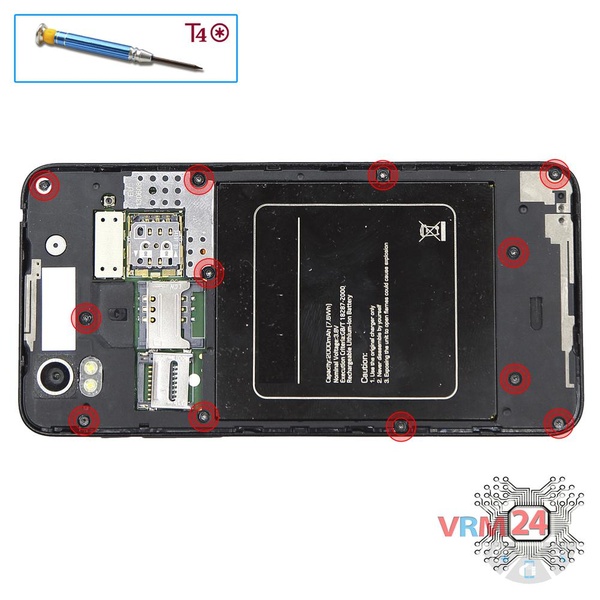

Step 2.

Using a screwdriver (hex T4), unscrew 12 bolts in the frame of the phone.

How to disassemble Highscreen Alpha ICE, Step 3/1 How to disassemble Highscreen Alpha ICE, Step 3/2

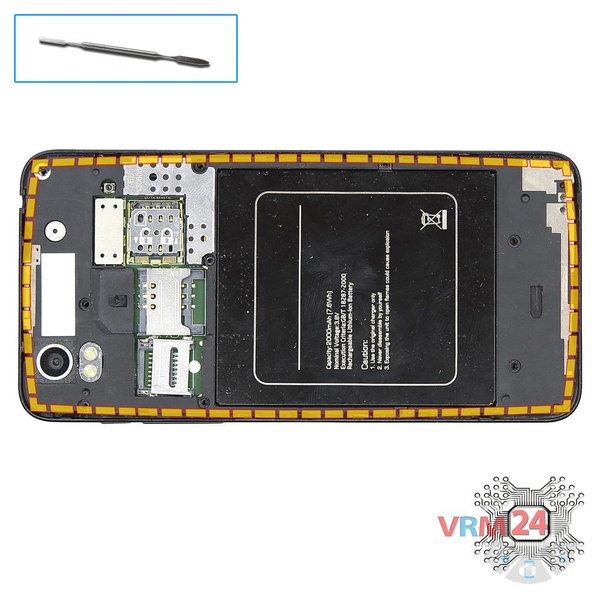

Step 3.

Pry and remove the middle frame.

How to disassemble Highscreen Alpha ICE, Step 4/1

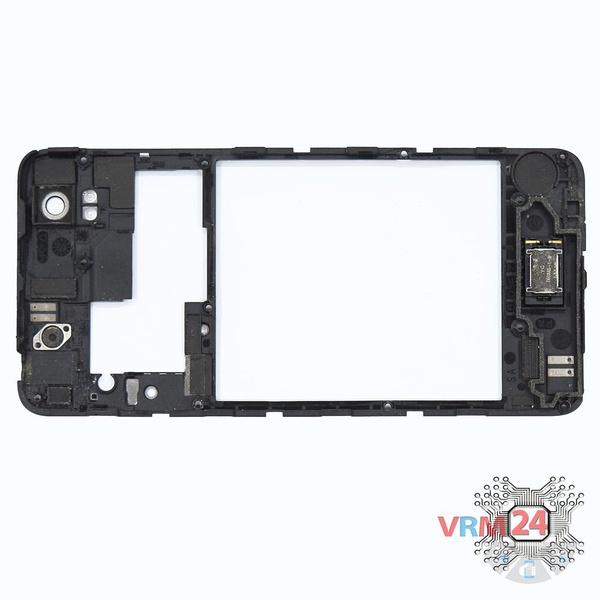

Step 4.

The middle frame with the buzzer (speaker).

How to disassemble Highscreen Alpha ICE, Step 5/1 How to disassemble Highscreen Alpha ICE, Step 5/2 How to disassemble Highscreen Alpha ICE, Step 5/3

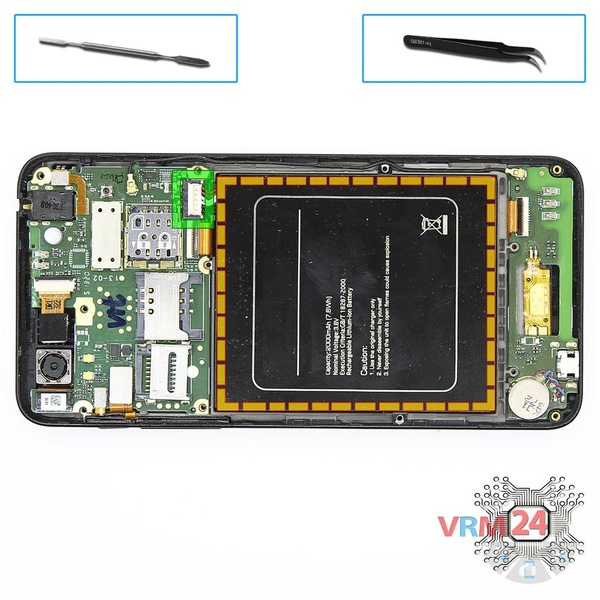

Step 5.

Disconnect connector on the PCB and remove the battery.

How to disassemble Highscreen Alpha ICE, Step 6/1 How to disassemble Highscreen Alpha ICE, Step 6/2

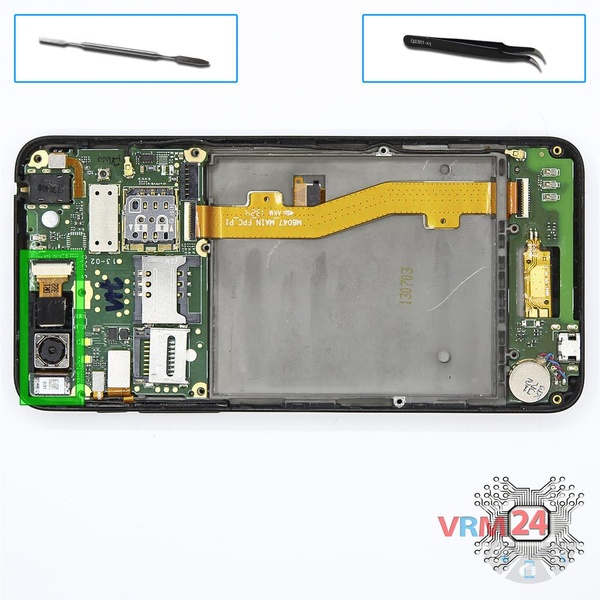

Step 6.

Disconnect connectors on the PCB and remove the main and front (selfie) cameras.

How to disassemble Highscreen Alpha ICE, Step 7/1 How to disassemble Highscreen Alpha ICE, Step 7/2

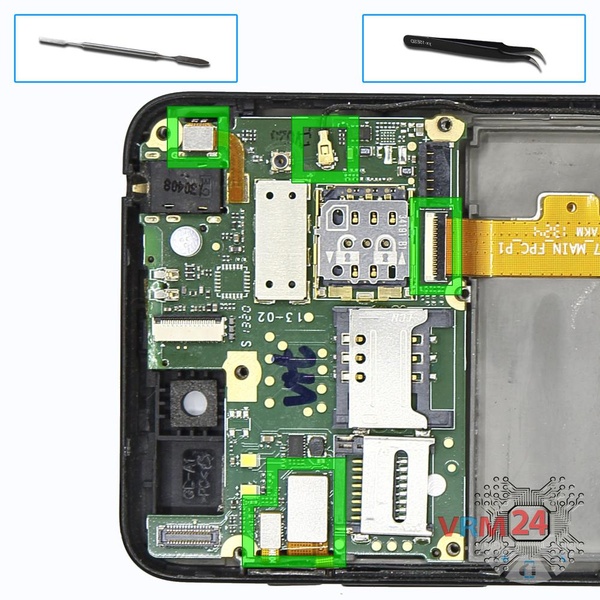

Step 7.

Disconnect connectors on the PCB.

How to disassemble Highscreen Alpha ICE, Step 8/1 How to disassemble Highscreen Alpha ICE, Step 8/2

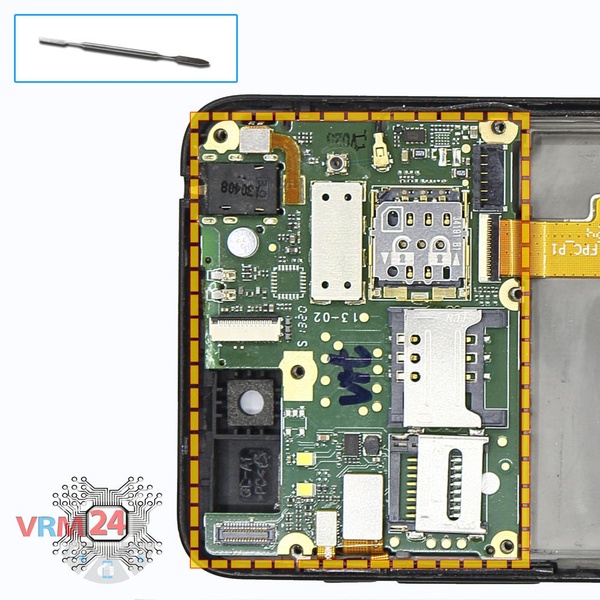

Step 8.

Remove the PCB.

How to disassemble Highscreen Alpha ICE, Step 9/1 How to disassemble Highscreen Alpha ICE, Step 9/2 How to disassemble Highscreen Alpha ICE, Step 9/3

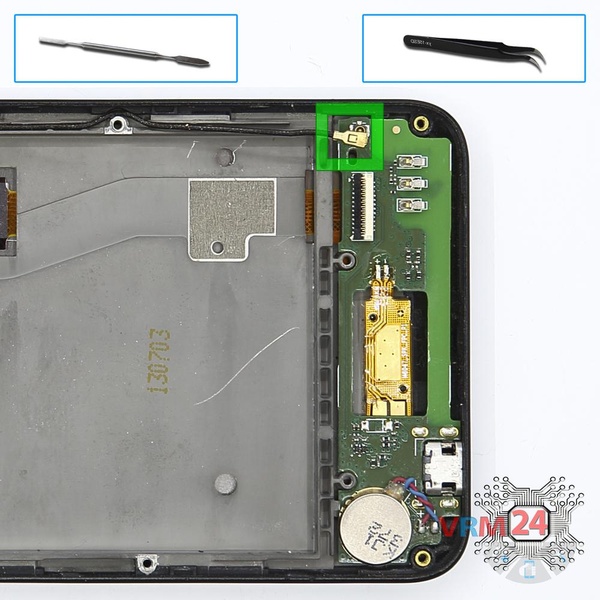

Step 9.

Disconnect the connector of the coaxial cable on the lower PCB and remove it.

How to disassemble Highscreen Alpha ICE, Step 10/1 How to disassemble Highscreen Alpha ICE, Step 10/2 How to disassemble Highscreen Alpha ICE, Step 10/3

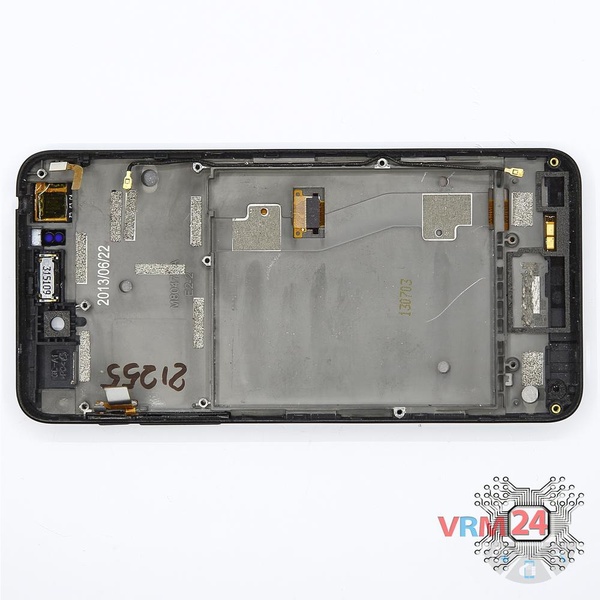

Step 10.

Parts in the frame of the display module.

Detailed disassembly instructions of Highscreen Alpha ICE in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

#instructions #Highscreen #Highscreen Alpha ICE
Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer

Disassembling\Repair has easy complexity and takes about 4 minutes in time.
Our manual is suitable for all models Highscreen Alpha ICE released for markets in different countries.
