Highscreen Easy XL Pro
Highscreen Easy XL Pro
Teardown difficulty:
Easy
Duration:
18 min

Recommended tools

Screwdriver Torx Т2 Screwdriver torx т2
Screwdriver Phillips #000 Screwdriver phillips #000
Opening tool / Spudger Opening tool / spudger
Tweezers Tweezers

Disassembly/Repair of the mobile device Highscreen Easy XL Pro with each step description and the required set of tools.

Vadim Popoff

Author / Content specialist with 10+ years of experience

How to disassemble Highscreen Easy XL Pro, Step 1/1 How to disassemble Highscreen Easy XL Pro, Step 1/2

Step 1.

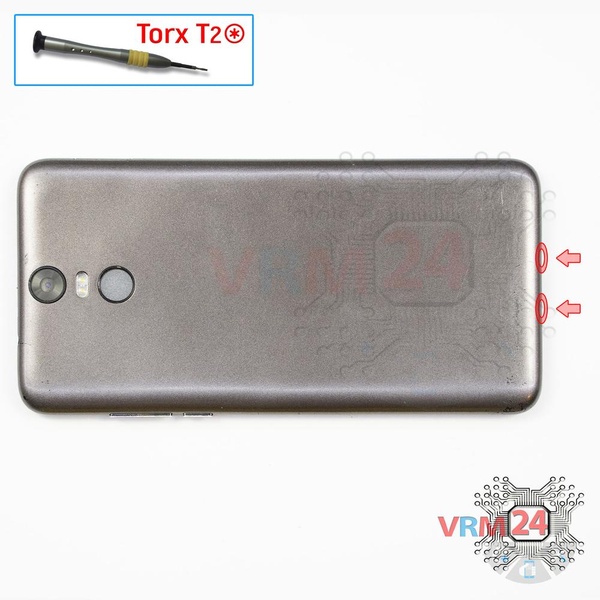

Using a screwdriver (Torx T2), unscrew 2 screws at the end of the phone.
How to disassemble Highscreen Easy XL Pro, Step 2/1 How to disassemble Highscreen Easy XL Pro, Step 2/2

Step 2.

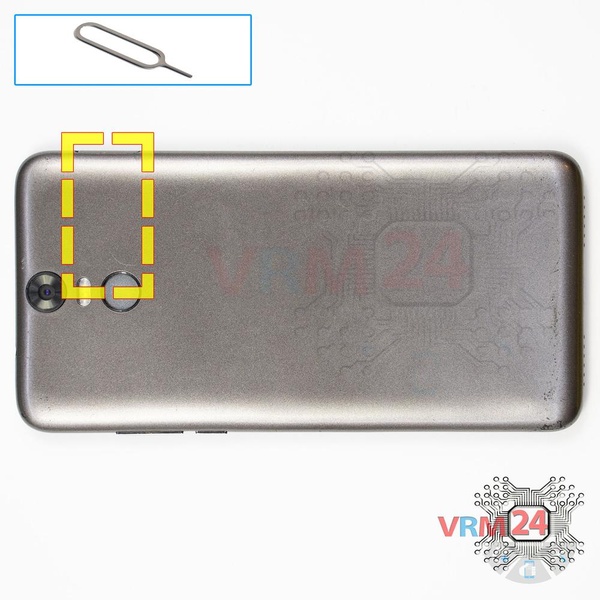

Using the key tool, open the SIM and Micro SD cards tray and remove it.

⚠️ Warning!

Do not push too hard this may cause damage.

How to disassemble Highscreen Easy XL Pro, Step 3/1 How to disassemble Highscreen Easy XL Pro, Step 3/2

Step 3.

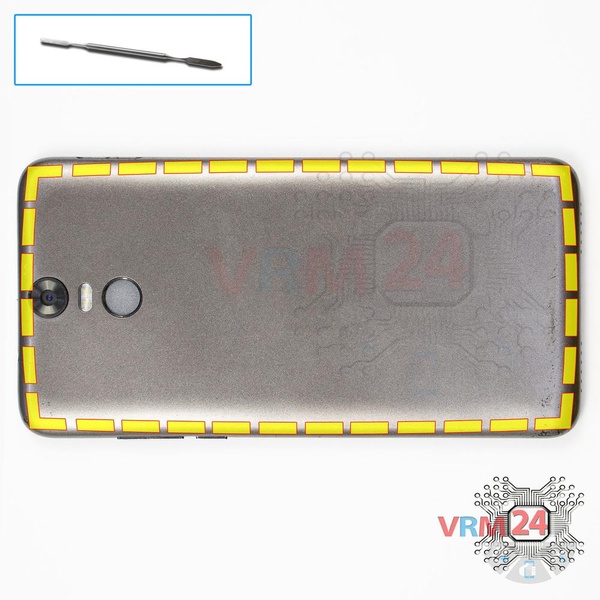

Open the back cover.
How to disassemble Highscreen Easy XL Pro, Step 4/1 How to disassemble Highscreen Easy XL Pro, Step 4/2

Step 4.

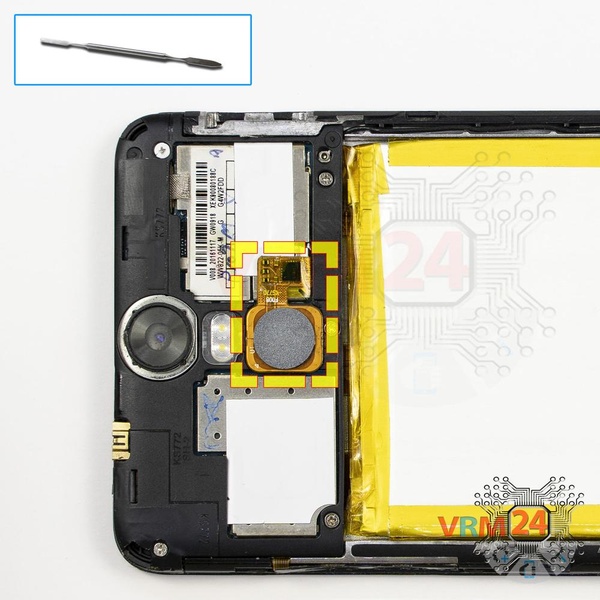

Unstick the fingerprint sensor from the frame, carefully.
How to disassemble Highscreen Easy XL Pro, Step 5/1 How to disassemble Highscreen Easy XL Pro, Step 5/2

Step 5.

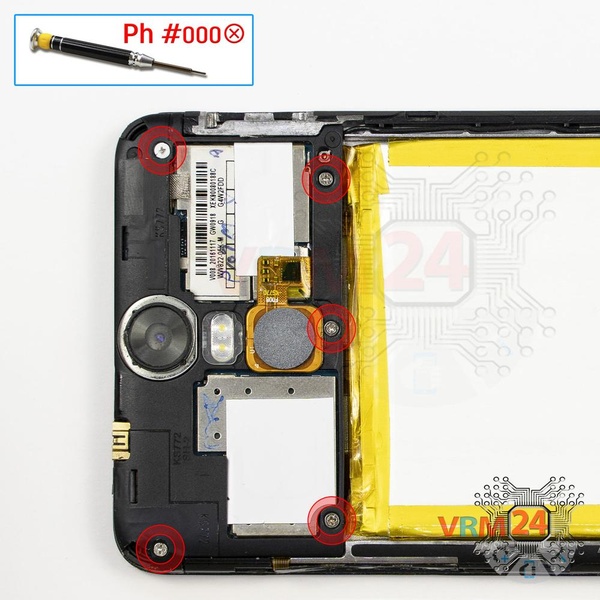

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 5 screws.
How to disassemble Highscreen Easy XL Pro, Step 6/1 How to disassemble Highscreen Easy XL Pro, Step 6/2

Step 6.

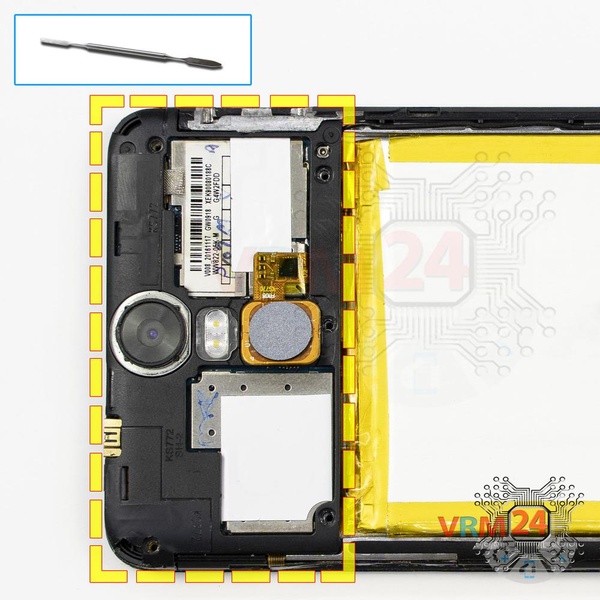

Remove the frame. Do it carefully to avoid damaging the fingerprint sensor.
How to disassemble Highscreen Easy XL Pro, Step 7/1

Step 7.

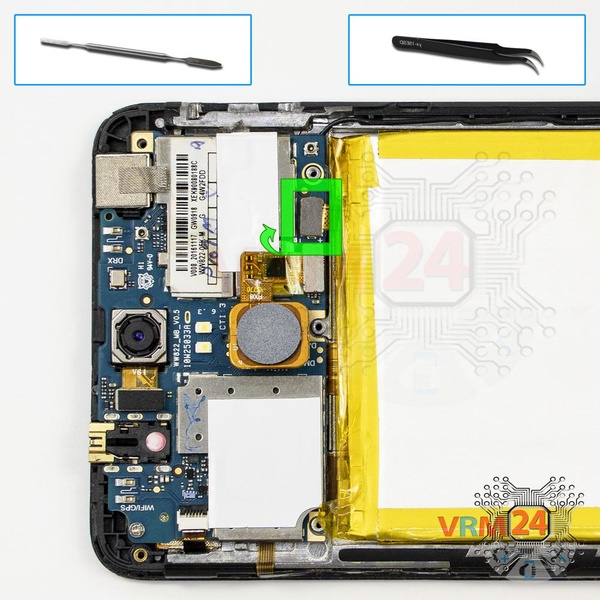

Disconnect the battery connector. The battery model of Highscreen Easy XL Pro is the same as the phone model name.

⚠️ Warning!

We strongly recommend disconnecting the connector to avoid a possible short circuit during disassembly.

How to disassemble Highscreen Easy XL Pro, Step 8/1 How to disassemble Highscreen Easy XL Pro, Step 8/2

Step 8.

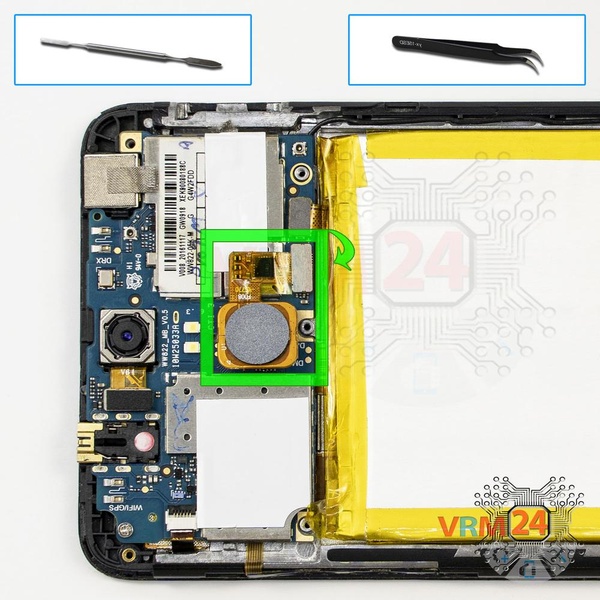

Pry up the connector and remove the fingerprint sensor.
How to disassemble Highscreen Easy XL Pro, Step 9/1 How to disassemble Highscreen Easy XL Pro, Step 9/2

Step 9.

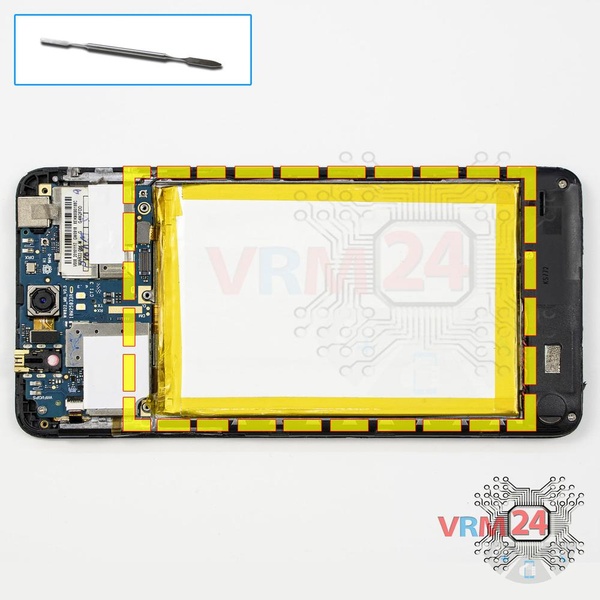

Remove the battery.
How to disassemble Highscreen Easy XL Pro, Step 10/1 How to disassemble Highscreen Easy XL Pro, Step 10/2

Step 10.

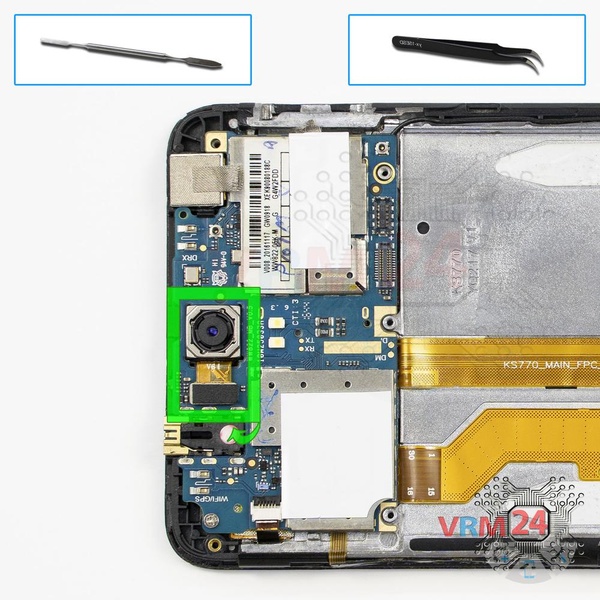

Disconnect the connector on PCB, and remove the main camera.
How to disassemble Highscreen Easy XL Pro, Step 11/1 How to disassemble Highscreen Easy XL Pro, Step 11/2

Step 11.

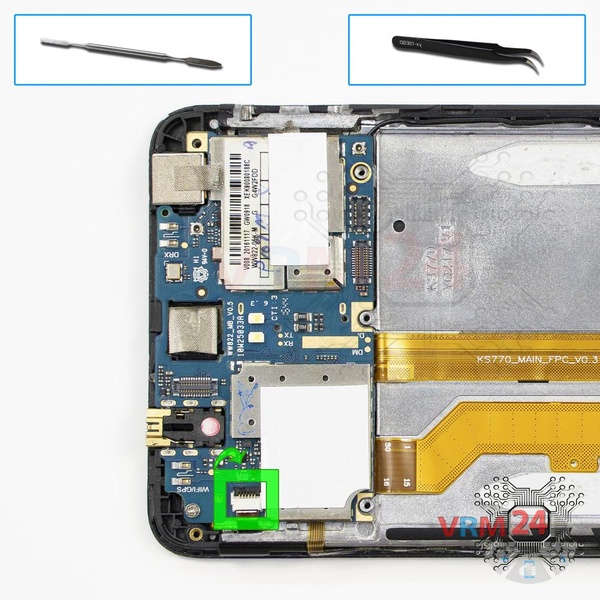

Disconnect the connector.
How to disassemble Highscreen Easy XL Pro, Step 12/1 How to disassemble Highscreen Easy XL Pro, Step 12/2

Step 12.

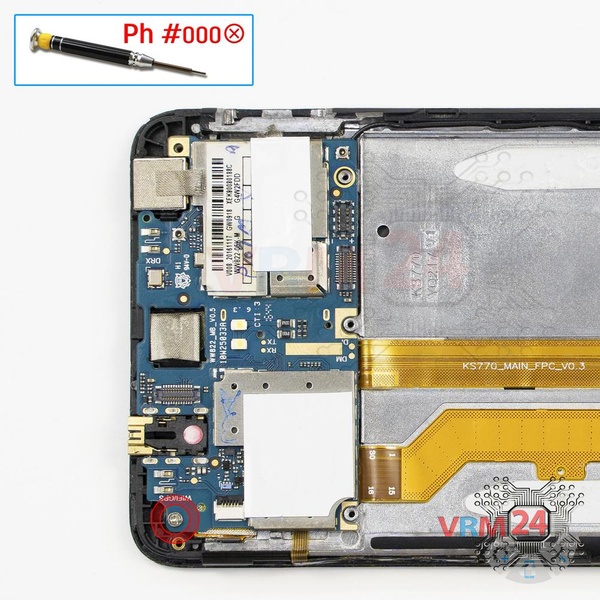

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 1 screw in the PCB.
How to disassemble Highscreen Easy XL Pro, Step 13/1 How to disassemble Highscreen Easy XL Pro, Step 13/2

Step 13.

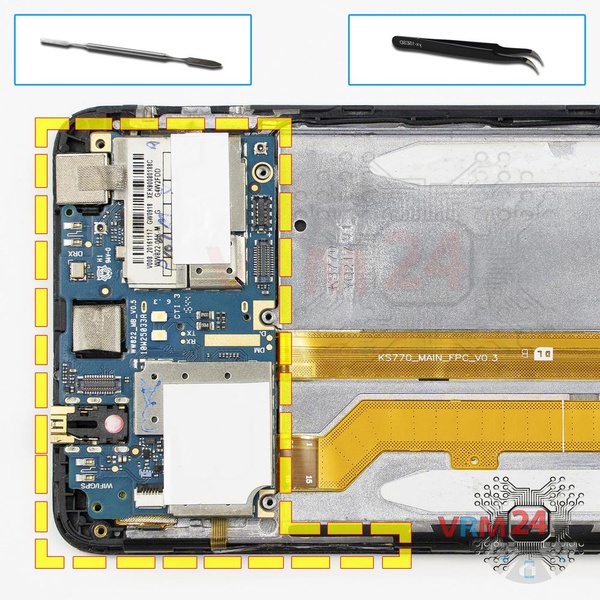

Turn the PCB over.
How to disassemble Highscreen Easy XL Pro, Step 14/1 How to disassemble Highscreen Easy XL Pro, Step 14/2

Step 14.

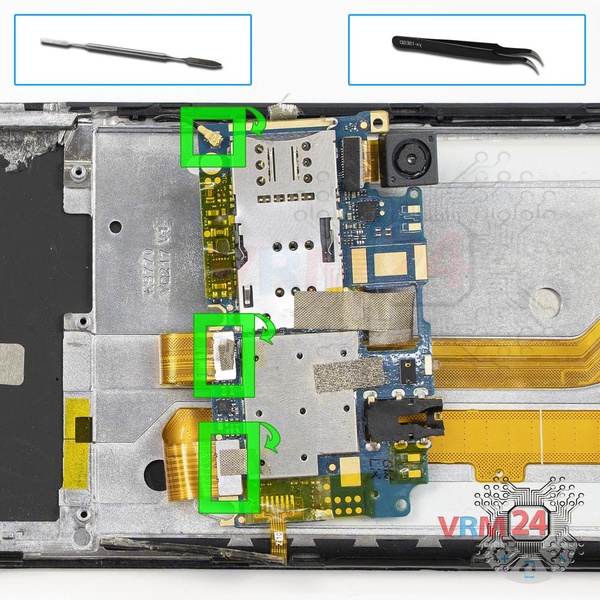

Disconnect connectors on the PCB and remove it.
How to disassemble Highscreen Easy XL Pro, Step 15/1 How to disassemble Highscreen Easy XL Pro, Step 15/2

Step 15.

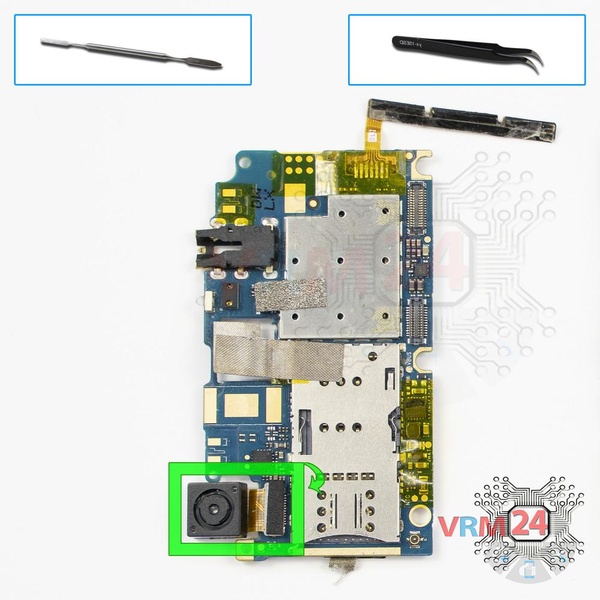

Disconnect the connector on PCB, and remove the front (selfie) camera.
How to disassemble Highscreen Easy XL Pro, Step 16/1 How to disassemble Highscreen Easy XL Pro, Step 16/2

Step 16.

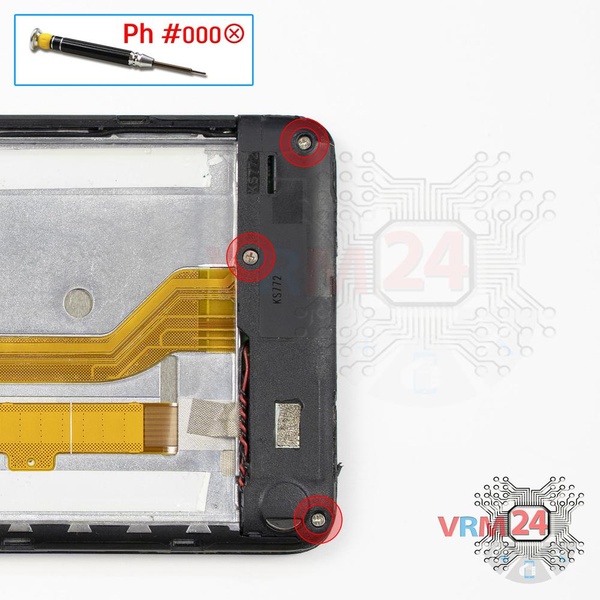

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 3 screws.
How to disassemble Highscreen Easy XL Pro, Step 17/1 How to disassemble Highscreen Easy XL Pro, Step 17/2

Step 17.

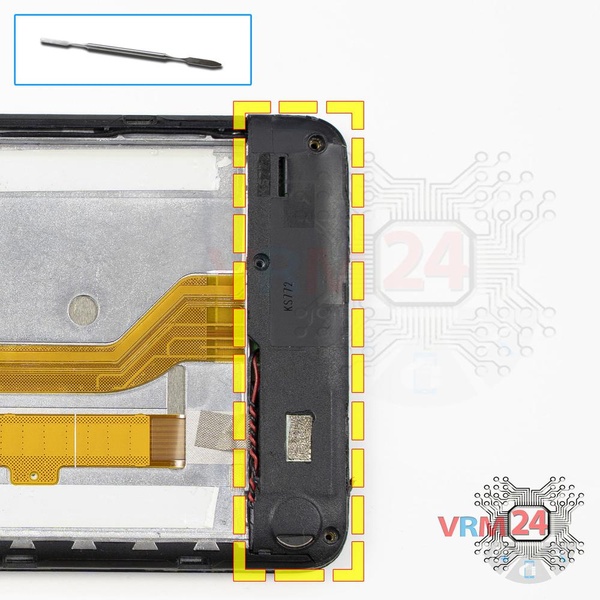

Pry the buzzer (loudspeaker) assembly.

⚠️ Warning!

The loudspeaker connects to the daughterboard with wires.

How to disassemble Highscreen Easy XL Pro, Step 18/1 How to disassemble Highscreen Easy XL Pro, Step 18/2

Step 18.

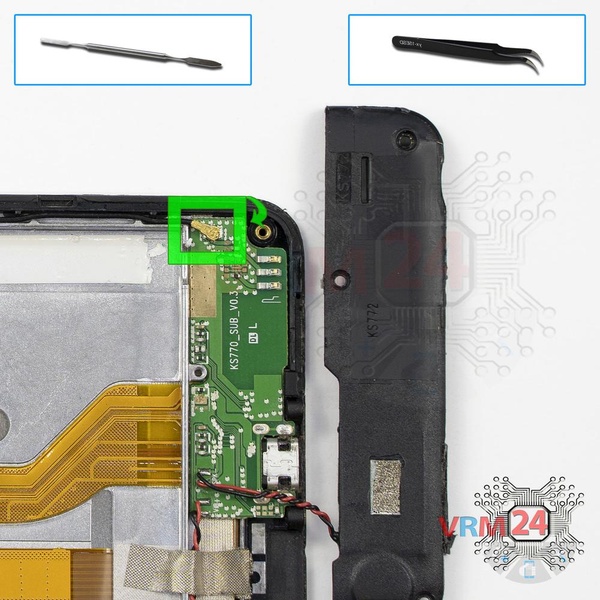

Disconnect the coaxial cable connector.
How to disassemble Highscreen Easy XL Pro, Step 19/1 How to disassemble Highscreen Easy XL Pro, Step 19/2

Step 19.

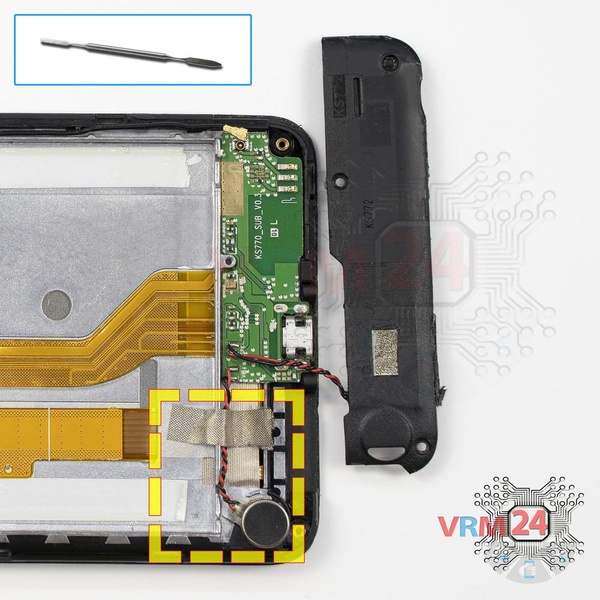

Unstick a vibration motor.
How to disassemble Highscreen Easy XL Pro, Step 20/1 How to disassemble Highscreen Easy XL Pro, Step 20/2

Step 20.

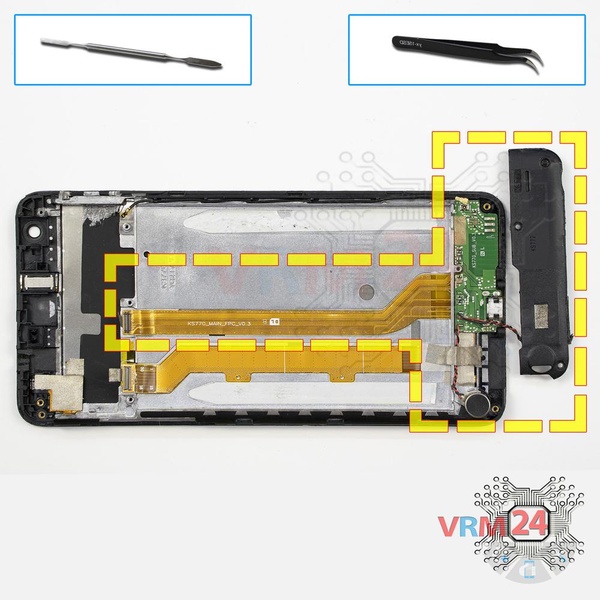

Peel back the inter-board cable and remove the daughterboard with an inter-board cable and a loudspeaker.
How to disassemble Highscreen Easy XL Pro, Step 21/1 How to disassemble Highscreen Easy XL Pro, Step 21/2 How to disassemble Highscreen Easy XL Pro, Step 21/3

Step 21.

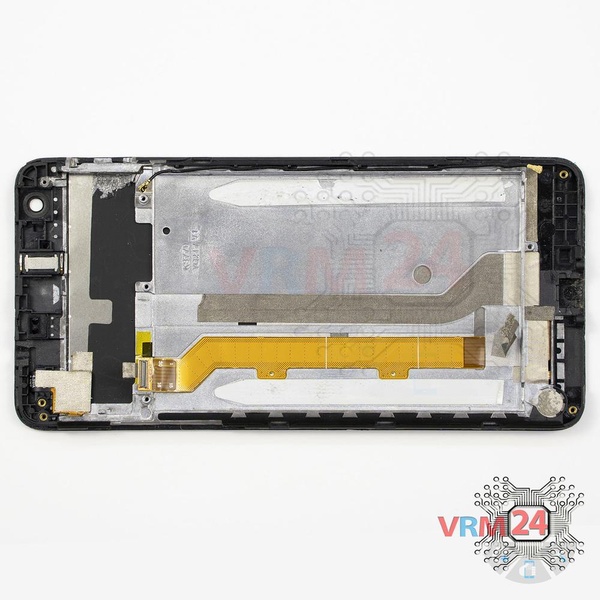

Parts are in the frame of the display module.

Detailed disassembly instructions of Highscreen Easy XL Pro in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

#instructions #Highscreen #Highscreen Easy XL Pro
Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer

Disassembling\Repair has easy complexity and takes about 18 minutes in time.
Our manual is suitable for all models Highscreen Easy XL Pro — released for markets in different countries.
