Recommended tools

Disassembly/Repair of the mobile device Highscreen Power Ice Evo with each step description and the required set of tools.


Author, currently - Quality Assurance Specialist


How to disassemble Highscreen Power Ice Evo, Step 1/1 How to disassemble Highscreen Power Ice Evo, Step 1/2

Step 1.

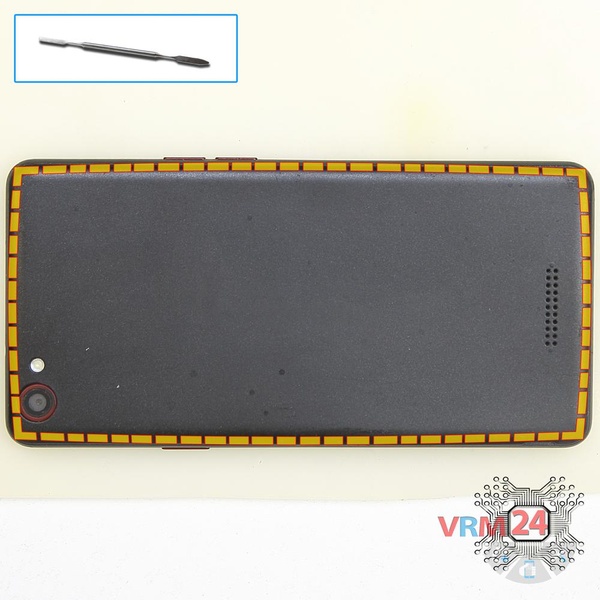

Open the back cover.


How to disassemble Highscreen Power Ice Evo, Step 2/1 How to disassemble Highscreen Power Ice Evo, Step 2/2

Step 2.

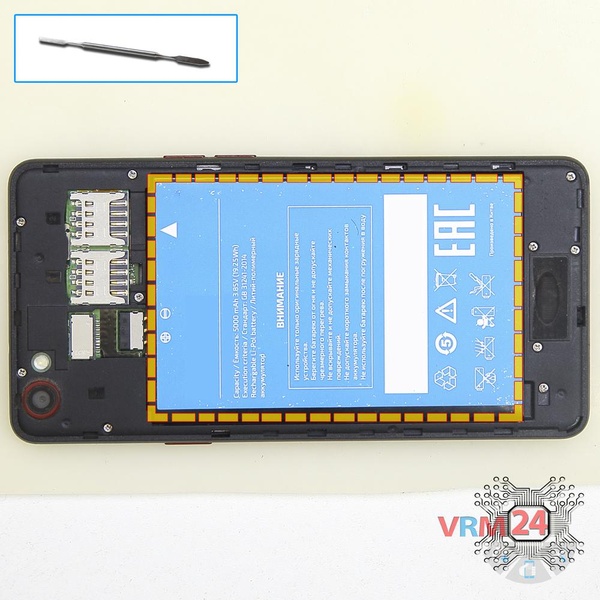

Lift and remove the battery.


How to disassemble Highscreen Power Ice Evo, Step 3/1 How to disassemble Highscreen Power Ice Evo, Step 3/2

Step 3.

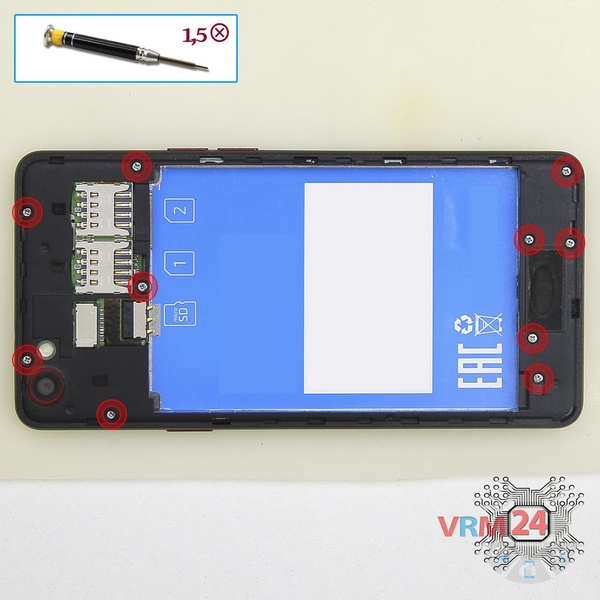

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 10 bolts in the frame of the phone.


How to disassemble Highscreen Power Ice Evo, Step 4/1 How to disassemble Highscreen Power Ice Evo, Step 4/2

Step 4.

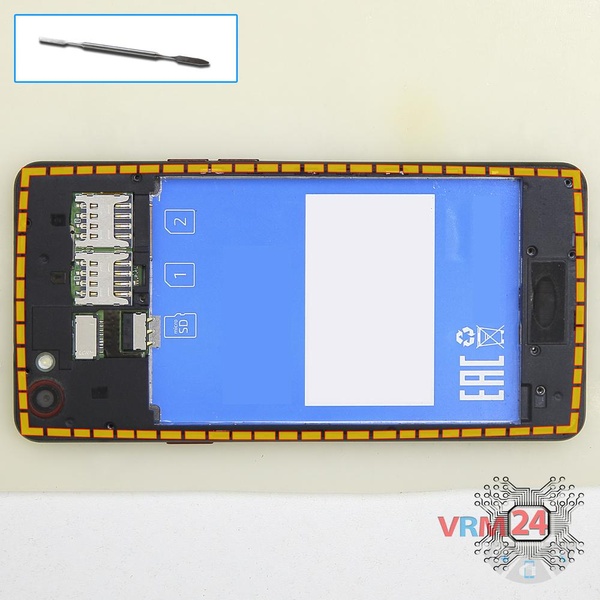

Pry and remove the middle frame.


How to disassemble Highscreen Power Ice Evo, Step 5/1 How to disassemble Highscreen Power Ice Evo, Step 5/2

Step 5.

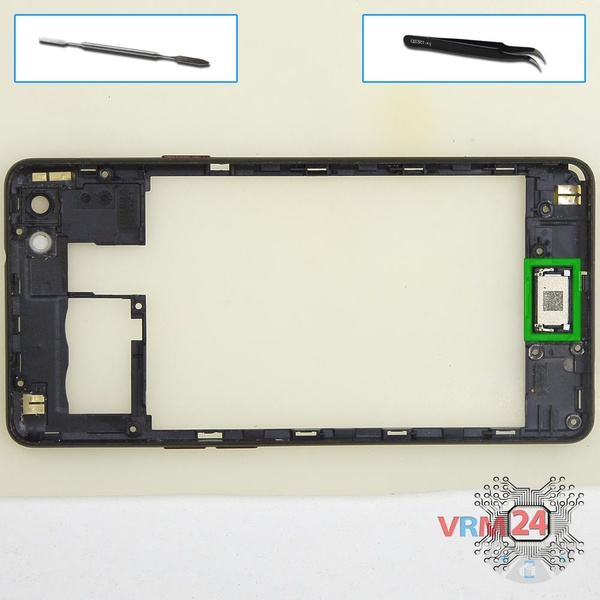

In the middle frame, pry and remove the buzzer (speaker)


How to disassemble Highscreen Power Ice Evo, Step 6/1 How to disassemble Highscreen Power Ice Evo, Step 6/2

Step 6.

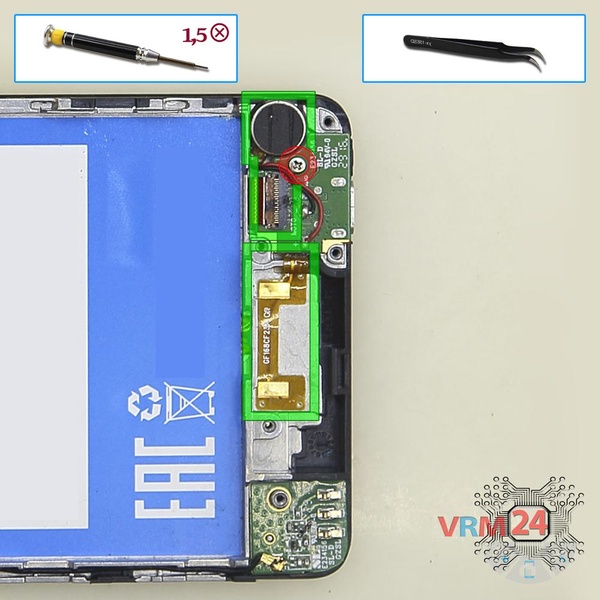

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 1 bolt and disconnect connector of inter-board cable on the lower board and pry up vibration motor.


How to disassemble Highscreen Power Ice Evo, Step 7/1 How to disassemble Highscreen Power Ice Evo, Step 7/2

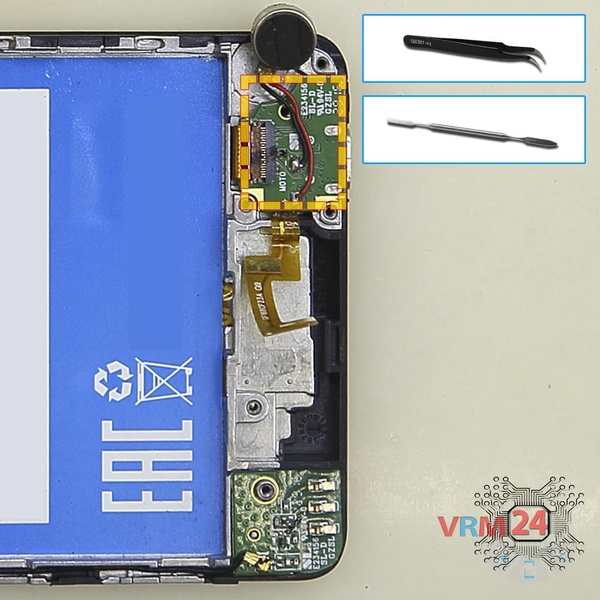

Step 7.

Remove the lower PCB.


How to disassemble Highscreen Power Ice Evo, Step 8/1 How to disassemble Highscreen Power Ice Evo, Step 8/2 How to disassemble Highscreen Power Ice Evo, Step 8/3

Step 8.

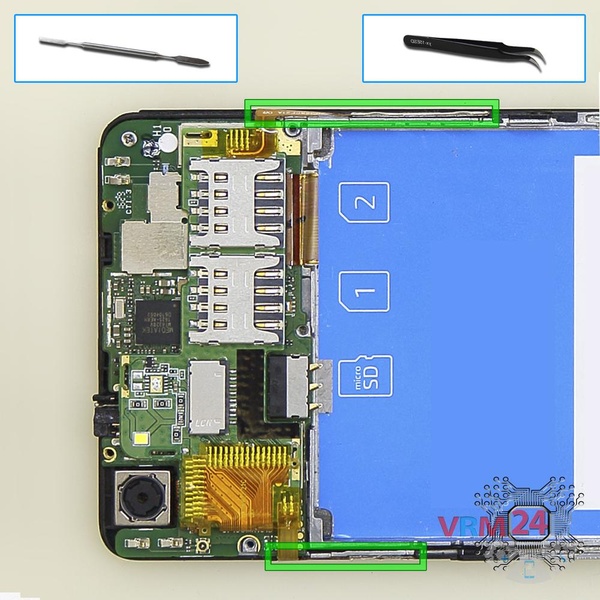

Pry up power & volume button flex cable.


How to disassemble Highscreen Power Ice Evo, Step 9/1 How to disassemble Highscreen Power Ice Evo, Step 9/2 How to disassemble Highscreen Power Ice Evo, Step 9/3

Step 9.

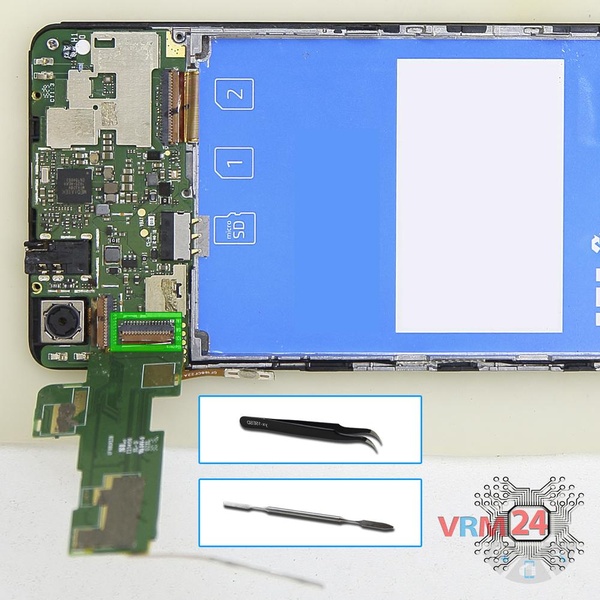

Turn over board with SIM holders and power & volume button flex cable, disconnect the connector from the inside and remove the board.


How to disassemble Highscreen Power Ice Evo, Step 10/1 How to disassemble Highscreen Power Ice Evo, Step 10/2

Step 10.

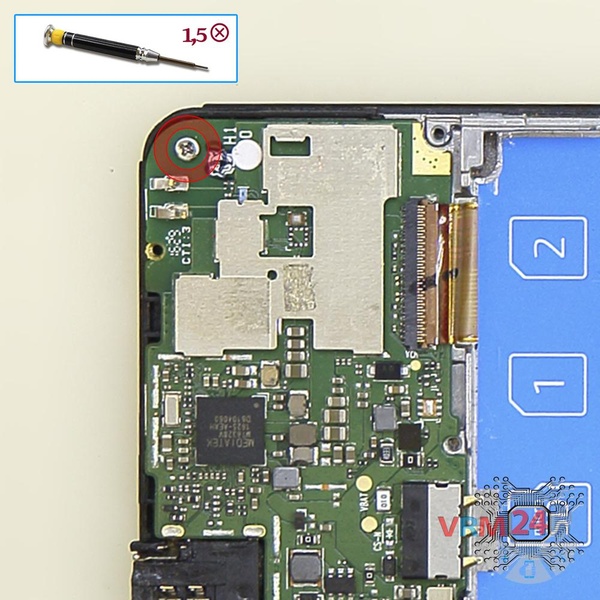

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 1 bolt in the PCB.


How to disassemble Highscreen Power Ice Evo, Step 11/1 How to disassemble Highscreen Power Ice Evo, Step 11/2 How to disassemble Highscreen Power Ice Evo, Step 11/3

Step 11.

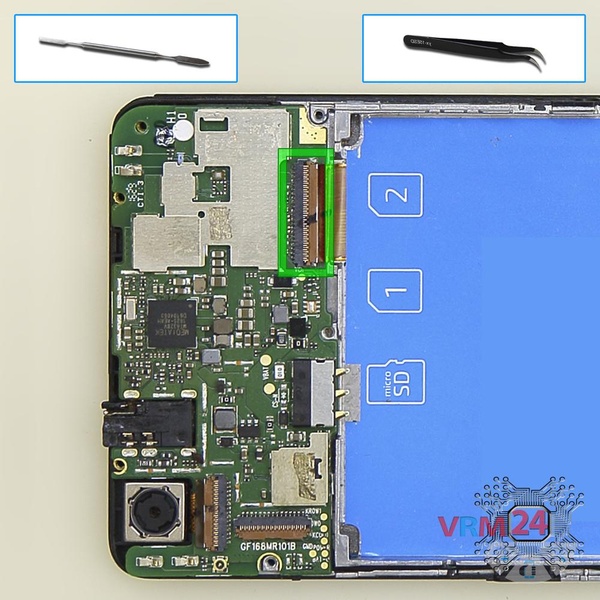

Disconnect connectors on the PCB.


How to disassemble Highscreen Power Ice Evo, Step 12/1 How to disassemble Highscreen Power Ice Evo, Step 12/2

Step 12.

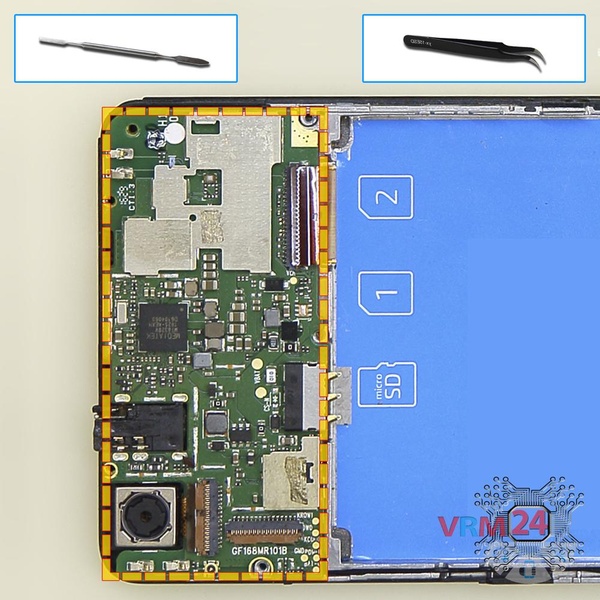

Remove the PCB.


How to disassemble Highscreen Power Ice Evo, Step 13/1 How to disassemble Highscreen Power Ice Evo, Step 13/2

Step 13.

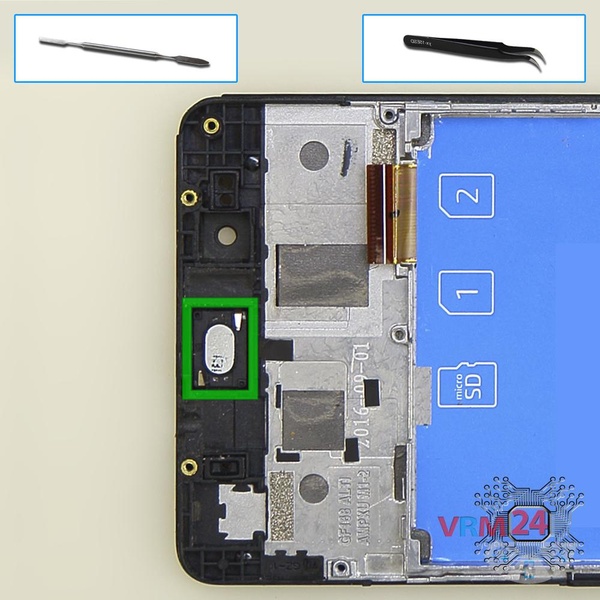

Pry and remove the earpiece (speaker).


How to disassemble Highscreen Power Ice Evo, Step 14/1 How to disassemble Highscreen Power Ice Evo, Step 14/2 How to disassemble Highscreen Power Ice Evo, Step 14/3

Step 14.

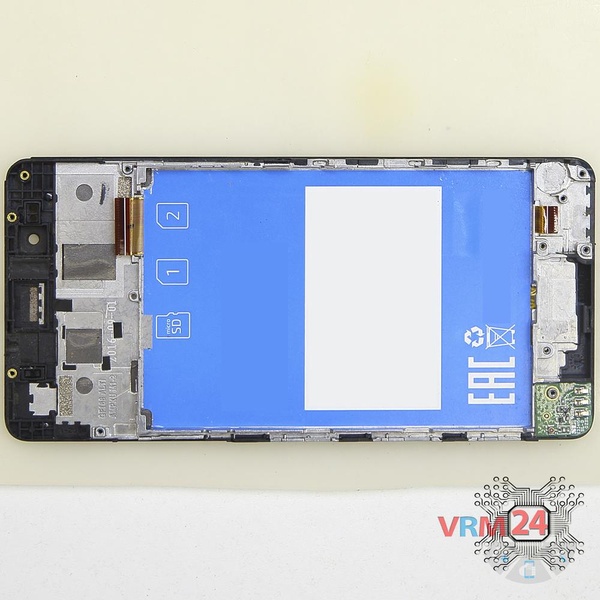

Элементы на рамке модуля.

Detailed disassembly instructions of Highscreen Power Ice Evo in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.


Disassembling\Repair has easy complexity and takes about 8 minutes in time.
Our manual is suitable for all models Highscreen Power Ice Evo released for markets in different countries.
