HTC Desire 816
HTC Desire 816
Teardown difficulty:
Easy
Duration:
8 min

Recommended tools

Screwdriver Phillips #000 Screwdriver phillips #000
Opening tool / Spudger Opening tool / spudger
Tweezers Tweezers

Disassembly/Repair of the mobile device HTC Desire 816 (HTC Desire 816 OPGL200) with each step description and the required set of tools.

Vadim Popoff

Author, currently - Quality Assurance Specialist

How to disassemble HTC Desire 816, Step 1/1 How to disassemble HTC Desire 816, Step 1/2

Step 1.

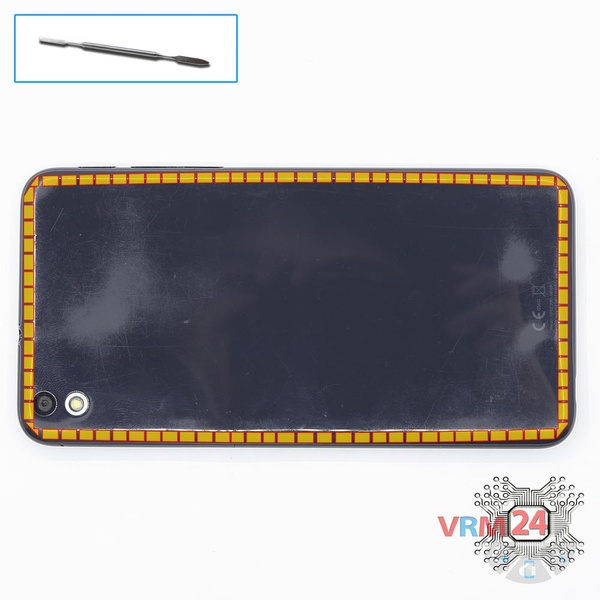

Open the back cover.

How to disassemble HTC Desire 816, Step 2/1 How to disassemble HTC Desire 816, Step 2/2

Step 2.

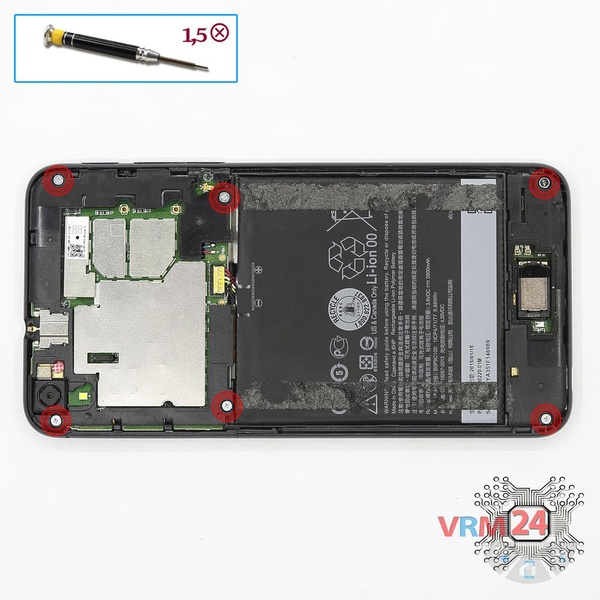

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 6 bolts in the frame of the phone.

How to disassemble HTC Desire 816, Step 3/1 How to disassemble HTC Desire 816, Step 3/2

Step 3.

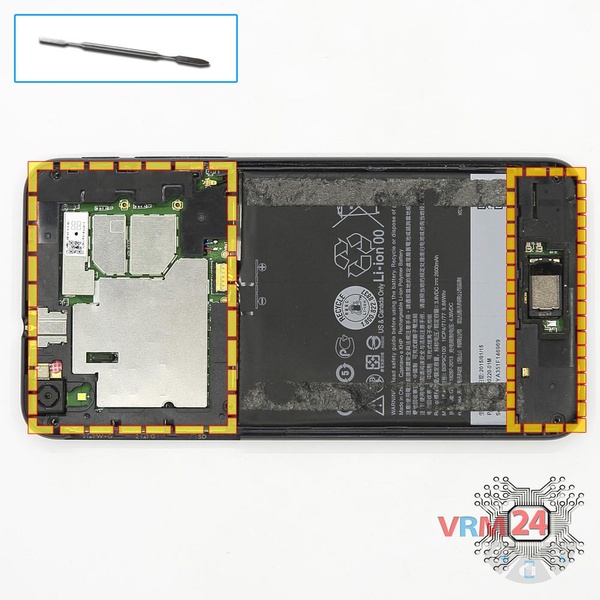

Remove trays cover.

How to disassemble HTC Desire 816, Step 4/1 How to disassemble HTC Desire 816, Step 4/2

Step 4.

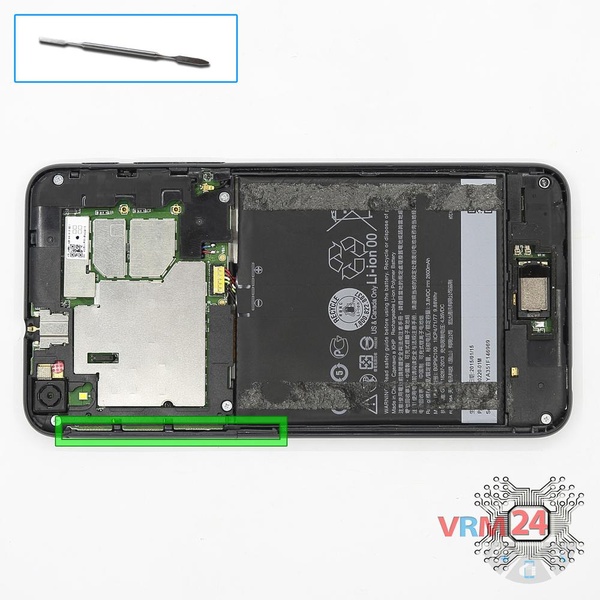

Remove the frames.

How to disassemble HTC Desire 816, Step 5/1 How to disassemble HTC Desire 816, Step 5/2

Step 5.

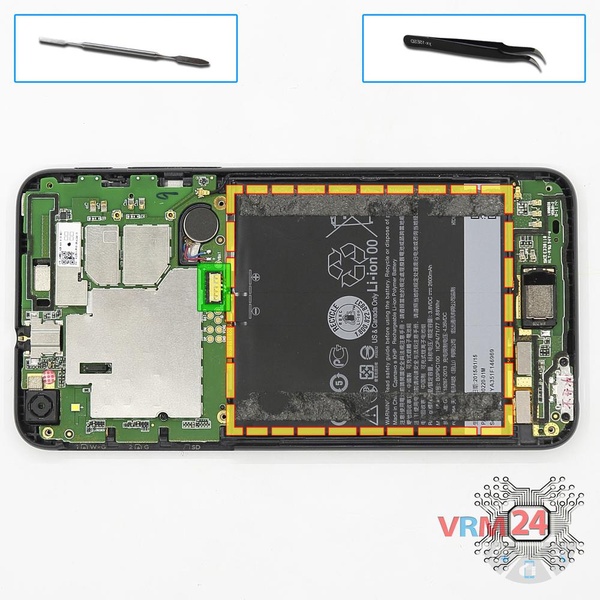

Disconnect connector on the PCB and remove the battery.

How to disassemble HTC Desire 816, Step 6/1 How to disassemble HTC Desire 816, Step 6/2

Step 6.

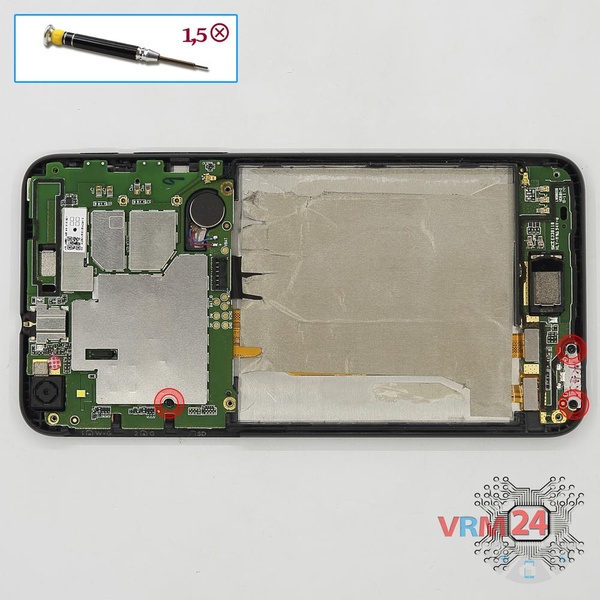

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 1 bolt in the main PCB and 2 in the lower board securing the charging port.

How to disassemble HTC Desire 816, Step 7/1 How to disassemble HTC Desire 816, Step 7/2 How to disassemble HTC Desire 816, Step 7/3 How to disassemble HTC Desire 816, Step 7/4 How to disassemble HTC Desire 816, Step 7/5

Step 7.

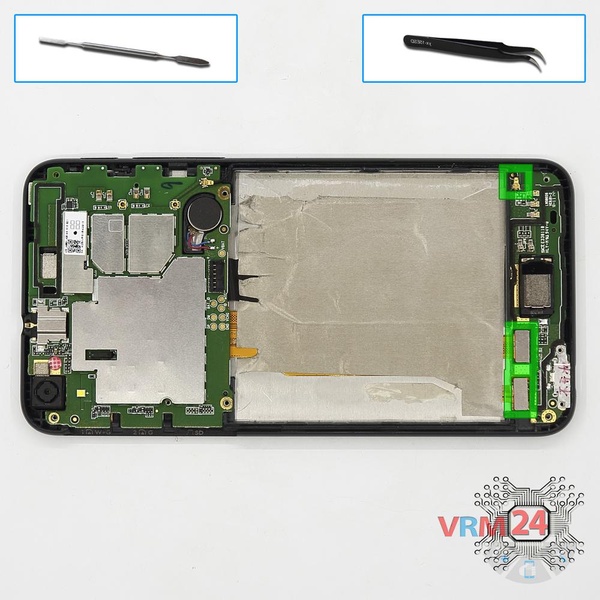

Disconnect connectors on the lower PCB and remove it.

How to disassemble HTC Desire 816, Step 8/1 How to disassemble HTC Desire 816, Step 8/2

Step 8.

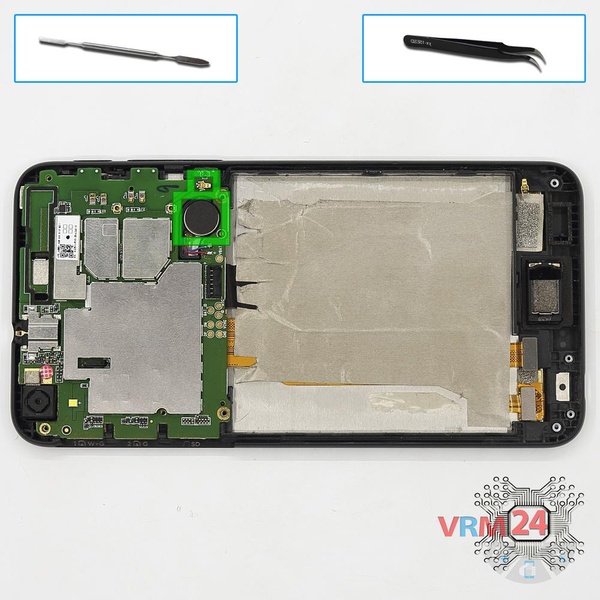

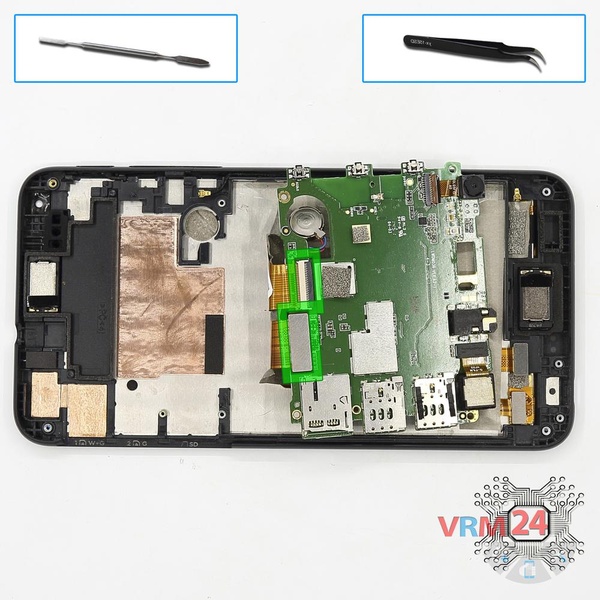

Disconnect the connector of the coaxial cable and turn over the PCB.

How to disassemble HTC Desire 816, Step 9/1 How to disassemble HTC Desire 816, Step 9/2 How to disassemble HTC Desire 816, Step 9/3

Step 9.

Disconnect connectors on the PCB and remove it.

How to disassemble HTC Desire 816, Step 10/1 How to disassemble HTC Desire 816, Step 10/2 How to disassemble HTC Desire 816, Step 10/3

Step 10.

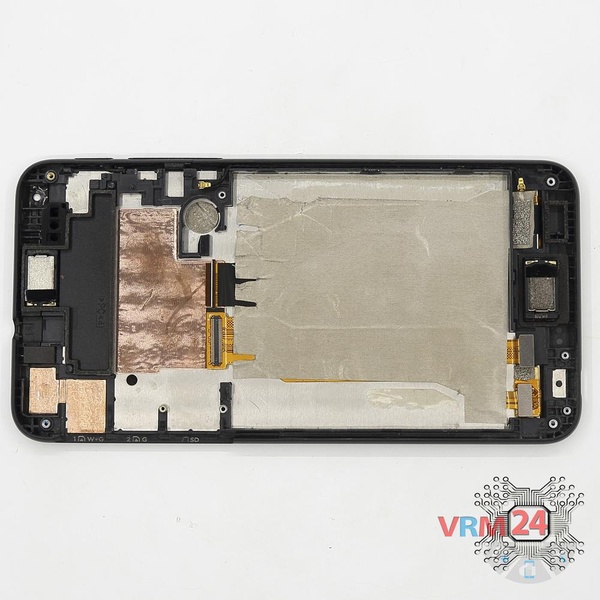

Parts in the frame of the display module.

Detailed disassembly instructions of HTC Desire 816 in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

#instructions #HTC #HTC Desire 816
Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer

Disassembling\Repair has easy complexity and takes about 8 minutes in time.
Our manual is suitable for all models HTC Desire 816 — HTC Desire 816 OPGL200 released for markets in different countries.
