Huawei Honor Play
Huawei Honor Play
Teardown difficulty:
Easy
Duration:
10 min

Recommended tools

Screwdriver Five-point P0.8 mm Screwdriver five-point p0.8 mm
Screwdriver Phillips #000 Screwdriver phillips #000
Opening tool / Spudger Opening tool / spudger
Tweezers Tweezers

Disassembly/Repair of the mobile device Huawei Honor Play (Huawei Honor Play COR-AL00 (China); COR-AL10 (India); COR-L29, COR-L09 (Global)) with each step description and the required set of tools.

Vadim Popoff

Specialist in content creation, distribution and content management.

How to disassemble Huawei Honor Play, Step 1/1 How to disassemble Huawei Honor Play, Step 1/2

Step 1.

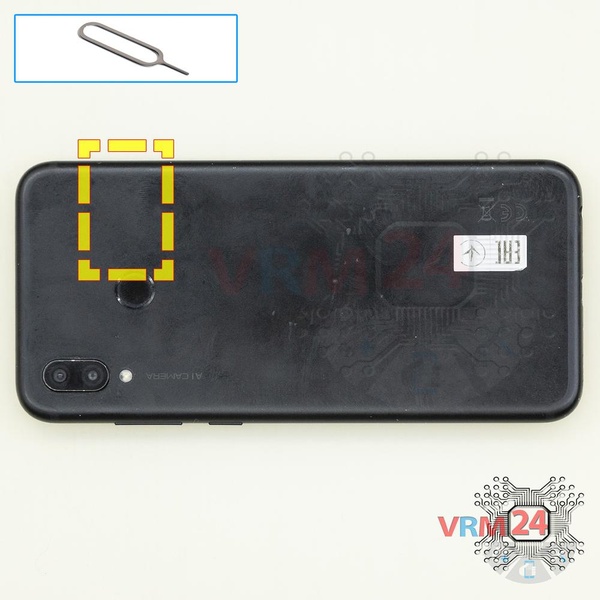

Using the key tool, open the SIM and Micro SD cards tray and remove it.

⚠️ Warning!

Do not push too hard this may cause damage.

How to disassemble Huawei Honor Play, Step 2/1 How to disassemble Huawei Honor Play, Step 2/2

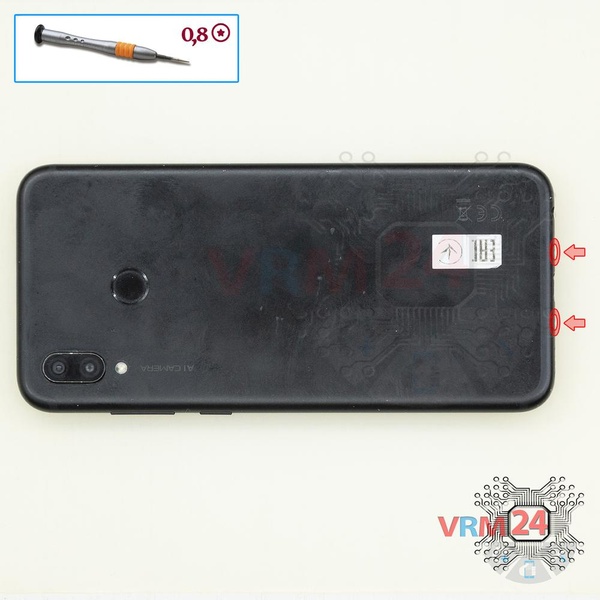

Step 2.

Using a screwdriver (Star Shape 0.8mm Pentalobe), unscrew 2 screws at the end of the phone.

How to disassemble Huawei Honor Play, Step 3/1 How to disassemble Huawei Honor Play, Step 3/2

Step 3.

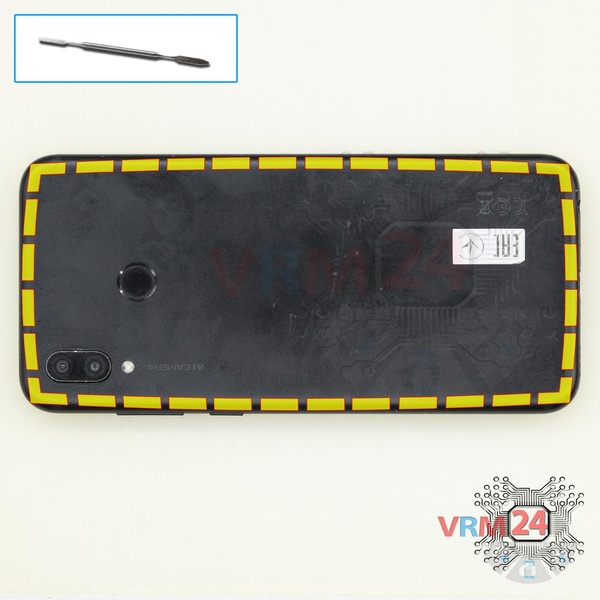

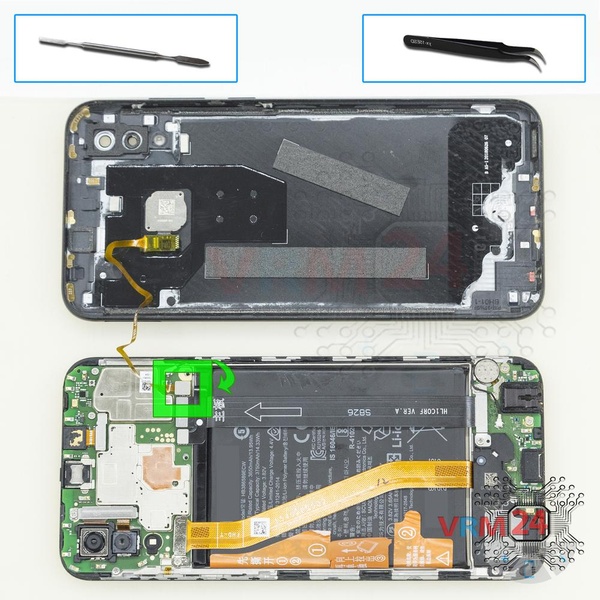

Open the back cover and turn it over.

How to disassemble Huawei Honor Play, Step 4/1 How to disassemble Huawei Honor Play, Step 4/2

Step 4.

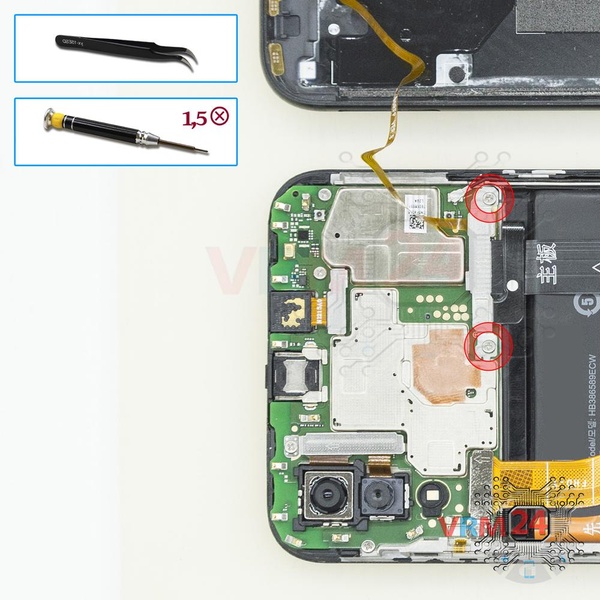

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 2 screws and remove the bracket holding the connectors.

How to disassemble Huawei Honor Play, Step 5/1 How to disassemble Huawei Honor Play, Step 5/2

Step 5.

Pry up the fingerprint sensor connector and remove the cover.

How to disassemble Huawei Honor Play, Step 6/1 How to disassemble Huawei Honor Play, Step 6/2

Step 6.

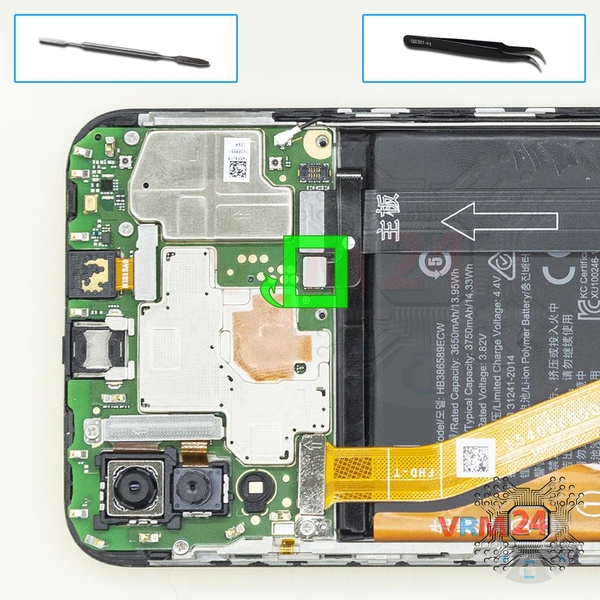

Disconnect the battery connector. The battery model of Huawei Honor Play is HB386589ECW.

⚠️ Warning!

We strongly recommend disconnecting the connector to avoid a possible short circuit during disassembly.

How to disassemble Huawei Honor Play, Step 7/1 How to disassemble Huawei Honor Play, Step 7/2

Step 7.

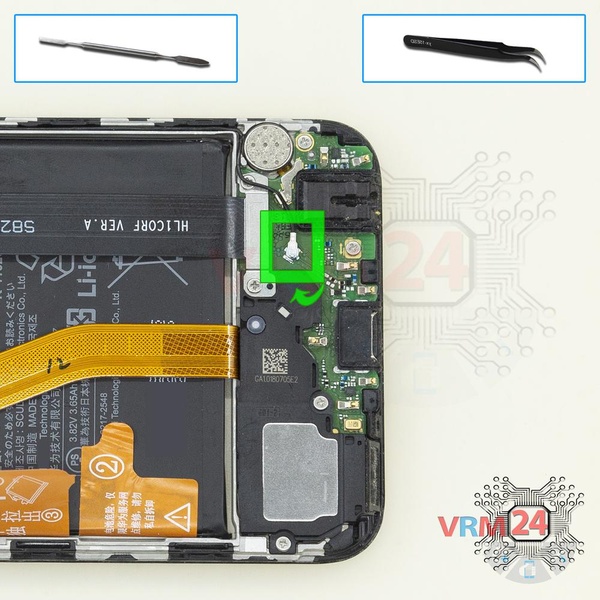

Disconnect the coaxial cable connector.

How to disassemble Huawei Honor Play, Step 8/1 How to disassemble Huawei Honor Play, Step 8/2

Step 8.

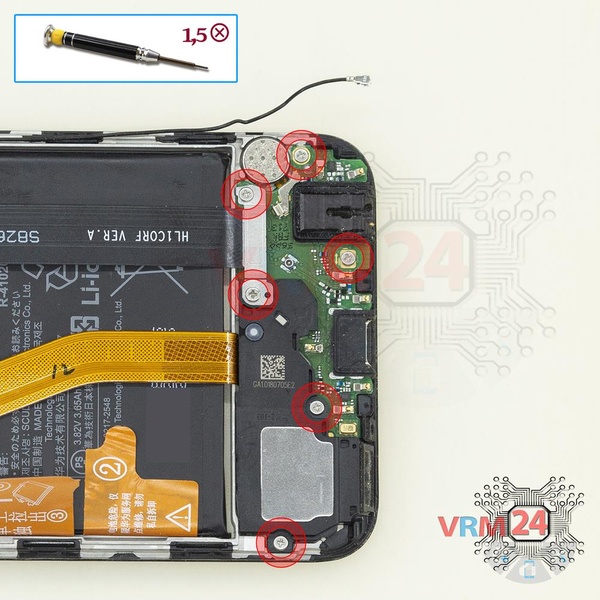

Using a screwdriver (Torx T5), unscrew 6 screws.

How to disassemble Huawei Honor Play, Step 9/1 How to disassemble Huawei Honor Play, Step 9/2

Step 9.

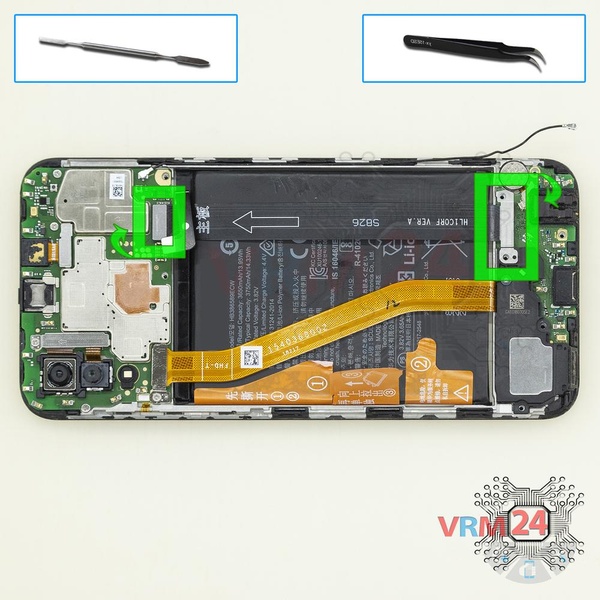

Disconnect connectors and remove the inter-board cable.

How to disassemble Huawei Honor Play, Step 10/1 How to disassemble Huawei Honor Play, Step 10/2

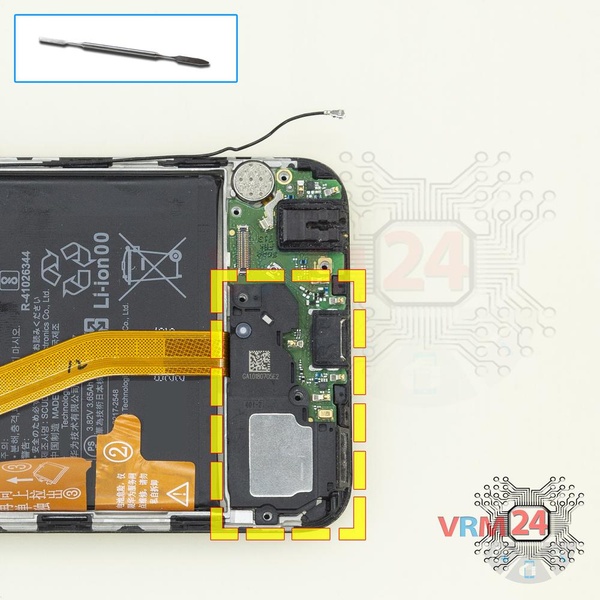

Step 10.

Pry and remove the buzzer (loudspeaker) assembly.

How to disassemble Huawei Honor Play, Step 11/1 How to disassemble Huawei Honor Play, Step 11/2

Step 11.

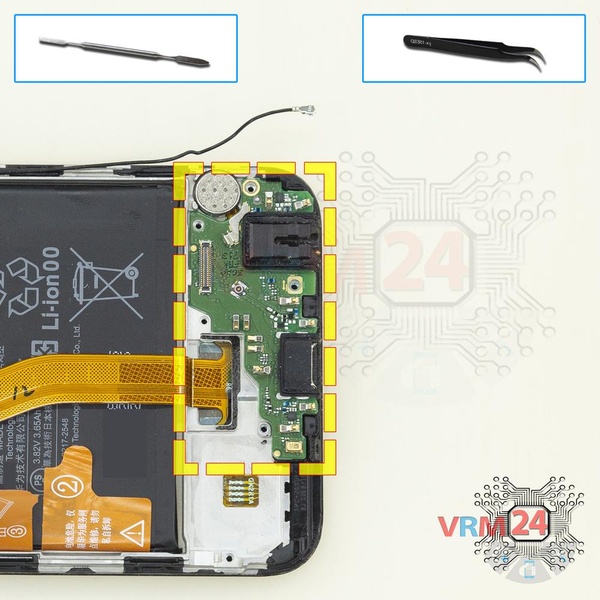

Remove the daughterboard, also known as sub-board.

How to disassemble Huawei Honor Play, Step 12/1 How to disassemble Huawei Honor Play, Step 12/2

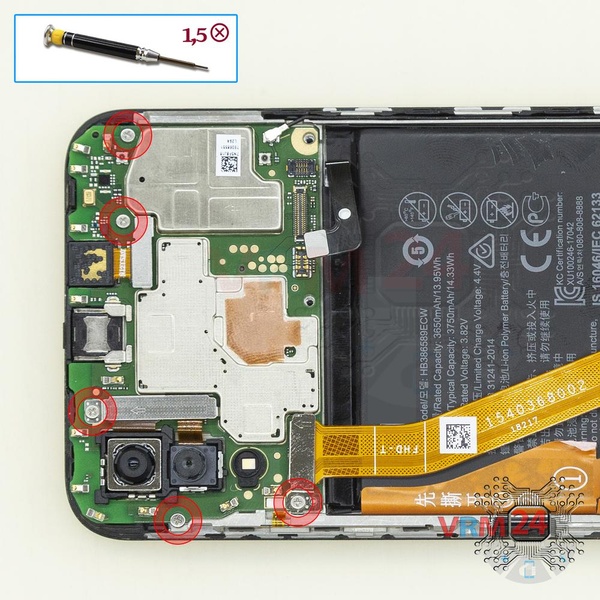

Step 12.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 5 screws in the PCB.

How to disassemble Huawei Honor Play, Step 13/1 How to disassemble Huawei Honor Play, Step 13/2

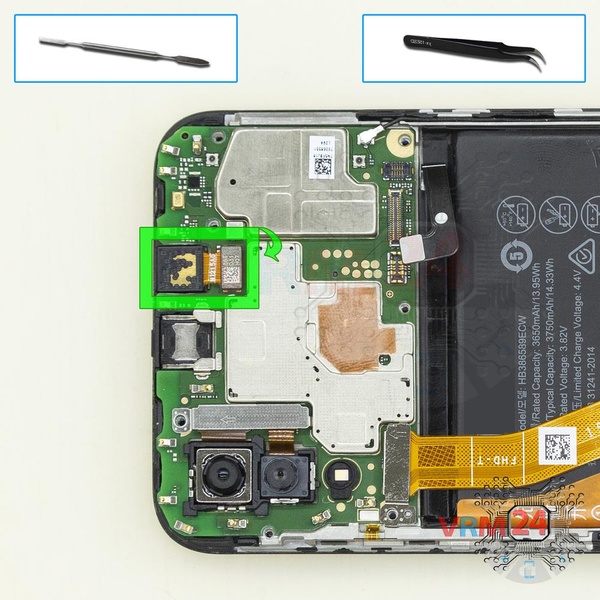

Step 13.

Disconnect the connector on PCB, and remove the front (selfie) camera.

How to disassemble Huawei Honor Play, Step 14/1 How to disassemble Huawei Honor Play, Step 14/2

Step 14.

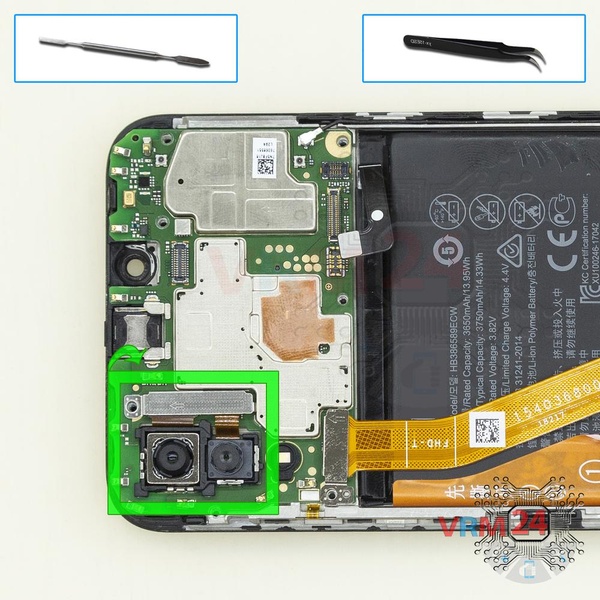

Disconnect the connectors on PCB, and remove the two rear cameras assembly.

How to disassemble Huawei Honor Play, Step 15/1

Step 15.

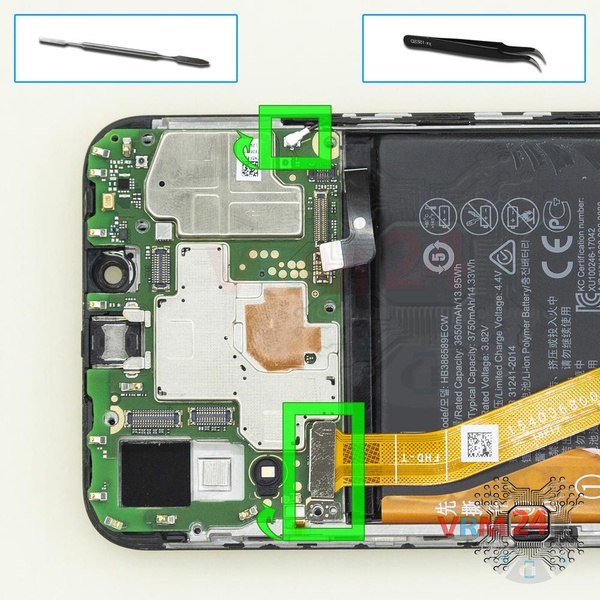

Disconnect connectors on the PCB.

How to disassemble Huawei Honor Play, Step 16/1 How to disassemble Huawei Honor Play, Step 16/2

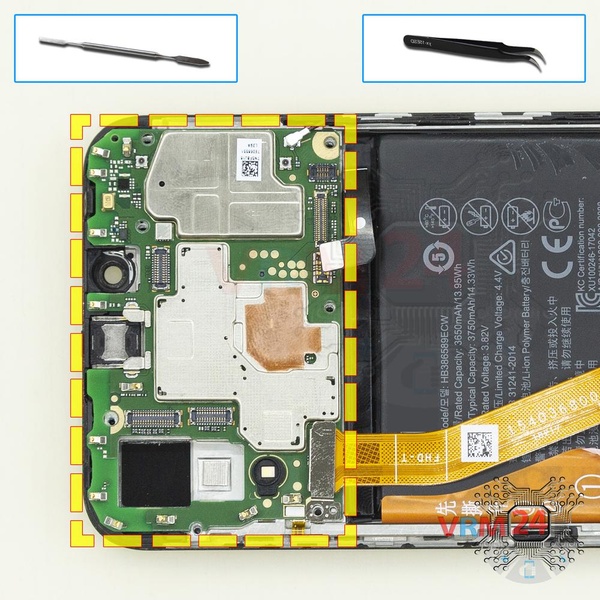

Step 16.

Remove the PCB.

How to disassemble Huawei Honor Play, Step 17/1 How to disassemble Huawei Honor Play, Step 17/2 How to disassemble Huawei Honor Play, Step 17/3

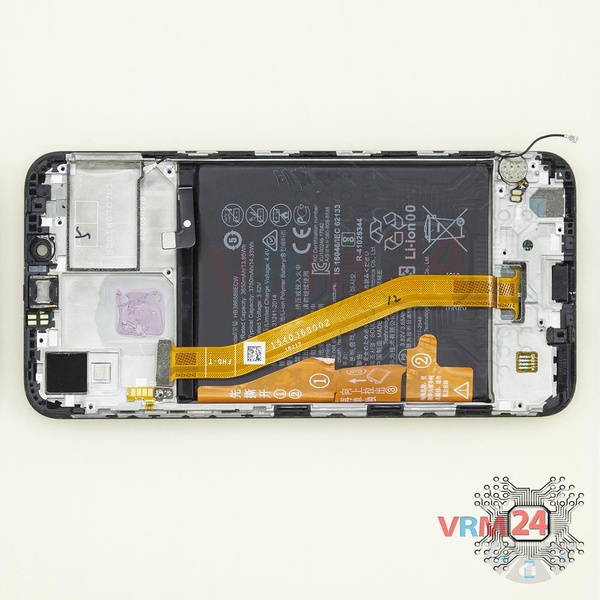

Step 17.

Parts are in the frame of the display module.

Detailed disassembly instructions of Huawei Honor Play in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

#instructions #Huawei #Huawei Honor Play
Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer

Disassembling\Repair has easy complexity and takes about 10 minutes in time.
Our manual is suitable for all models Huawei Honor Play — Huawei Honor Play COR-AL00 (China); COR-AL10 (India); COR-L29, COR-L09 (Global) released for markets in different countries.
