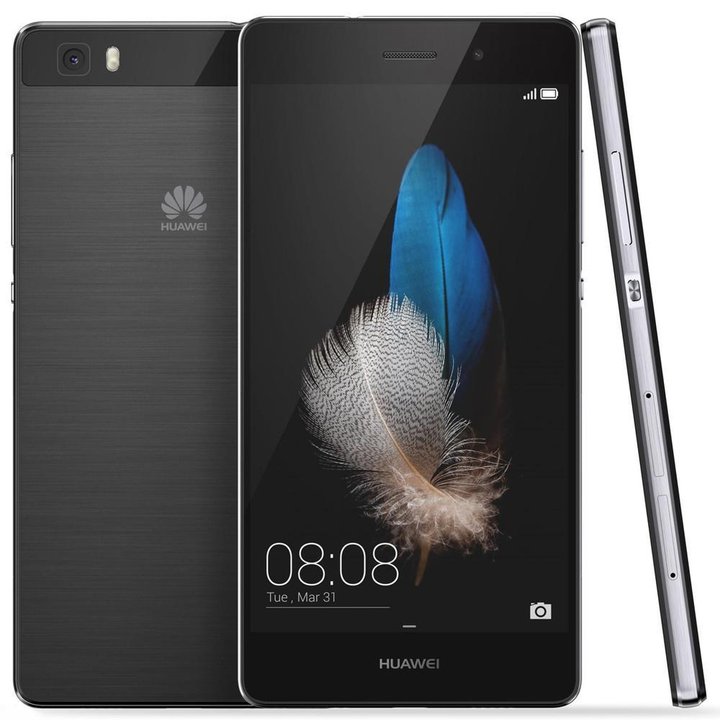

Huawei P8 Lite
Huawei P8 Lite
Teardown difficulty:
Moderate
Duration:
9 min

Recommended tools

Heat gun Heat gun
Screwdriver Torx T5 Screwdriver torx t5
Screwdriver Phillips #000 Screwdriver phillips #000
Opening tool / Spudger Opening tool / spudger
Tweezers Tweezers

Disassembly/Repair of the mobile device Huawei P8 Lite (Huawei P8 Lite ALE-L21, PRA-LA1) with each step description and the required set of tools.

Vadim Popoff

Author / Content specialist with 10+ years of experience

How to disassemble Huawei P8 Lite, Step 1/1 How to disassemble Huawei P8 Lite, Step 1/2

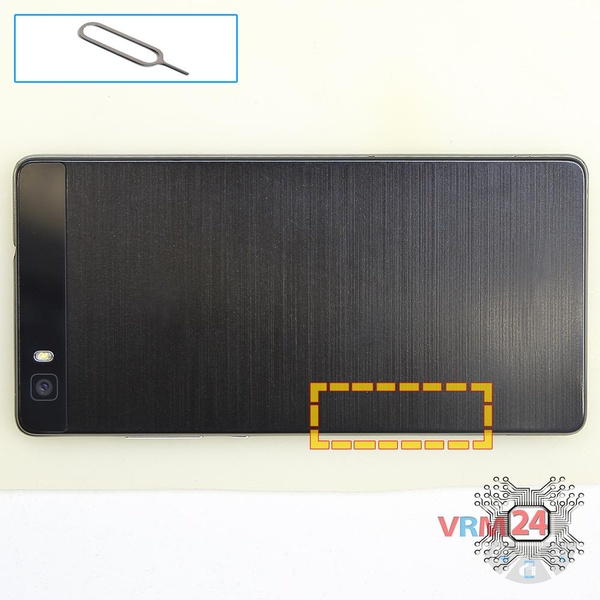

Step 1.

Using the key tool, open the SIM card and MMC card trays and remove them.

⚠️ Warning!

Do not push too hard this may cause damage.

How to disassemble Huawei P8 Lite, Step 2/1 How to disassemble Huawei P8 Lite, Step 2/2

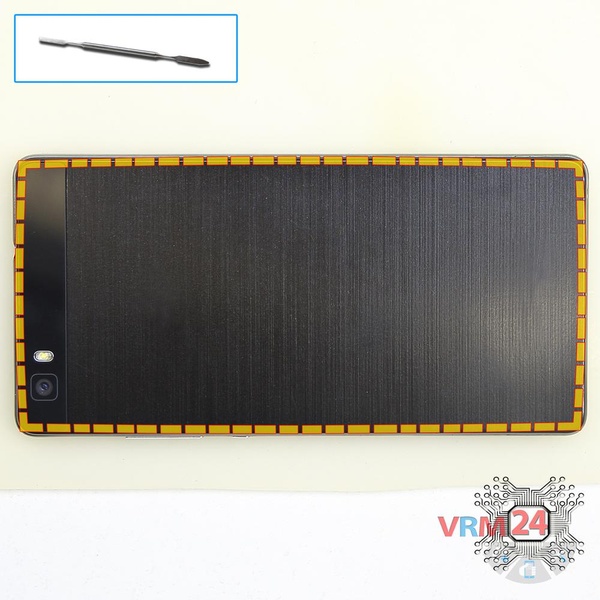

Step 2.

Open the back cover.

How to disassemble Huawei P8 Lite, Step 3/1 How to disassemble Huawei P8 Lite, Step 3/2

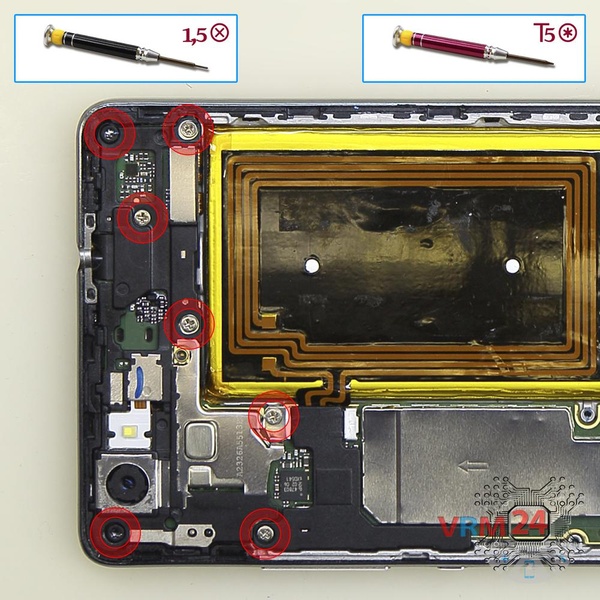

Step 3.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 6 bolts and a screwdriver (hex T5), unscrew 4 bolts in the frame of the phone.

How to disassemble Huawei P8 Lite, Step 4/1 How to disassemble Huawei P8 Lite, Step 4/2

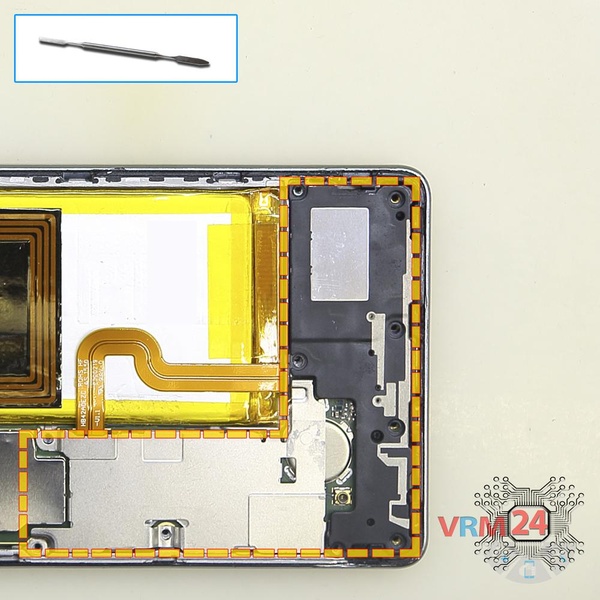

Step 4.

Pry and remove the buzzer (speaker) assembly and cover hiding microchips and connectors.

How to disassemble Huawei P8 Lite, Step 5/1 How to disassemble Huawei P8 Lite, Step 5/2 How to disassemble Huawei P8 Lite, Step 5/3

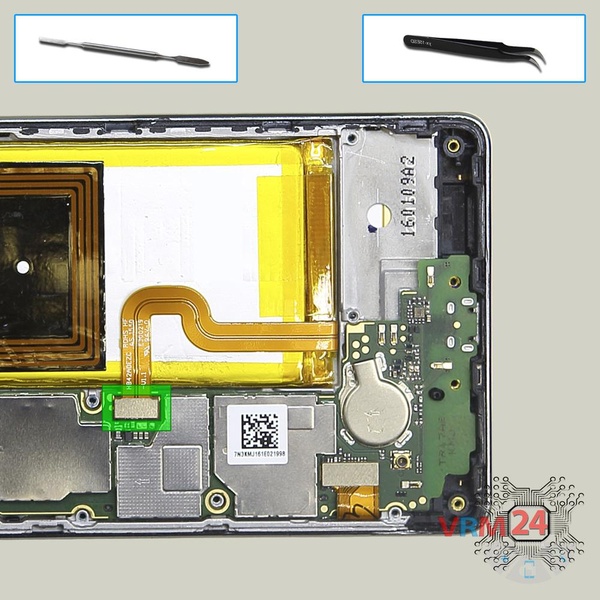

Step 5.

Disconnect the battery connector.

⚠️ Warning!

We strongly recommend disconnecting the connector to avoid a possible short circuit during disassembly.

How to disassemble Huawei P8 Lite, Step 6/1 How to disassemble Huawei P8 Lite, Step 6/2

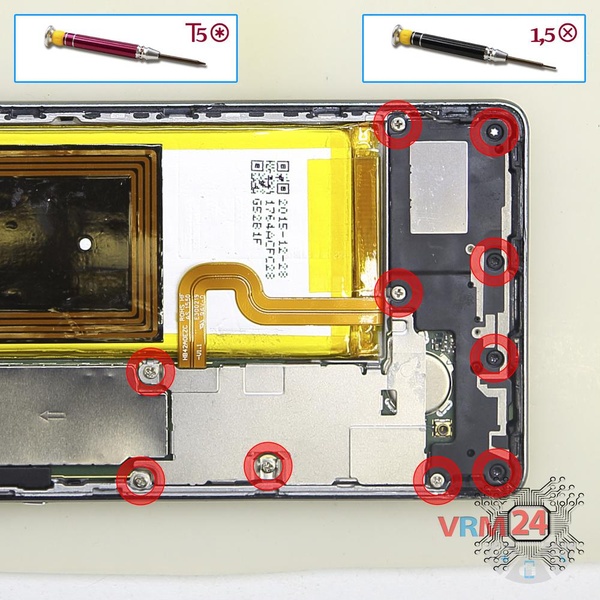

Step 6.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 5 bolts and a screwdriver (hex T5)  unscrew 2 bolts.

How to disassemble Huawei P8 Lite, Step 7/1 How to disassemble Huawei P8 Lite, Step 7/2

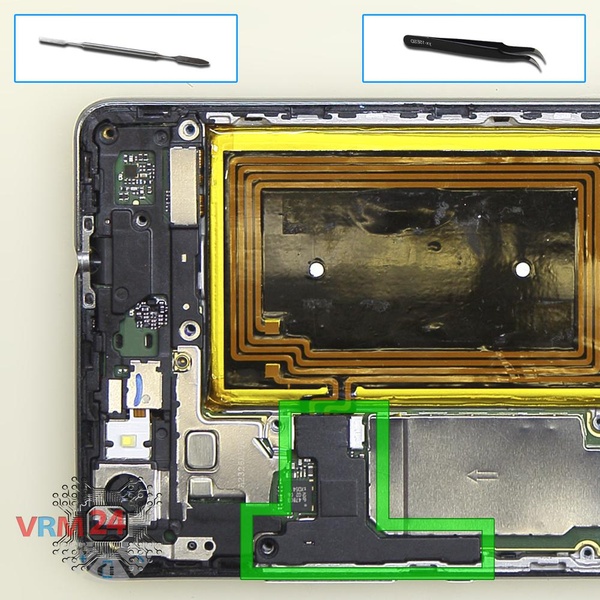

Step 7.

Pry up the NFC connector.

How to disassemble Huawei P8 Lite, Step 8/1 How to disassemble Huawei P8 Lite, Step 8/2

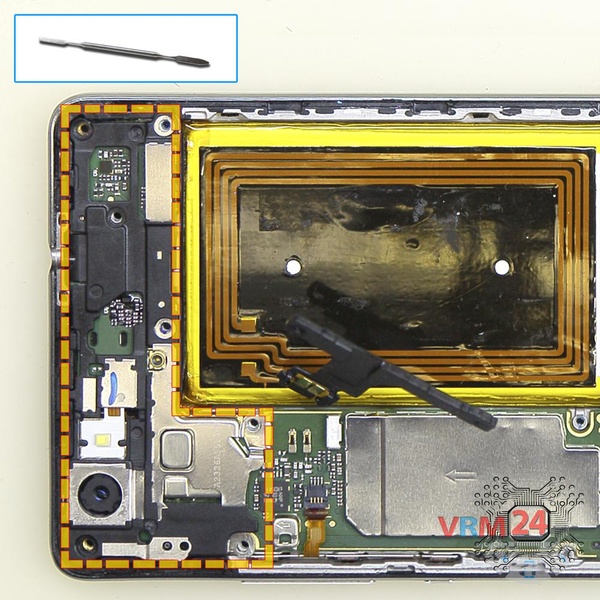

Step 8.

Pry & remove the frame with flash.

How to disassemble Huawei P8 Lite, Step 9/1 How to disassemble Huawei P8 Lite, Step 9/2 How to disassemble Huawei P8 Lite, Step 9/3 How to disassemble Huawei P8 Lite, Step 9/4 How to disassemble Huawei P8 Lite, Step 9/5

Step 9.

Disconnect connectors on the PCB.

How to disassemble Huawei P8 Lite, Step 10/1 How to disassemble Huawei P8 Lite, Step 10/2

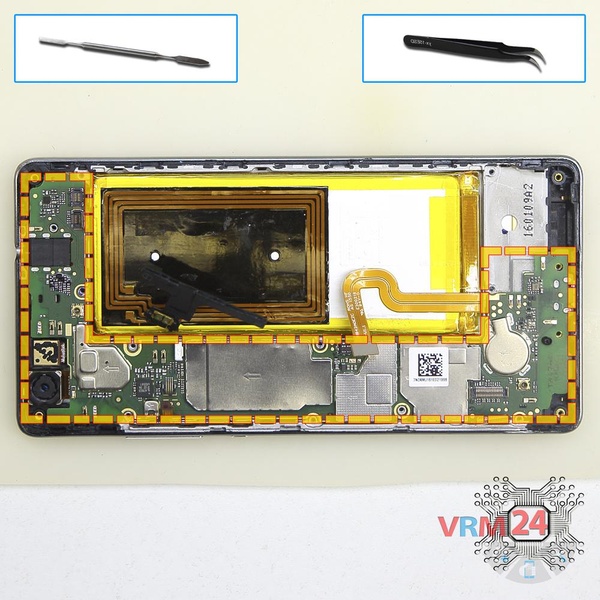

Step 10.

Remove the PCB.

How to disassemble Huawei P8 Lite, Step 11/1 How to disassemble Huawei P8 Lite, Step 11/2

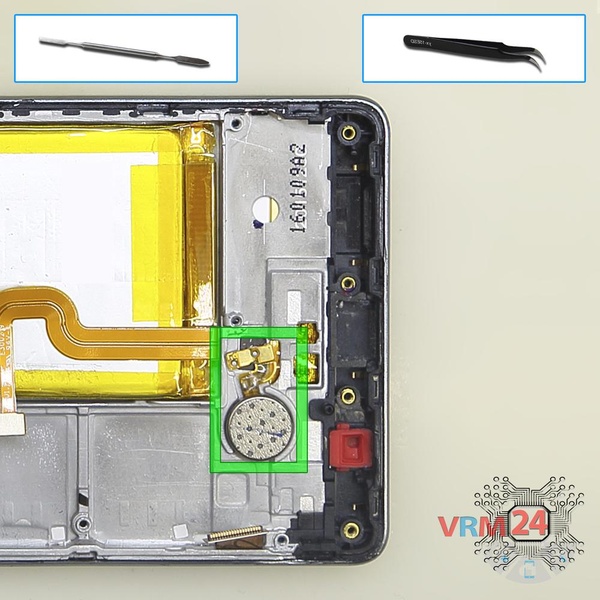

Step 11.

ry and remove the vibration motor.

How to disassemble Huawei P8 Lite, Step 12/1 How to disassemble Huawei P8 Lite, Step 12/2

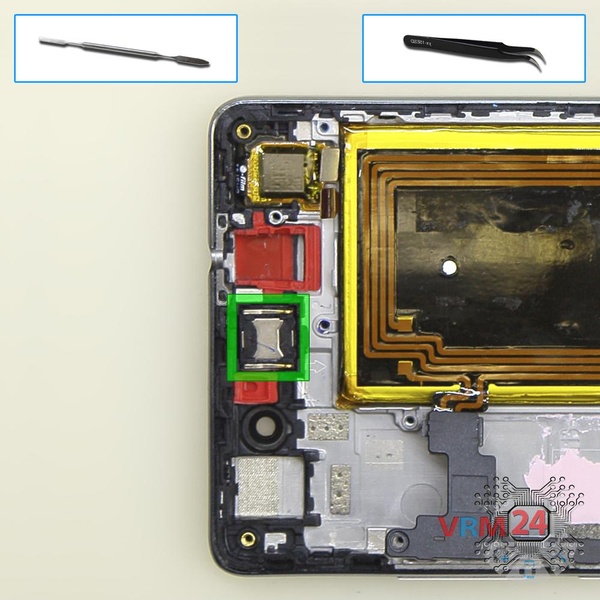

Step 12.

Pry and remove the earpiece (speaker).

How to disassemble Huawei P8 Lite, Step 13/1 How to disassemble Huawei P8 Lite, Step 13/2 How to disassemble Huawei P8 Lite, Step 13/3

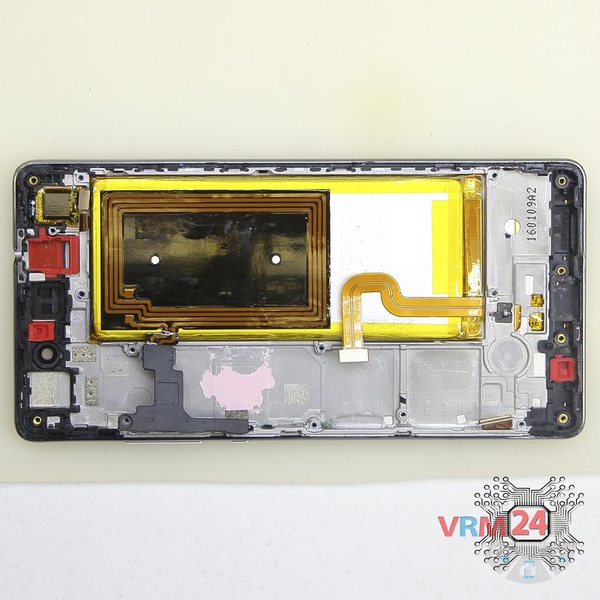

Step 13.

Parts in the frame of the display module.

Detailed disassembly instructions of Huawei P8 Lite in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

#instructions #Huawei #Huawei P8 Lite
Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer

Disassembling\Repair has medium complexity and takes about 9 minutes in time.
Our manual is suitable for all models Huawei P8 Lite — Huawei P8 Lite ALE-L21, PRA-LA1 released for markets in different countries.
