Lenovo P780
Lenovo P780
Teardown difficulty:
Easy
Duration:
4 min

Recommended tools

Screwdriver Phillips #000 Screwdriver phillips #000
Opening tool / Spudger Opening tool / spudger
Tweezers Tweezers

Disassembly/Repair of the mobile device Lenovo P780 with each step description and the required set of tools.

Vadim Popoff

Author / Content specialist with 10+ years of experience

How to disassemble Lenovo P780, Step 1/1 How to disassemble Lenovo P780, Step 1/2

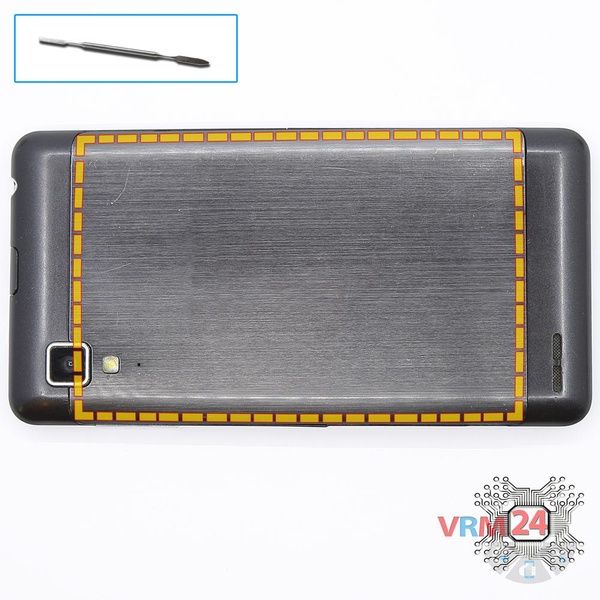

Step 1.

Open the back cover.

How to disassemble Lenovo P780, Step 2/1 How to disassemble Lenovo P780, Step 2/2

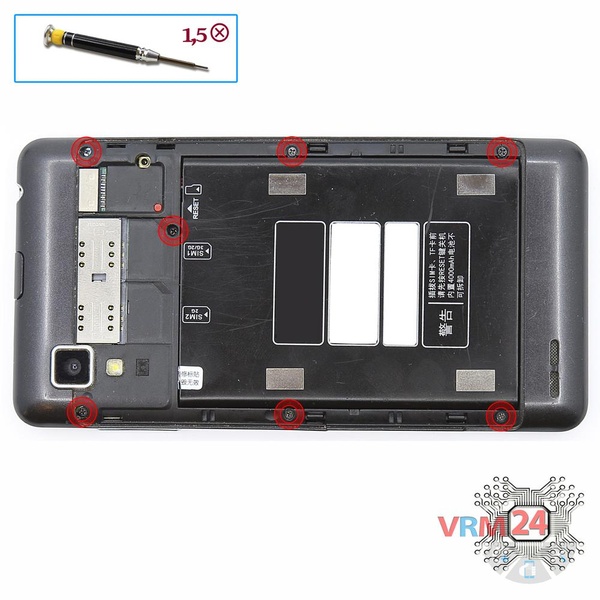

Step 2.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 7 bolts in the frame of the phone.

How to disassemble Lenovo P780, Step 3/1 How to disassemble Lenovo P780, Step 3/2

Step 3.

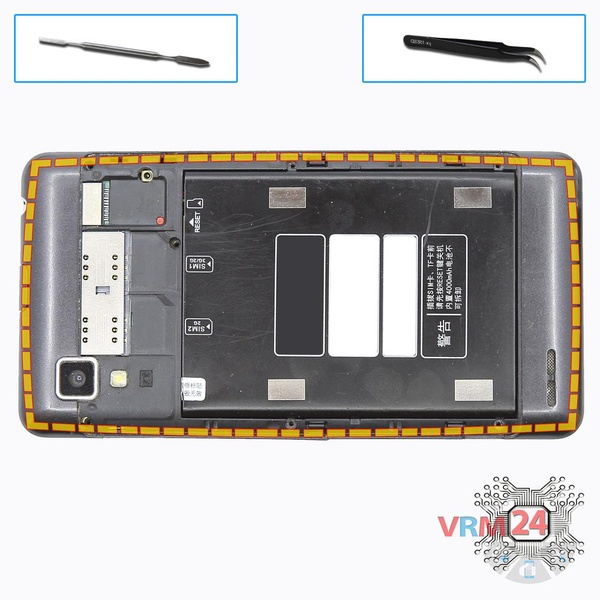

Pry and remove the middle frame and keys of the volume and power buttons.

How to disassemble Lenovo P780, Step 4/1 How to disassemble Lenovo P780, Step 4/2

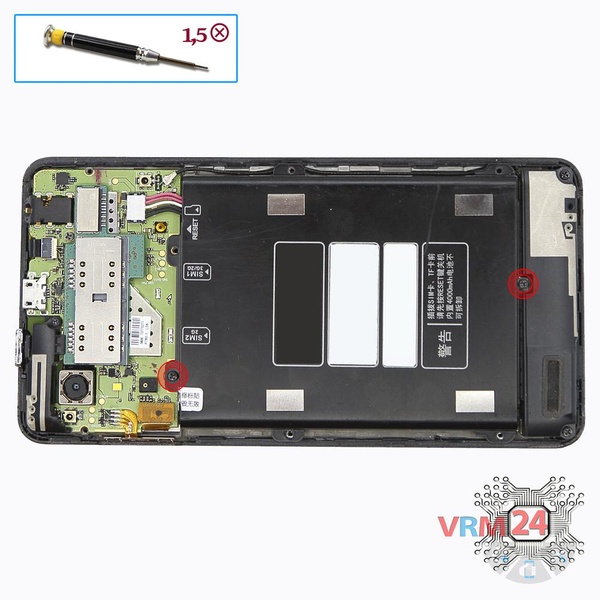

Step 4.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 2 bolts securing the battery.

How to disassemble Lenovo P780, Step 5/1 How to disassemble Lenovo P780, Step 5/2

Step 5.

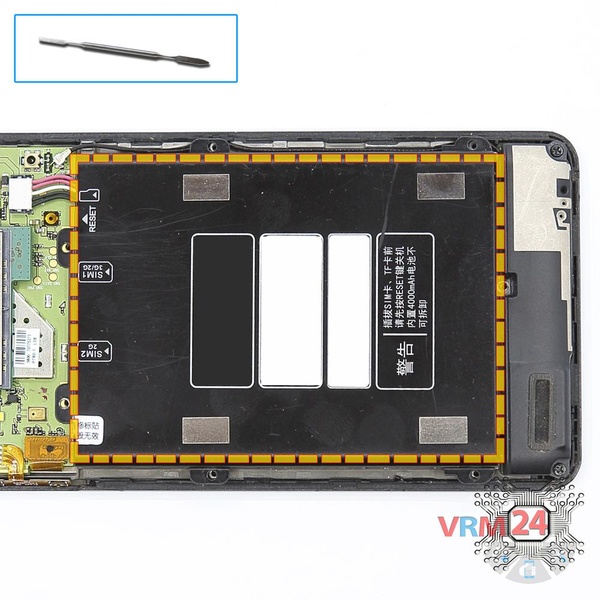

Remove the battery cover.

How to disassemble Lenovo P780, Step 6/1 How to disassemble Lenovo P780, Step 6/2 How to disassemble Lenovo P780, Step 6/3

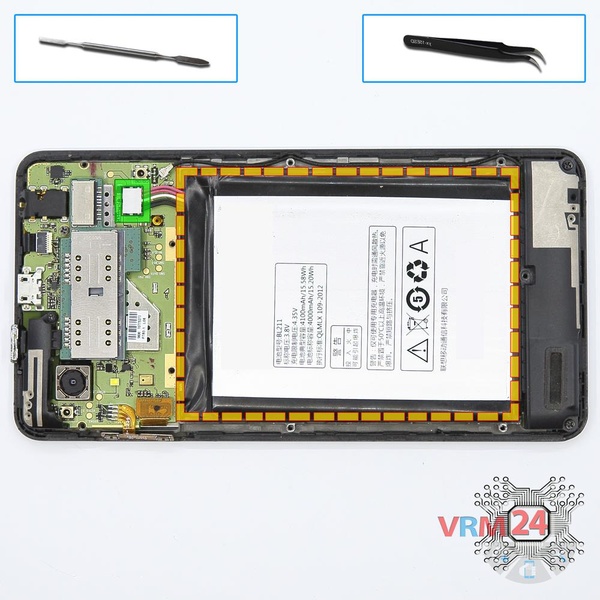

Step 6.

Disconnect connector on the PCB and remove the battery.

How to disassemble Lenovo P780, Step 7/1 How to disassemble Lenovo P780, Step 7/2 How to disassemble Lenovo P780, Step 7/3

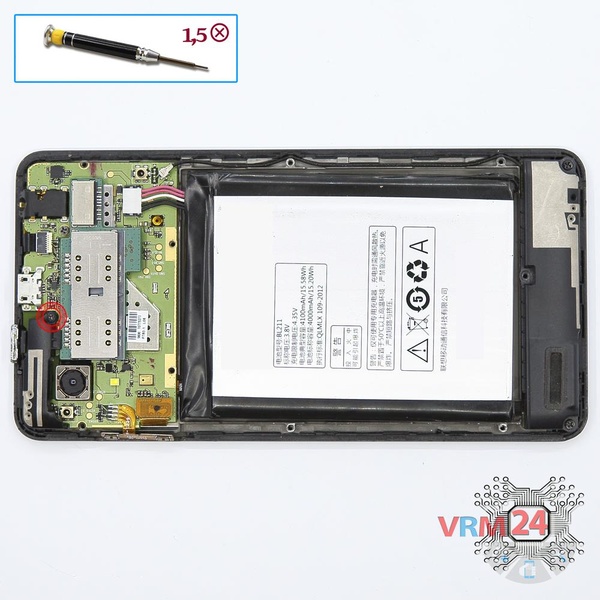

Step 7.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 1 bolt and remove the cover with antennas.

How to disassemble Lenovo P780, Step 8/1 How to disassemble Lenovo P780, Step 8/2 How to disassemble Lenovo P780, Step 8/3

Step 8.

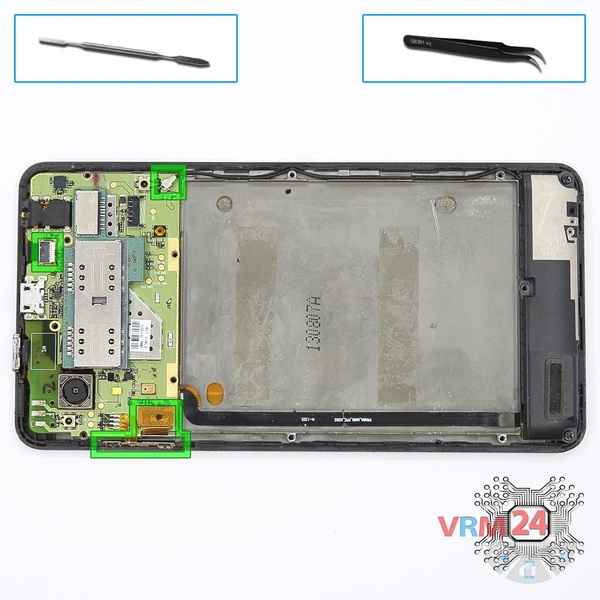

Disconnect connectors on the PCB and pry up the volume buttons flex cable.

How to disassemble Lenovo P780, Step 9/1 How to disassemble Lenovo P780, Step 9/2

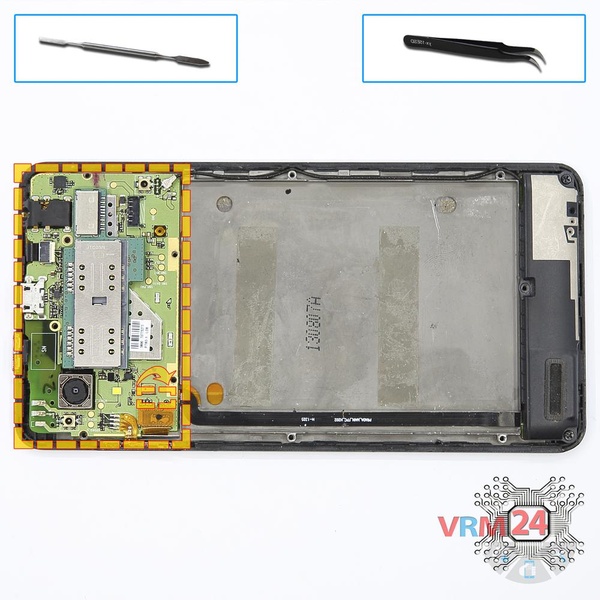

Step 9.

Overturn the board, disconnect the connector from the inside and remove it.

How to disassemble Lenovo P780, Step 10/1 How to disassemble Lenovo P780, Step 10/2 How to disassemble Lenovo P780, Step 10/3

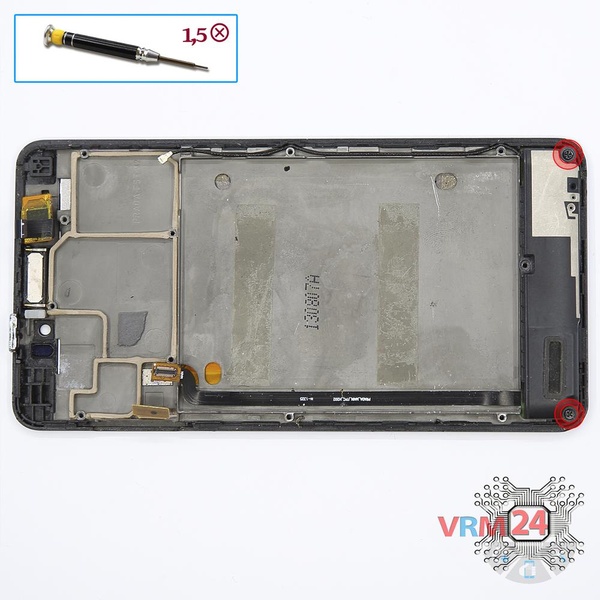

Step 10.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 2 bolts and remove the buzzer (speaker) assembly.

How to disassemble Lenovo P780, Step 11/1 How to disassemble Lenovo P780, Step 11/2

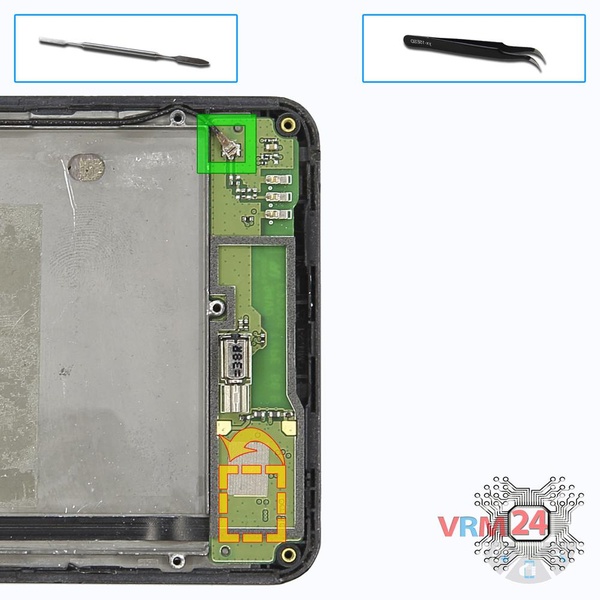

Step 11.

Disconnect connectors on the lower PCB and remove the board and coaxial cable.

⚠️ Warning!

The inter-board cable connector is on the inside.

Detailed disassembly instructions of Lenovo P780 in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

#instructions #Lenovo #Lenovo P780
Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer

Disassembling\Repair has easy complexity and takes about 4 minutes in time.
Our manual is suitable for all models Lenovo P780 released for markets in different countries.
