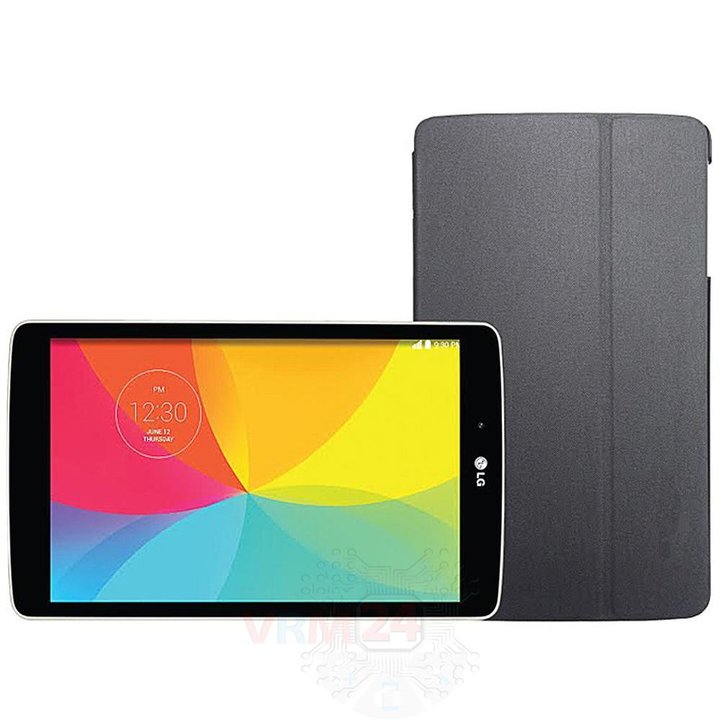

LG G Pad 8.0'' V490
LG G Pad 8.0'' V490
Teardown difficulty:
Easy
Duration:
6 min

Recommended tools

Screwdriver Phillips #000 Screwdriver phillips #000
Opening tool / Spudger Opening tool / spudger
Tweezers Tweezers

Disassembly/Repair of the mobile device LG G Pad 8.0'' V490 with each step description and the required set of tools.

Vadim Popoff

Author, currently - Quality Assurance Specialist

How to disassemble LG G Pad 8.0'' V490, Step 1/1 How to disassemble LG G Pad 8.0'' V490, Step 1/2 How to disassemble LG G Pad 8.0'' V490, Step 1/3

Step 1.

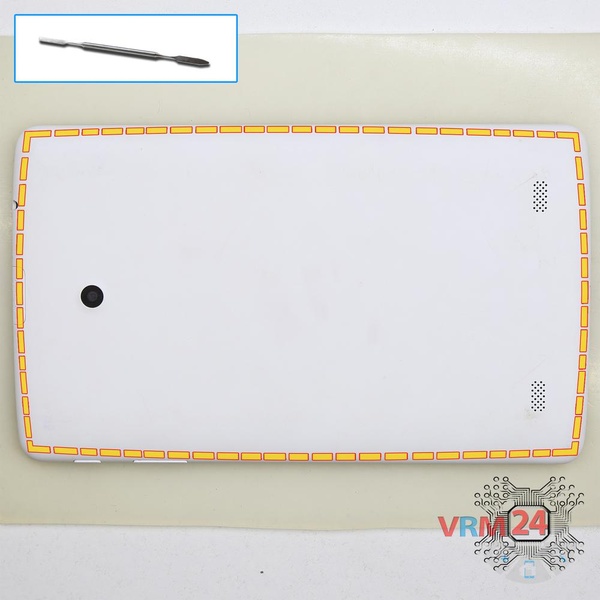

Open the back cover.

How to disassemble LG G Pad 8.0'' V490, Step 2/1 How to disassemble LG G Pad 8.0'' V490, Step 2/2

Step 2.

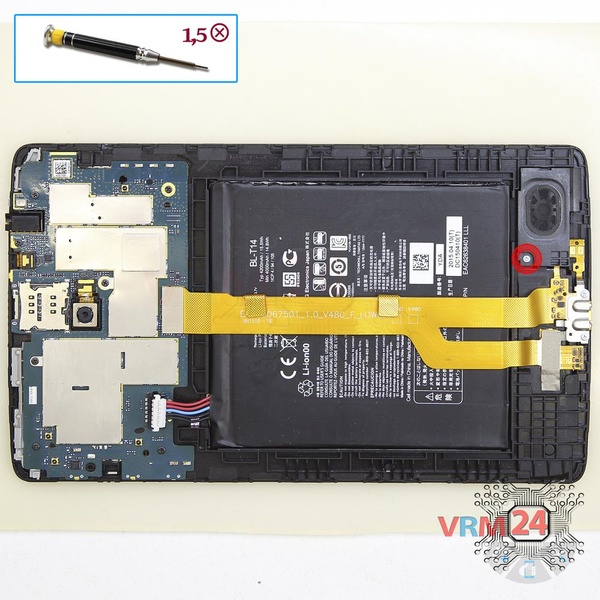

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 1 bolt securing the buzzer (speaker).

How to disassemble LG G Pad 8.0'' V490, Step 3/1 How to disassemble LG G Pad 8.0'' V490, Step 3/2

Step 3.

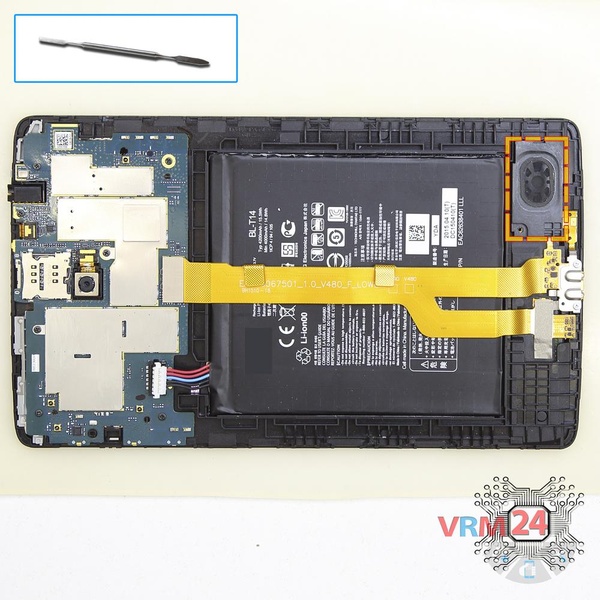

Pry and remove the buzzer (speaker).

How to disassemble LG G Pad 8.0'' V490, Step 4/1 How to disassemble LG G Pad 8.0'' V490, Step 4/2

Step 4.

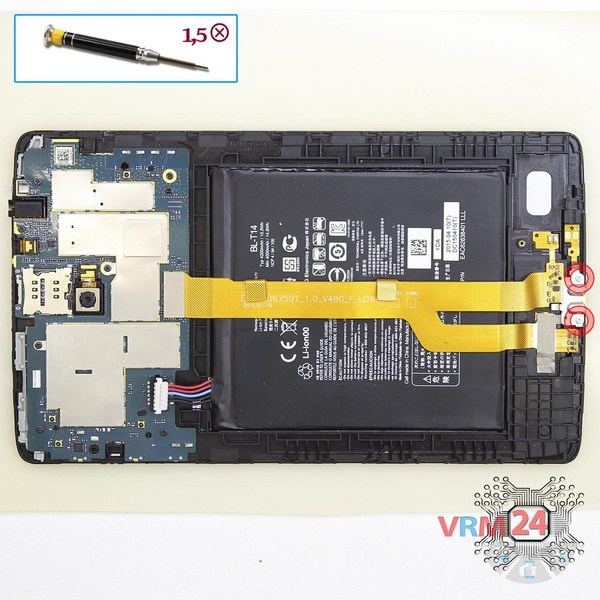

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 2 bolts securing the charging port.

How to disassemble LG G Pad 8.0'' V490, Step 5/1 How to disassemble LG G Pad 8.0'' V490, Step 5/2 How to disassemble LG G Pad 8.0'' V490, Step 5/3 How to disassemble LG G Pad 8.0'' V490, Step 5/4

Step 5.

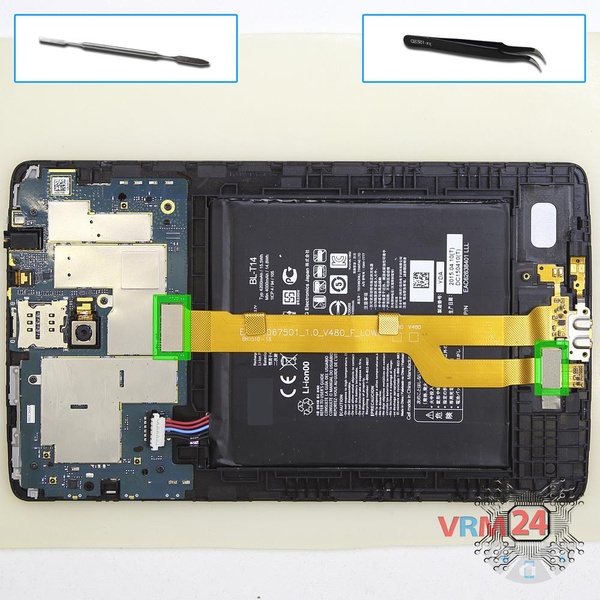

Disconnect connectors and remove the inter-board cable with the charging port.

How to disassemble LG G Pad 8.0'' V490, Step 6/1 How to disassemble LG G Pad 8.0'' V490, Step 6/2

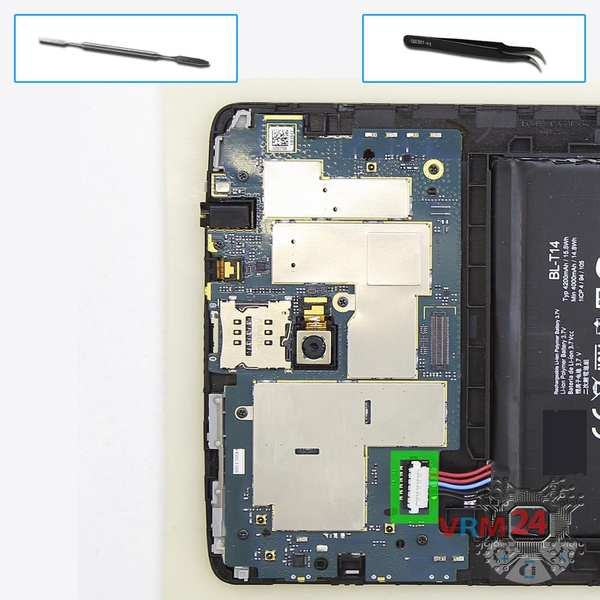

Step 6.

Disconnect connector on the PCB and remove the battery.

How to disassemble LG G Pad 8.0'' V490, Step 7/1 How to disassemble LG G Pad 8.0'' V490, Step 7/2

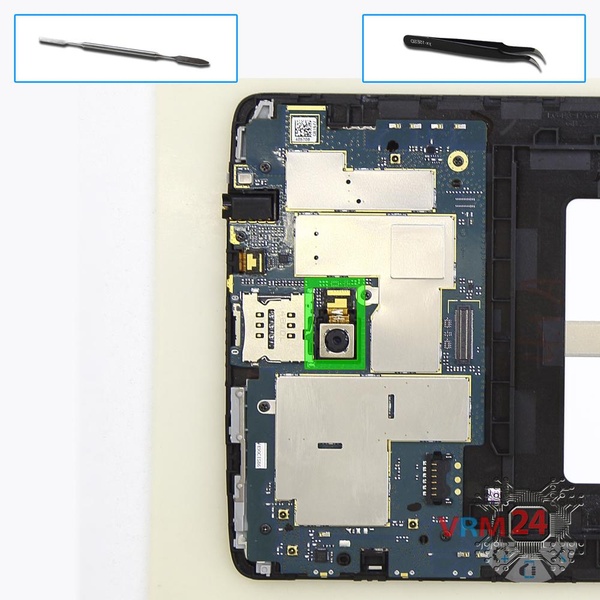

Step 7.

Disconnect connector on the PCB and remove the main camera.

How to disassemble LG G Pad 8.0'' V490, Step 8/1 How to disassemble LG G Pad 8.0'' V490, Step 8/2

Step 8.

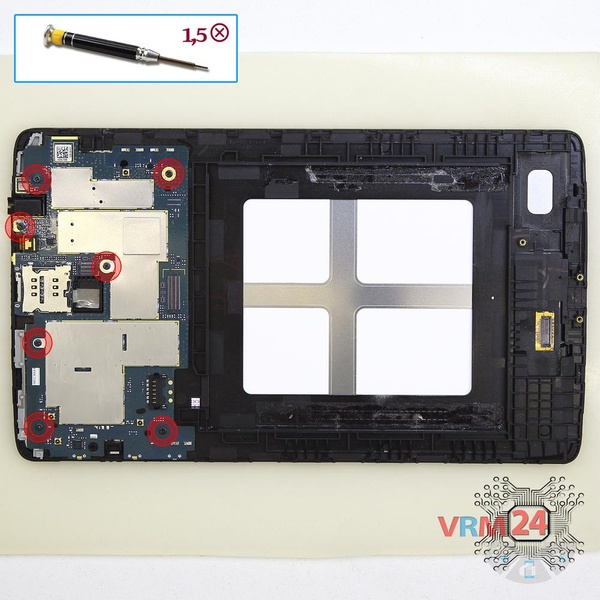

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 7 bolts in the PCB.

How to disassemble LG G Pad 8.0'' V490, Step 9/1 How to disassemble LG G Pad 8.0'' V490, Step 9/2

Step 9.

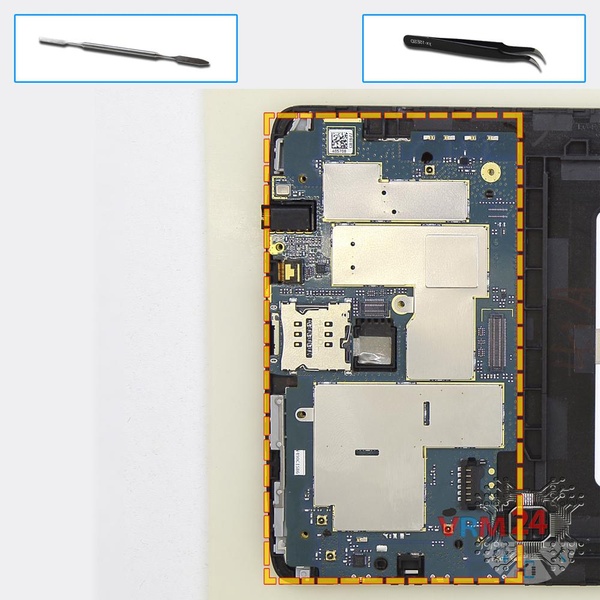

Remove the PCB.

How to disassemble LG G Pad 8.0'' V490, Step 10/1 How to disassemble LG G Pad 8.0'' V490, Step 10/2

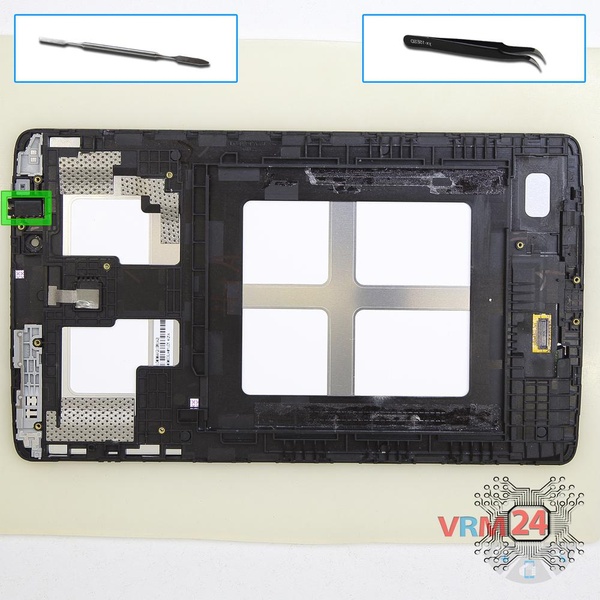

Step 10.

Pry and remove the headphone jack/socket.

How to disassemble LG G Pad 8.0'' V490, Step 11/1 How to disassemble LG G Pad 8.0'' V490, Step 11/2 How to disassemble LG G Pad 8.0'' V490, Step 11/3

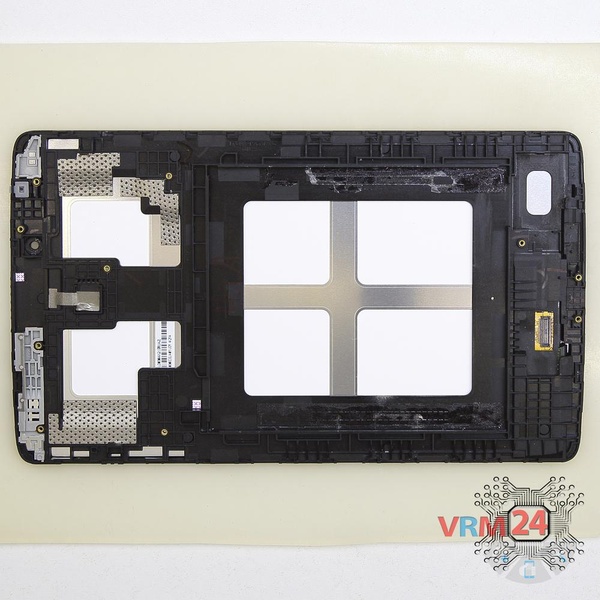

Step 11.

Parts are in the frame of the display module.

Detailed disassembly instructions of LG G Pad 8.0'' V490 in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

#instructions #LG #LG G Pad 8.0'' V490
Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer

Disassembling\Repair has easy complexity and takes about 6 minutes in time.
Our manual is suitable for all models LG G Pad 8.0'' V490 released for markets in different countries.
