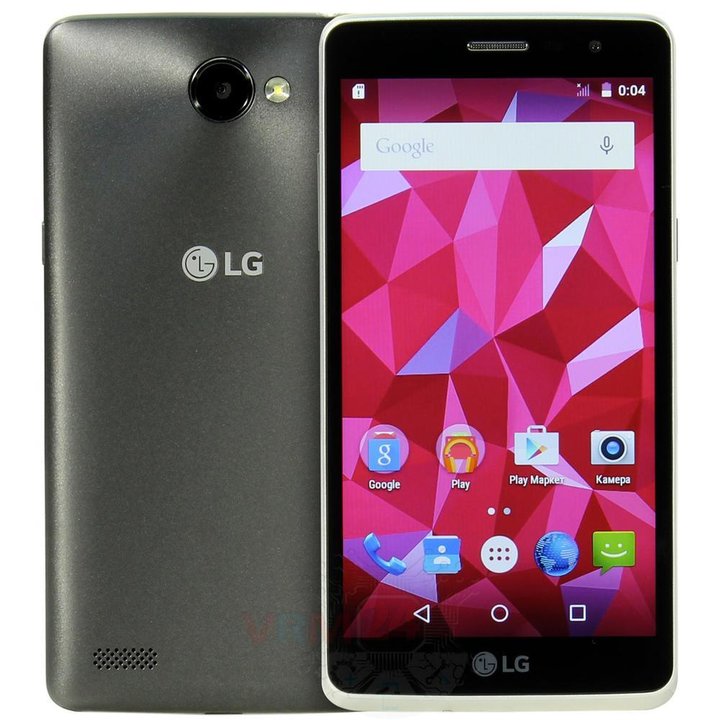

LG Max X155
LG Max X155
Teardown difficulty:
Easy
Duration:
8 min

Recommended tools

Screwdriver Phillips #000 Screwdriver phillips #000
Opening tool / Spudger Opening tool / spudger
Tweezers Tweezers

Disassembly/Repair of the mobile device LG Max X155 with each step description and the required set of tools.

Vadim Popoff

Specialist in content creation, distribution and content management.

How to disassemble LG Max X155, Step 1/1 How to disassemble LG Max X155, Step 1/2

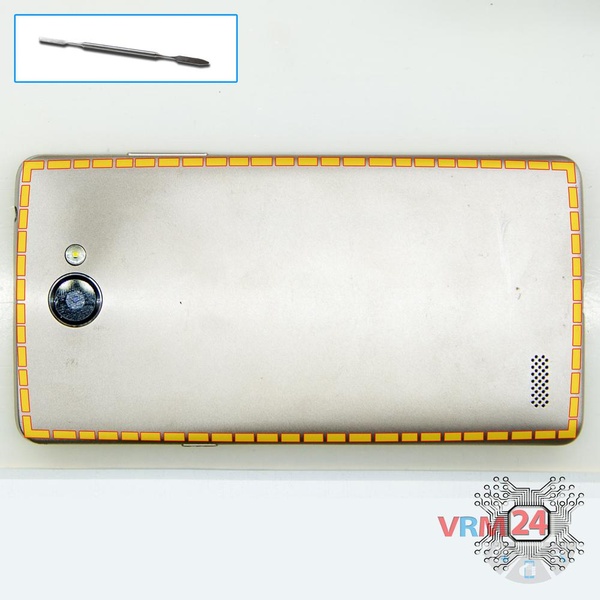

Step 1.

Open the back cover.

How to disassemble LG Max X155, Step 2/1 How to disassemble LG Max X155, Step 2/2

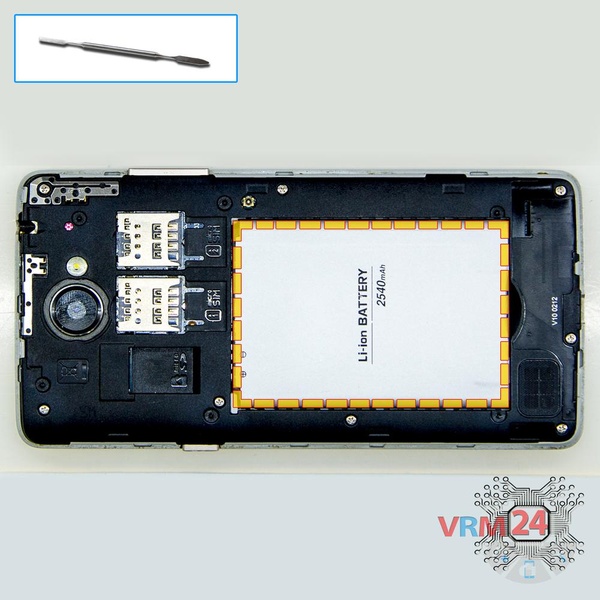

Step 2.

Lift and remove the battery.

How to disassemble LG Max X155, Step 3/1 How to disassemble LG Max X155, Step 3/2

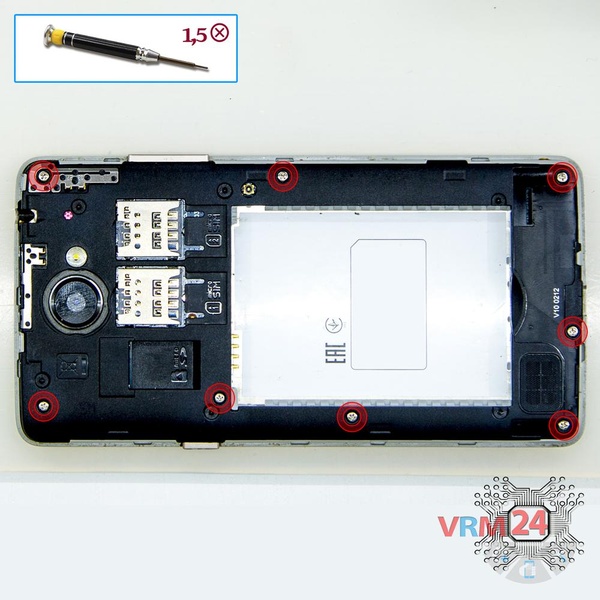

Step 3.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 8 bolts in the frame of the phone.

How to disassemble LG Max X155, Step 4/1 How to disassemble LG Max X155, Step 4/2

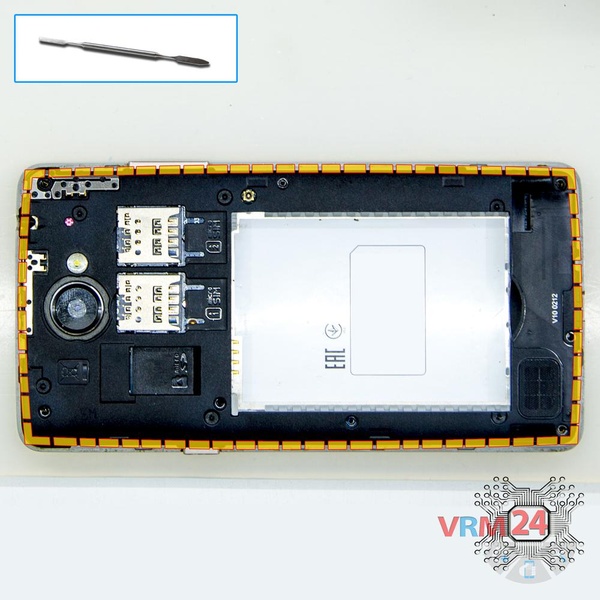

Step 4.

Pry and remove the middle frame.

How to disassemble LG Max X155, Step 5/1 How to disassemble LG Max X155, Step 5/2 How to disassemble LG Max X155, Step 5/3

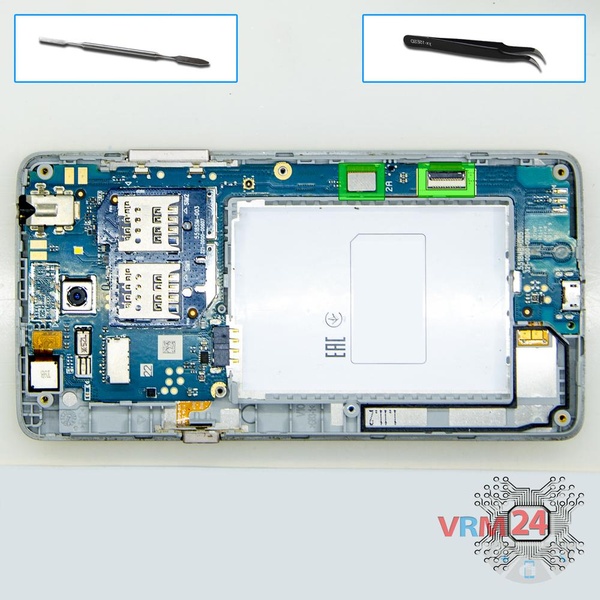

Step 5.

Disconnect connectors on the PCB.

How to disassemble LG Max X155, Step 6/1 How to disassemble LG Max X155, Step 6/2

Step 6.

Pry and remove the buzzer (speaker).

How to disassemble LG Max X155, Step 7/1 How to disassemble LG Max X155, Step 7/2

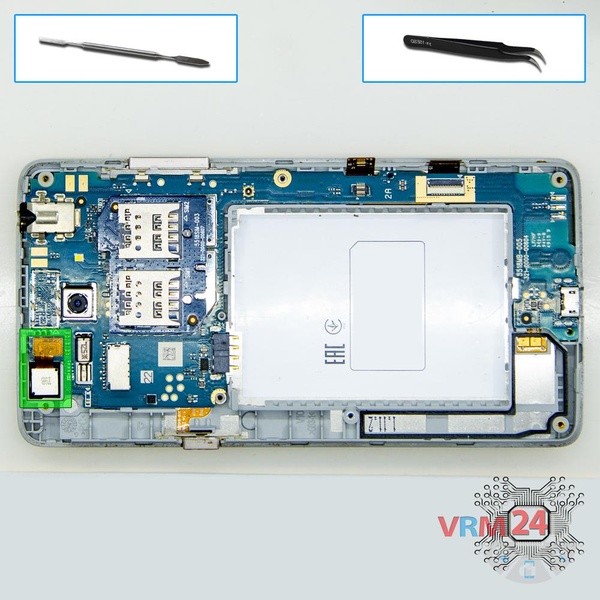

Step 7.

Disconnect connector on the PCB and remove the front (selfie) camera.

How to disassemble LG Max X155, Step 8/1 How to disassemble LG Max X155, Step 8/2

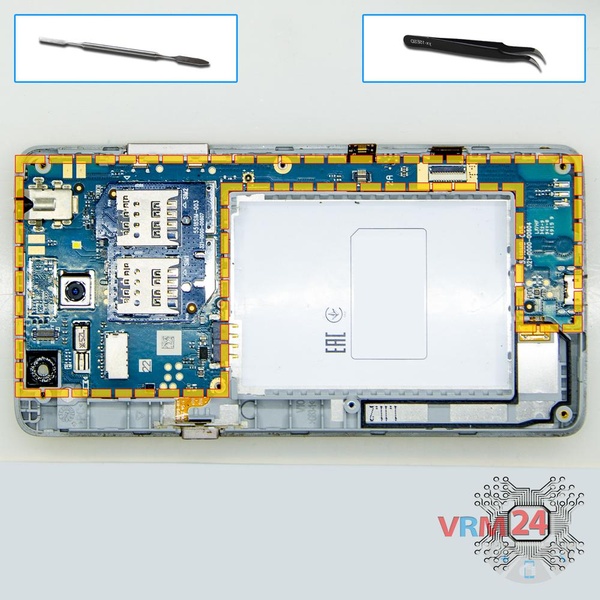

Step 8.

Remove the PCB.

How to disassemble LG Max X155, Step 9/1 How to disassemble LG Max X155, Step 9/2

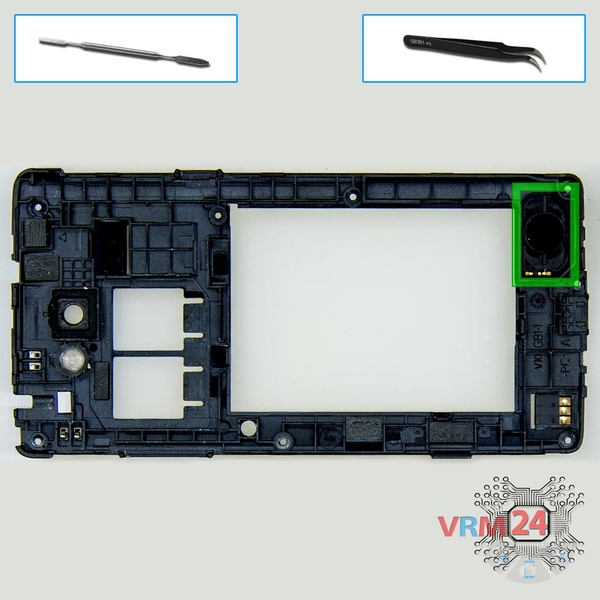

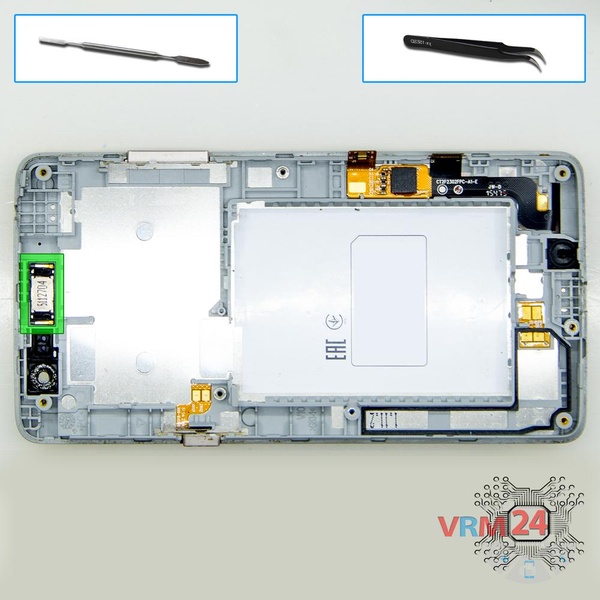

Step 9.

Pry and remove the earpiece (speaker).

Detailed disassembly instructions of LG Max X155 in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

#instructions #LG #LG Max X155
Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer

Disassembling\Repair has easy complexity and takes about 8 minutes in time.
Our manual is suitable for all models LG Max X155 released for markets in different countries.
