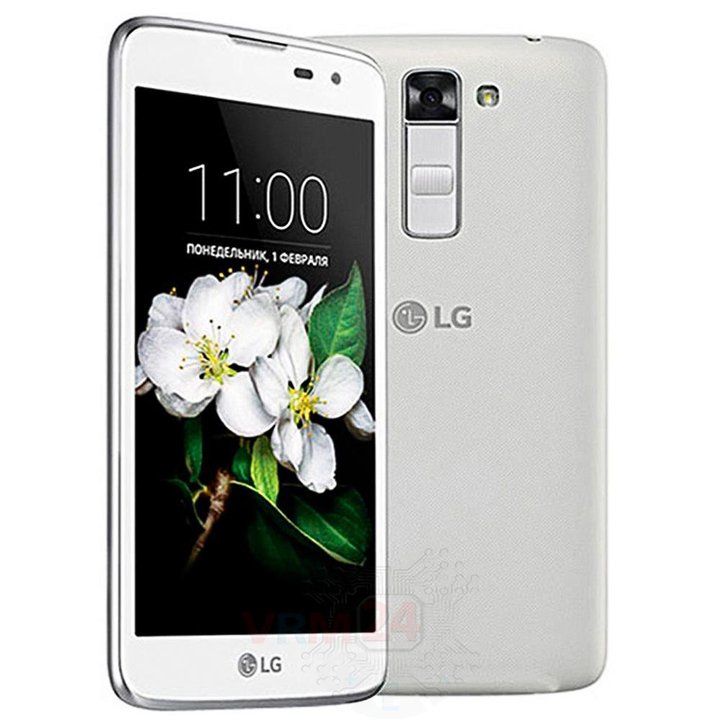

LG K7 X210

Teardown difficulty:
Easy

Duration:
6 min

Recommended tools

Screwdriver phillips #000

Opening tool / spudger

Tweezers

Disassembly/Repair of the mobile device LG K7 X210 (LG X210 (Europe); X210DS (Russia); MS330 (MetroPCS); LG Tribute 5 LS675 (Boost Mobile)) with each step description and the required set of tools.

Vadim Popoff

Quality assurance specialist

Author, currently - Quality Assurance Specialist

Step 1.

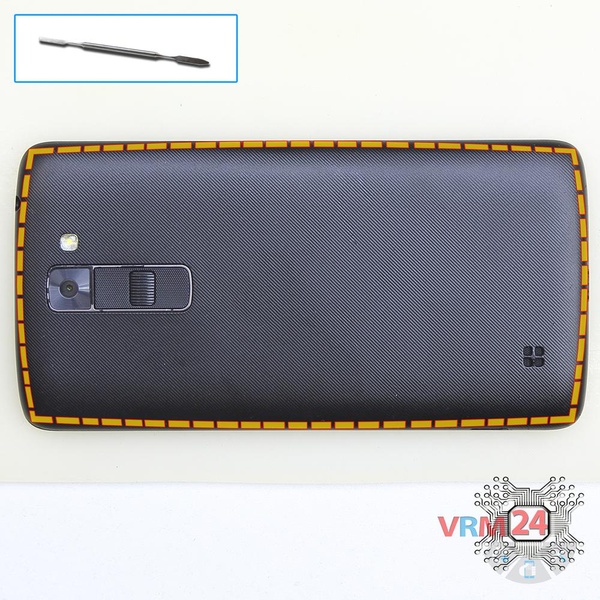

Open the back cover.

Step 2.

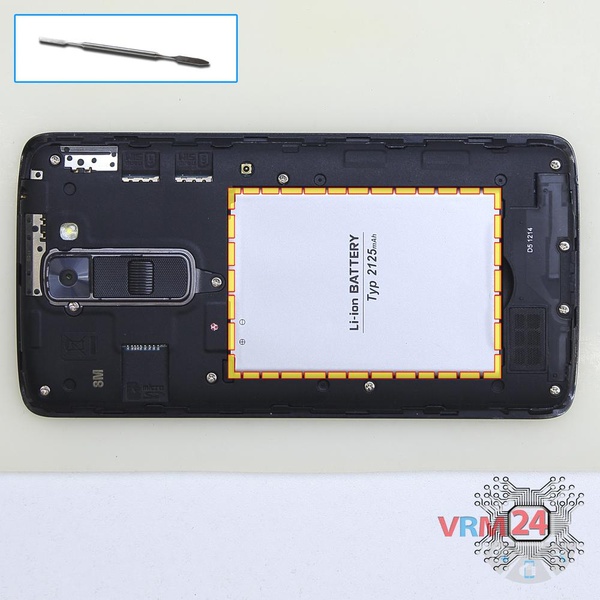

Lift and remove the battery.

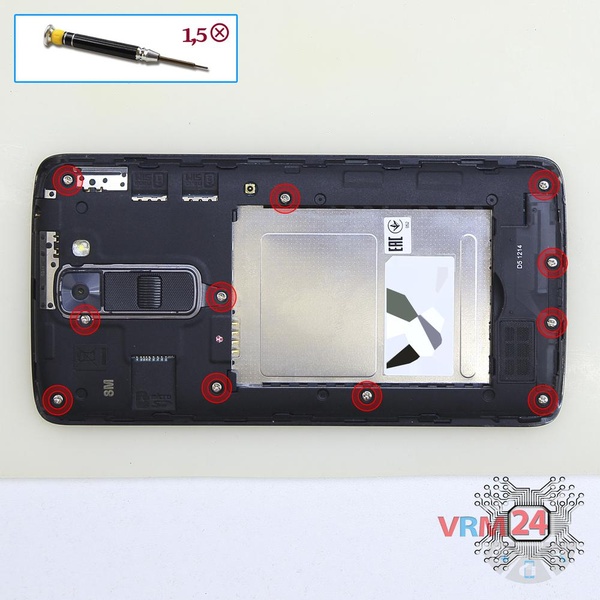

Step 3.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 11 bolts in the frame of the phone.

Step 4.

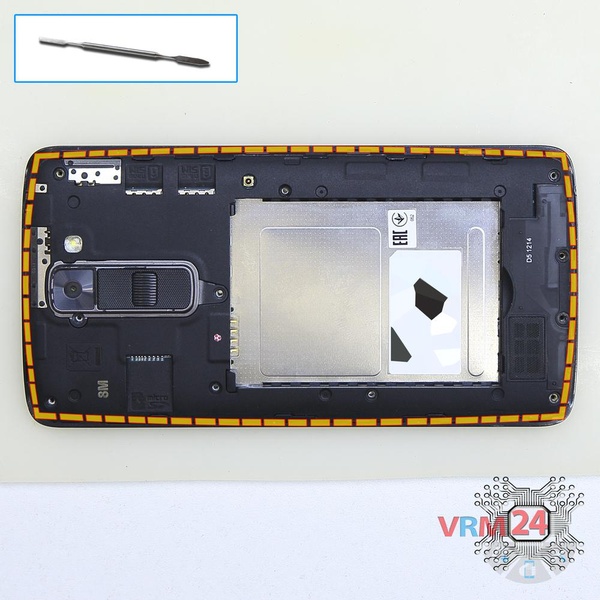

Pry and remove the middle frame.

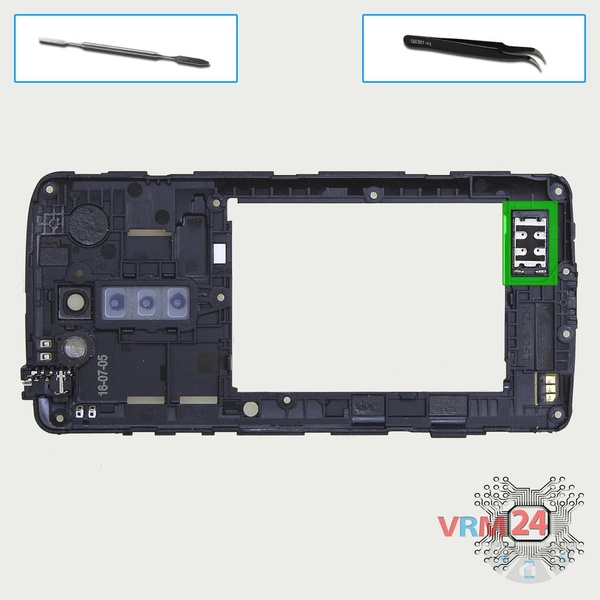

Step 5.

Pry and remove the buzzer (speaker).

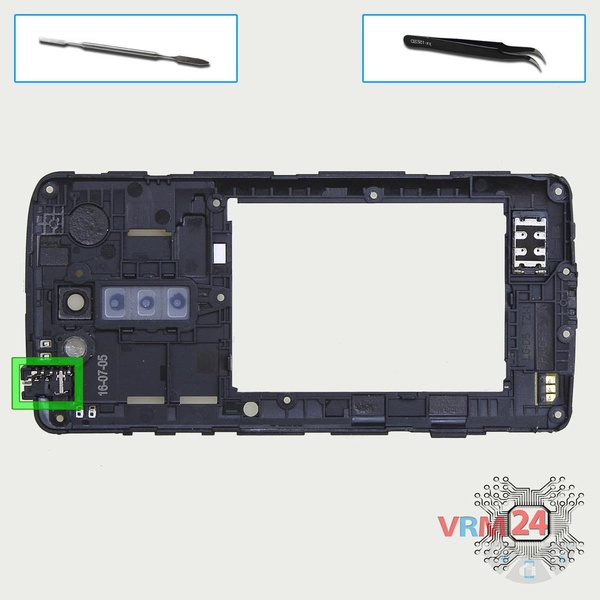

Step 6.

Pry and remove the headphone jack/socket.

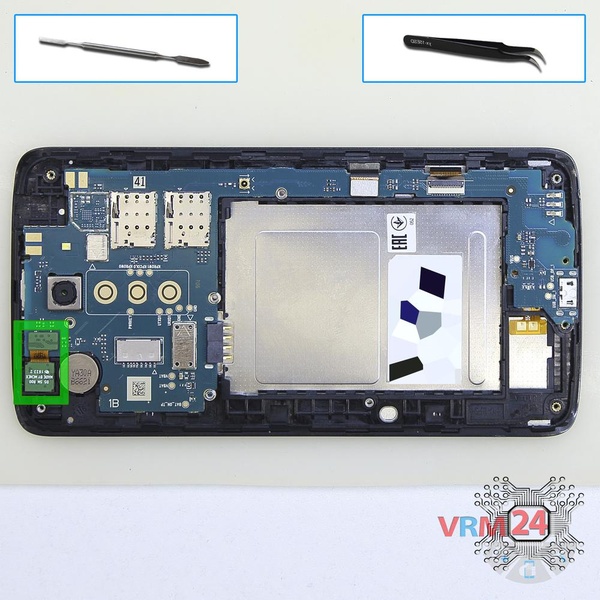

Step 7.

Disconnect connector on the PCB and remove the front (selfie) camera.

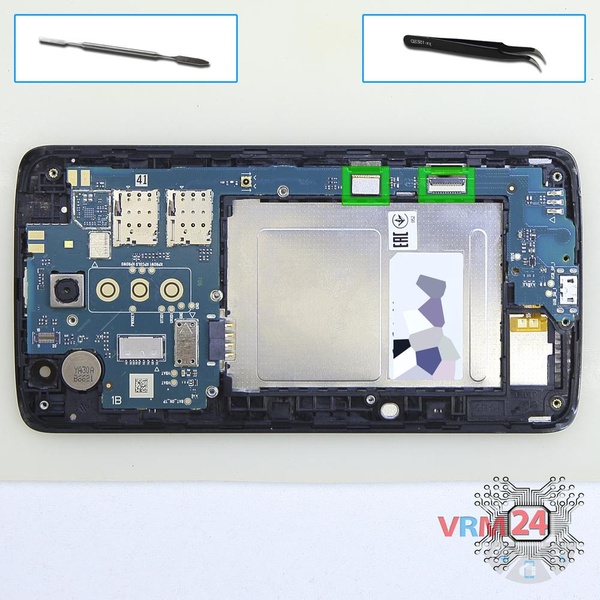

Step 8.

Disconnect connectors on the PCB.

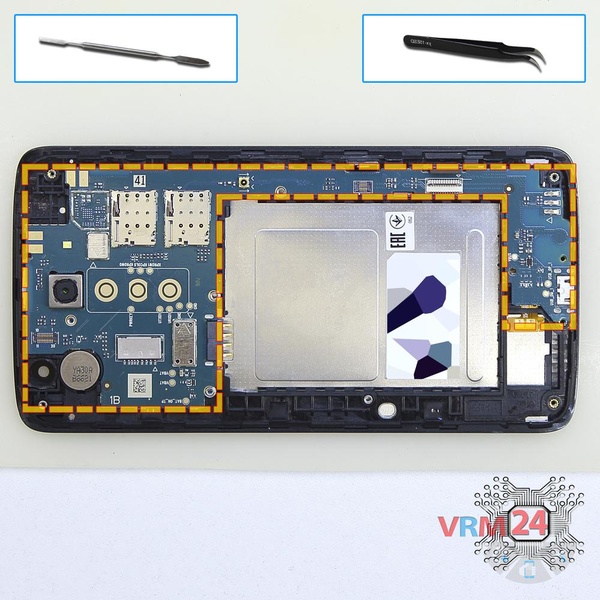

Step 9.

Remove the PCB.

How to disassemble LG K7 X210, Step 10/1

How to disassemble LG K7 X210, Step 10/2

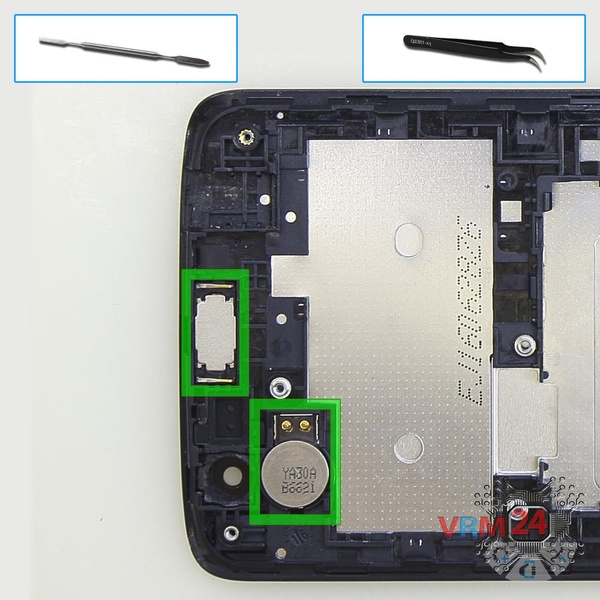

Step 10.

Pry and remove the earpiece (speaker) and vibration motor.

How to disassemble LG K7 X210, Step 11/1

How to disassemble LG K7 X210, Step 11/2

How to disassemble LG K7 X210, Step 11/3

Step 11.

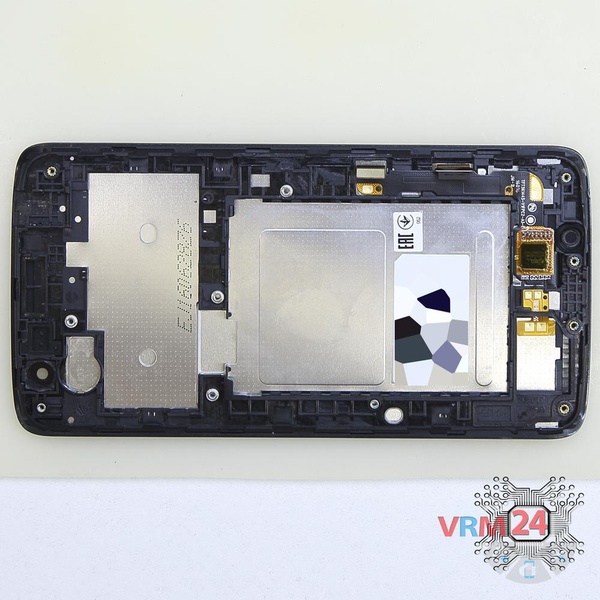

Parts are in the frame of the display module.

Detailed disassembly instructions of LG K7 X210 in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

#instructions #LG #LG K7 X210

Evgenii Kuzmin

Senior maintenance service and repair engineer

Disassembling\Repair has easy complexity and takes about 6 minutes in time.
Our manual is suitable for all models LG K7 X210 — LG X210 (Europe); X210DS (Russia); MS330 (MetroPCS); LG Tribute 5 LS675 (Boost Mobile) released for markets in different countries.
