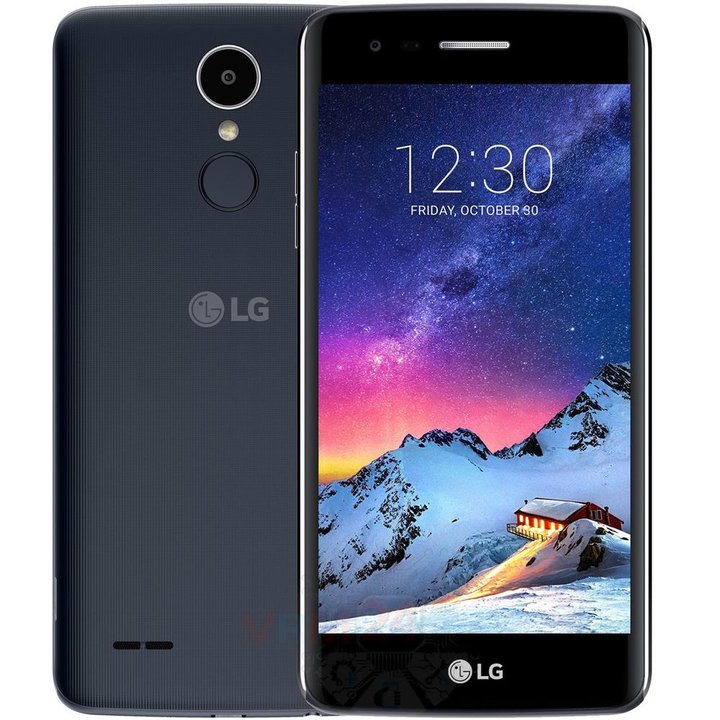

LG K8 (2017) X240
LG K8 (2017) X240
Teardown difficulty:
Easy
Duration:
8 min

Recommended tools

Screwdriver Phillips #000 Screwdriver phillips #000
Opening tool / Spudger Opening tool / spudger
Tweezers Tweezers

Disassembly/Repair of the mobile device LG K8 (2017) X240 (LG K8 (2017) M200N (Europe); X240 (Russia); US215 (US Cellular)) with each step description and the required set of tools.

Vadim Popoff

Author, currently - Quality Assurance Specialist

How to disassemble LG K8 (2017) X240, Step 1/1 How to disassemble LG K8 (2017) X240, Step 1/2

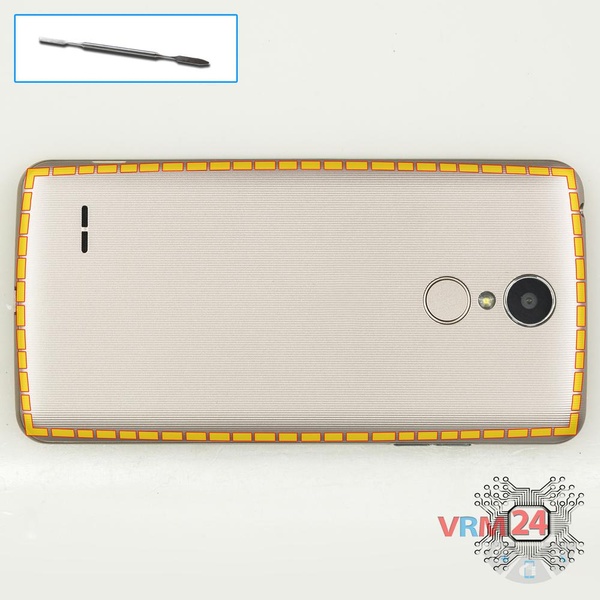

Step 1.

Open the back cover.

How to disassemble LG K8 (2017) X240, Step 2/1 How to disassemble LG K8 (2017) X240, Step 2/2

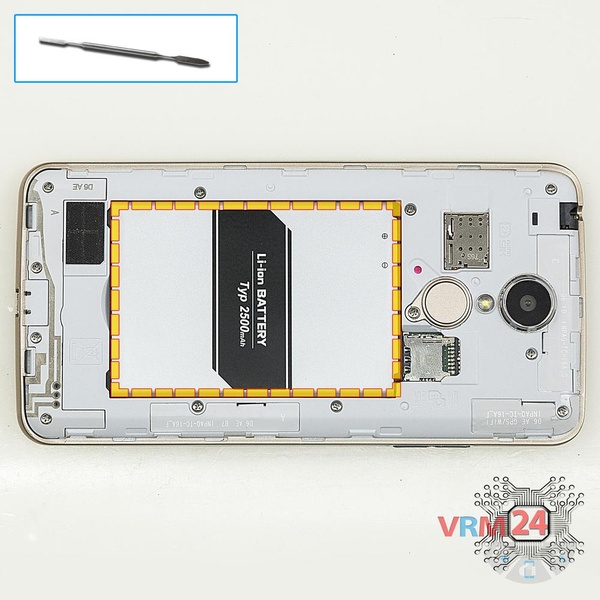

Step 2.

Lift and remove the battery.

How to disassemble LG K8 (2017) X240, Step 3/1 How to disassemble LG K8 (2017) X240, Step 3/2

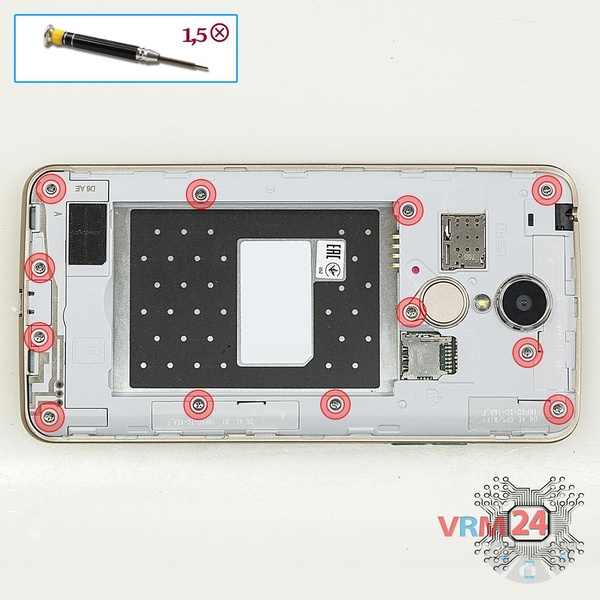

Step 3.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 12 bolts in the frame of the phone.

How to disassemble LG K8 (2017) X240, Step 4/1 How to disassemble LG K8 (2017) X240, Step 4/2

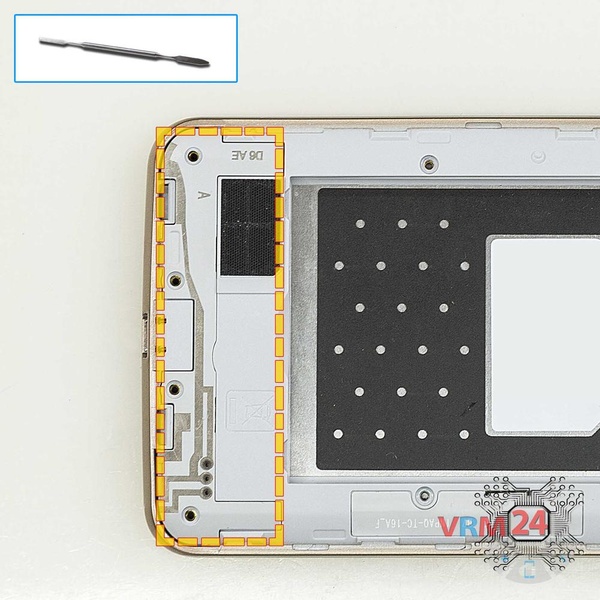

Step 4.

Pry and remove the cover with antennas.

How to disassemble LG K8 (2017) X240, Step 5/1 How to disassemble LG K8 (2017) X240, Step 5/2

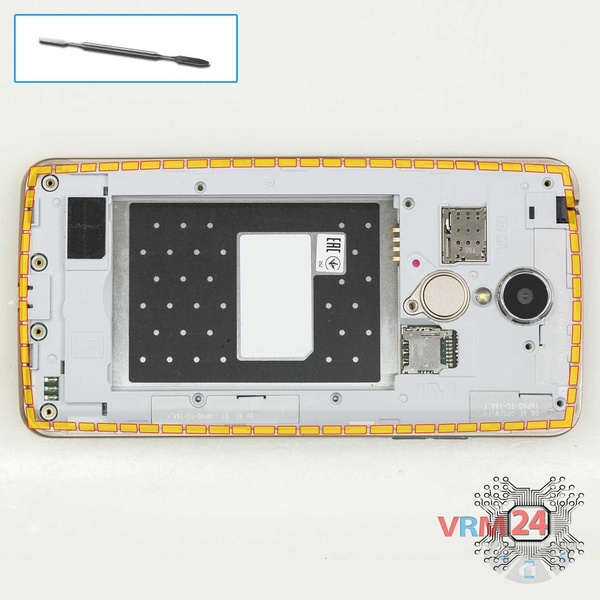

Step 5.

Pry and remove the middle frame.

How to disassemble LG K8 (2017) X240, Step 6/1 How to disassemble LG K8 (2017) X240, Step 6/2 How to disassemble LG K8 (2017) X240, Step 6/3

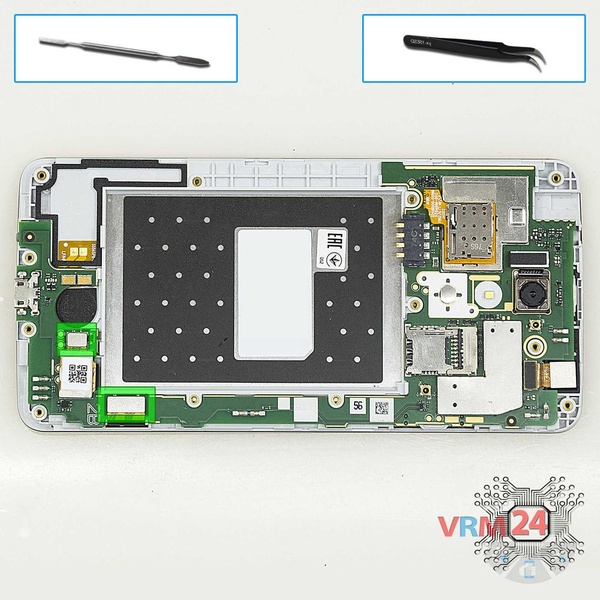

Step 6.

Disconnect connectors on the PCB.

How to disassemble LG K8 (2017) X240, Step 7/1 How to disassemble LG K8 (2017) X240, Step 7/2

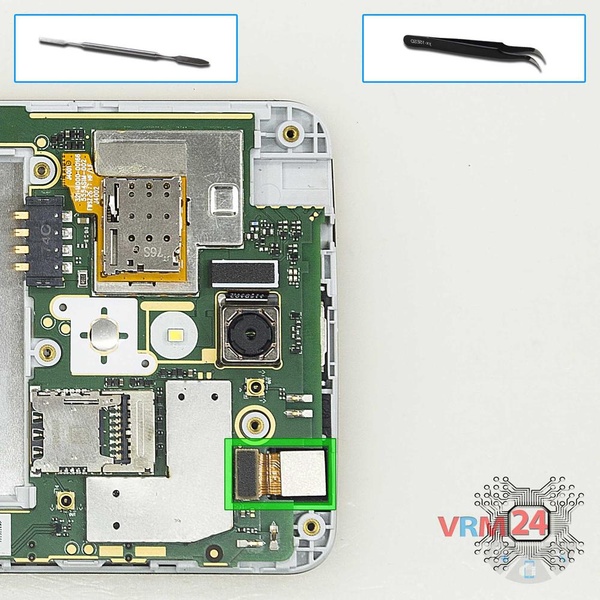

Step 7.

Disconnect connector on the PCB and remove the front (selfie) camera.

How to disassemble LG K8 (2017) X240, Step 8/1 How to disassemble LG K8 (2017) X240, Step 8/2

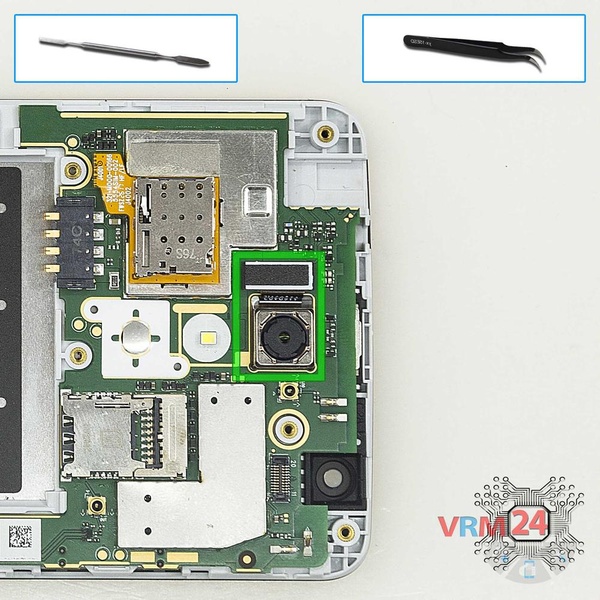

Step 8.

Disconnect connector on the PCB and remove the main camera.

How to disassemble LG K8 (2017) X240, Step 9/1 How to disassemble LG K8 (2017) X240, Step 9/2

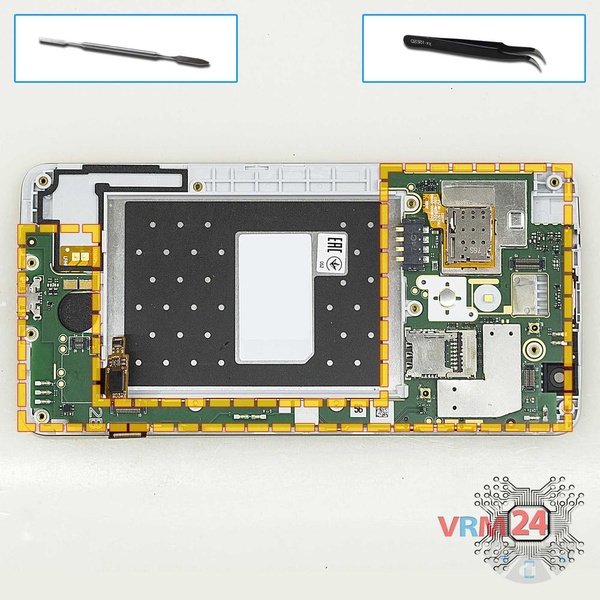

Step 9.

Remove the PCB.

How to disassemble LG K8 (2017) X240, Step 10/1 How to disassemble LG K8 (2017) X240, Step 10/2 How to disassemble LG K8 (2017) X240, Step 10/3

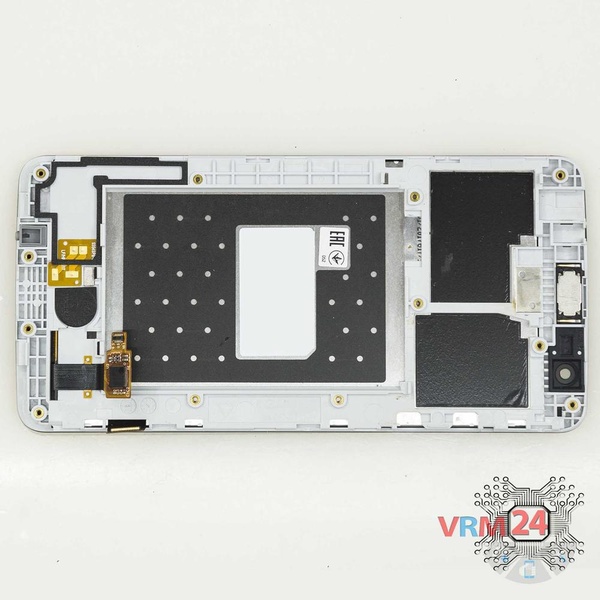

Step 10.

Parts are in the frame of the display module.

How to disassemble LG K8 (2017) X240, Step 11/1 How to disassemble LG K8 (2017) X240, Step 11/2 How to disassemble LG K8 (2017) X240, Step 11/3

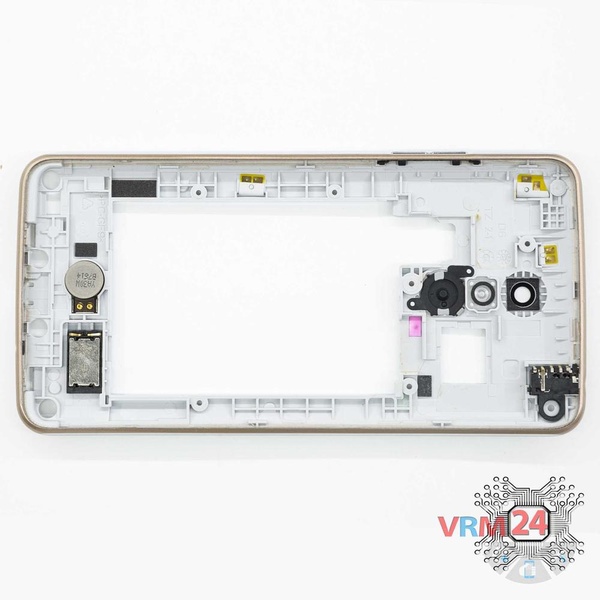

Step 11.

The middle frame.

Detailed disassembly instructions of LG K8 (2017) X240 in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

#instructions #LG #LG K8 (2017) X240
Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer

Disassembling\Repair has easy complexity and takes about 8 minutes in time.
Our manual is suitable for all models LG K8 (2017) X240 — LG K8 (2017) M200N (Europe); X240 (Russia); US215 (US Cellular) released for markets in different countries.
