Meizu M3s mini Y685H
Meizu M3s mini Y685H
Teardown difficulty:
Moderate
Duration:
9 min

Recommended tools

Screwdriver Five-point P0.8 mm Screwdriver five-point p0.8 mm
Screwdriver Phillips #000 Screwdriver phillips #000
Opening tool / Spudger Opening tool / spudger
Tweezers Tweezers

Disassembly/Repair of the mobile device Meizu M3s mini Y685H with each step description and the required set of tools.

Vadim Popoff

Author, currently - Quality Assurance Specialist

How to disassemble Meizu M3s mini Y685H, Step 1/1 How to disassemble Meizu M3s mini Y685H, Step 1/2

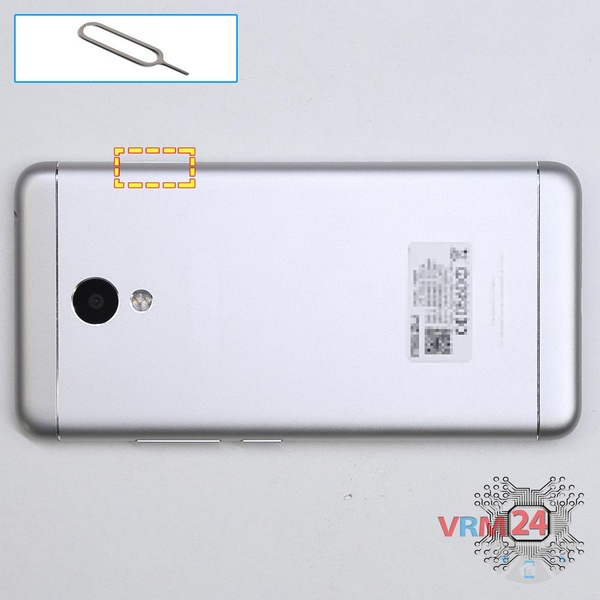

Step 1.

Using the key tool, open the SIM card tray and remove it.

⚠️ Warning!

Do not push too hard this may cause damage.

How to disassemble Meizu M3s mini Y685H, Step 2/1 How to disassemble Meizu M3s mini Y685H, Step 2/2

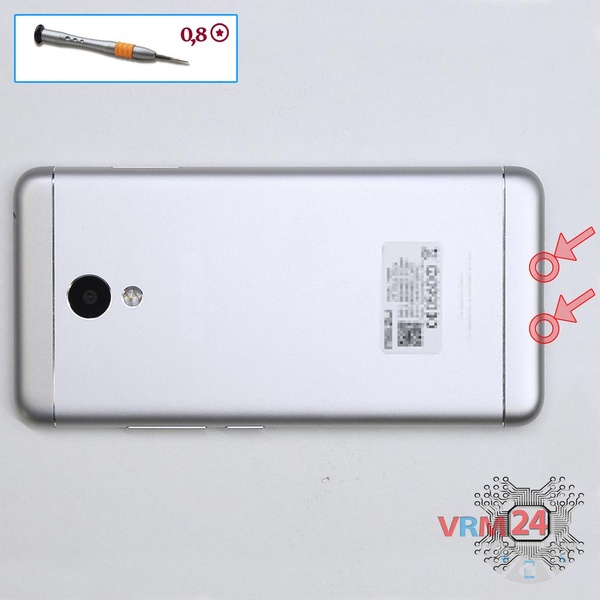

Step 2.

Using a screwdriver (Tri-Wing Precision Screwdriver 0.8mm), unscrew the 2 bolts on the end of the phone.

How to disassemble Meizu M3s mini Y685H, Step 3/1 How to disassemble Meizu M3s mini Y685H, Step 3/2

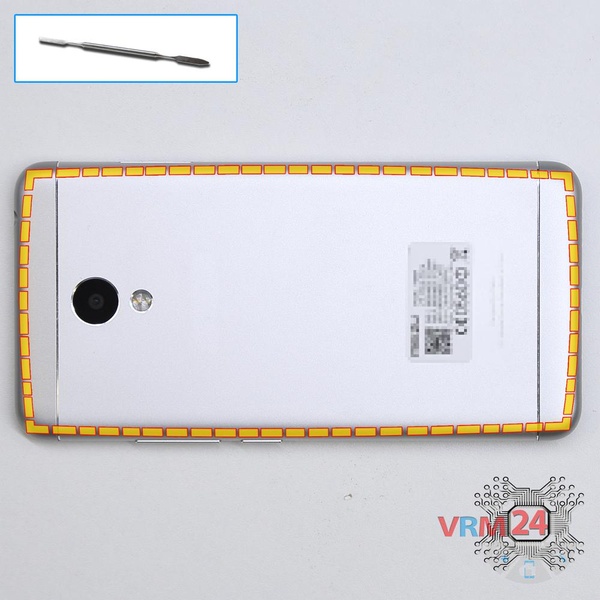

Step 3.

Open the back cover.

How to disassemble Meizu M3s mini Y685H, Step 4/1 How to disassemble Meizu M3s mini Y685H, Step 4/2

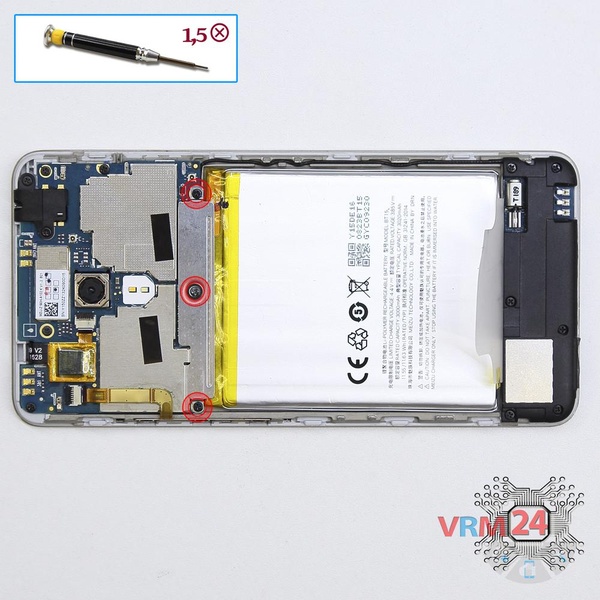

Step 4.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 3 bolts and remove the flat bracket/bar holds the connectors.

How to disassemble Meizu M3s mini Y685H, Step 5/1 How to disassemble Meizu M3s mini Y685H, Step 5/2 How to disassemble Meizu M3s mini Y685H, Step 5/3 How to disassemble Meizu M3s mini Y685H, Step 5/4

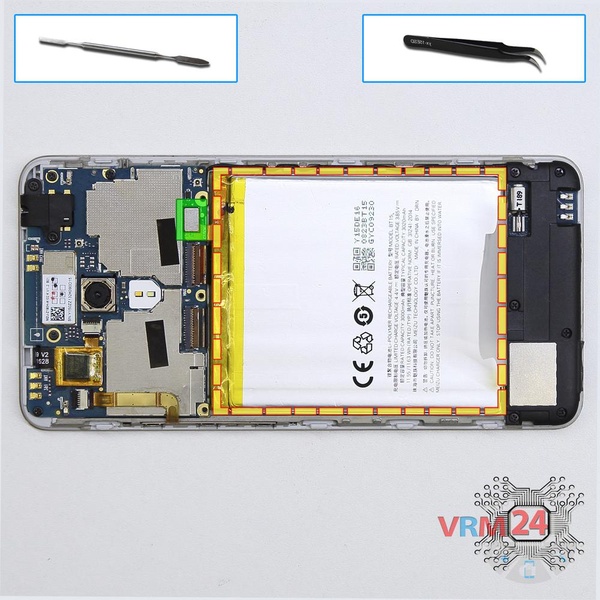

Step 5.

Disconnect connector on the PCB and remove the battery.

How to disassemble Meizu M3s mini Y685H, Step 6/1 How to disassemble Meizu M3s mini Y685H, Step 6/2

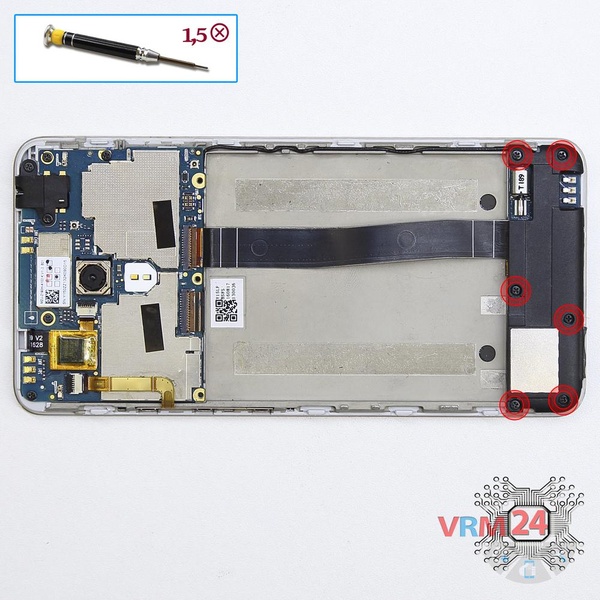

Step 6.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 6 bolts.

How to disassemble Meizu M3s mini Y685H, Step 7/1 How to disassemble Meizu M3s mini Y685H, Step 7/2

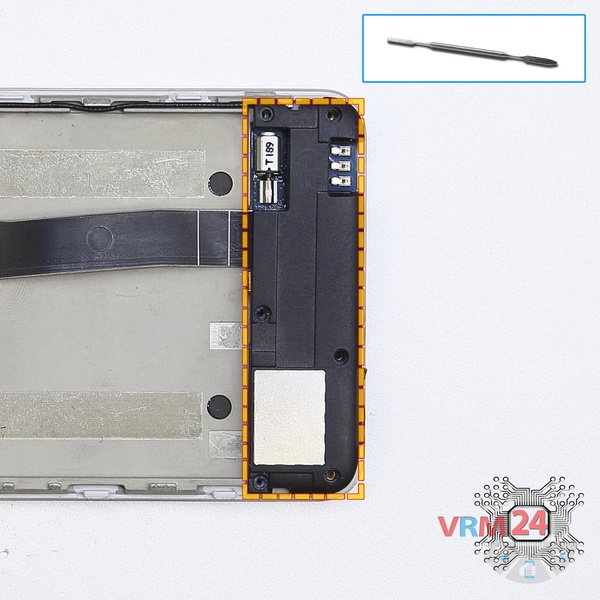

Step 7.

Pry and remove the buzzer (speaker) assembly.

How to disassemble Meizu M3s mini Y685H, Step 8/1 How to disassemble Meizu M3s mini Y685H, Step 8/2 How to disassemble Meizu M3s mini Y685H, Step 8/3

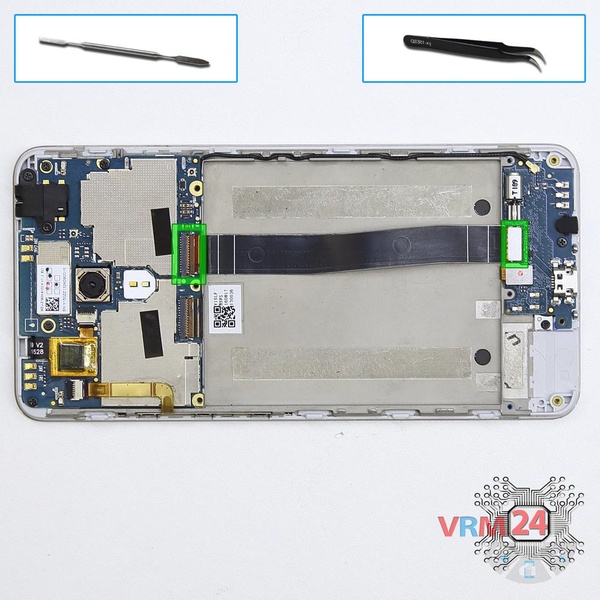

Step 8.

Disconnect connectors and remove the inter-board cable.

How to disassemble Meizu M3s mini Y685H, Step 9/1 How to disassemble Meizu M3s mini Y685H, Step 9/2 How to disassemble Meizu M3s mini Y685H, Step 9/3

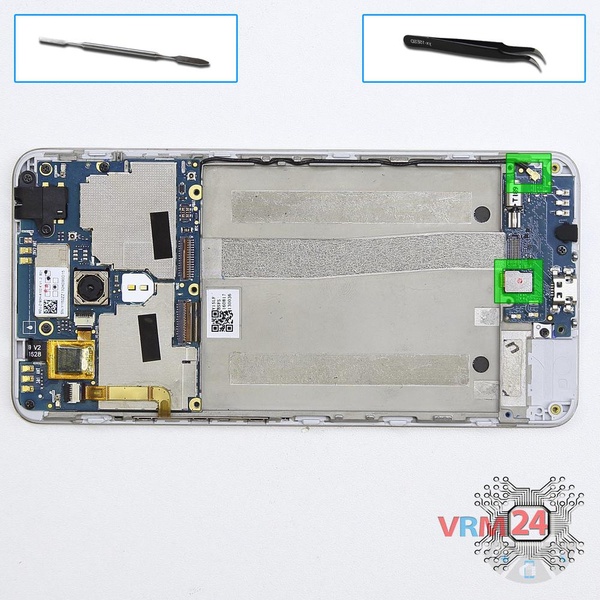

Step 9.

Disconnect connectors on the lower PCB.

How to disassemble Meizu M3s mini Y685H, Step 10/1 How to disassemble Meizu M3s mini Y685H, Step 10/2

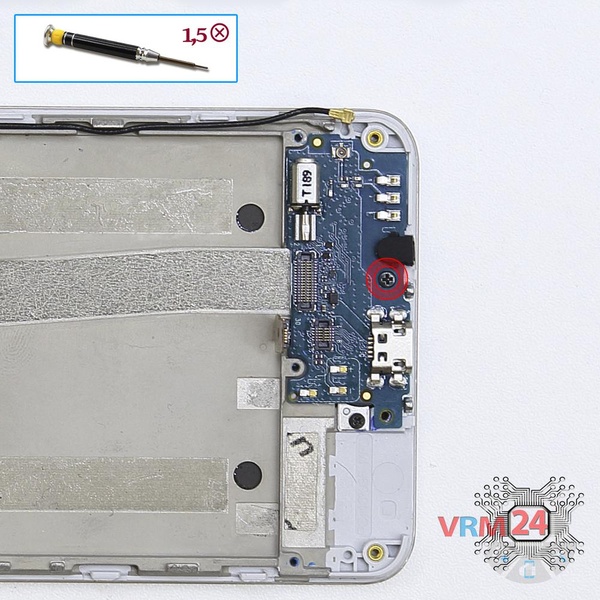

Step 10.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 1 bolt in the lower PCB.

How to disassemble Meizu M3s mini Y685H, Step 11/1 How to disassemble Meizu M3s mini Y685H, Step 11/2

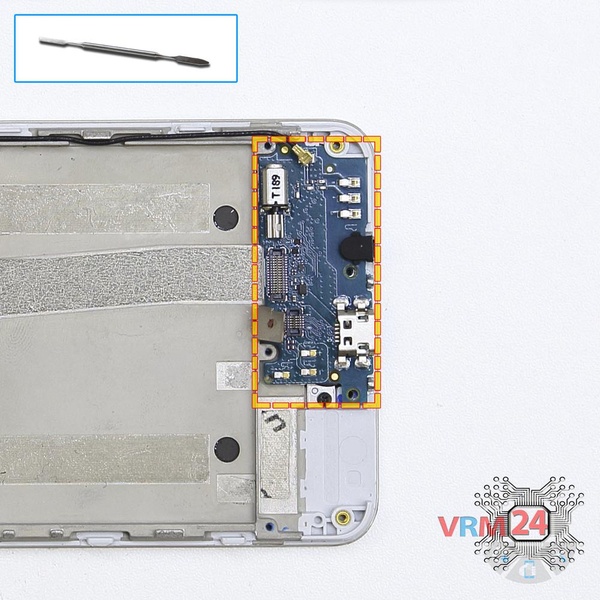

Step 11.

Remove the PCB and microphone cover.

How to disassemble Meizu M3s mini Y685H, Step 12/1 How to disassemble Meizu M3s mini Y685H, Step 12/2

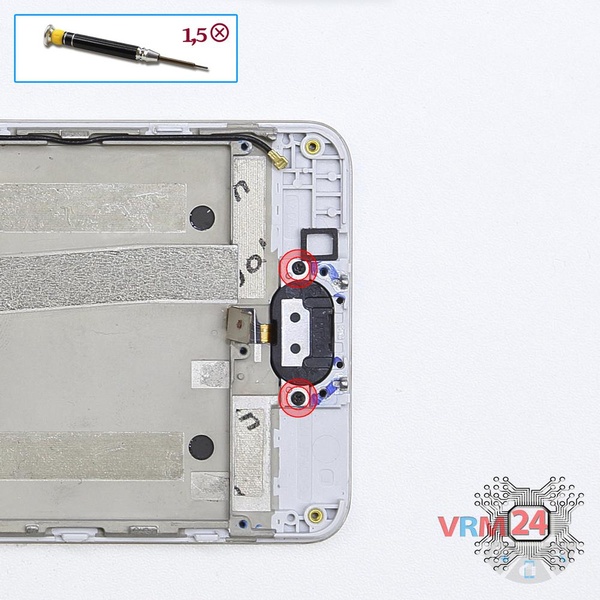

Step 12.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 2 bolts and remove the bracket holds the Home button.

How to disassemble Meizu M3s mini Y685H, Step 13/1 How to disassemble Meizu M3s mini Y685H, Step 13/2

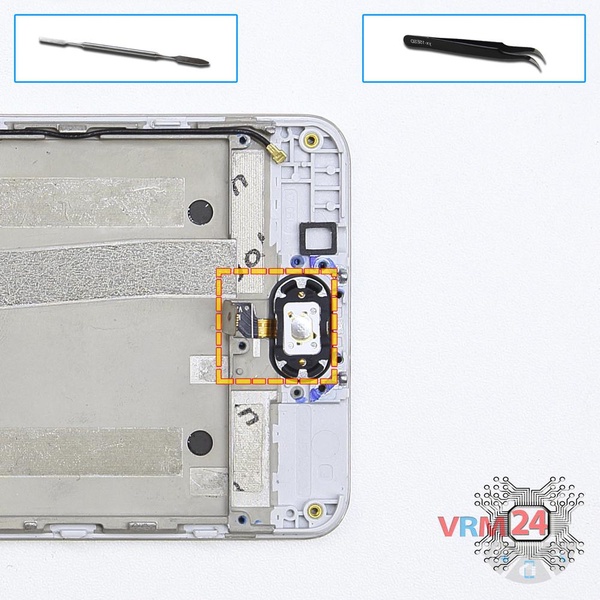

Step 13.

Remove the Home button.

How to disassemble Meizu M3s mini Y685H, Step 14/1 How to disassemble Meizu M3s mini Y685H, Step 14/2

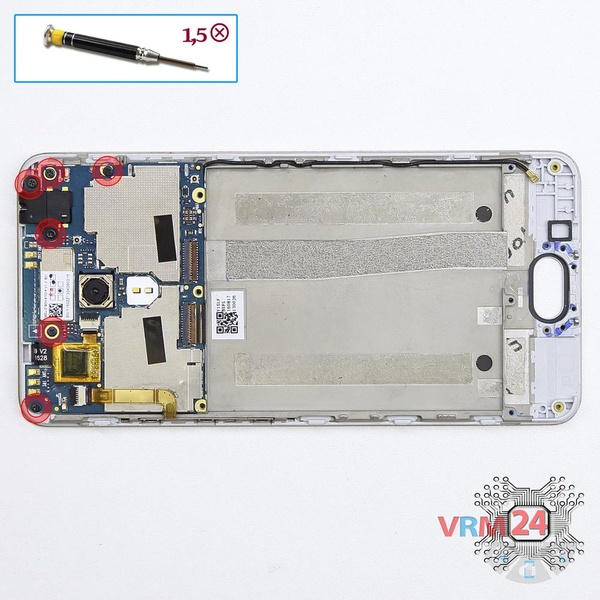

Step 14.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 6 bolts in the PCB.

How to disassemble Meizu M3s mini Y685H, Step 15/1 How to disassemble Meizu M3s mini Y685H, Step 15/2

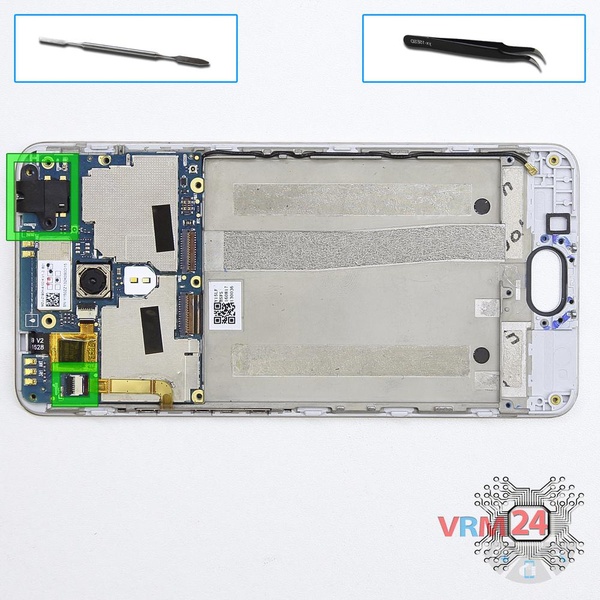

Step 15.

Pry up the connector and remove the power & volume buttons flex cable and headphone jack/socket.

How to disassemble Meizu M3s mini Y685H, Step 16/1 How to disassemble Meizu M3s mini Y685H, Step 16/2

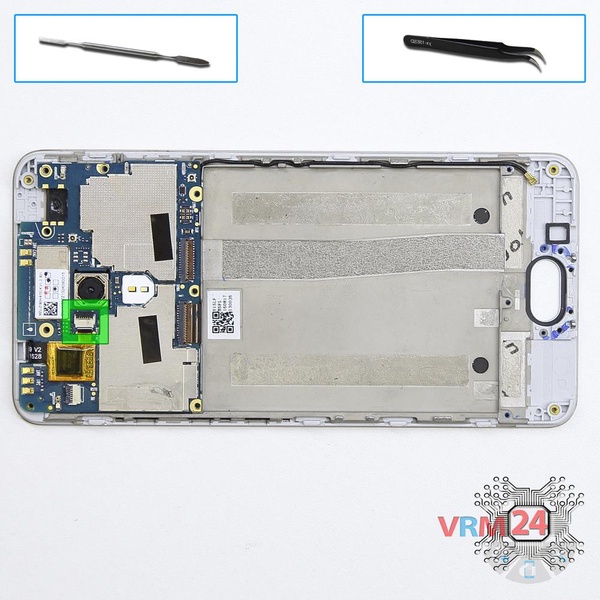

Step 16.

Disconnect the connector on the PCB.

How to disassemble Meizu M3s mini Y685H, Step 17/1 How to disassemble Meizu M3s mini Y685H, Step 17/2

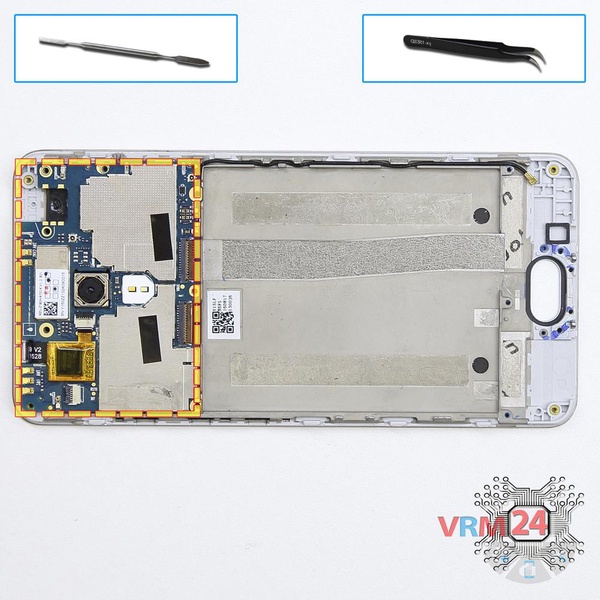

Step 17.

Remove the PCB.

How to disassemble Meizu M3s mini Y685H, Step 18/1 How to disassemble Meizu M3s mini Y685H, Step 18/2

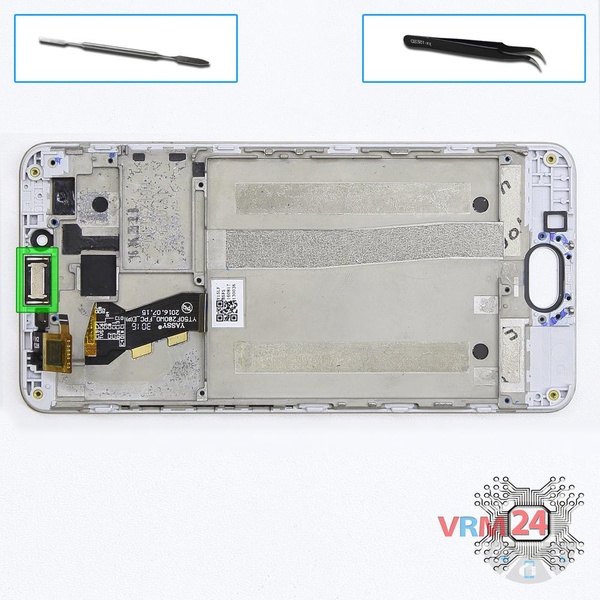

Step 18.

Pry and remove the earpiece (speaker).

How to disassemble Meizu M3s mini Y685H, Step 19/1 How to disassemble Meizu M3s mini Y685H, Step 19/2 How to disassemble Meizu M3s mini Y685H, Step 19/3

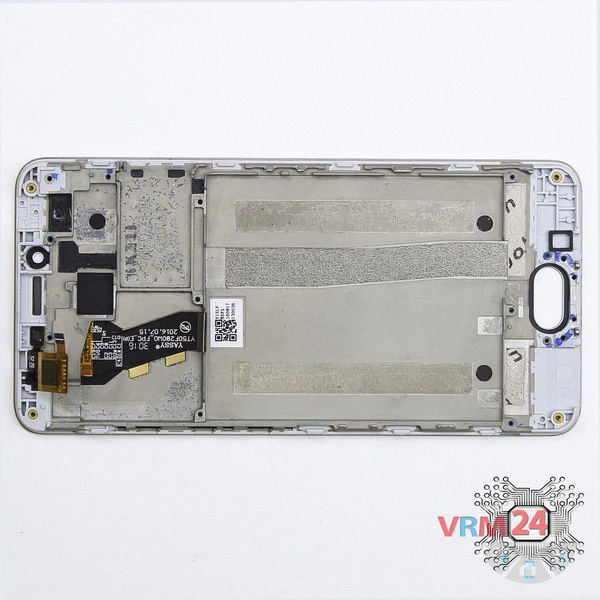

Step 19.

Parts are in the frame of the display module.

Detailed disassembly instructions of Meizu M3s mini Y685H in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

#instructions #Meizu #Meizu M3s mini Y685H
Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer

Disassembling\Repair has medium complexity and takes about 9 minutes in time.
Our manual is suitable for all models Meizu M3s mini Y685H released for markets in different countries.
