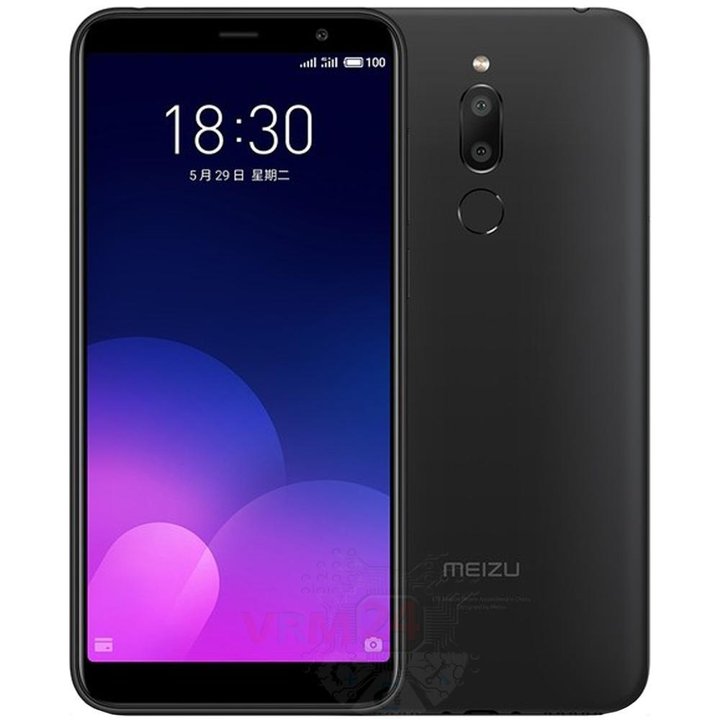

Meizu M6T M811H
Meizu M6T M811H
Teardown difficulty:
Easy
Duration:
8 min

Recommended tools

Screwdriver Five-point P0.8 mm Screwdriver five-point p0.8 mm
Screwdriver Phillips #000 Screwdriver phillips #000
Opening tool / Spudger Opening tool / spudger
Tweezers Tweezers

Disassembly/Repair of the mobile device Meizu M6T M811H with each step description and the required set of tools.

Vadim Popoff

Specialist in content creation, distribution and content management.

How to disassemble Meizu M6T M811H, Step 1/1 How to disassemble Meizu M6T M811H, Step 1/2

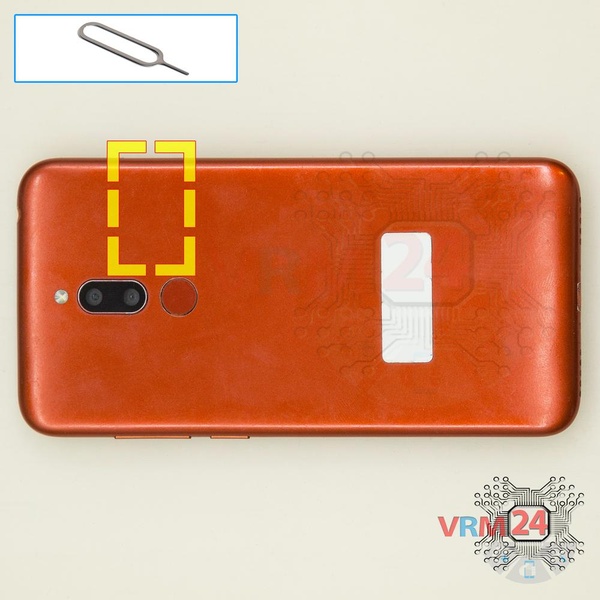

Step 1.

Using the key tool, open the SIM and Micro SD cards tray and remove it.

⚠️ Warning!

Do not push too hard this may cause damage.



How to disassemble Meizu M6T M811H, Step 2/1 How to disassemble Meizu M6T M811H, Step 2/2

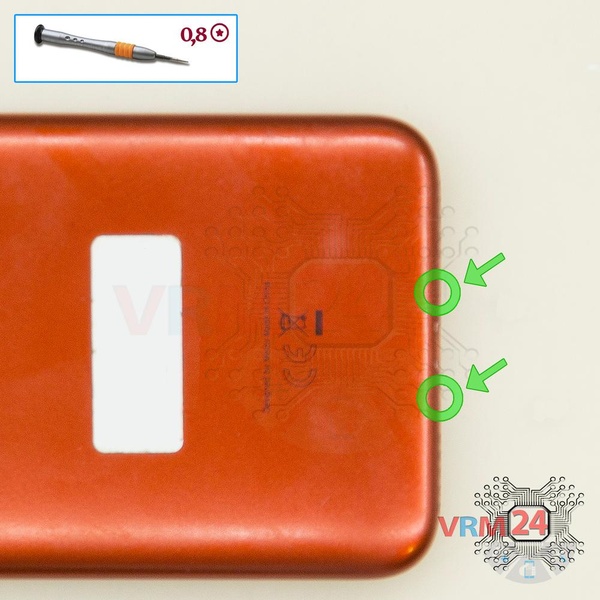

Step 2.

Using a screwdriver (Star Shape 0.8mm Pentalobe), unscrew 2 bolts at the end of the phone.

How to disassemble Meizu M6T M811H, Step 3/1 How to disassemble Meizu M6T M811H, Step 3/2

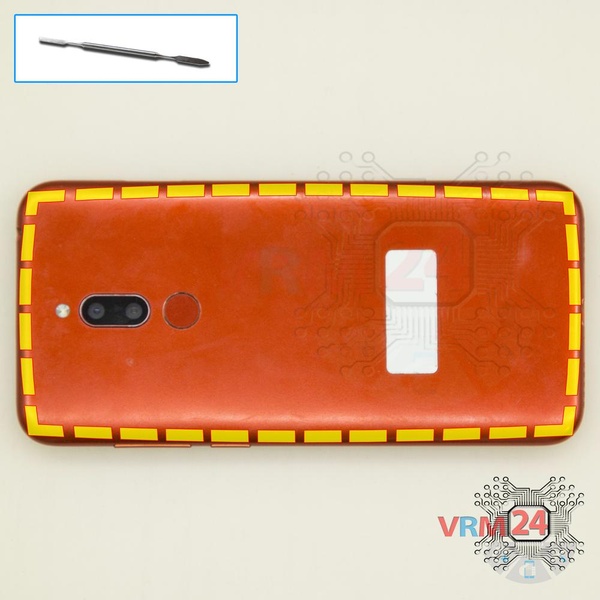

Step 3.

Open the back cover.

How to disassemble Meizu M6T M811H, Step 4/1 How to disassemble Meizu M6T M811H, Step 4/2

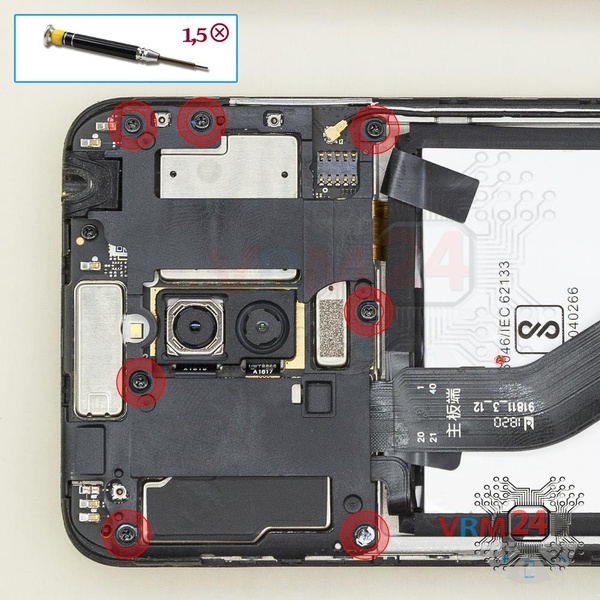

Step 4.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 7 bolts.

How to disassemble Meizu M6T M811H, Step 5/1 How to disassemble Meizu M6T M811H, Step 5/2

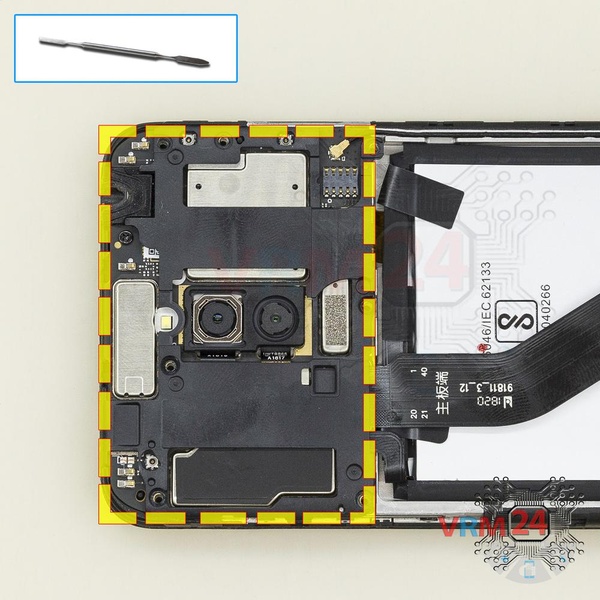

Step 5.

Pry and remove the middle frame.

How to disassemble Meizu M6T M811H, Step 6/1 How to disassemble Meizu M6T M811H, Step 6/2

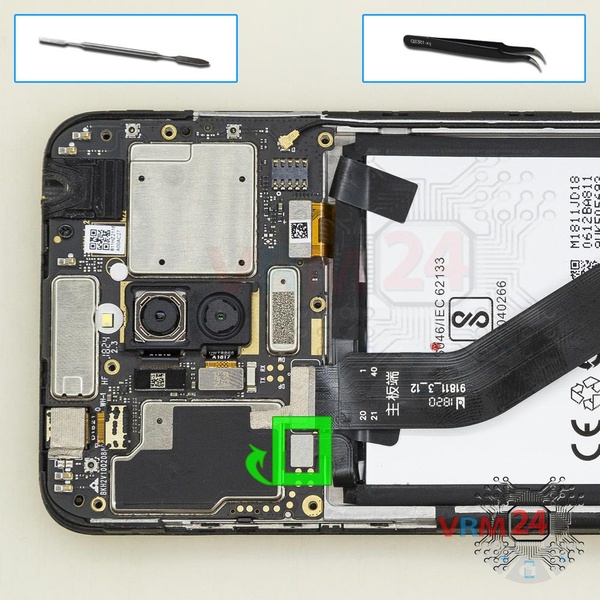

Step 6.

Disconnect the battery connector. The battery model of Meizu M6T is BA811.

⚠️ Warning!

We strongly recommend disconnecting the connector to avoid a possible short circuit during disassembly.

How to disassemble Meizu M6T M811H, Step 7/1 How to disassemble Meizu M6T M811H, Step 7/2

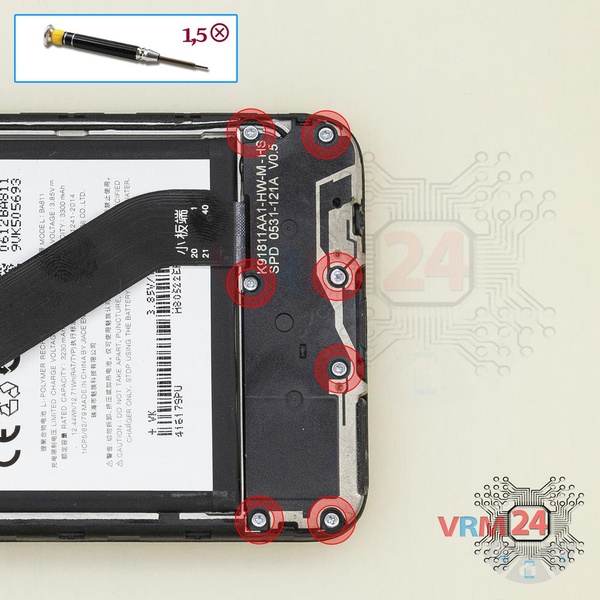

Step 7.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 7 bolts.

How to disassemble Meizu M6T M811H, Step 8/1 How to disassemble Meizu M6T M811H, Step 8/2

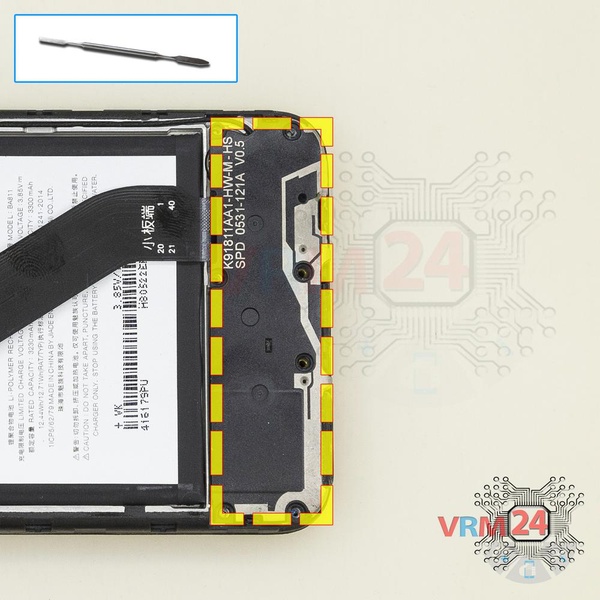

Step 8.

Pry and remove the buzzer (loudspeaker) assembly.

How to disassemble Meizu M6T M811H, Step 9/1 How to disassemble Meizu M6T M811H, Step 9/2

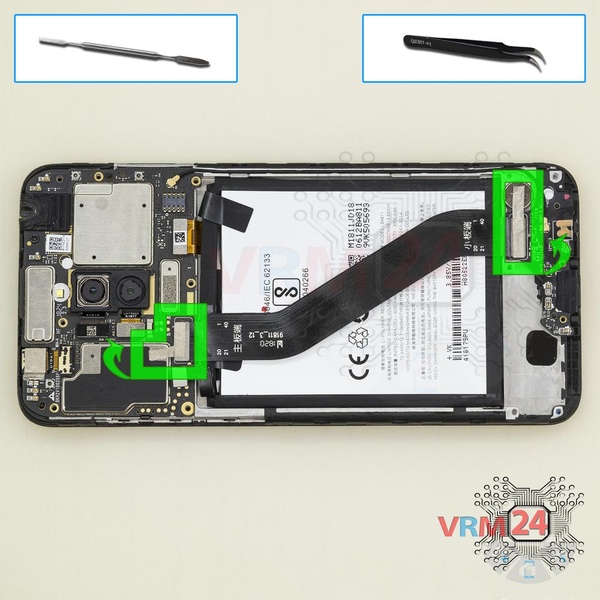

Step 9.

Disconnect connectors and remove the inter-board cable.

How to disassemble Meizu M6T M811H, Step 10/1

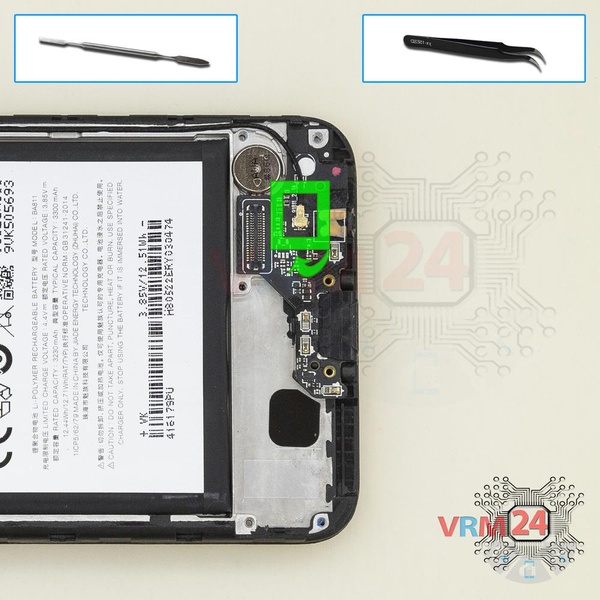

Step 10.

Pry up the coaxial cable connector on the daughterboard.

How to disassemble Meizu M6T M811H, Step 11/1 How to disassemble Meizu M6T M811H, Step 11/2

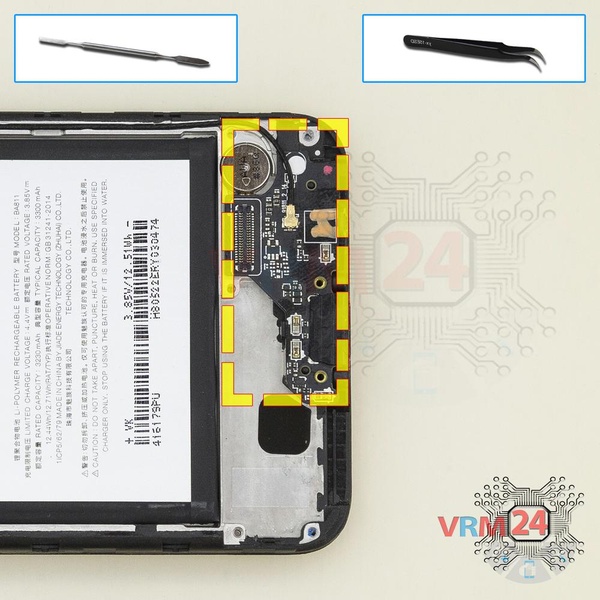

Step 11.

Remove the daughterboard, also known as sub-board.

How to disassemble Meizu M6T M811H, Step 12/1 How to disassemble Meizu M6T M811H, Step 12/2

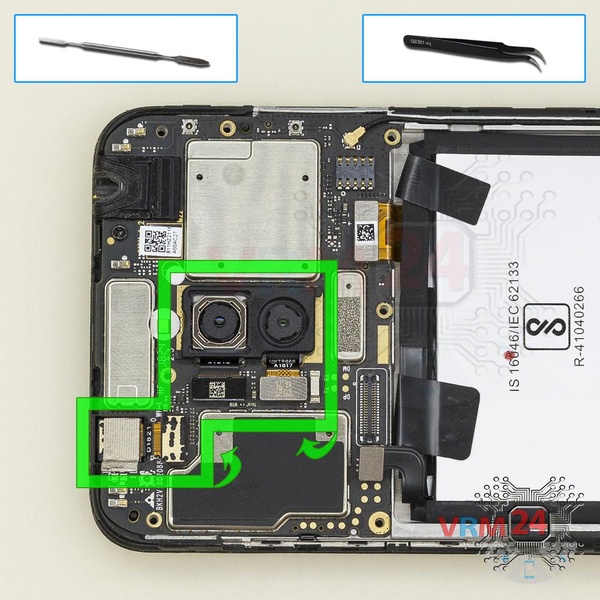

Step 12.

Pry up the connectors and remove the assembly of two rear cameras. Also, remove the front-facing (selfie) camera.

How to disassemble Meizu M6T M811H, Step 13/1 How to disassemble Meizu M6T M811H, Step 13/2

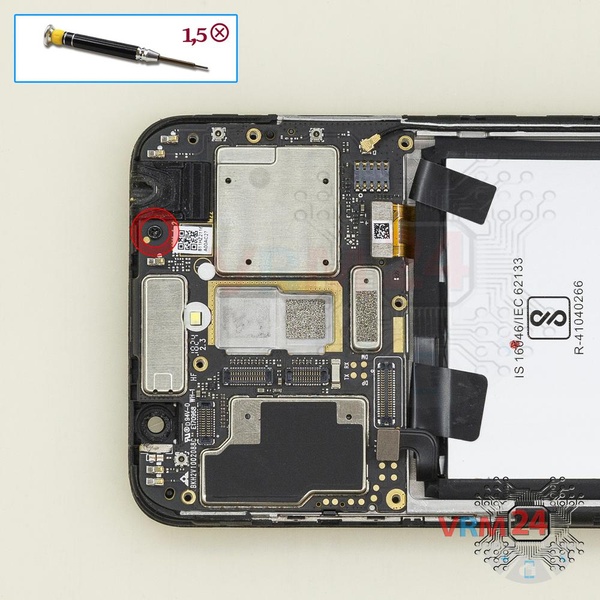

Step 13.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 1 bolt in the PCB.

How to disassemble Meizu M6T M811H, Step 14/1

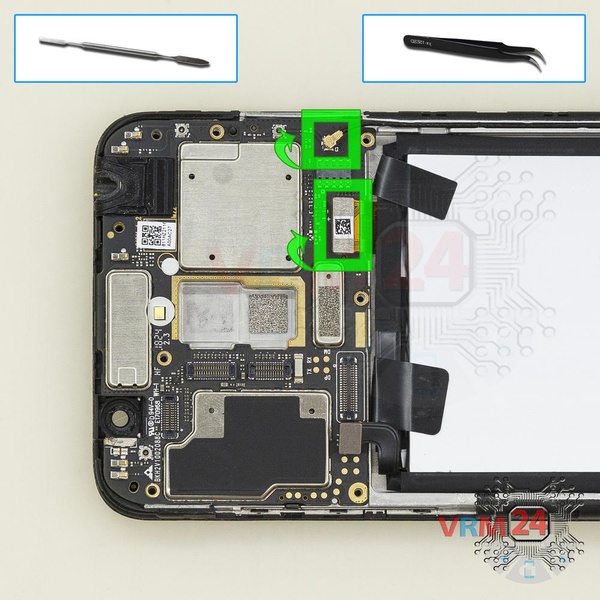

Step 14.

Disconnect connectors on the PCB.

How to disassemble Meizu M6T M811H, Step 15/1 How to disassemble Meizu M6T M811H, Step 15/2

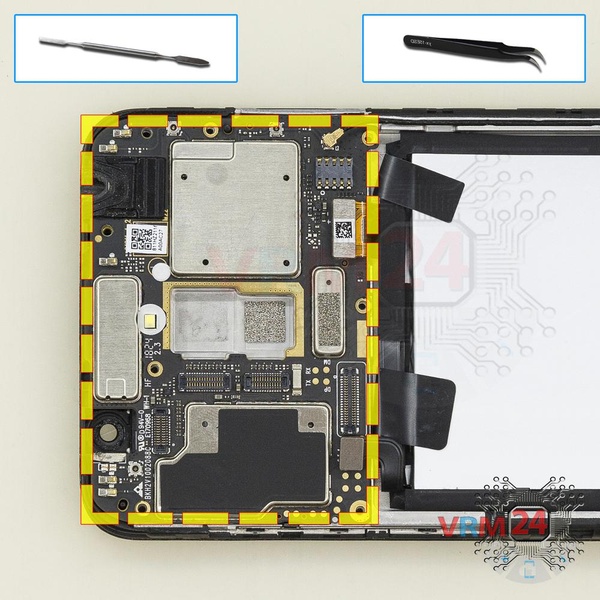

Step 15.

Remove the PCB.

How to disassemble Meizu M6T M811H, Step 16/1 How to disassemble Meizu M6T M811H, Step 16/2 How to disassemble Meizu M6T M811H, Step 16/3

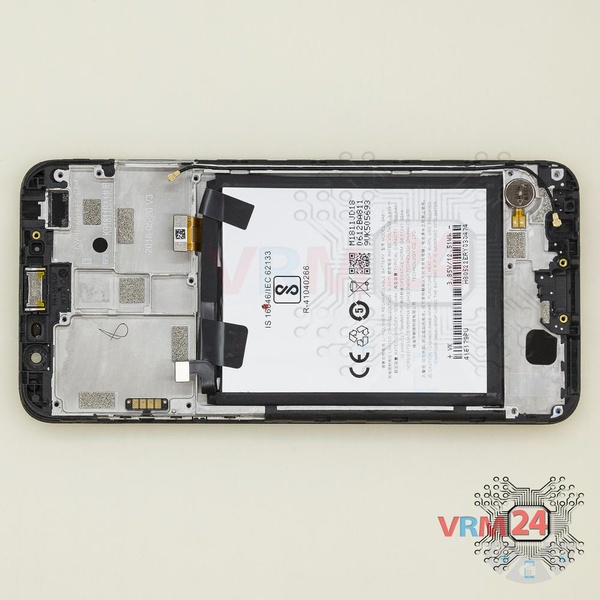

Step 16.

Parts are in the frame of the display module.

Detailed disassembly instructions of Meizu M6T M811H in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

#instructions #Meizu #Meizu M6T M811H
Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer

Disassembling\Repair has easy complexity and takes about 8 minutes in time.
Our manual is suitable for all models Meizu M6T M811H released for markets in different countries.
