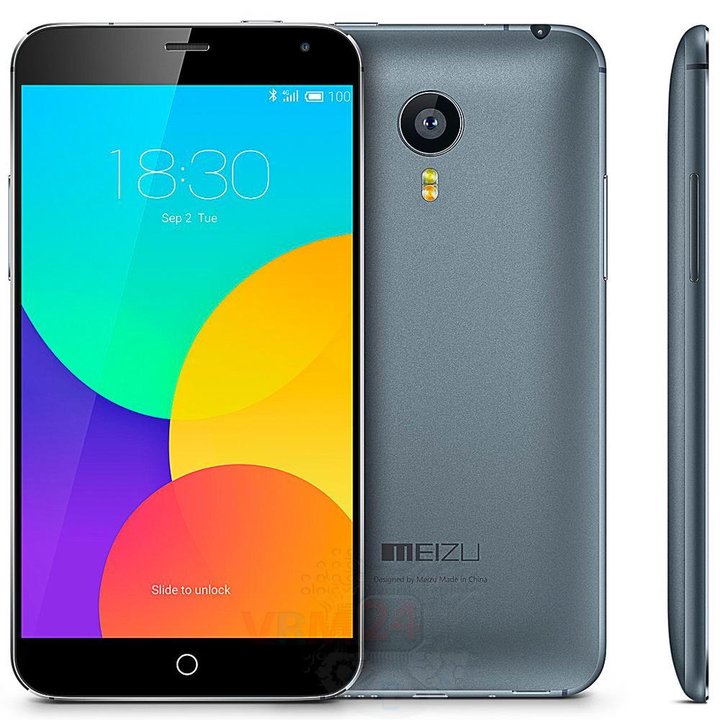

Meizu MX4 PRO M462
Meizu MX4 PRO M462
Teardown difficulty:
Moderate
Duration:
6 min

Recommended tools

Screwdriver Phillips #000 Screwdriver phillips #000
Opening tool / Spudger Opening tool / spudger
Tweezers Tweezers

Disassembly/Repair of the mobile device Meizu MX4 PRO M462 with each step description and the required set of tools.

Vadim Popoff

Author, currently - Quality Assurance Specialist

How to disassemble Meizu MX4 PRO M462, Step 1/1 How to disassemble Meizu MX4 PRO M462, Step 1/2

Step 1.

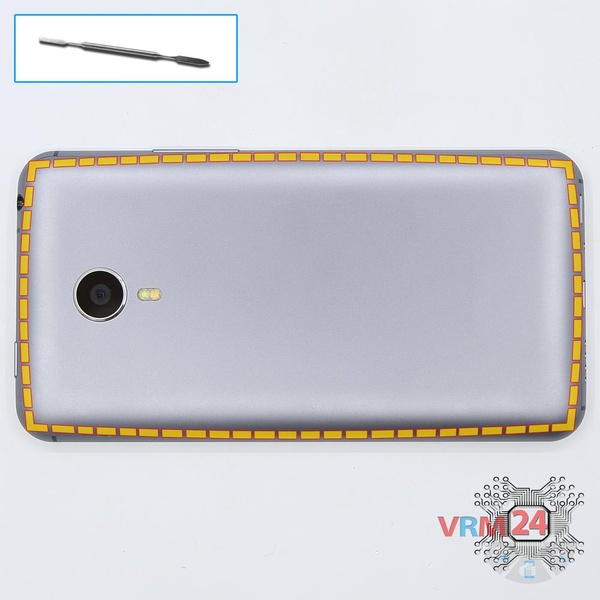

Open the back cover.

How to disassemble Meizu MX4 PRO M462, Step 2/1 How to disassemble Meizu MX4 PRO M462, Step 2/2

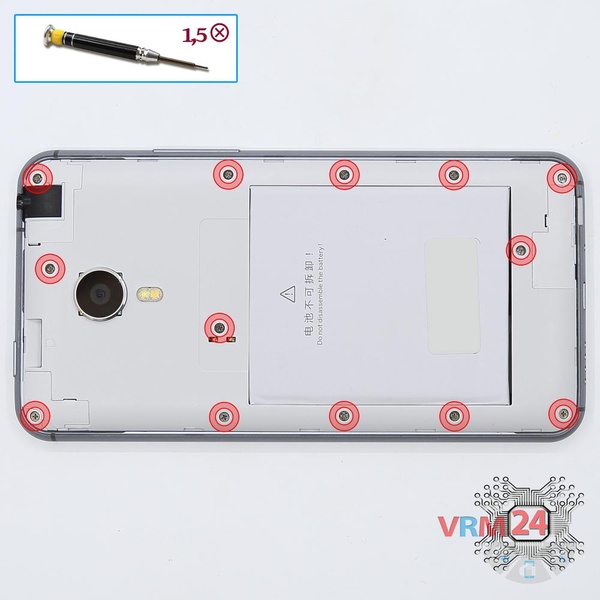

Step 2.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 13 bolts in the frame of the phone.

How to disassemble Meizu MX4 PRO M462, Step 3/1 How to disassemble Meizu MX4 PRO M462, Step 3/2

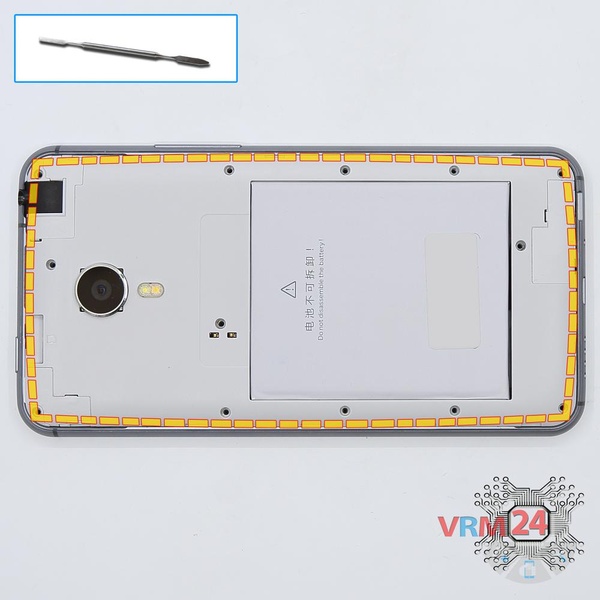

Step 3.

Pry and remove the middle frame.

How to disassemble Meizu MX4 PRO M462, Step 4/1 How to disassemble Meizu MX4 PRO M462, Step 4/2 How to disassemble Meizu MX4 PRO M462, Step 4/3

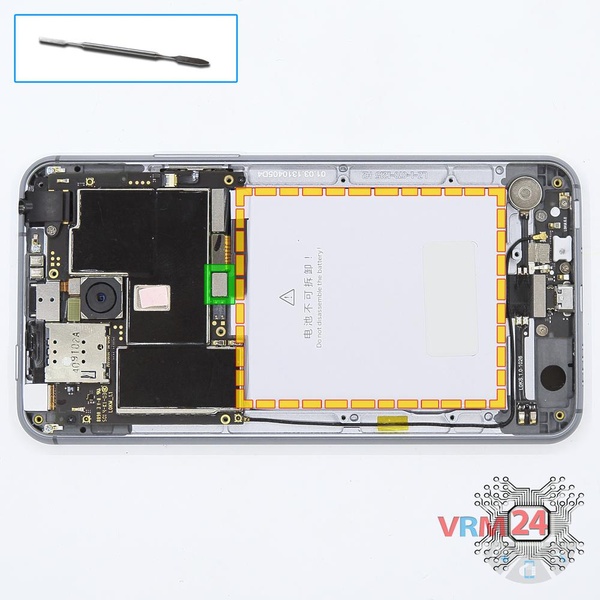

Step 4.

Disconnect connector on the PCB and remove the battery.

How to disassemble Meizu MX4 PRO M462, Step 5/1 How to disassemble Meizu MX4 PRO M462, Step 5/2

Step 5.

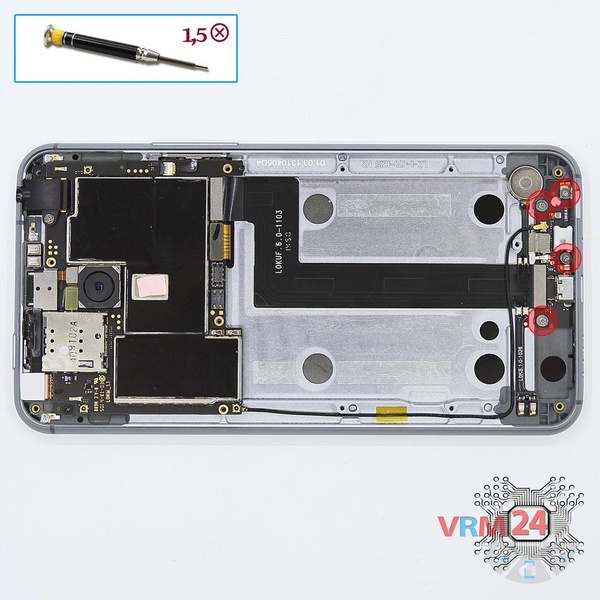

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 4 bolts.

How to disassemble Meizu MX4 PRO M462, Step 6/1 How to disassemble Meizu MX4 PRO M462, Step 6/2 How to disassemble Meizu MX4 PRO M462, Step 6/3

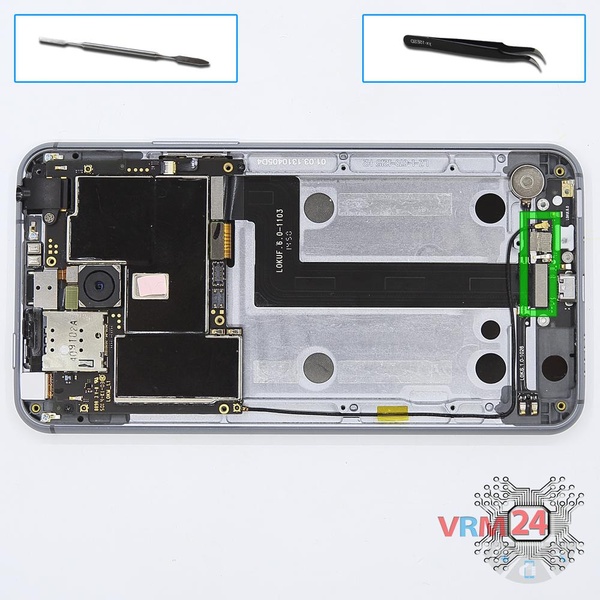

Step 6.

Disconnect connectors on the lower PCB and remove it.

How to disassemble Meizu MX4 PRO M462, Step 7/1 How to disassemble Meizu MX4 PRO M462, Step 7/2

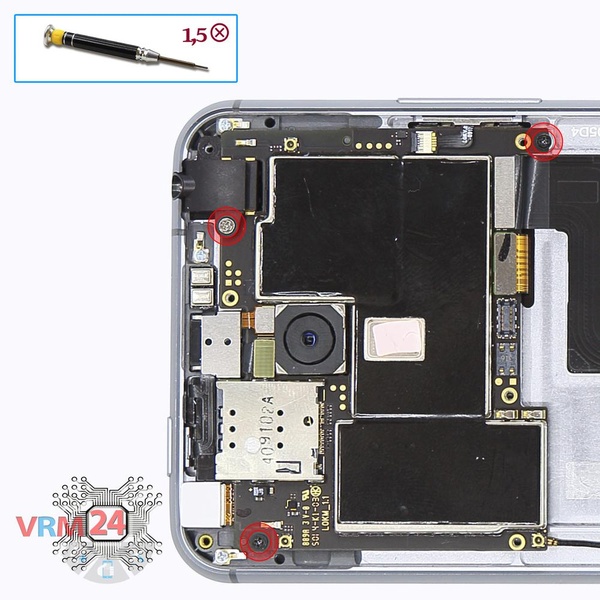

Step 7.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 3 bolts in the PCB and remove the headphone jack/socket.

How to disassemble Meizu MX4 PRO M462, Step 8/1 How to disassemble Meizu MX4 PRO M462, Step 8/2

Step 8.

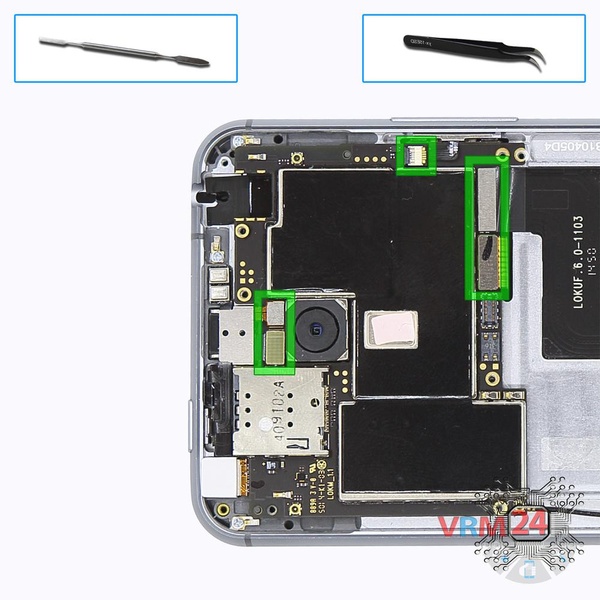

Disconnect connectors on the PCB.

How to disassemble Meizu MX4 PRO M462, Step 9/1 How to disassemble Meizu MX4 PRO M462, Step 9/2 How to disassemble Meizu MX4 PRO M462, Step 9/3

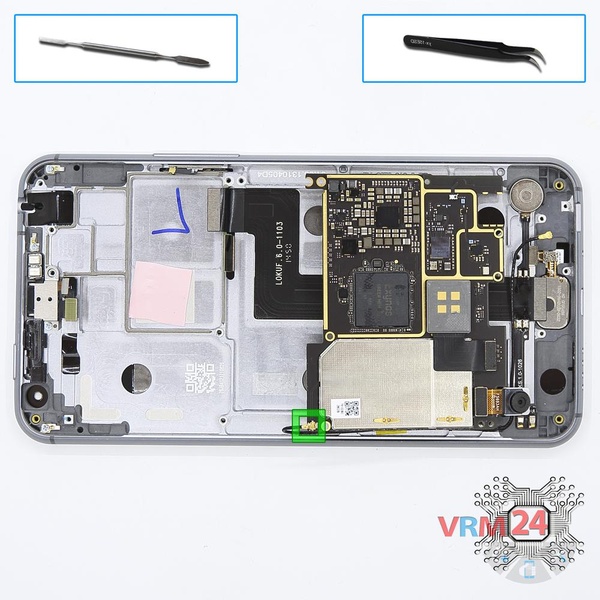

Step 9.

Turn over PCB, disconnect the connector of the coaxial cable from the inside and remove the board.

How to disassemble Meizu MX4 PRO M462, Step 10/1 How to disassemble Meizu MX4 PRO M462, Step 10/2

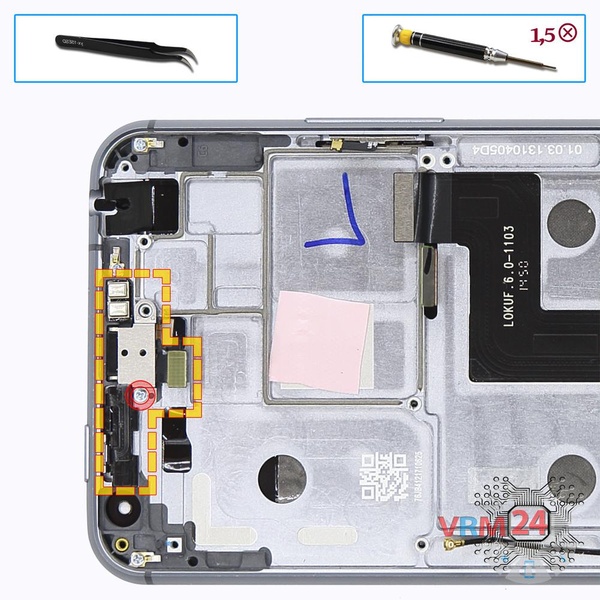

Step 10.

Pry and remove the frame with microphones and proximity sensor.

How to disassemble Meizu MX4 PRO M462, Step 11/1 How to disassemble Meizu MX4 PRO M462, Step 11/2 How to disassemble Meizu MX4 PRO M462, Step 11/3

Step 11.

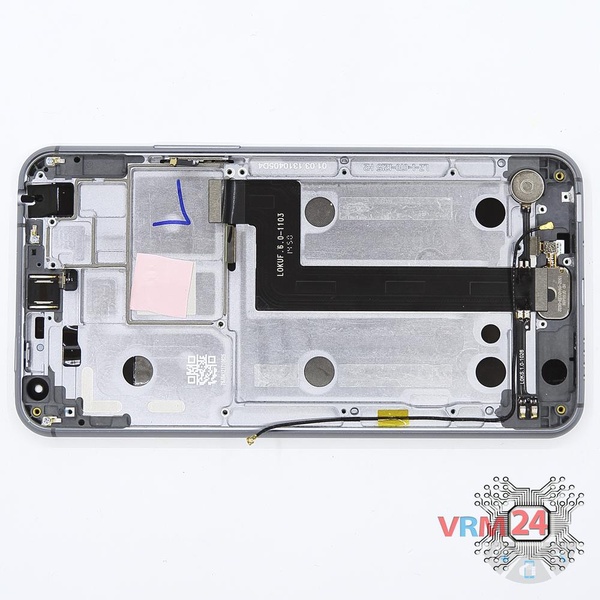

Parts are in the frame of the display module.

Detailed disassembly instructions of Meizu MX4 PRO M462 in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

#instructions #Meizu #Meizu MX4 PRO M462
Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer

Disassembling\Repair has medium complexity and takes about 6 minutes in time.
Our manual is suitable for all models Meizu MX4 PRO M462 released for markets in different countries.
