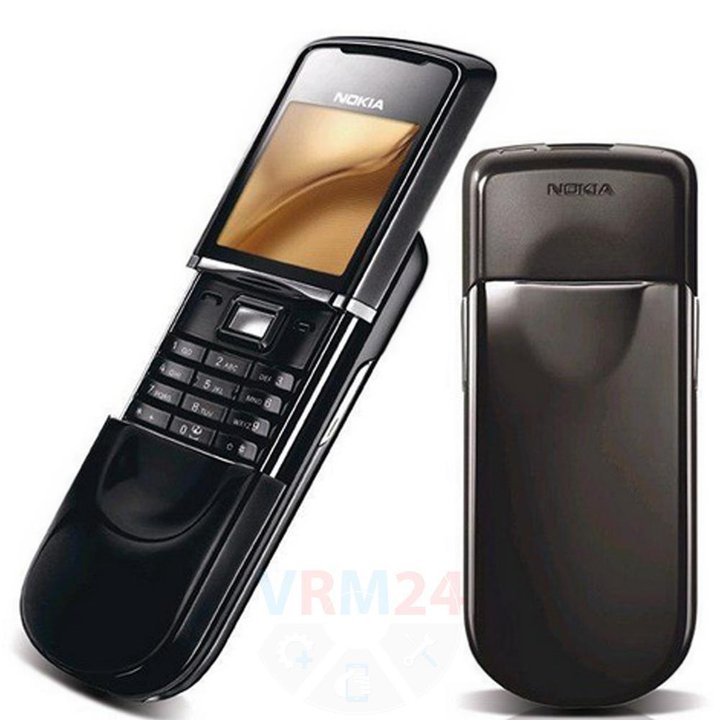

Nokia 8800 Sirocco RM-165
Nokia 8800 Sirocco RM-165
Teardown difficulty:
Moderate
Duration:
4 min

Recommended tools

Screwdriver Torx T5 Screwdriver torx t5
Screwdriver Torx T6 Screwdriver torx t6
Opening tool / Spudger Opening tool / spudger
Tweezers Tweezers

Disassembly/Repair of the mobile device Nokia 8800 Sirocco RM-165 with each step description and the required set of tools.

Vadim Popoff

Specialist in content creation, distribution and content management.

How to disassemble Nokia 8800 Sirocco RM-165, Step 1/1 How to disassemble Nokia 8800 Sirocco RM-165, Step 1/2 How to disassemble Nokia 8800 Sirocco RM-165, Step 1/3

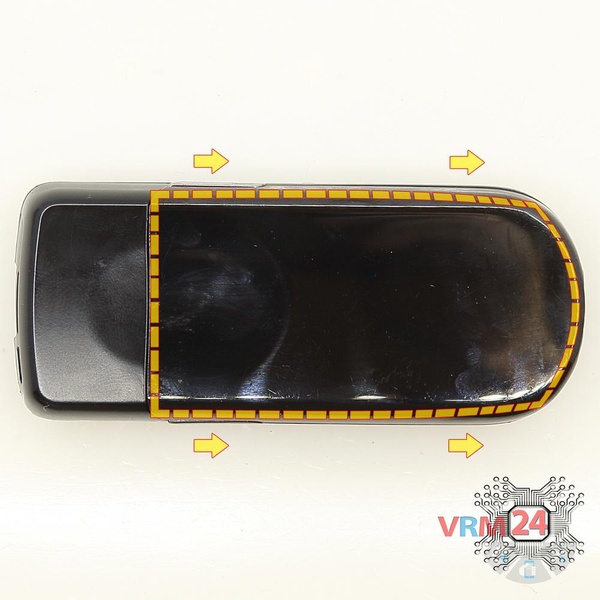

Step 1.

Open the back cover.

How to disassemble Nokia 8800 Sirocco RM-165, Step 2/1 How to disassemble Nokia 8800 Sirocco RM-165, Step 2/2

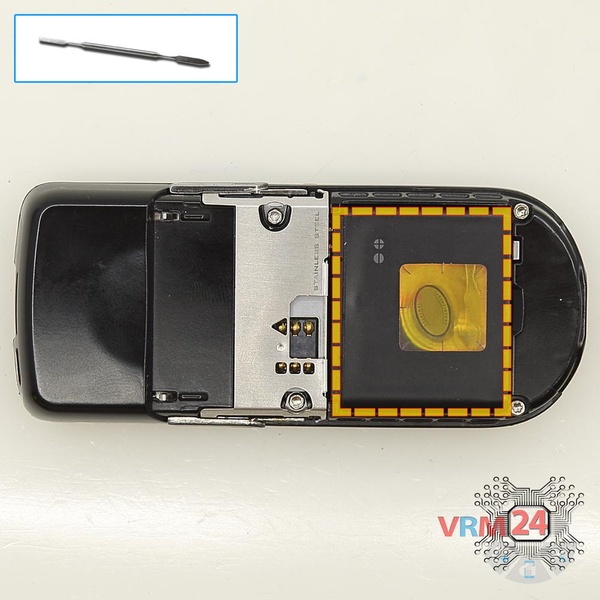

Step 2.

Lift and remove the battery.

How to disassemble Nokia 8800 Sirocco RM-165, Step 3/1 How to disassemble Nokia 8800 Sirocco RM-165, Step 3/2

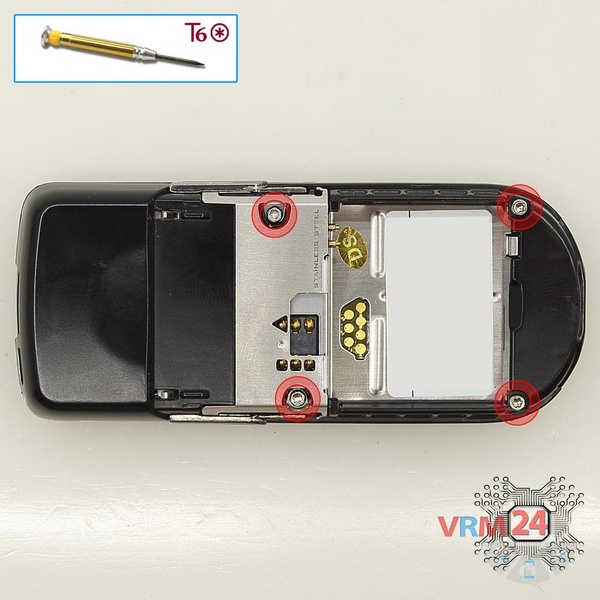

Step 3.

Using a screwdriver (hex T6), unscrew 4 bolts in the frame of the phone.

How to disassemble Nokia 8800 Sirocco RM-165, Step 4/1 How to disassemble Nokia 8800 Sirocco RM-165, Step 4/2

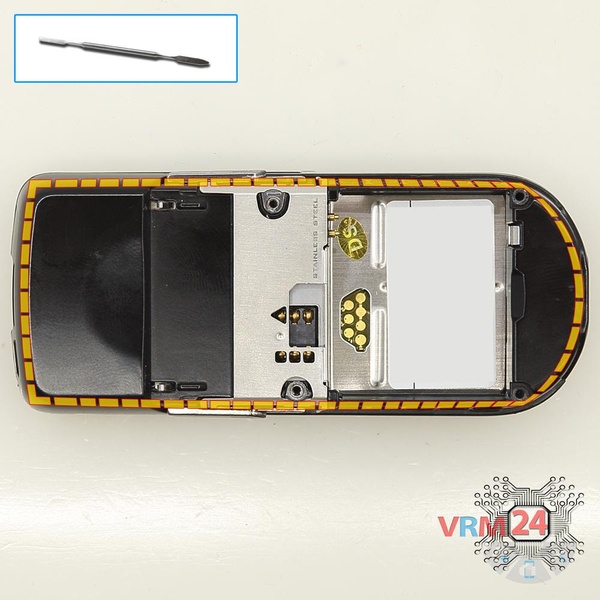

Step 4.

Pry and remove the middle frame.

How to disassemble Nokia 8800 Sirocco RM-165, Step 5/1 How to disassemble Nokia 8800 Sirocco RM-165, Step 5/2

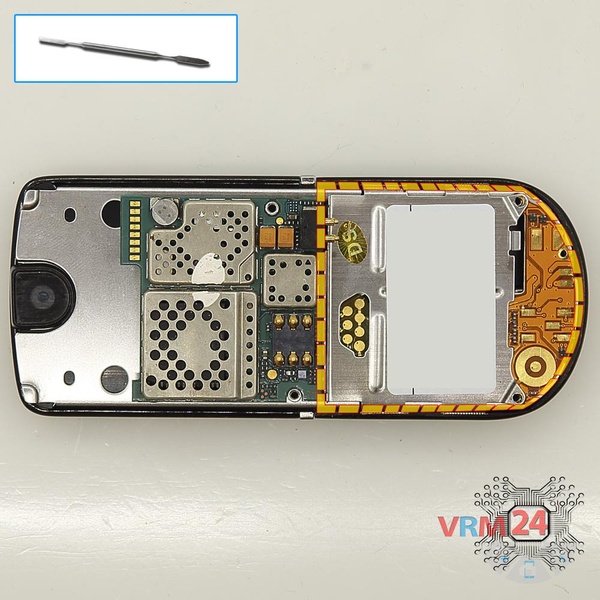

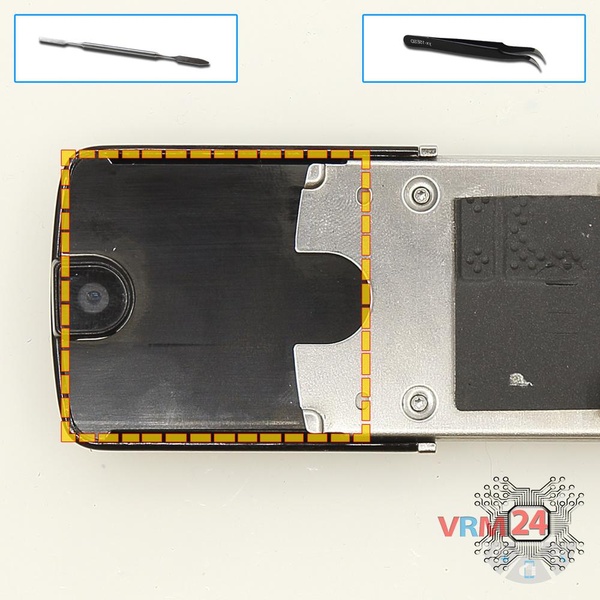

Step 5.

Remove the cover.

How to disassemble Nokia 8800 Sirocco RM-165, Step 6/1 How to disassemble Nokia 8800 Sirocco RM-165, Step 6/2 How to disassemble Nokia 8800 Sirocco RM-165, Step 6/3

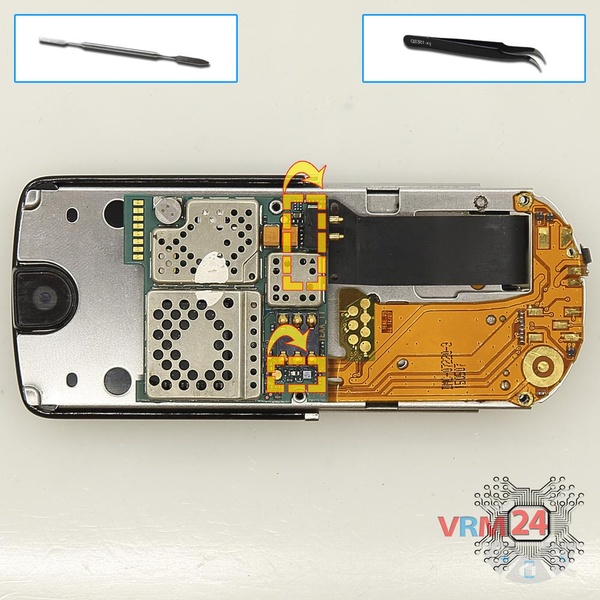

Step 6.

Remove the PCB.

⚠️ Warning!

Two inter-board cable connectors are on the inside.

How to disassemble Nokia 8800 Sirocco RM-165, Step 7/1 How to disassemble Nokia 8800 Sirocco RM-165, Step 7/2

Step 7.

Remove the upper cover.

How to disassemble Nokia 8800 Sirocco RM-165, Step 8/1 How to disassemble Nokia 8800 Sirocco RM-165, Step 8/2

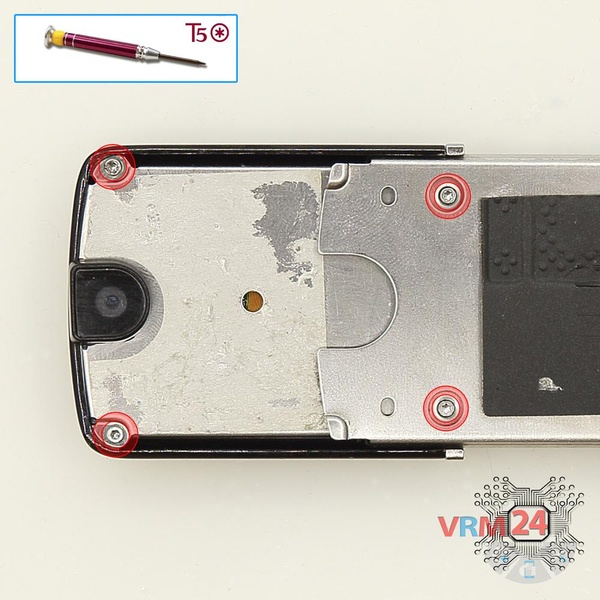

Step 8.

Using a screwdriver (hex T5), unscrew 4 bolts.

How to disassemble Nokia 8800 Sirocco RM-165, Step 9/1 How to disassemble Nokia 8800 Sirocco RM-165, Step 9/2

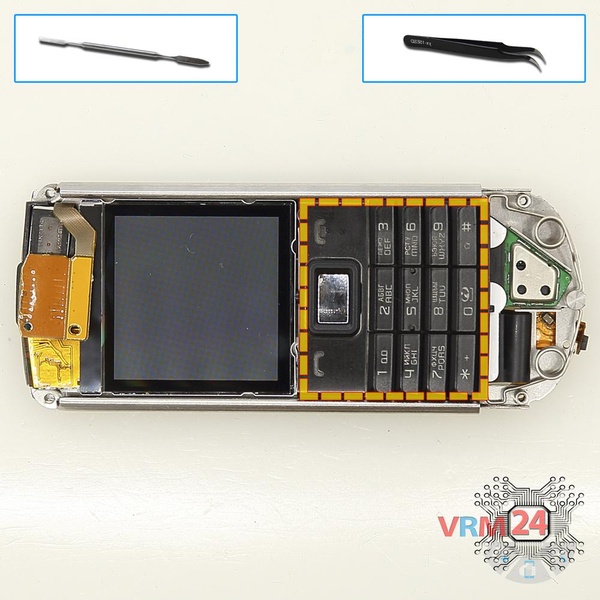

Step 9.

Remove the keyboard.

How to disassemble Nokia 8800 Sirocco RM-165, Step 10/1 How to disassemble Nokia 8800 Sirocco RM-165, Step 10/2 How to disassemble Nokia 8800 Sirocco RM-165, Step 10/3

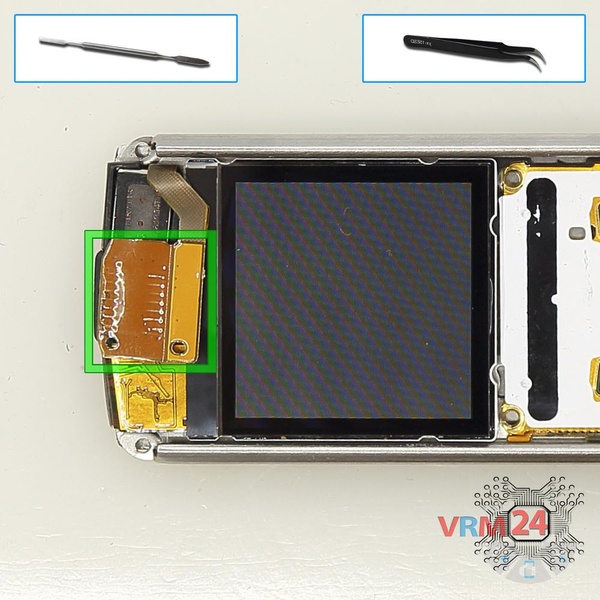

Step 10.

Lift up the camera and remove the earpiece (speaker).

How to disassemble Nokia 8800 Sirocco RM-165, Step 11/1 How to disassemble Nokia 8800 Sirocco RM-165, Step 11/2 How to disassemble Nokia 8800 Sirocco RM-165, Step 11/3

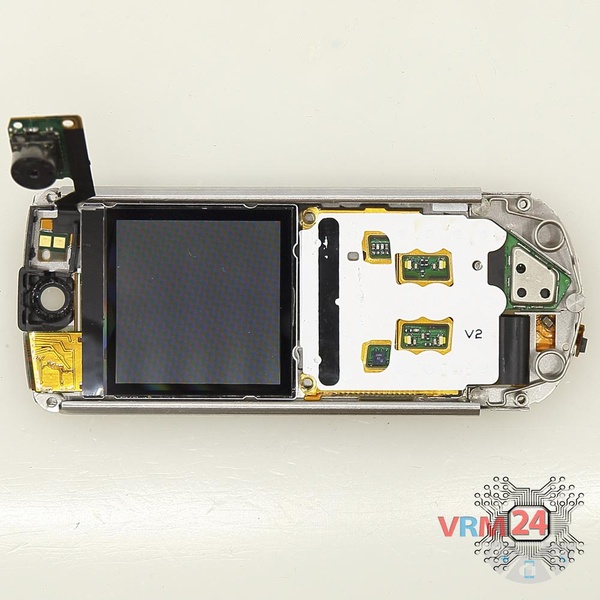

Step 11.

The parts in the frame.

Detailed disassembly instructions of Nokia 8800 Sirocco RM-165 in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

#instructions #Nokia #Nokia 8800 Sirocco RM-165
Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer

Disassembling\Repair has medium complexity and takes about 4 minutes in time.
Our manual is suitable for all models Nokia 8800 Sirocco RM-165 released for markets in different countries.
