Nokia Lumia 730 RM-1040
Nokia Lumia 730 RM-1040
Teardown difficulty:
Easy
Duration:
3 min

Recommended tools

Opening tool / Spudger Opening tool / spudger
Tweezers Tweezers

Disassembly/Repair of the mobile device Nokia Lumia 730 RM-1040 with each step description and the required set of tools.

Vadim Popoff

Author, currently - Quality Assurance Specialist

How to disassemble Nokia Lumia 730 RM-1040, Step 1/1 How to disassemble Nokia Lumia 730 RM-1040, Step 1/2

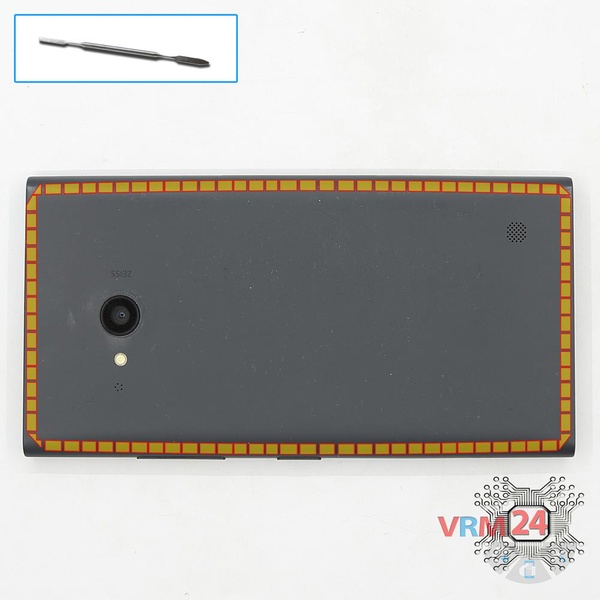

Step 1.

Open the back cover.

How to disassemble Nokia Lumia 730 RM-1040, Step 2/1 How to disassemble Nokia Lumia 730 RM-1040, Step 2/2

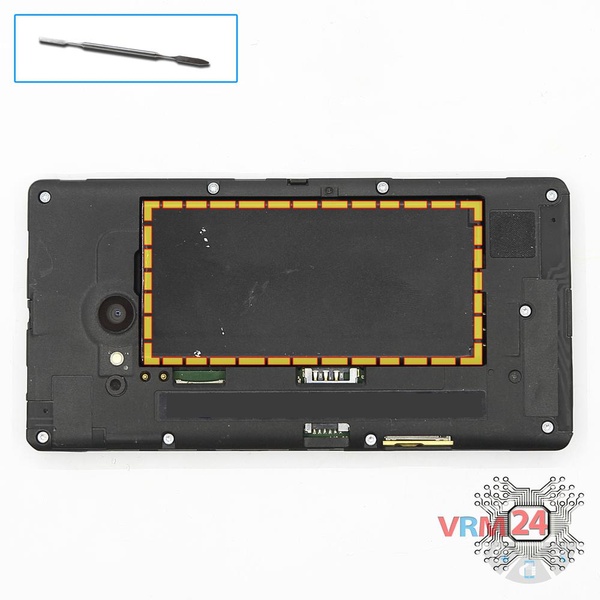

Step 2.

Lift and remove the battery.

How to disassemble Nokia Lumia 730 RM-1040, Step 3/1 How to disassemble Nokia Lumia 730 RM-1040, Step 3/2

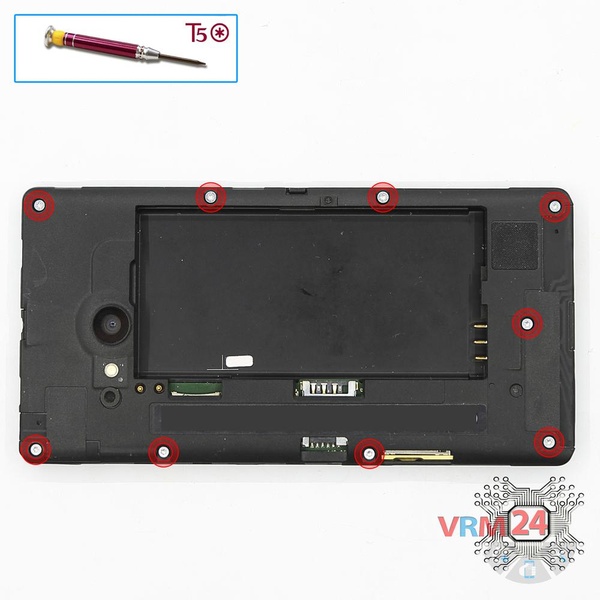

Step 3.

Using a screwdriver (hex T5), unscrew 9 bolts in the frame of the phone.

How to disassemble Nokia Lumia 730 RM-1040, Step 4/1 How to disassemble Nokia Lumia 730 RM-1040, Step 4/2 How to disassemble Nokia Lumia 730 RM-1040, Step 4/3 How to disassemble Nokia Lumia 730 RM-1040, Step 4/4

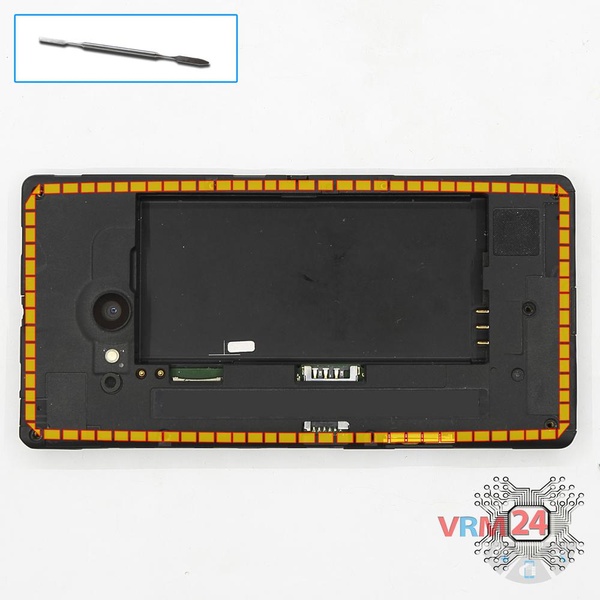

Step 4.

Lift up the middle cover. Disconnect the display connector and remove the display module.

How to disassemble Nokia Lumia 730 RM-1040, Step 5/1 How to disassemble Nokia Lumia 730 RM-1040, Step 5/2 How to disassemble Nokia Lumia 730 RM-1040, Step 5/3

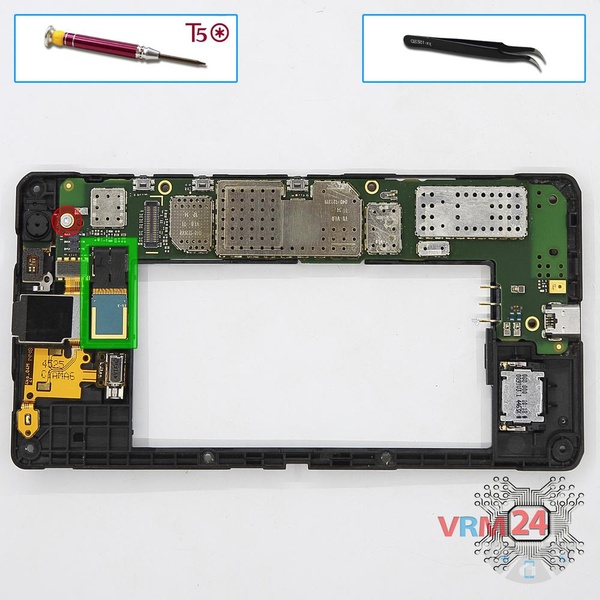

Step 5.

Disconnect connector on the PCB and remove the main camera. Using a screwdriver (hex T5), unscrew 1 bolt in the PCB.

How to disassemble Nokia Lumia 730 RM-1040, Step 6/1 How to disassemble Nokia Lumia 730 RM-1040, Step 6/2

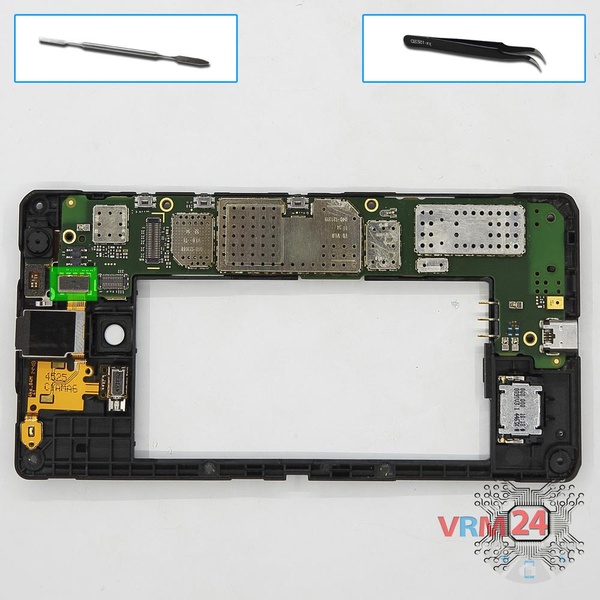

Step 6.

Disconnect the connector on the PCB.

How to disassemble Nokia Lumia 730 RM-1040, Step 7/1 How to disassemble Nokia Lumia 730 RM-1040, Step 7/2

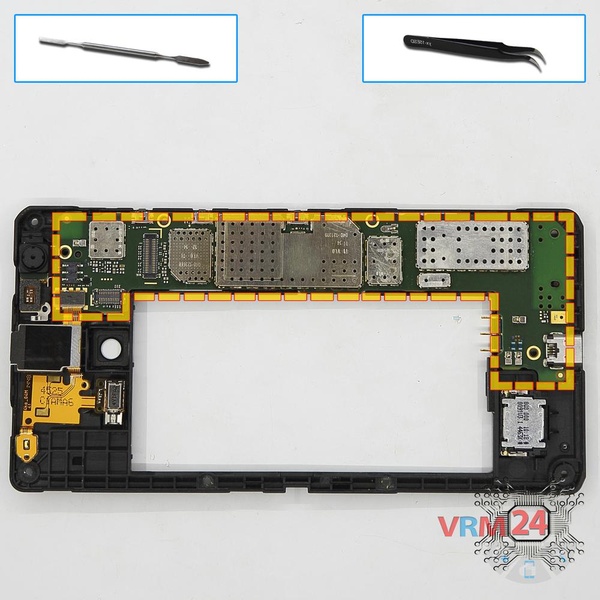

Step 7.

Remove the PCB.

How to disassemble Nokia Lumia 730 RM-1040, Step 8/1 How to disassemble Nokia Lumia 730 RM-1040, Step 8/2 How to disassemble Nokia Lumia 730 RM-1040, Step 8/3

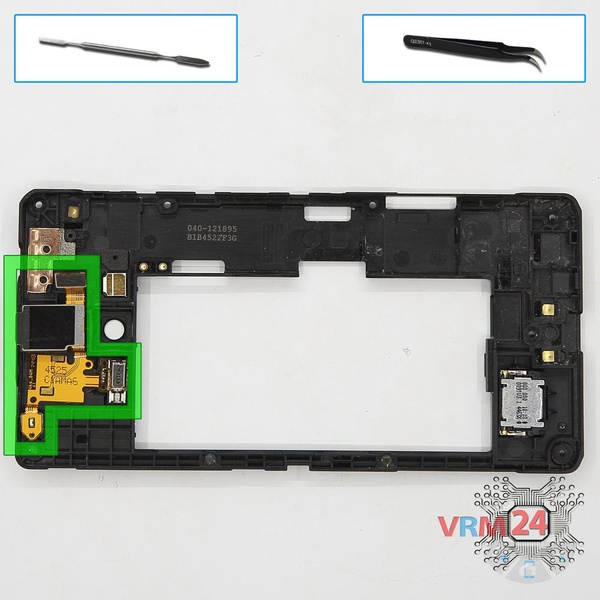

Step 8.

Remove the cable with headphone jack/socket and vibration motor.

How to disassemble Nokia Lumia 730 RM-1040, Step 9/1 How to disassemble Nokia Lumia 730 RM-1040, Step 9/2 How to disassemble Nokia Lumia 730 RM-1040, Step 9/3

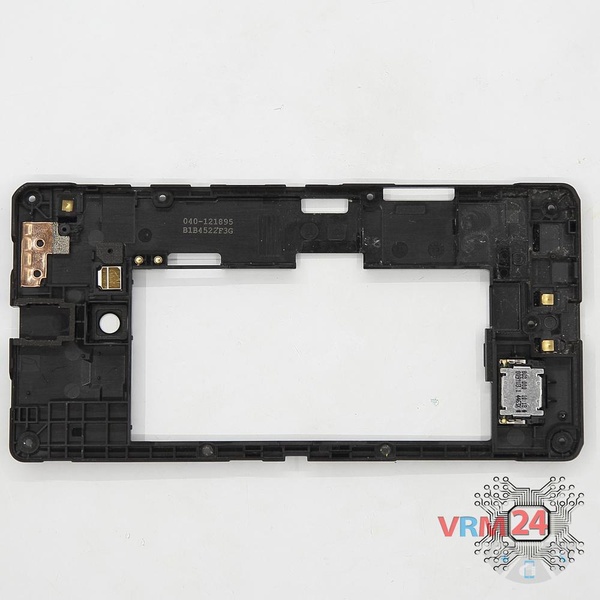

Step 9.

Parts are in the middle frame.

Detailed disassembly instructions of Nokia Lumia 730 RM-1040 in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

#instructions #Nokia #Nokia Lumia 730 RM-1040
Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer

Disassembling\Repair has easy complexity and takes about 3 minutes in time.
Our manual is suitable for all models Nokia Lumia 730 RM-1040 released for markets in different countries.
