Nokia Lumia 735 RM-1038
Nokia Lumia 735 RM-1038
Teardown difficulty:
Easy
Duration:
3 min

Recommended tools

Screwdriver Torx T5 Screwdriver torx t5
Opening tool / Spudger Opening tool / spudger
Tweezers Tweezers

Disassembly/Repair of the mobile device Nokia Lumia 735 RM-1038 (Microsoft RM-1038) with each step description and the required set of tools.

Vadim Popoff

Author, currently - Quality Assurance Specialist

How to disassemble Nokia Lumia 735 RM-1038, Step 1/1 How to disassemble Nokia Lumia 735 RM-1038, Step 1/2

Step 1.

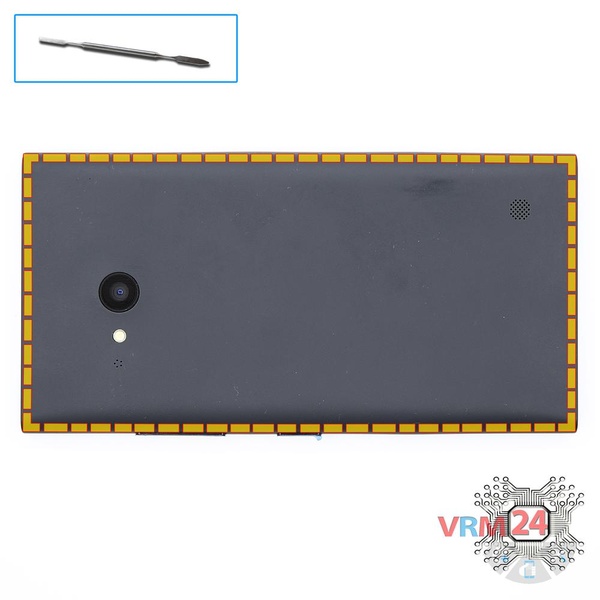

Open the back cover.

How to disassemble Nokia Lumia 735 RM-1038, Step 2/1 How to disassemble Nokia Lumia 735 RM-1038, Step 2/2

Step 2.

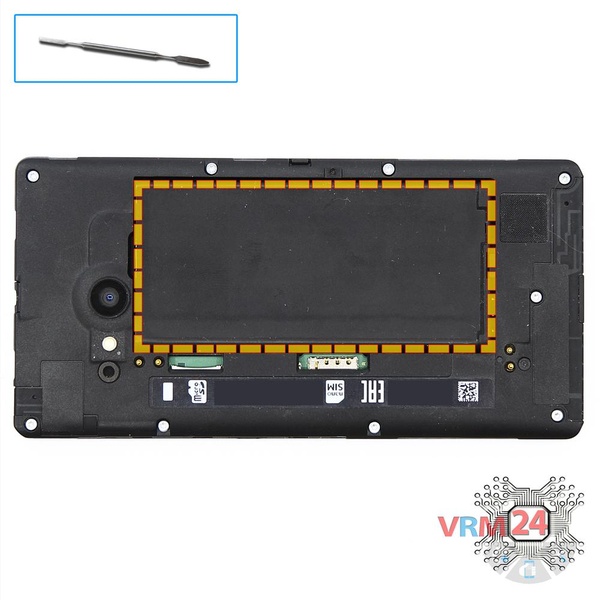

Lift and remove the battery.

How to disassemble Nokia Lumia 735 RM-1038, Step 3/1 How to disassemble Nokia Lumia 735 RM-1038, Step 3/2

Step 3.

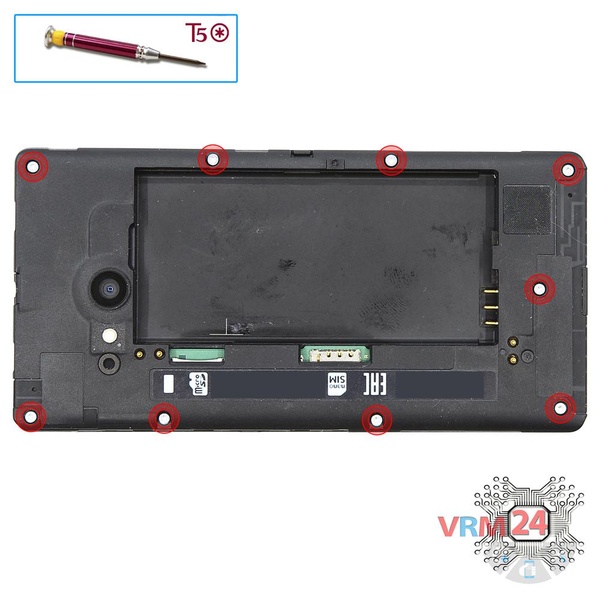

Using a screwdriver (hex T5), unscrew 9 bolts in the frame of the phone.

How to disassemble Nokia Lumia 735 RM-1038, Step 4/1 How to disassemble Nokia Lumia 735 RM-1038, Step 4/2 How to disassemble Nokia Lumia 735 RM-1038, Step 4/3 How to disassemble Nokia Lumia 735 RM-1038, Step 4/4

Step 4.

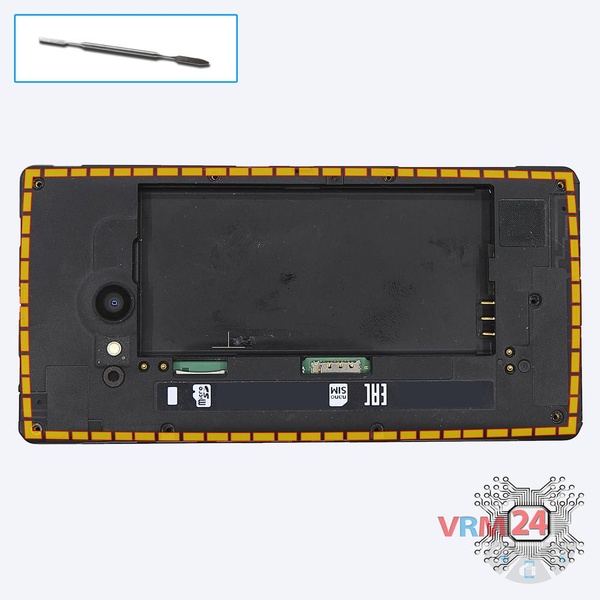

Lift up the middle frame. Disconnect the connector on the PCB. Separate the middle frame from the frame with a display module.

How to disassemble Nokia Lumia 735 RM-1038, Step 5/1

Step 5.

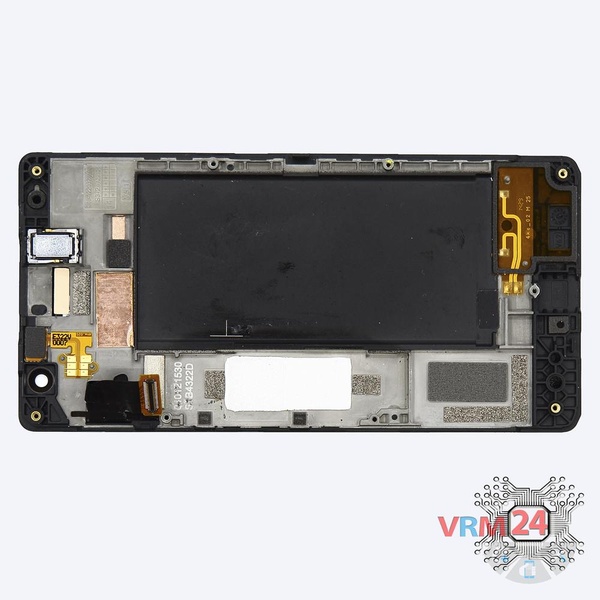

The display module.

How to disassemble Nokia Lumia 735 RM-1038, Step 6/1 How to disassemble Nokia Lumia 735 RM-1038, Step 6/2

Step 6.

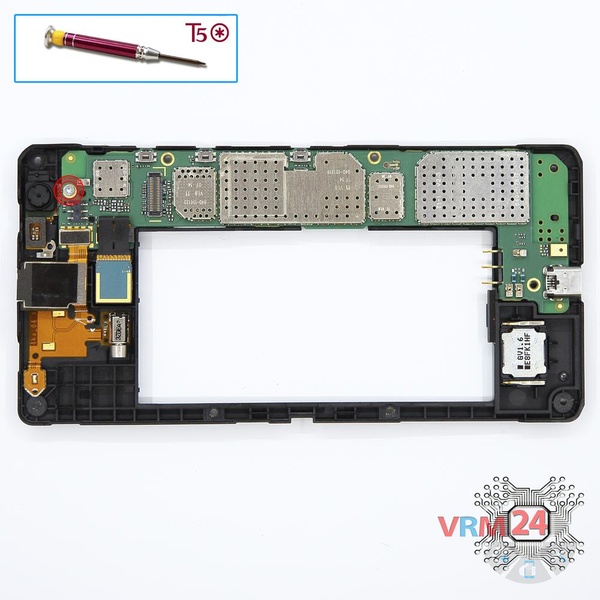

Using a screwdriver (hex T5), unscrew 1 bolt in the PCB.

How to disassemble Nokia Lumia 735 RM-1038, Step 7/1 How to disassemble Nokia Lumia 735 RM-1038, Step 7/2

Step 7.

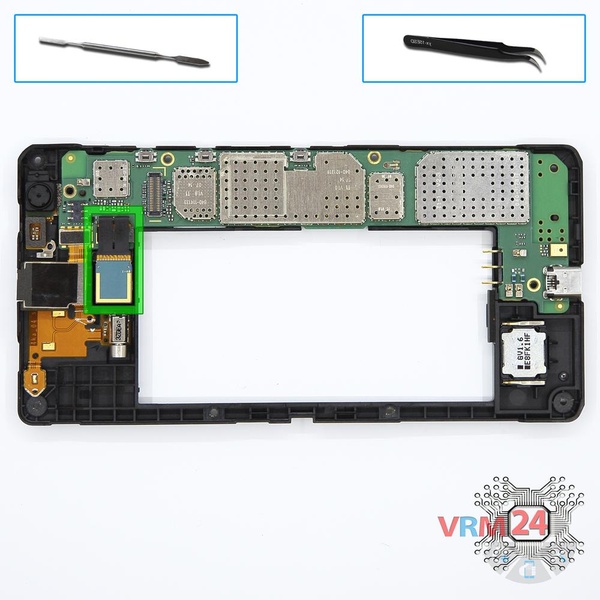

Disconnect the connector on PCB, and remove the main camera.

How to disassemble Nokia Lumia 735 RM-1038, Step 8/1 How to disassemble Nokia Lumia 735 RM-1038, Step 8/2

Step 8.

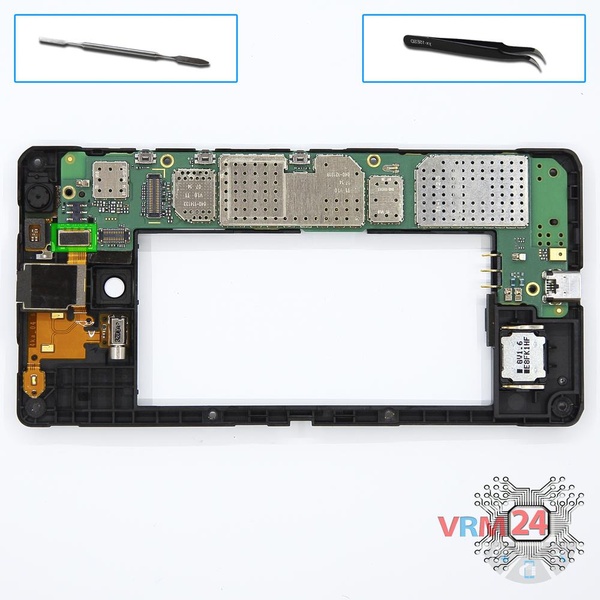

Disconnect the connector on the PCB.

How to disassemble Nokia Lumia 735 RM-1038, Step 9/1 How to disassemble Nokia Lumia 735 RM-1038, Step 9/2

Step 9.

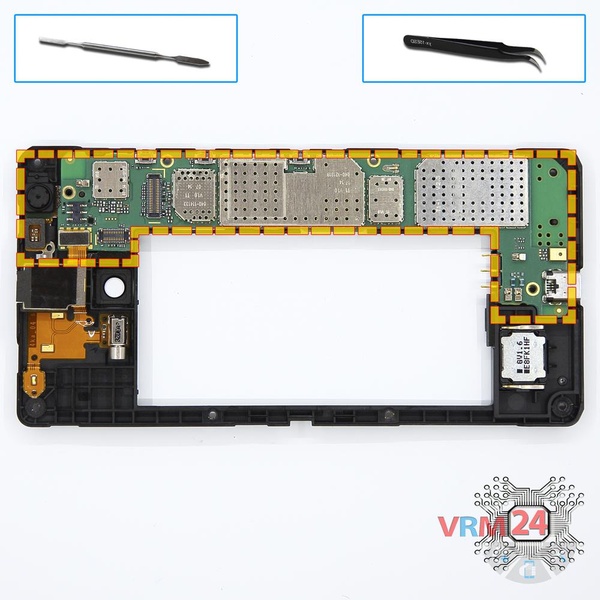

Remove the PCB.

How to disassemble Nokia Lumia 735 RM-1038, Step 10/1

Step 10.

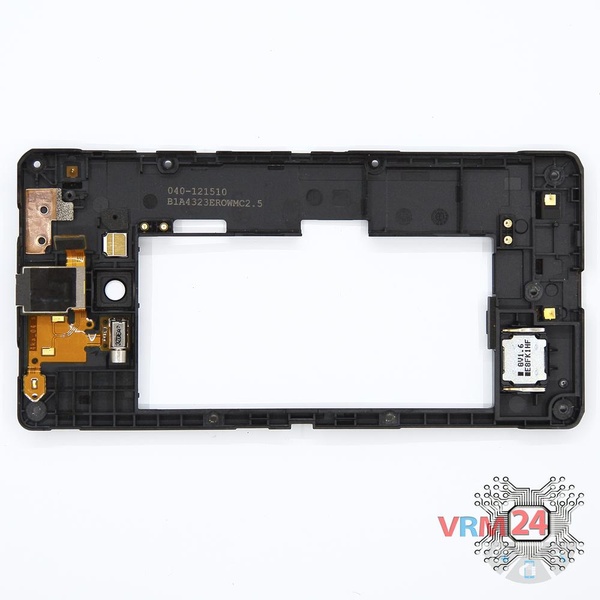

The middle frame.

How to disassemble Nokia Lumia 735 RM-1038, Step 11/1 How to disassemble Nokia Lumia 735 RM-1038, Step 11/2

Step 11.

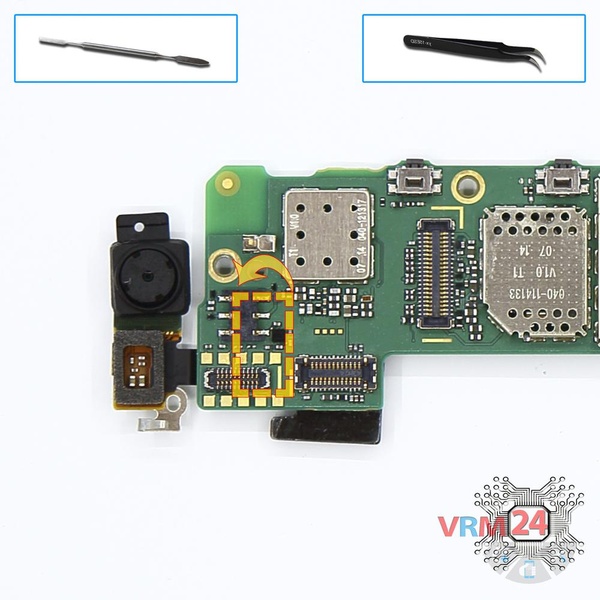

Disconnect the connector on PCB, and remove the front (selfie) camera camera with proximity sensor.

Detailed disassembly instructions of Nokia Lumia 735 RM-1038 in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

#instructions #Nokia #Nokia Lumia 735 RM-1038
Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer

Disassembling\Repair has easy complexity and takes about 3 minutes in time.
Our manual is suitable for all models Nokia Lumia 735 RM-1038 — Microsoft RM-1038 released for markets in different countries.
