Oukitel K7 Power
Oukitel K7 Power
Teardown difficulty:
Easy
Duration:
14 min

Recommended tools

Screwdriver Torx T5 Screwdriver torx t5
Screwdriver Phillips #000 Screwdriver phillips #000
Opening tool / Spudger Opening tool / spudger
Tweezers Tweezers

Disassembly/Repair of the mobile device Oukitel K7 Power with each step description and the required set of tools.

Vadim Popoff

Author, currently - Quality Assurance Specialist

How to disassemble Oukitel K7 Power, Step 1/1 How to disassemble Oukitel K7 Power, Step 1/2

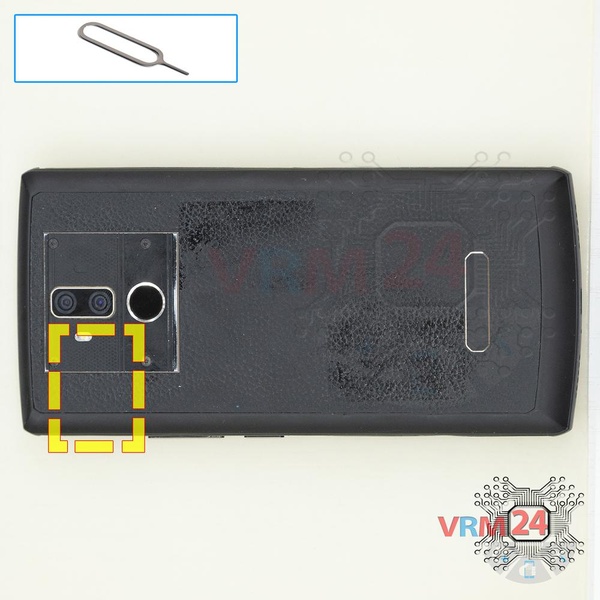

Step 1.

Using the key tool, open the SIM and Micro SD cards tray and remove it.

⚠️ Warning!

Do not push too hard this may cause damage.

How to disassemble Oukitel K7 Power, Step 2/1 How to disassemble Oukitel K7 Power, Step 2/2

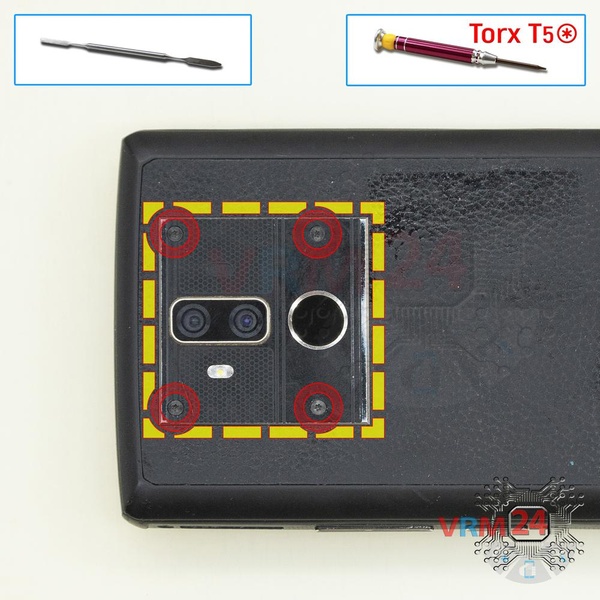

Step 2.

Using a screwdriver (Torx T5), unscrew 4 screws and remove the cover.

How to disassemble Oukitel K7 Power, Step 3/1 How to disassemble Oukitel K7 Power, Step 3/2

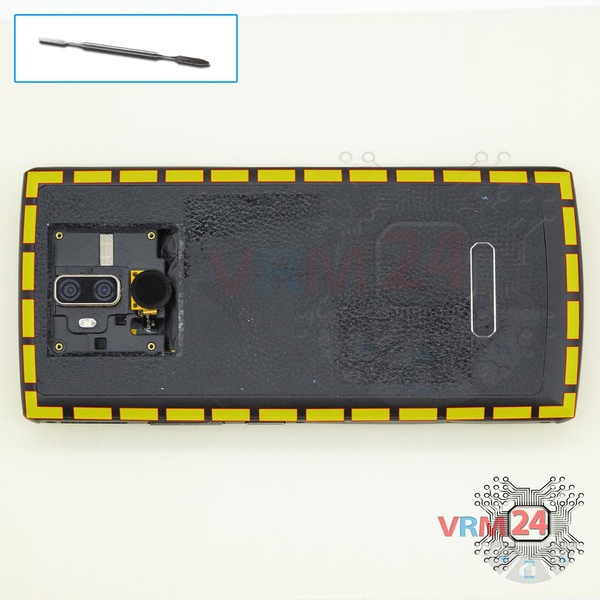

Step 3.

Open the back cover.

How to disassemble Oukitel K7 Power, Step 4/1 How to disassemble Oukitel K7 Power, Step 4/2 How to disassemble Oukitel K7 Power, Step 4/3

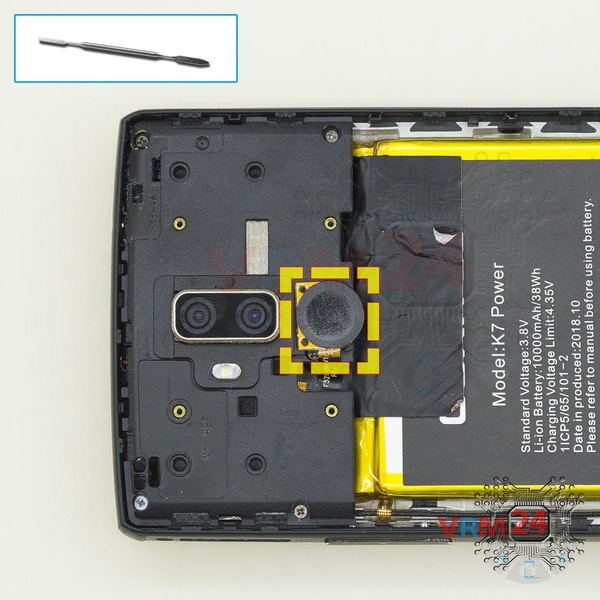

Step 4.

Turn over the fingerprint sensor and using a screwdriver (Phillips 1.5 mm PH000), unscrew 5 screws.

How to disassemble Oukitel K7 Power, Step 5/1 How to disassemble Oukitel K7 Power, Step 5/2

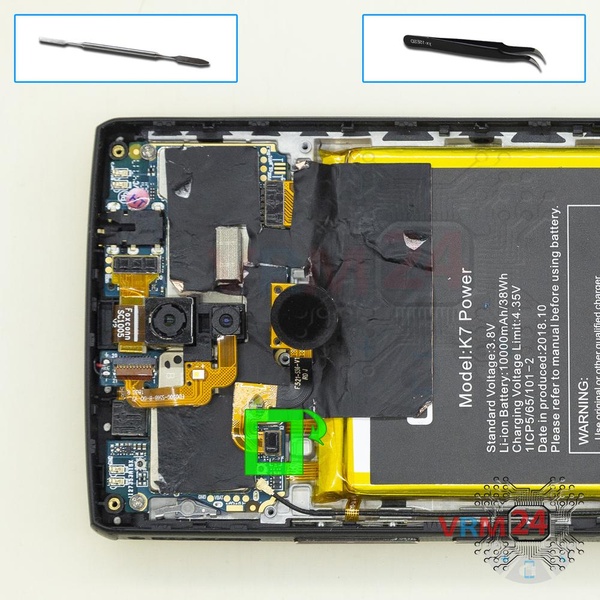

Step 5.

Pry up the connector and remove the fingerprint sensor.

How to disassemble Oukitel K7 Power, Step 6/1 How to disassemble Oukitel K7 Power, Step 6/2

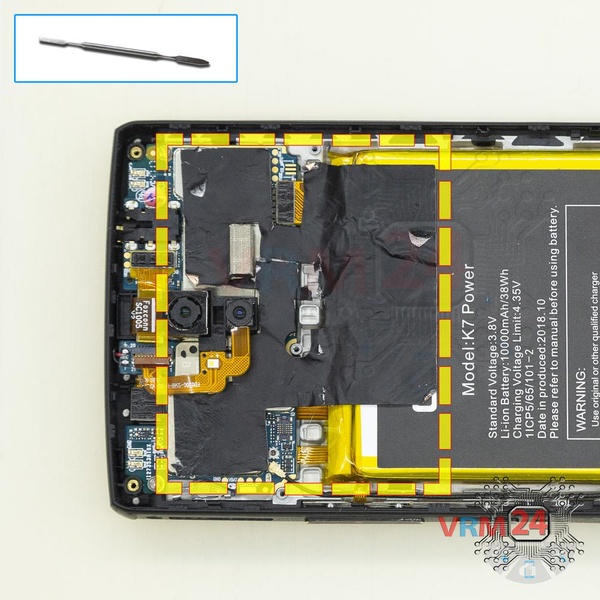

Step 6.

Peel back the protective layer.

How to disassemble Oukitel K7 Power, Step 7/1 How to disassemble Oukitel K7 Power, Step 7/2

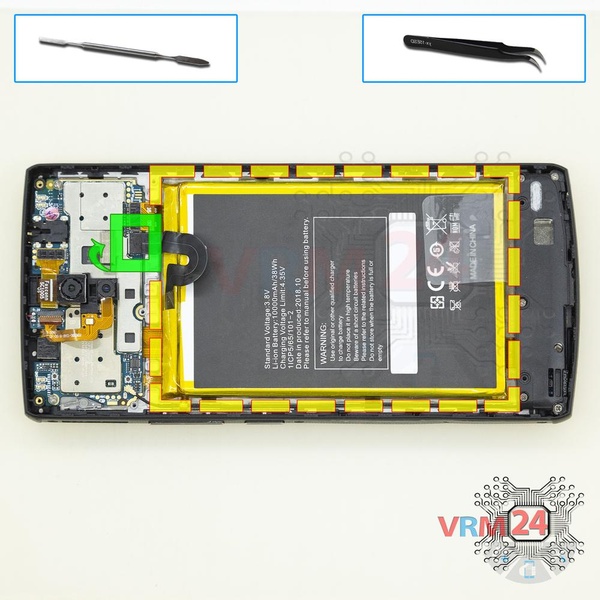

Step 7.

Disconnect the connector on PCB and remove the battery. The battery model of Oukitel K7 Power is the same as the phone model.

How to disassemble Oukitel K7 Power, Step 8/1 How to disassemble Oukitel K7 Power, Step 8/2

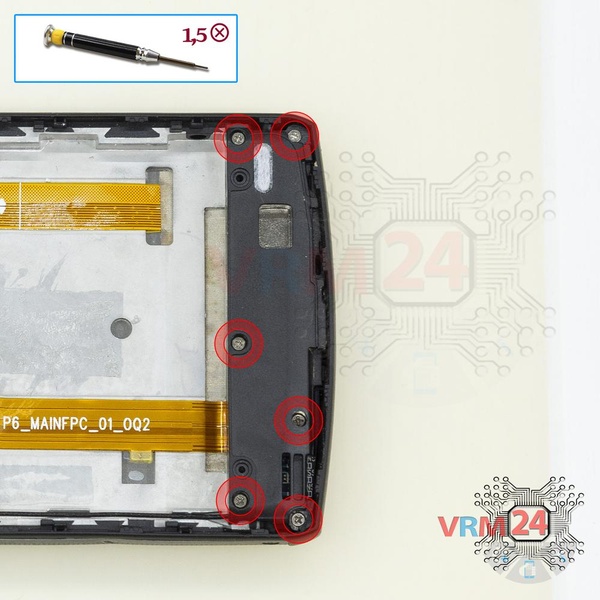

Step 8.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 5 screws.

How to disassemble Oukitel K7 Power, Step 9/1 How to disassemble Oukitel K7 Power, Step 9/2

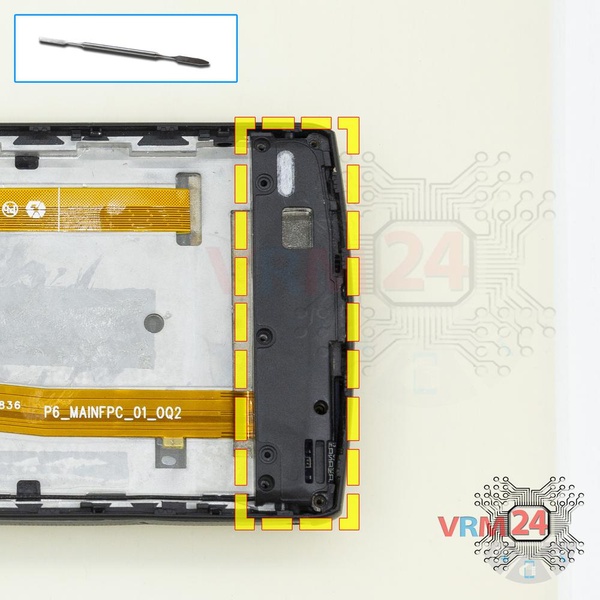

Step 9.

Turn over the buzzer (loudspeaker) assembly.

⚠️ Warning!

The loudspeaker (inside the cover) is connected with a sub-board by wires.

How to disassemble Oukitel K7 Power, Step 10/1 How to disassemble Oukitel K7 Power, Step 10/2

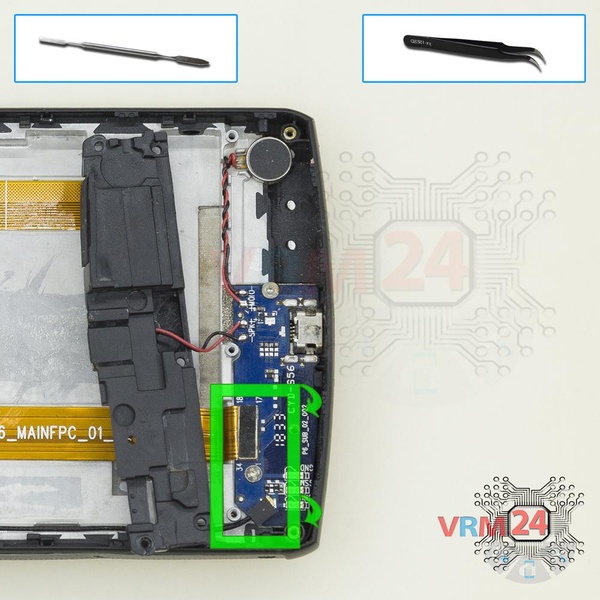

Step 10.

Disconnect connectors on the daughterboard.

How to disassemble Oukitel K7 Power, Step 11/1 How to disassemble Oukitel K7 Power, Step 11/2

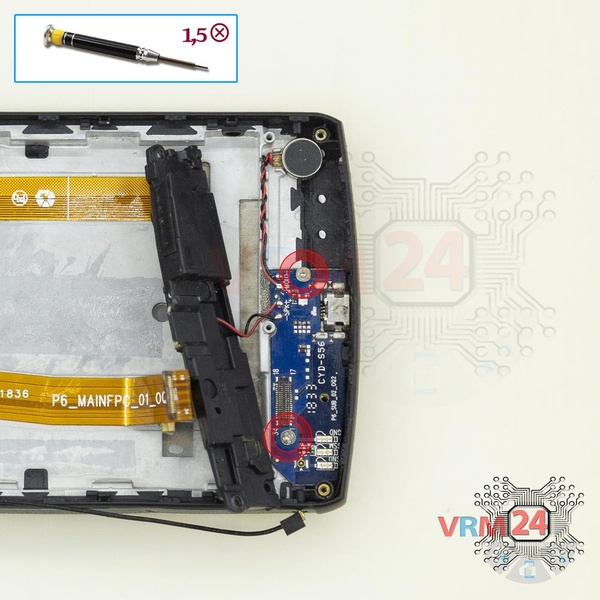

Step 11.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 2 screws in the daughterboard.

How to disassemble Oukitel K7 Power, Step 12/1 How to disassemble Oukitel K7 Power, Step 12/2

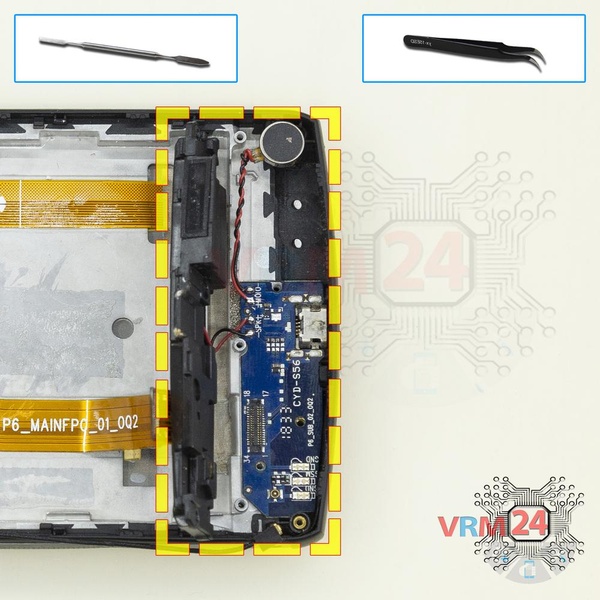

Step 12.

Remove the daughterboard, also known as sub-board with a loudspeaker assembly.

How to disassemble Oukitel K7 Power, Step 13/1 How to disassemble Oukitel K7 Power, Step 13/2

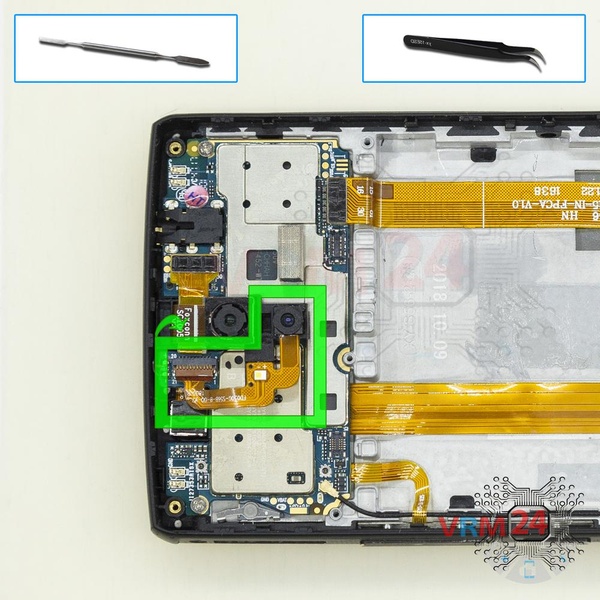

Step 13.

Disconnect the connector on PCB, and remove the front (selfie) camera.

How to disassemble Oukitel K7 Power, Step 14/1 How to disassemble Oukitel K7 Power, Step 14/2

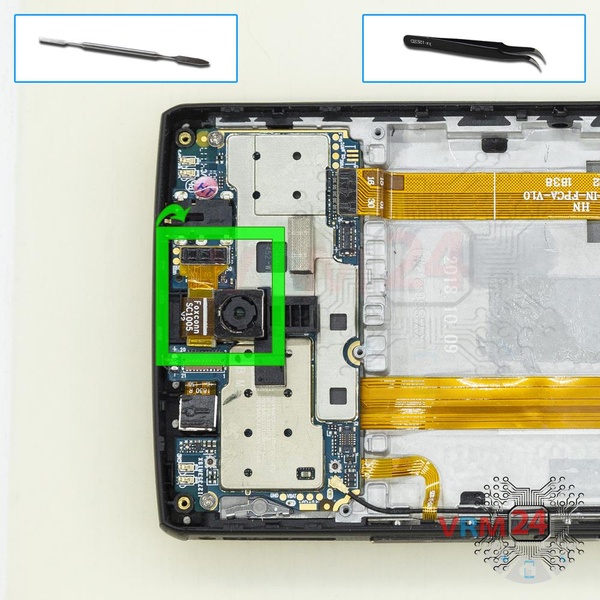

Step 14.

Disconnect the connector on PCB, and remove the main camera.

How to disassemble Oukitel K7 Power, Step 15/1 How to disassemble Oukitel K7 Power, Step 15/2

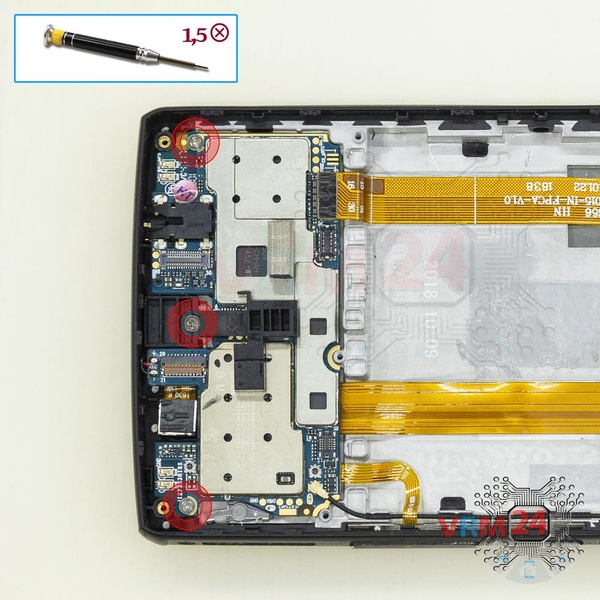

Step 15.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 3 screws in the PCB.

How to disassemble Oukitel K7 Power, Step 16/1

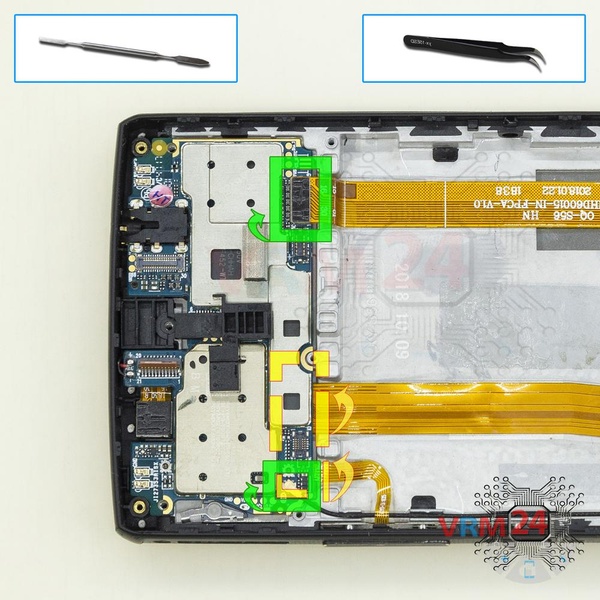

Step 16.

Disconnect connectors on the PCB.

⚠️ Warning!

Two connectors are inside.

How to disassemble Oukitel K7 Power, Step 17/1 How to disassemble Oukitel K7 Power, Step 17/2

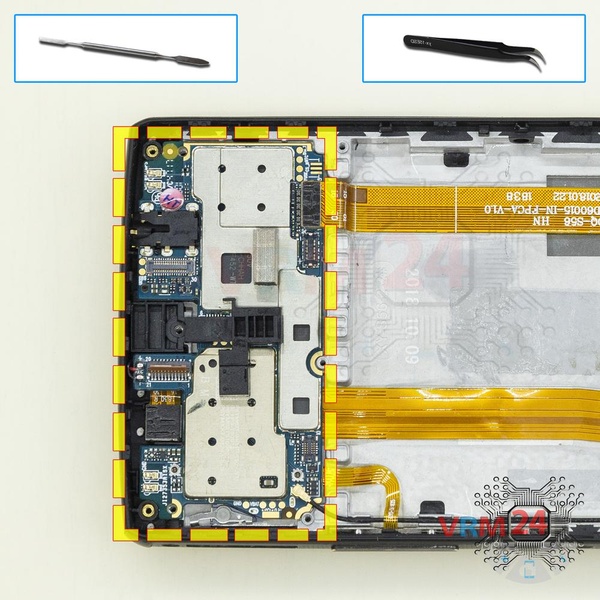

Step 17.

Remove the PCB.

How to disassemble Oukitel K7 Power, Step 18/1 How to disassemble Oukitel K7 Power, Step 18/2 How to disassemble Oukitel K7 Power, Step 18/3

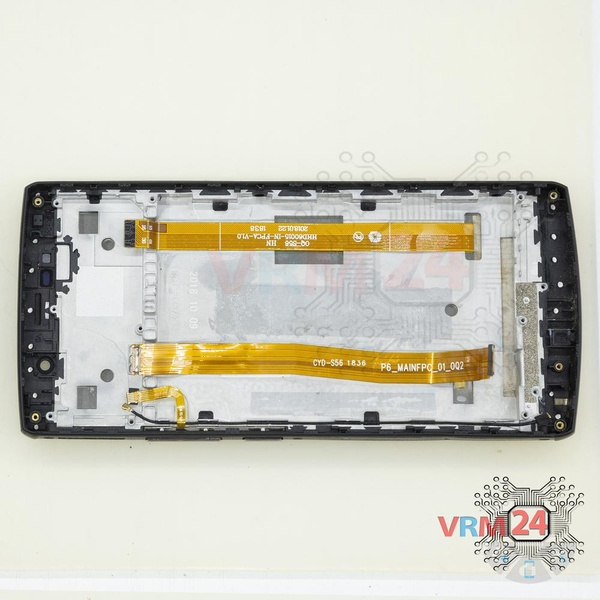

Step 18.

Parts are in the frame of the display module.

Detailed disassembly instructions of Oukitel K7 Power in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

#instructions #Oukitel #Oukitel K7 Power
Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer

Disassembling\Repair has easy complexity and takes about 14 minutes in time.
Our manual is suitable for all models Oukitel K7 Power released for markets in different countries.
