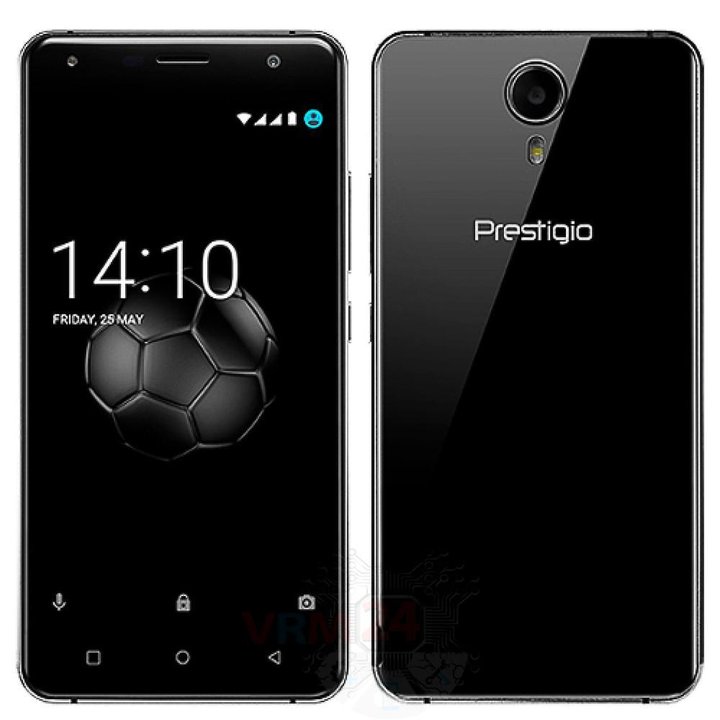

Prestigio Muze X5
Prestigio Muze X5
Teardown difficulty:
Easy
Duration:
8 min

Recommended tools

Soldering Iron Soldering iron
Screwdriver Phillips #000 Screwdriver phillips #000
Opening tool / Spudger Opening tool / spudger
Tweezers Tweezers

Disassembly/Repair of the mobile device Prestigio Muze X5 (Prestigio Muze X5 (PSP 5518)) with each step description and the required set of tools.

Vadim Popoff

Author, currently - Quality Assurance Specialist

How to disassemble Prestigio Muze X5, Step 1/1 How to disassemble Prestigio Muze X5, Step 1/2

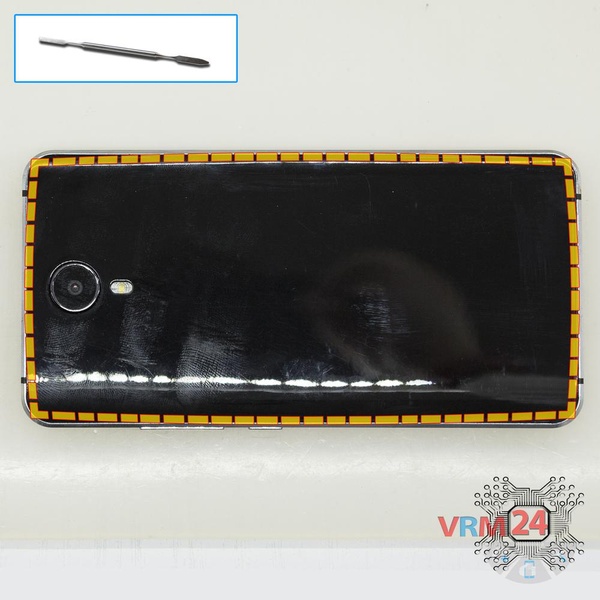

Step 1.

Open the back cover.

How to disassemble Prestigio Muze X5, Step 2/1 How to disassemble Prestigio Muze X5, Step 2/2

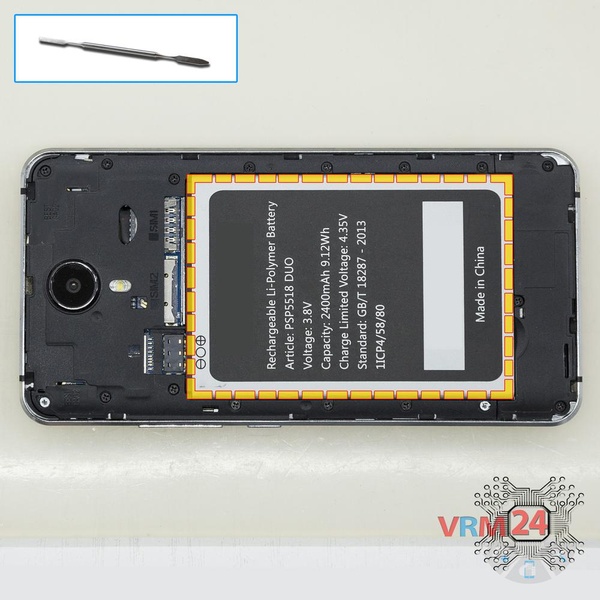

Step 2.

Lift and remove the battery.

How to disassemble Prestigio Muze X5, Step 3/1 How to disassemble Prestigio Muze X5, Step 3/2

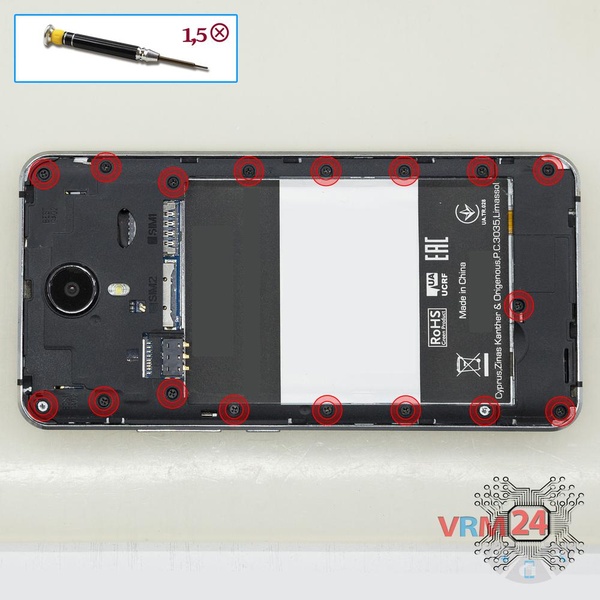

Step 3.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 17 bolts in the frame of the phone.

How to disassemble Prestigio Muze X5, Step 4/1 How to disassemble Prestigio Muze X5, Step 4/2

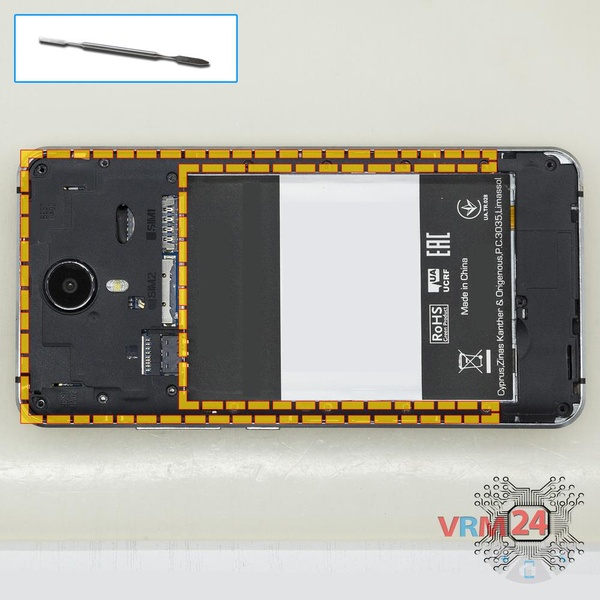

Step 4.

Pry and remove the middle frame.

How to disassemble Prestigio Muze X5, Step 5/1 How to disassemble Prestigio Muze X5, Step 5/2

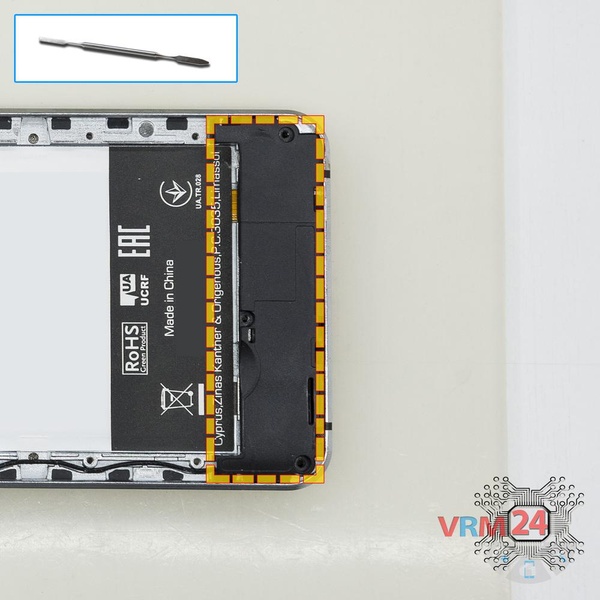

Step 5.

Lift and slide the buzzer (speaker) assembly.

How to disassemble Prestigio Muze X5, Step 6/1 How to disassemble Prestigio Muze X5, Step 6/2

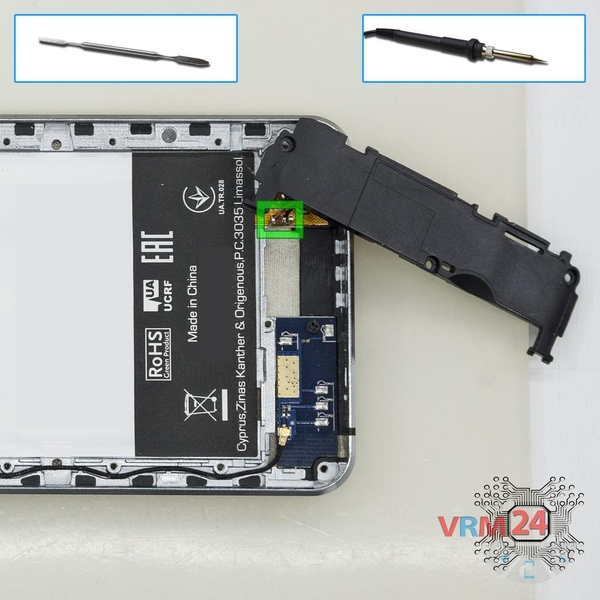

Step 6.

Desolder the buzzer (speaker) contacts.

How to disassemble Prestigio Muze X5, Step 7/1 How to disassemble Prestigio Muze X5, Step 7/2 How to disassemble Prestigio Muze X5, Step 7/3

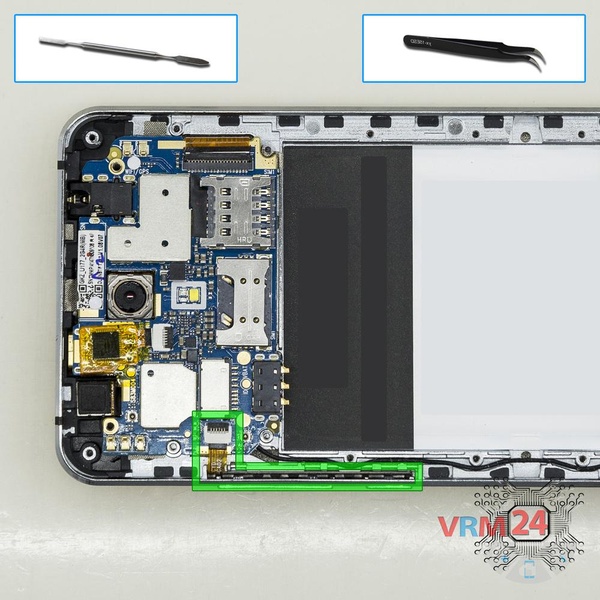

Step 7.

Disconnect connector on the PCB and remove the power & volume buttons flex cable.

How to disassemble Prestigio Muze X5, Step 8/1 How to disassemble Prestigio Muze X5, Step 8/2

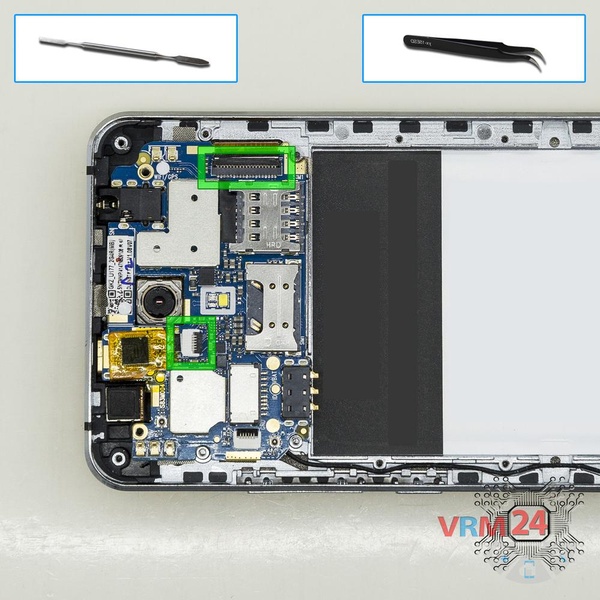

Step 8.

Disconnect connectors on the PCB.

How to disassemble Prestigio Muze X5, Step 9/1 How to disassemble Prestigio Muze X5, Step 9/2

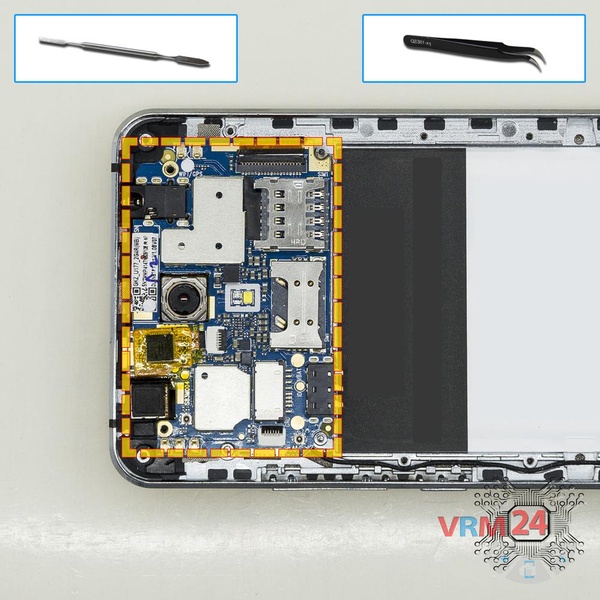

Step 9.

Remove the PCB.

How to disassemble Prestigio Muze X5, Step 10/1 How to disassemble Prestigio Muze X5, Step 10/2 How to disassemble Prestigio Muze X5, Step 10/3

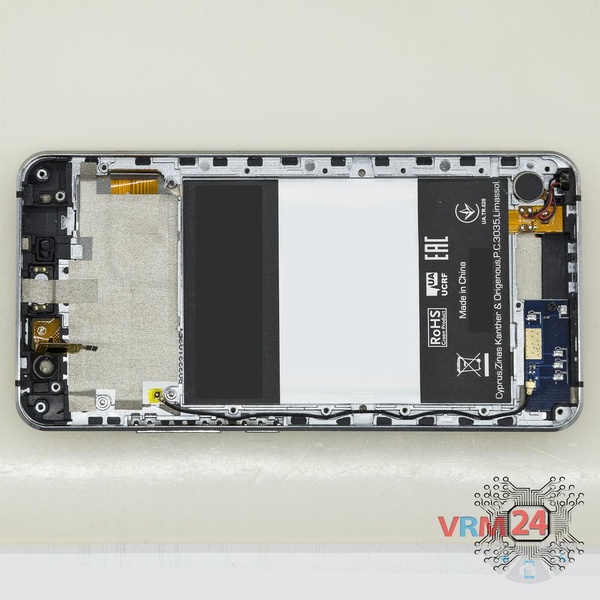

Step 10.

Parts are in the frame of the display module.

Detailed disassembly instructions of Prestigio Muze X5 in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

#instructions #Prestigio #Prestigio Muze X5
Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer

Disassembling\Repair has easy complexity and takes about 8 minutes in time.
Our manual is suitable for all models Prestigio Muze X5 — Prestigio Muze X5 (PSP 5518) released for markets in different countries.
