Samsung Galaxy R GT-i9103
Samsung Galaxy R GT-i9103
Teardown difficulty:
Moderate
Duration:
8 min

Recommended tools

Screwdriver Phillips #000 Screwdriver phillips #000
Opening tool / Spudger Opening tool / spudger
Tweezers Tweezers

Disassembly/Repair of the mobile device Samsung Galaxy R GT-i9103 (Samsung Galaxy Z) with each step description and the required set of tools.

Vadim Popoff

Author, currently - Quality Assurance Specialist

How to disassemble Samsung Galaxy R GT-i9103, Step 1/1 How to disassemble Samsung Galaxy R GT-i9103, Step 1/2

Step 1.

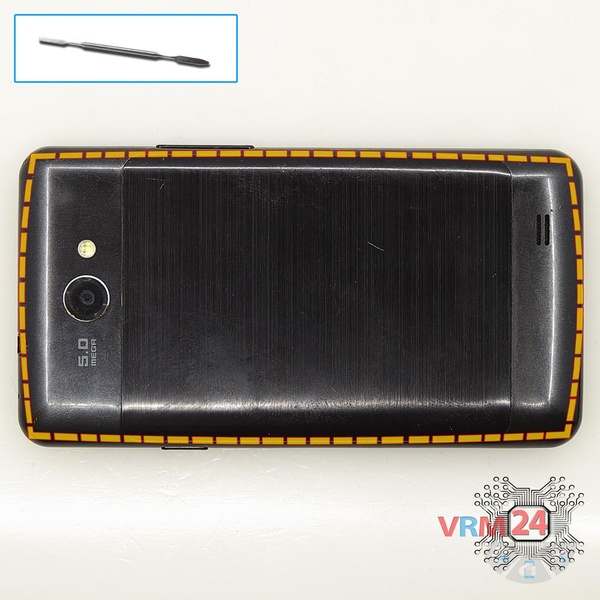

Open the back cover.

How to disassemble Samsung Galaxy R GT-i9103, Step 2/1 How to disassemble Samsung Galaxy R GT-i9103, Step 2/2

Step 2.

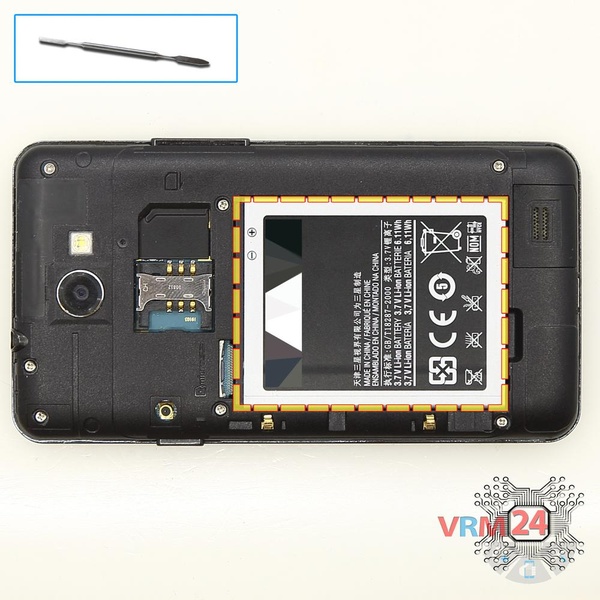

Lift and remove the battery.

How to disassemble Samsung Galaxy R GT-i9103, Step 3/1 How to disassemble Samsung Galaxy R GT-i9103, Step 3/2

Step 3.

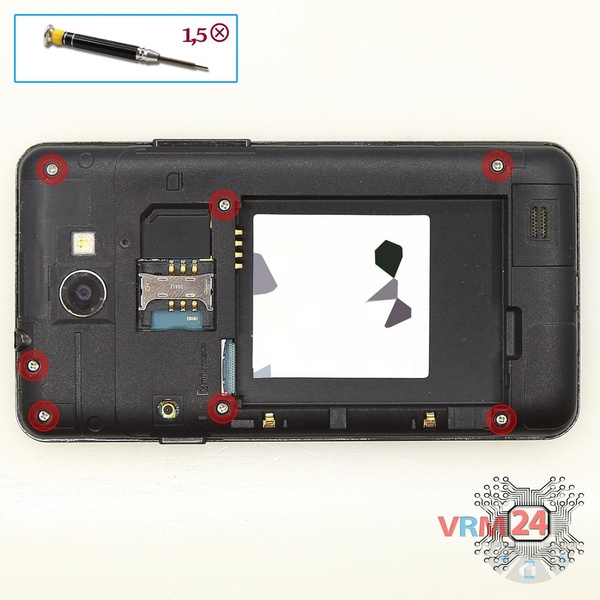

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 7 bolts in the frame of the phone.

How to disassemble Samsung Galaxy R GT-i9103, Step 4/1 How to disassemble Samsung Galaxy R GT-i9103, Step 4/2

Step 4.

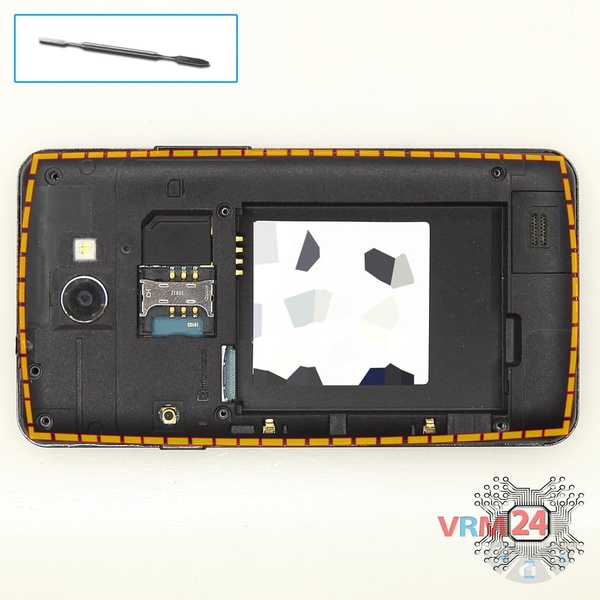

Pry and remove the middle frame.

How to disassemble Samsung Galaxy R GT-i9103, Step 5/1

Step 5.

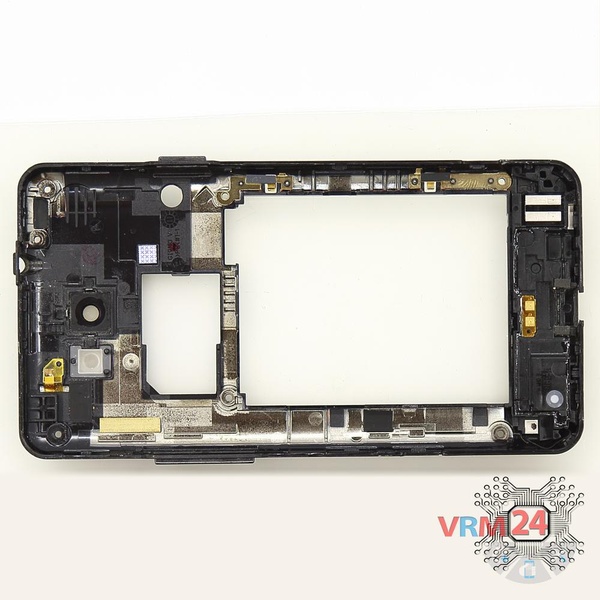

The middle frame.

How to disassemble Samsung Galaxy R GT-i9103, Step 6/1 How to disassemble Samsung Galaxy R GT-i9103, Step 6/2

Step 6.

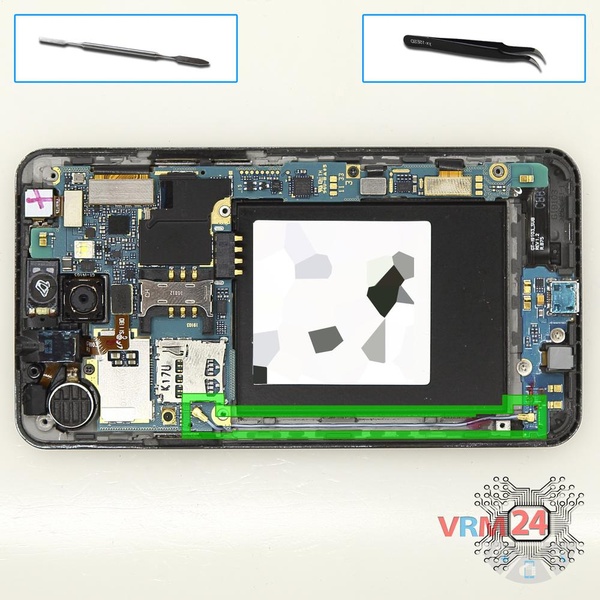

Disconnect connectors and remove the coaxial cable.

How to disassemble Samsung Galaxy R GT-i9103, Step 7/1 How to disassemble Samsung Galaxy R GT-i9103, Step 7/2

Step 7.

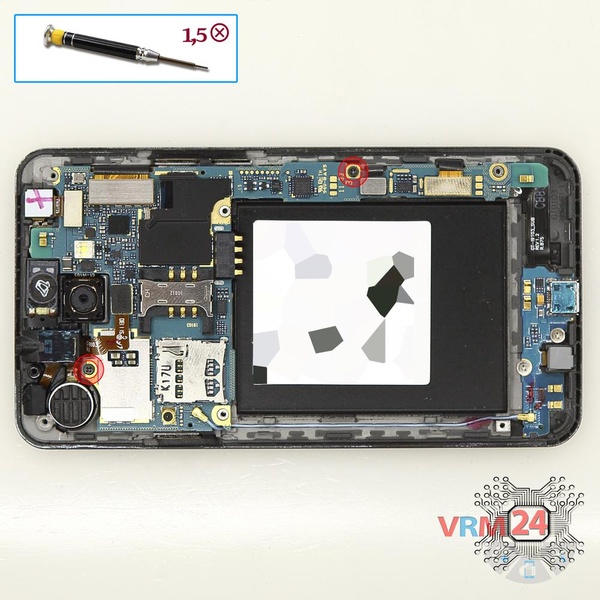

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 2 bolts in the PCB.

How to disassemble Samsung Galaxy R GT-i9103, Step 8/1 How to disassemble Samsung Galaxy R GT-i9103, Step 8/2 How to disassemble Samsung Galaxy R GT-i9103, Step 8/3

Step 8.

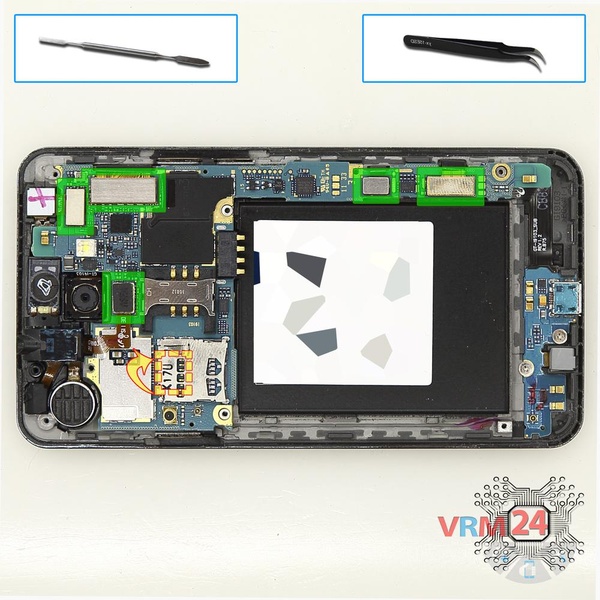

Disconnect connectors on the PCB. Also, pry up the touchscreen connector from the inside.

How to disassemble Samsung Galaxy R GT-i9103, Step 9/1 How to disassemble Samsung Galaxy R GT-i9103, Step 9/2

Step 9.

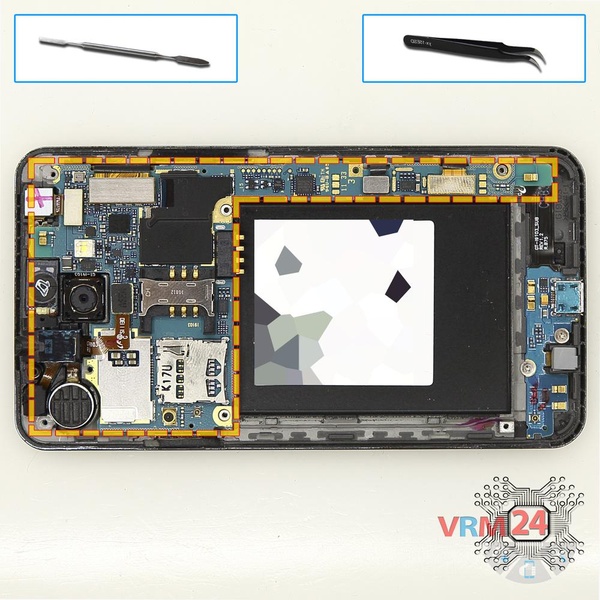

Remove the PCB.

How to disassemble Samsung Galaxy R GT-i9103, Step 10/1 How to disassemble Samsung Galaxy R GT-i9103, Step 10/2

Step 10.

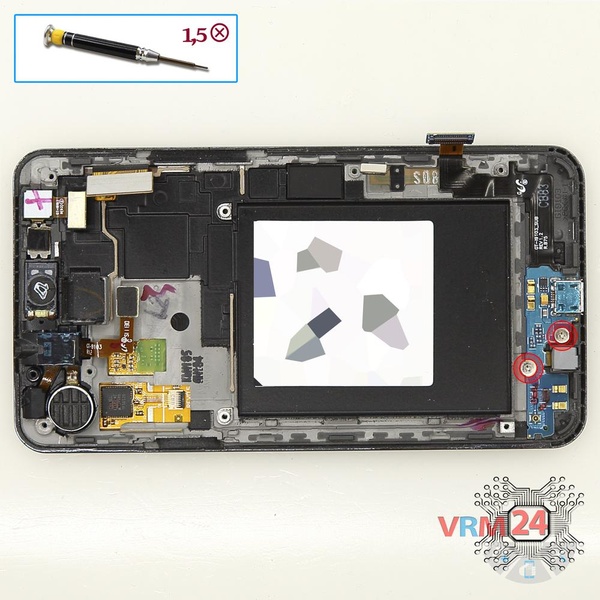

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 2 bolts in the lower PCB.

How to disassemble Samsung Galaxy R GT-i9103, Step 11/1 How to disassemble Samsung Galaxy R GT-i9103, Step 11/2

Step 11.

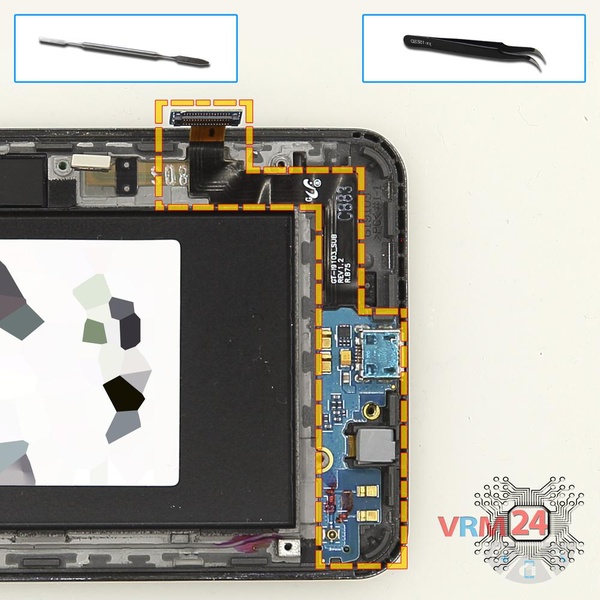

Remove the lower PCB.

How to disassemble Samsung Galaxy R GT-i9103, Step 12/1 How to disassemble Samsung Galaxy R GT-i9103, Step 12/2

Step 12.

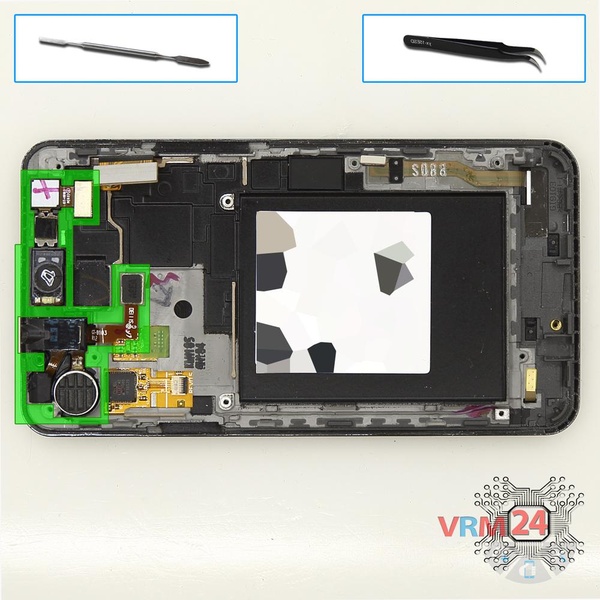

Pry and remove the cables. The first one with a front (selfie) camera and proximity sensor. Another cable with a headphone jack/socket, vibration motor and earpiece (speaker).

How to disassemble Samsung Galaxy R GT-i9103, Step 13/1 How to disassemble Samsung Galaxy R GT-i9103, Step 13/2 How to disassemble Samsung Galaxy R GT-i9103, Step 13/3

Step 13.

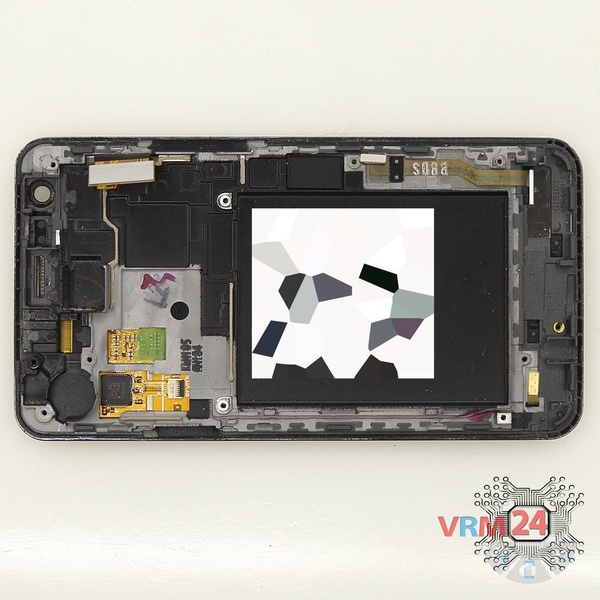

Parts are in the frame of the display module.

Detailed disassembly instructions of Samsung Galaxy R GT-i9103 in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

#instructions #Samsung #Samsung Galaxy R GT-i9103
Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer

Disassembling\Repair has medium complexity and takes about 8 minutes in time.
Our manual is suitable for all models Samsung Galaxy R GT-i9103 — Samsung Galaxy Z released for markets in different countries.
