Samsung Galaxy S5 SM-G900
Samsung Galaxy S5 SM-G900
Teardown difficulty:
Hard
Duration:
6 min

Recommended tools

Heat gun Heat gun
Screwdriver Phillips #000 Screwdriver phillips #000
Opening tool / Spudger Opening tool / spudger
Tweezers Tweezers
Eject tool Eject tool

Disassembly/Repair of the mobile device Samsung Galaxy S5 SM-G900 (Samsung G900F (Europe), G900I (Asia, Australia), G900M (Vodafone), G900A (AT&T), G900T (T-Mobile), G900W8 (Canada), G900K/G900L/G900S (Korea)) with each step description and the required set of tools.

Vadim Popoff

Author, currently - Quality Assurance Specialist

How to disassemble Samsung Galaxy S5 SM-G900, Step 1/1 How to disassemble Samsung Galaxy S5 SM-G900, Step 1/2

Step 1.

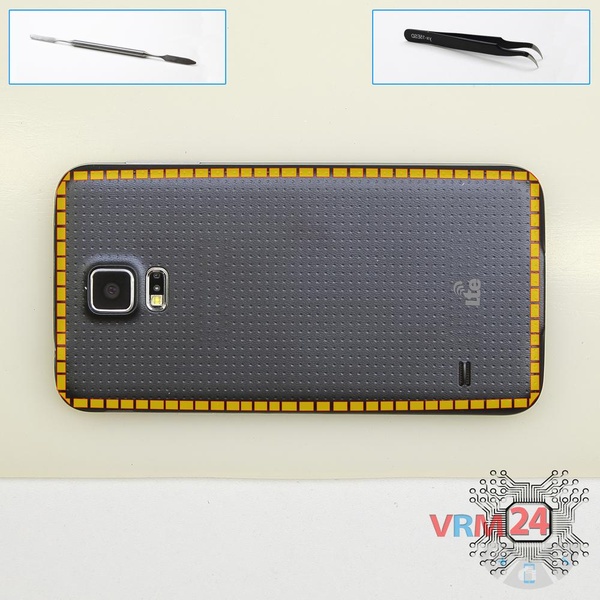

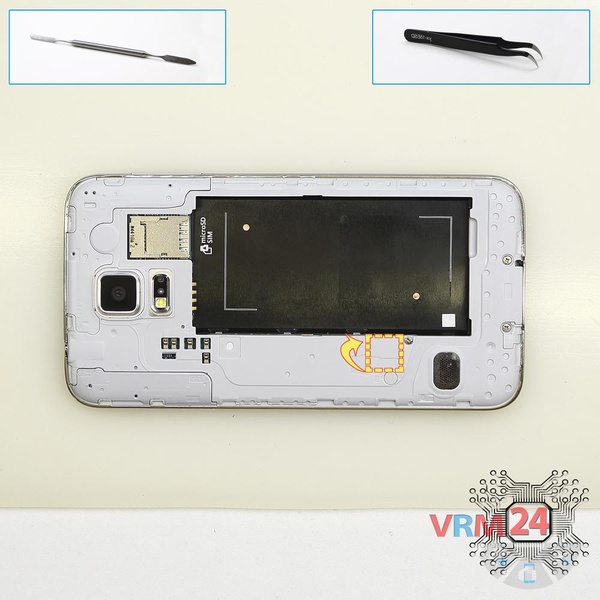

Open the back cover.

How to disassemble Samsung Galaxy S5 SM-G900, Step 2/1 How to disassemble Samsung Galaxy S5 SM-G900, Step 2/2

Step 2.

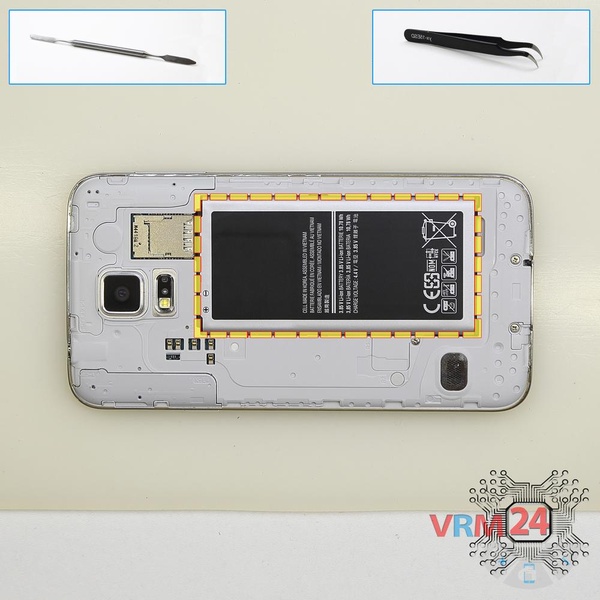

Lift and remove the battery.

How to disassemble Samsung Galaxy S5 SM-G900, Step 3/1 How to disassemble Samsung Galaxy S5 SM-G900, Step 3/2 How to disassemble Samsung Galaxy S5 SM-G900, Step 3/3

Step 3.

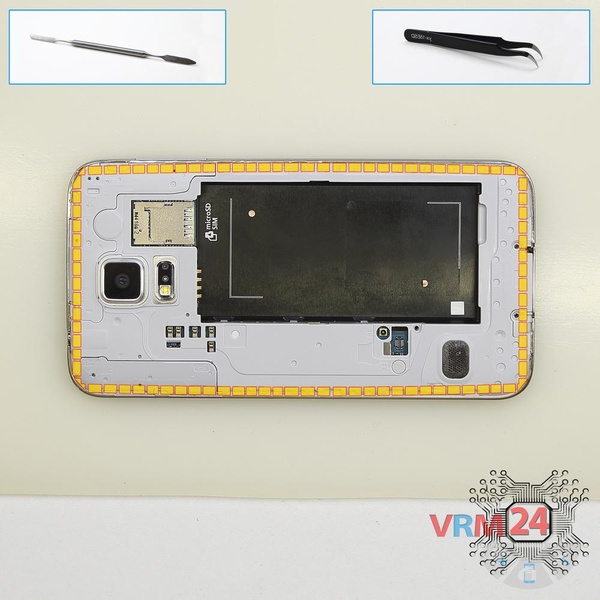

Remove the cover.

How to disassemble Samsung Galaxy S5 SM-G900, Step 4/1 How to disassemble Samsung Galaxy S5 SM-G900, Step 4/2 How to disassemble Samsung Galaxy S5 SM-G900, Step 4/3

Step 4.

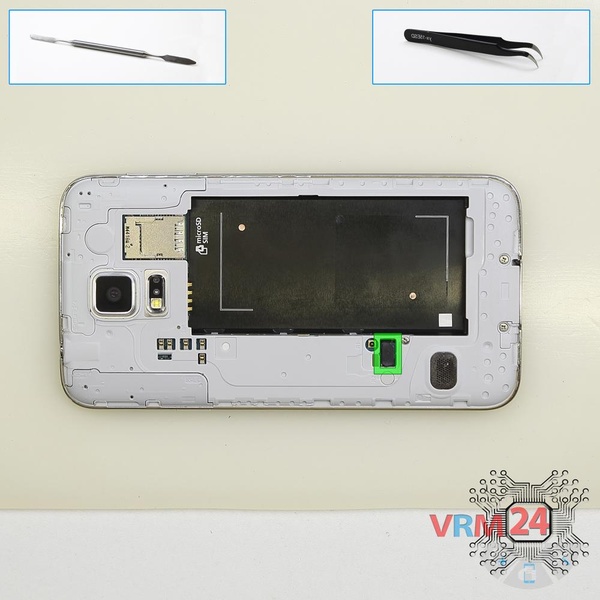

Pry up the connector of the android navigation control buttons.

How to disassemble Samsung Galaxy S5 SM-G900, Step 5/1 How to disassemble Samsung Galaxy S5 SM-G900, Step 5/2

Step 5.

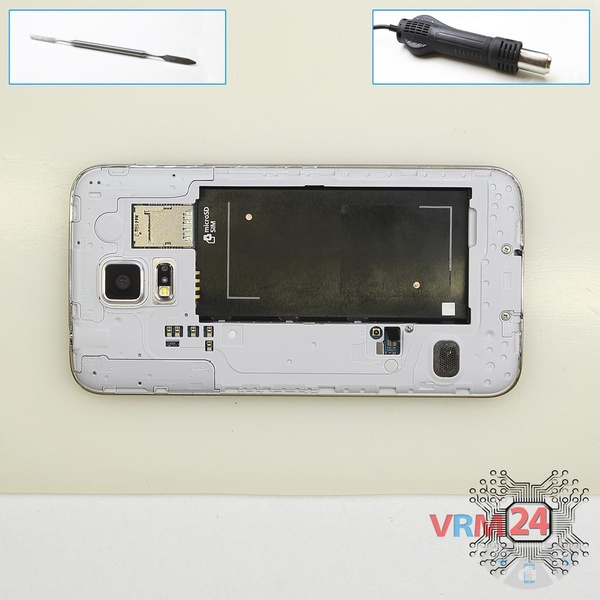

Separate the display module from the cover.

⚠️ Warning!

For careful separation, we recommend using a heat gun. At the same time, it is necessary to heat carefully in order, not to damage the surface of the device.

Also, the display connector is inside.

How to disassemble Samsung Galaxy S5 SM-G900, Step 6/1 How to disassemble Samsung Galaxy S5 SM-G900, Step 6/2

Step 6.

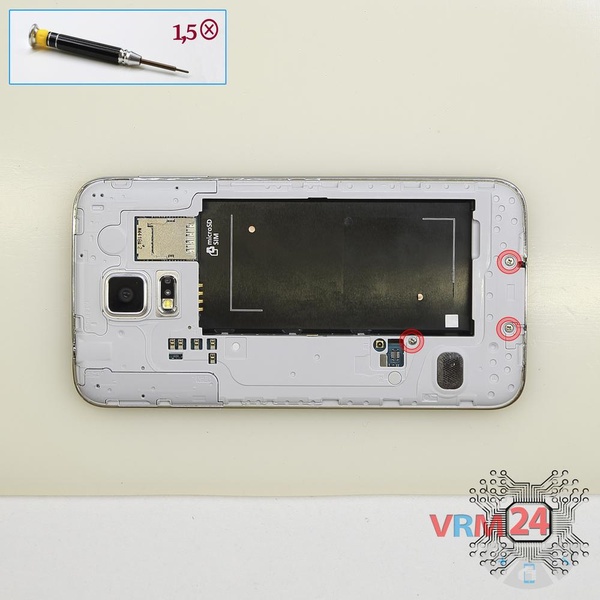

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 3 bolts in the frame of the phone.

How to disassemble Samsung Galaxy S5 SM-G900, Step 7/1 How to disassemble Samsung Galaxy S5 SM-G900, Step 7/2

Step 7.

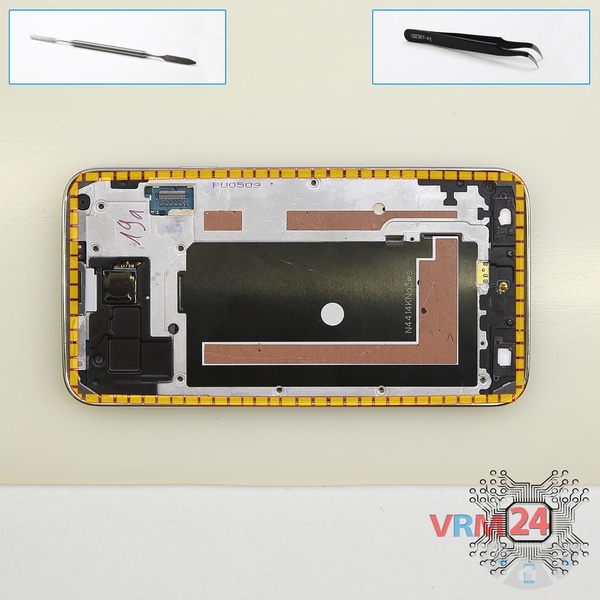

Remove the middle cover.

How to disassemble Samsung Galaxy S5 SM-G900, Step 8/1 How to disassemble Samsung Galaxy S5 SM-G900, Step 8/2

Step 8.

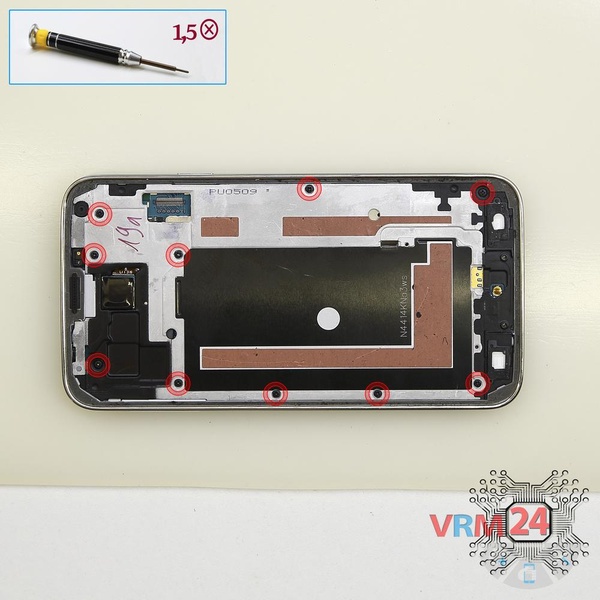

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 10 bolts.

How to disassemble Samsung Galaxy S5 SM-G900, Step 9/1 How to disassemble Samsung Galaxy S5 SM-G900, Step 9/2

Step 9.

Pry and remove the middle frame.

How to disassemble Samsung Galaxy S5 SM-G900, Step 10/1 How to disassemble Samsung Galaxy S5 SM-G900, Step 10/2 How to disassemble Samsung Galaxy S5 SM-G900, Step 10/3

Step 10.

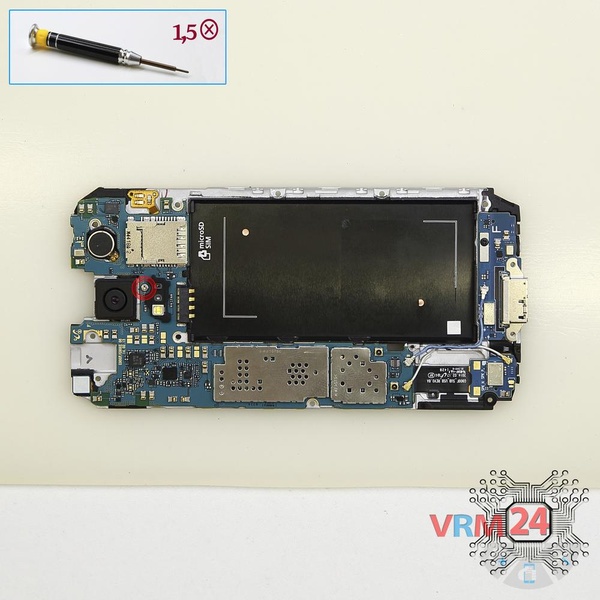

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 1 bolt in the PCB.

How to disassemble Samsung Galaxy S5 SM-G900, Step 11/1 How to disassemble Samsung Galaxy S5 SM-G900, Step 11/2 How to disassemble Samsung Galaxy S5 SM-G900, Step 11/3 How to disassemble Samsung Galaxy S5 SM-G900, Step 11/4

Step 11.

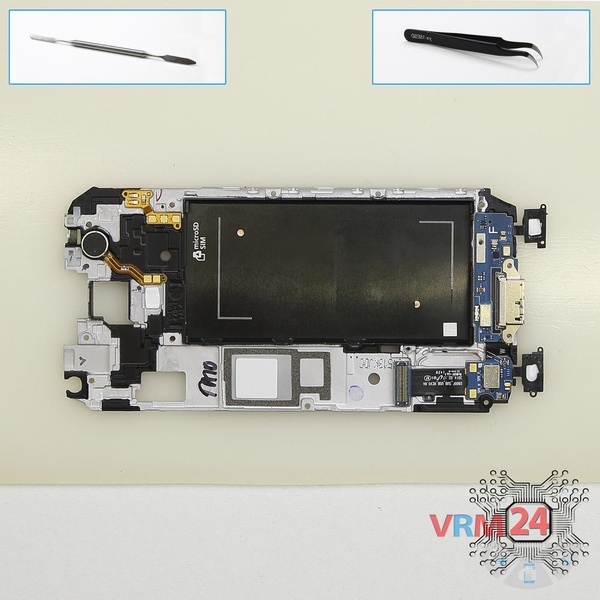

Pry up the coaxial cable connectors. Lift up the PCB. Disconnect the inter-board connector from the inside and remove the board.

How to disassemble Samsung Galaxy S5 SM-G900, Step 12/1 How to disassemble Samsung Galaxy S5 SM-G900, Step 12/2 How to disassemble Samsung Galaxy S5 SM-G900, Step 12/3

Step 12.

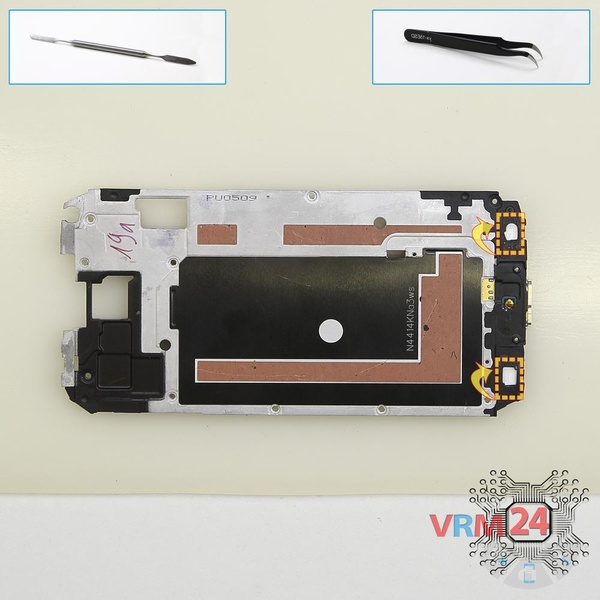

Pry up the clips.

How to disassemble Samsung Galaxy S5 SM-G900, Step 13/1 How to disassemble Samsung Galaxy S5 SM-G900, Step 13/2 How to disassemble Samsung Galaxy S5 SM-G900, Step 13/3

Step 13.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 1 bolt.

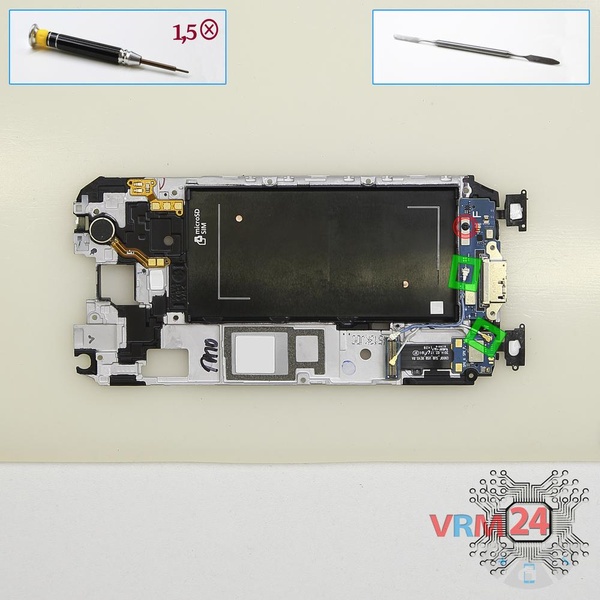

Pry up connectors and remove the coaxial cables.

How to disassemble Samsung Galaxy S5 SM-G900, Step 14/1 How to disassemble Samsung Galaxy S5 SM-G900, Step 14/2 How to disassemble Samsung Galaxy S5 SM-G900, Step 14/3

Step 14.

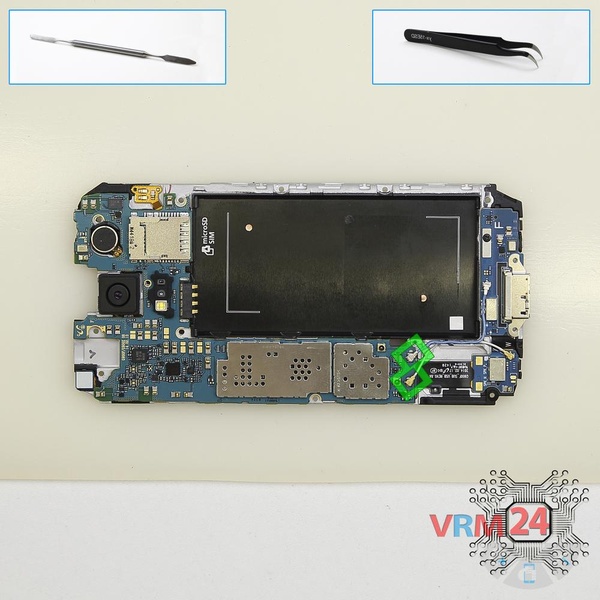

Remove the PCB.

How to disassemble Samsung Galaxy S5 SM-G900, Step 15/1 How to disassemble Samsung Galaxy S5 SM-G900, Step 15/2

Step 15.

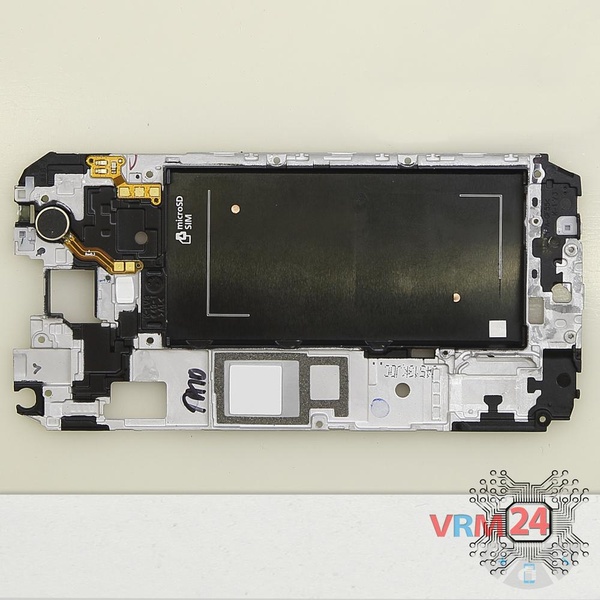

The frame.

Detailed disassembly instructions of Samsung Galaxy S5 SM-G900 in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

#instructions #Samsung #Samsung Galaxy S5 SM-G900
Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer

Disassembling\Repair has hard complexity and takes about 6 minutes in time.
Our manual is suitable for all models Samsung Galaxy S5 SM-G900 — Samsung G900F (Europe), G900I (Asia, Australia), G900M (Vodafone), G900A (AT&T), G900T (T-Mobile), G900W8 (Canada), G900K/G900L/G900S (Korea) released for markets in different countries.
