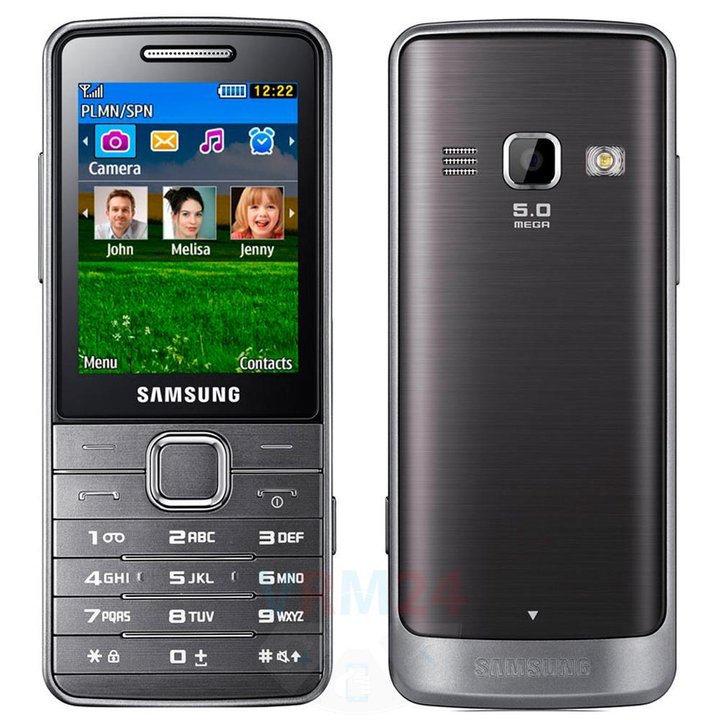

Samsung Primo GT-S5610
Samsung Primo GT-S5610
Teardown difficulty:
Easy
Duration:
4 min

Recommended tools

Screwdriver Phillips #000 Screwdriver phillips #000
Opening tool / Spudger Opening tool / spudger
Tweezers Tweezers

Disassembly/Repair of the mobile device Samsung Primo GT-S5610 with each step description and the required set of tools.

Vadim Popoff

Author, currently - Quality Assurance Specialist

How to disassemble Samsung Primo GT-S5610, Step 1/1 How to disassemble Samsung Primo GT-S5610, Step 1/2

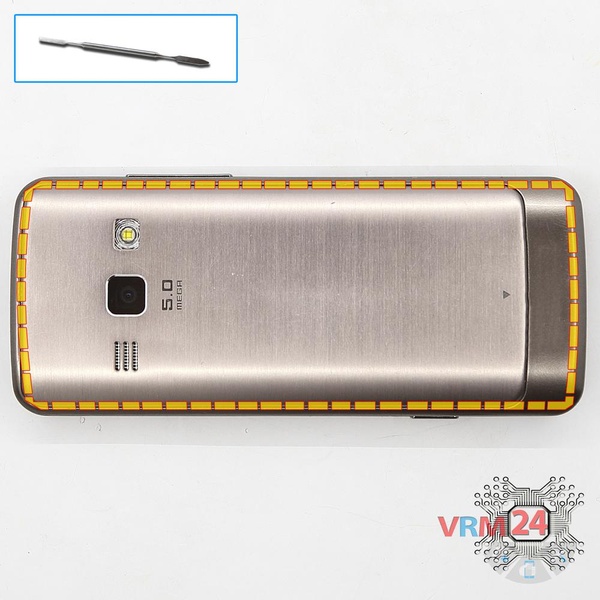

Step 1.

Open the back cover.

How to disassemble Samsung Primo GT-S5610, Step 2/1 How to disassemble Samsung Primo GT-S5610, Step 2/2

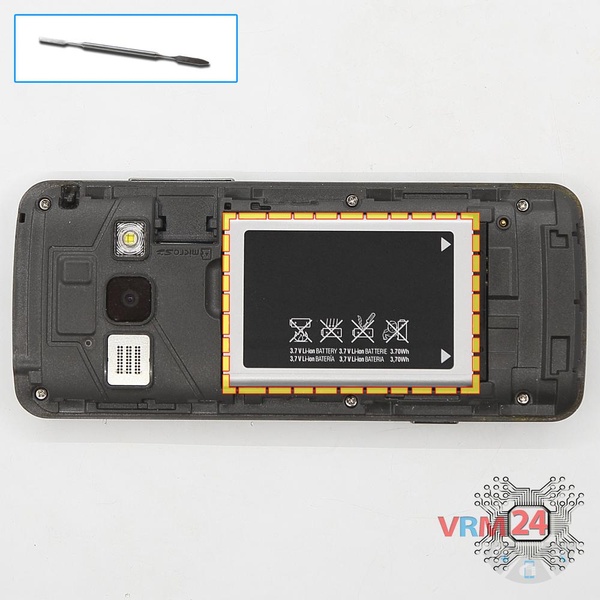

Step 2.

Lift and remove the battery.

How to disassemble Samsung Primo GT-S5610, Step 3/1 How to disassemble Samsung Primo GT-S5610, Step 3/2

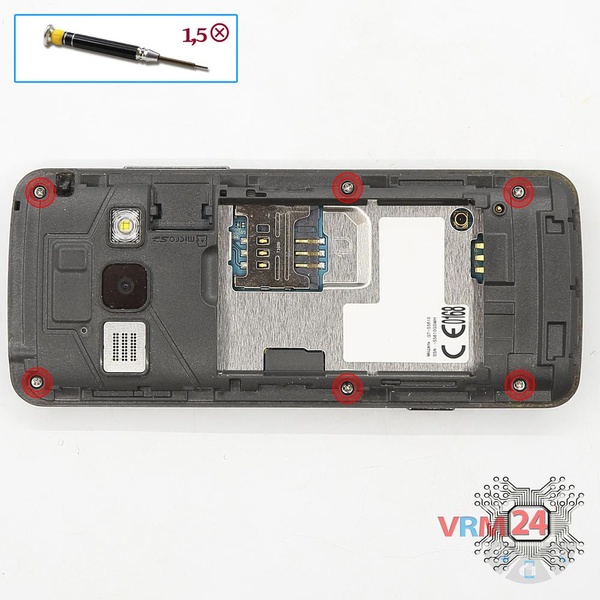

Step 3.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 6 bolts in the frame of the phone.

How to disassemble Samsung Primo GT-S5610, Step 4/1 How to disassemble Samsung Primo GT-S5610, Step 4/2

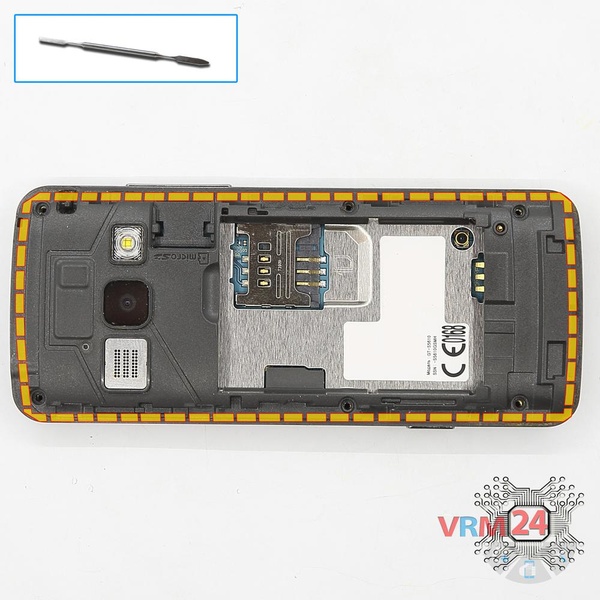

Step 4.

Pry and remove the middle frame.

How to disassemble Samsung Primo GT-S5610, Step 5/1 How to disassemble Samsung Primo GT-S5610, Step 5/2

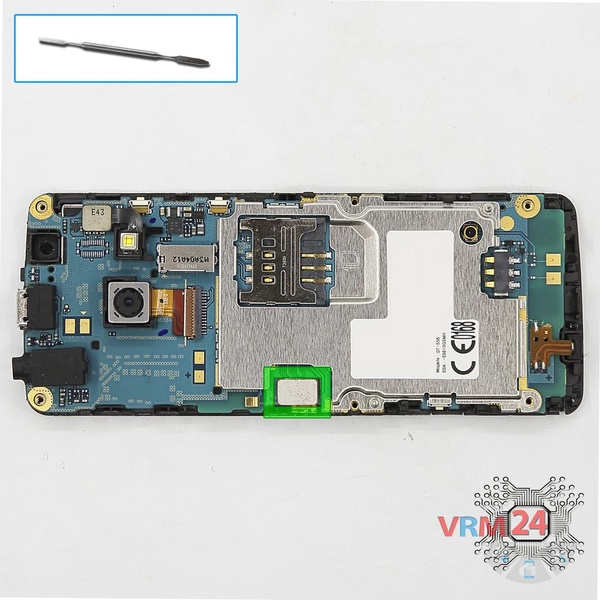

Step 5.

Disconnect the connector on PCB.

How to disassemble Samsung Primo GT-S5610, Step 6/1 How to disassemble Samsung Primo GT-S5610, Step 6/2

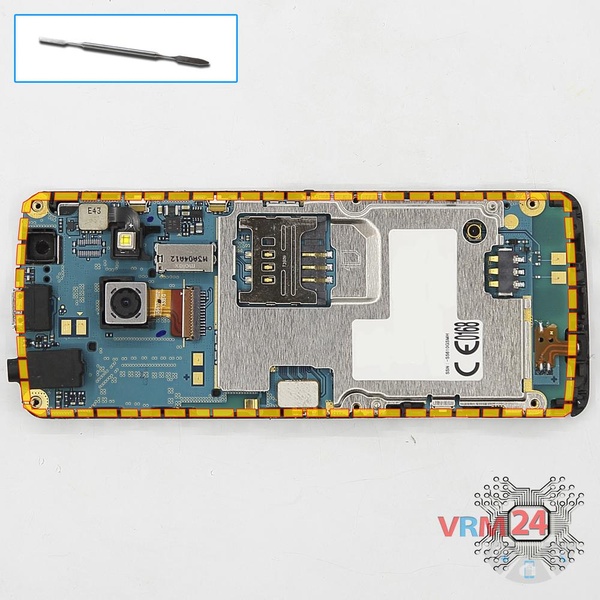

Step 6.

Remove the PCB.

How to disassemble Samsung Primo GT-S5610, Step 7/1

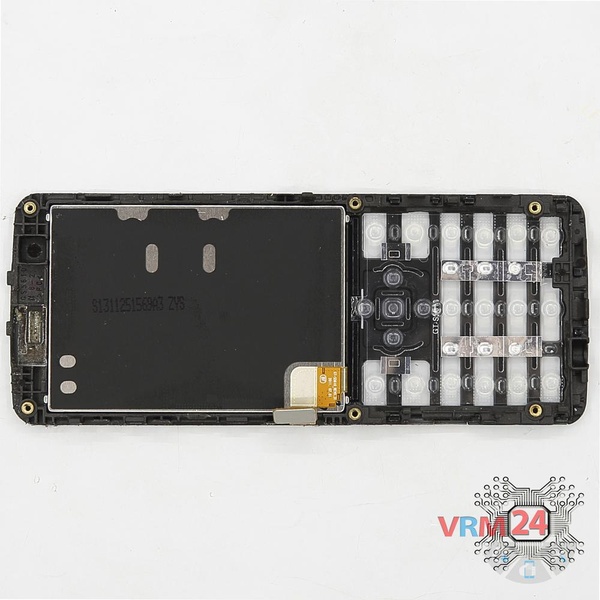

Step 7.

The front frame with display.

How to disassemble Samsung Primo GT-S5610, Step 8/1 How to disassemble Samsung Primo GT-S5610, Step 8/2

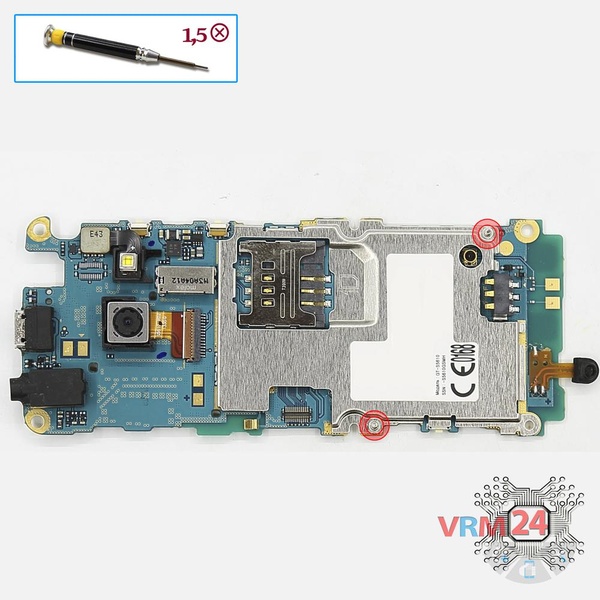

Step 8.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 2 bolts in the cover hiding the chips.

How to disassemble Samsung Primo GT-S5610, Step 9/1 How to disassemble Samsung Primo GT-S5610, Step 9/2

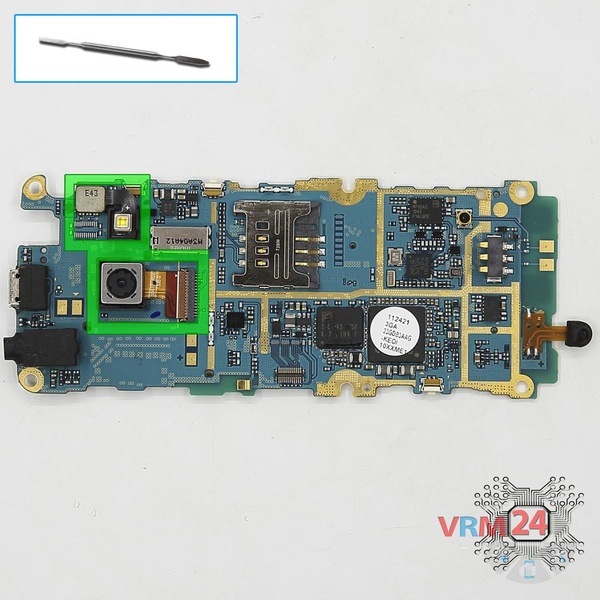

Step 9.

Disconnect connectors on the PCB, and remove the main camera and flash.

Detailed disassembly instructions of Samsung Primo GT-S5610 in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

#instructions #Samsung #Samsung Primo GT-S5610
Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer

Disassembling\Repair has easy complexity and takes about 4 minutes in time.
Our manual is suitable for all models Samsung Primo GT-S5610 released for markets in different countries.
