Samsung Wave 2 GT-S8530
Samsung Wave 2 GT-S8530
Teardown difficulty:
Moderate
Duration:
8 min

Recommended tools

Screwdriver Phillips #000 Screwdriver phillips #000
Opening tool / Spudger Opening tool / spudger
Tweezers Tweezers

Disassembly/Repair of the mobile device Samsung Wave 2 GT-S8530 with each step description and the required set of tools.

Vadim Popoff

Author, currently - Quality Assurance Specialist

How to disassemble Samsung Wave 2 GT-S8530, Step 1/1 How to disassemble Samsung Wave 2 GT-S8530, Step 1/2

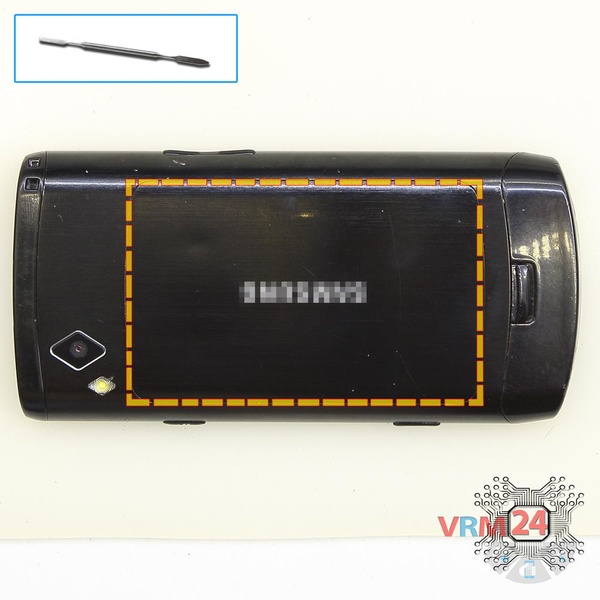

Step 1.

Open the back cover.

How to disassemble Samsung Wave 2 GT-S8530, Step 2/1 How to disassemble Samsung Wave 2 GT-S8530, Step 2/2

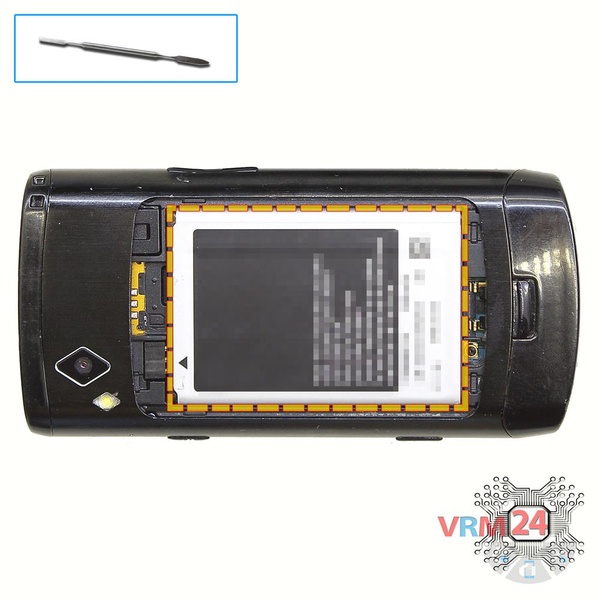

Step 2.

Lift and remove the battery.

How to disassemble Samsung Wave 2 GT-S8530, Step 3/1 How to disassemble Samsung Wave 2 GT-S8530, Step 3/2

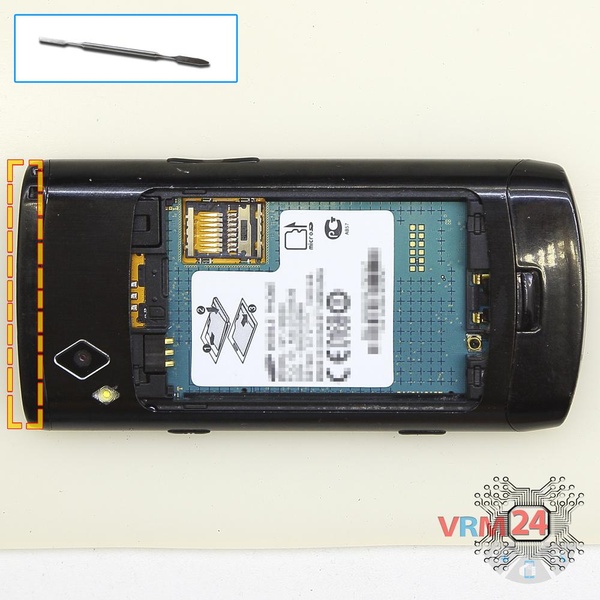

Step 3.

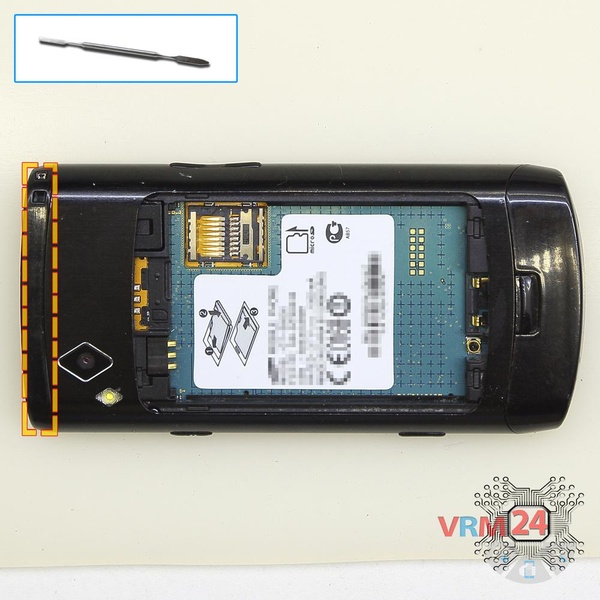

Pry & remove the top cover.

How to disassemble Samsung Wave 2 GT-S8530, Step 4/1 How to disassemble Samsung Wave 2 GT-S8530, Step 4/2

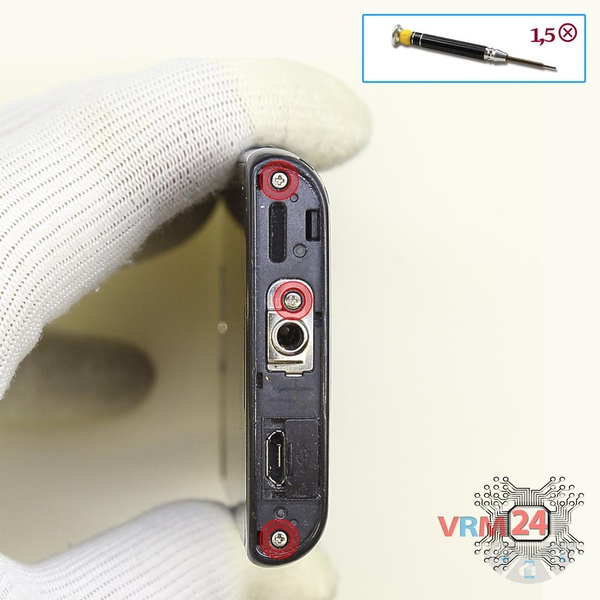

Step 4.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 3 bolts in the top of the phone.

How to disassemble Samsung Wave 2 GT-S8530, Step 5/1 How to disassemble Samsung Wave 2 GT-S8530, Step 5/2

Step 5.

Remove the upper cover.

How to disassemble Samsung Wave 2 GT-S8530, Step 6/1 How to disassemble Samsung Wave 2 GT-S8530, Step 6/2 How to disassemble Samsung Wave 2 GT-S8530, Step 6/3

Step 6.

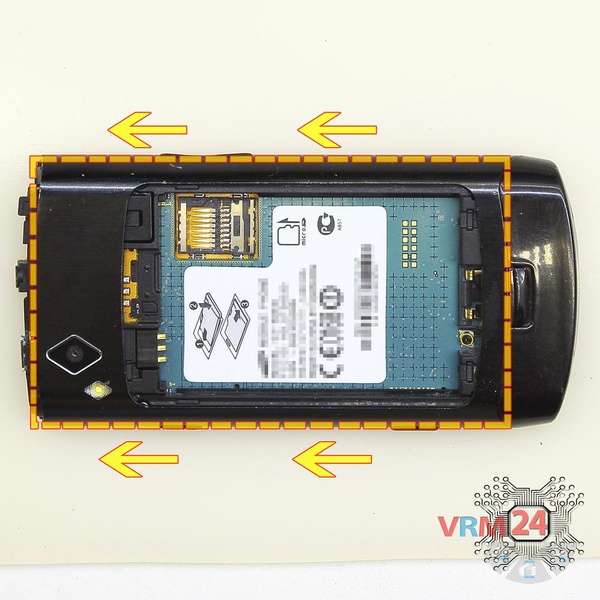

Slide up and remove the frame.

How to disassemble Samsung Wave 2 GT-S8530, Step 7/1 How to disassemble Samsung Wave 2 GT-S8530, Step 7/2

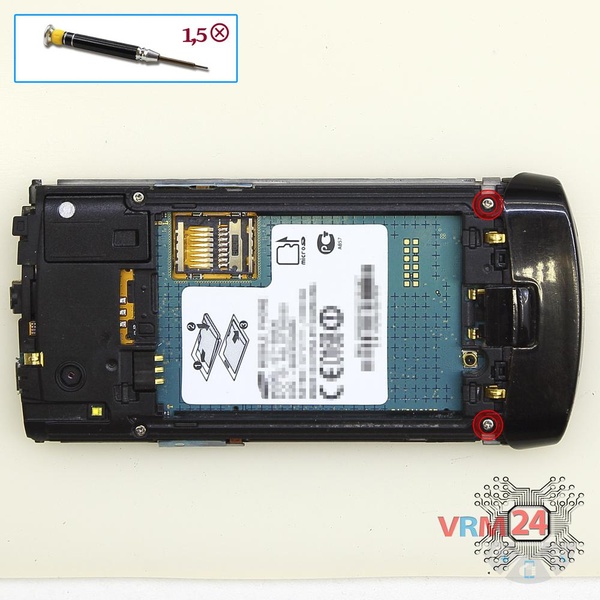

Step 7.

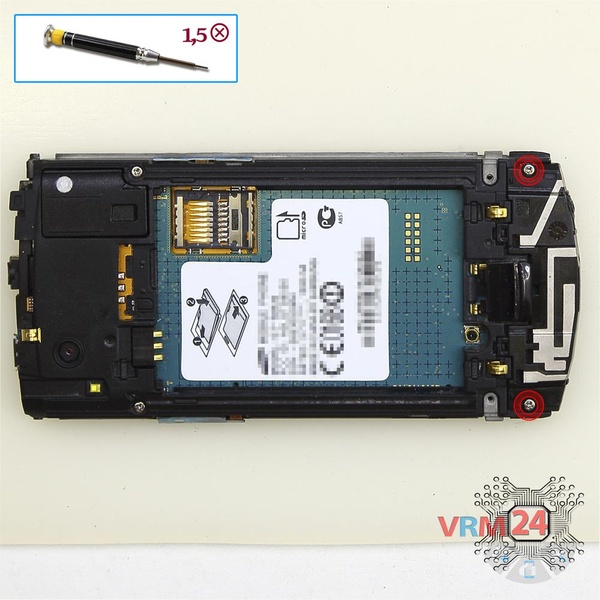

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 2 bolts securing the bottom cover.

How to disassemble Samsung Wave 2 GT-S8530, Step 8/1 How to disassemble Samsung Wave 2 GT-S8530, Step 8/2

Step 8.

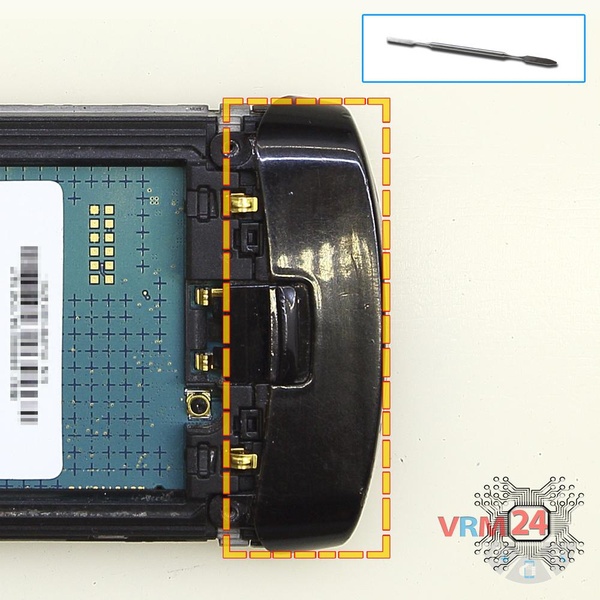

Remove the bottom cover.

How to disassemble Samsung Wave 2 GT-S8530, Step 9/1 How to disassemble Samsung Wave 2 GT-S8530, Step 9/2

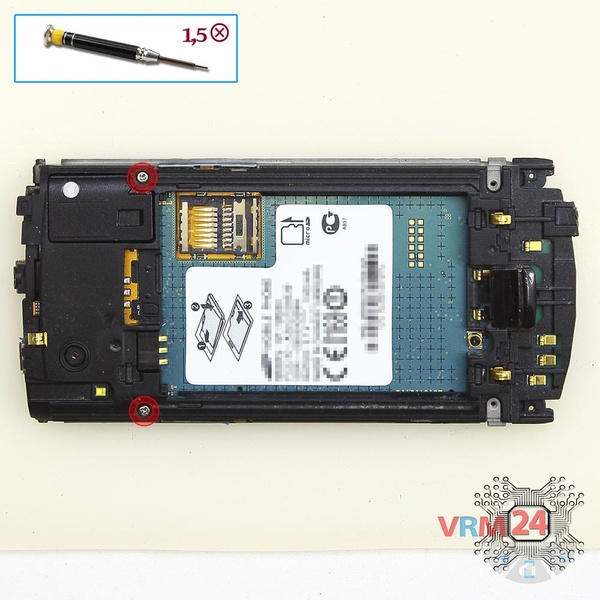

Step 9.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 2 bolts.

How to disassemble Samsung Wave 2 GT-S8530, Step 10/1 How to disassemble Samsung Wave 2 GT-S8530, Step 10/2

Step 10.

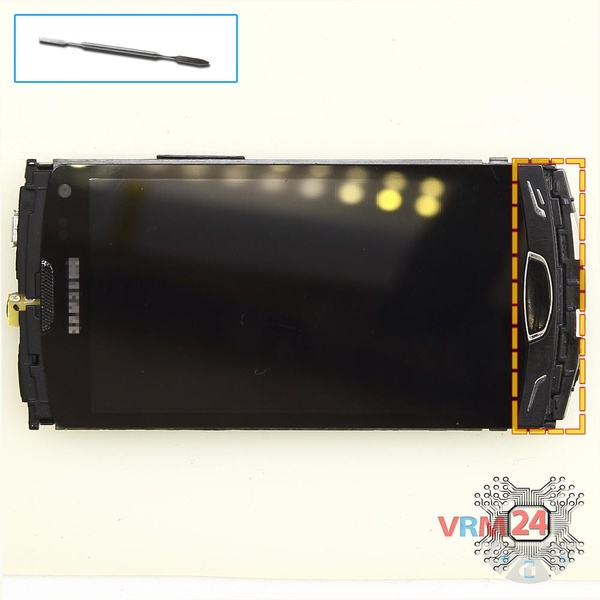

Remove the keys of navigation buttons.

How to disassemble Samsung Wave 2 GT-S8530, Step 11/1 How to disassemble Samsung Wave 2 GT-S8530, Step 11/2

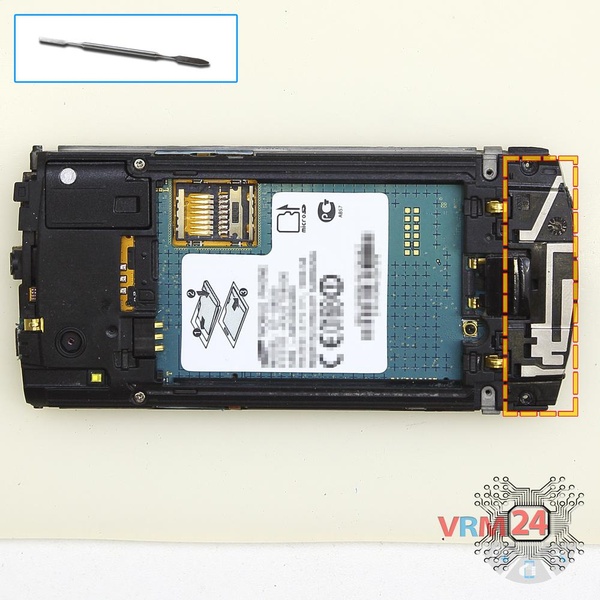

Step 11.

Remove the cover with antennas.

How to disassemble Samsung Wave 2 GT-S8530, Step 12/1 How to disassemble Samsung Wave 2 GT-S8530, Step 12/2

Step 12.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 2 bolts.

How to disassemble Samsung Wave 2 GT-S8530, Step 13/1 How to disassemble Samsung Wave 2 GT-S8530, Step 13/2

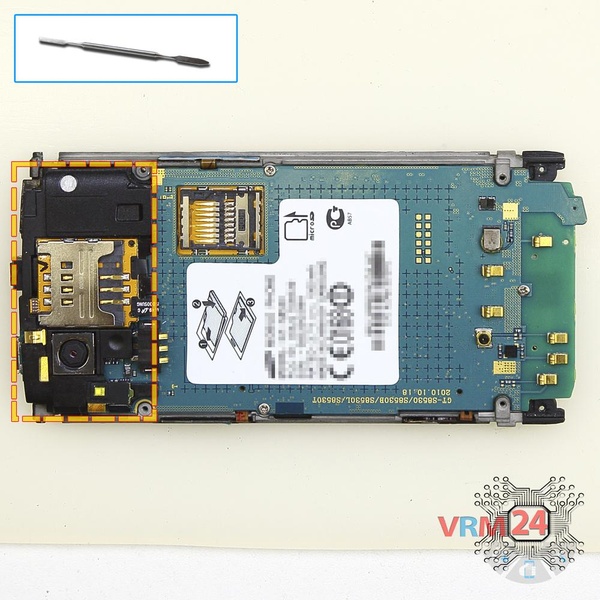

Step 13.

Pry and remove the middle frame.

How to disassemble Samsung Wave 2 GT-S8530, Step 14/1 How to disassemble Samsung Wave 2 GT-S8530, Step 14/2 How to disassemble Samsung Wave 2 GT-S8530, Step 14/3 How to disassemble Samsung Wave 2 GT-S8530, Step 14/4

Step 14.

Turn over the frame with Sim card holder. Pry up the connector and remove the frame.

How to disassemble Samsung Wave 2 GT-S8530, Step 15/1 How to disassemble Samsung Wave 2 GT-S8530, Step 15/2

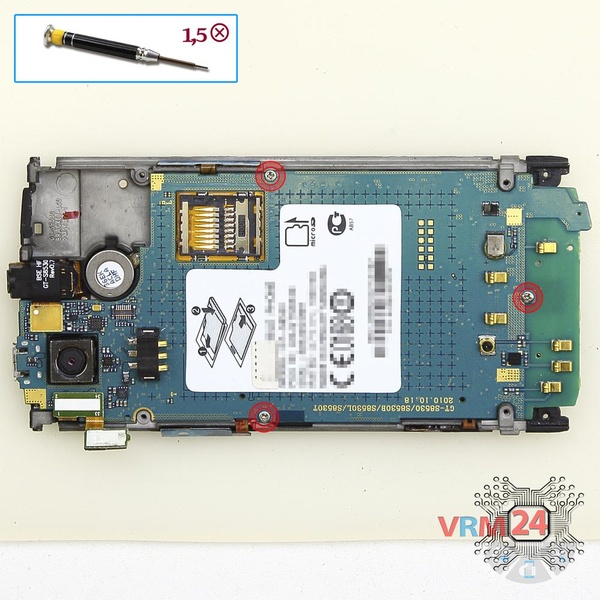

Step 15.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 3 bolts in the PCB.

How to disassemble Samsung Wave 2 GT-S8530, Step 16/1 How to disassemble Samsung Wave 2 GT-S8530, Step 16/2 How to disassemble Samsung Wave 2 GT-S8530, Step 16/3 How to disassemble Samsung Wave 2 GT-S8530, Step 16/4 How to disassemble Samsung Wave 2 GT-S8530, Step 16/5 How to disassemble Samsung Wave 2 GT-S8530, Step 16/6 How to disassemble Samsung Wave 2 GT-S8530, Step 16/7

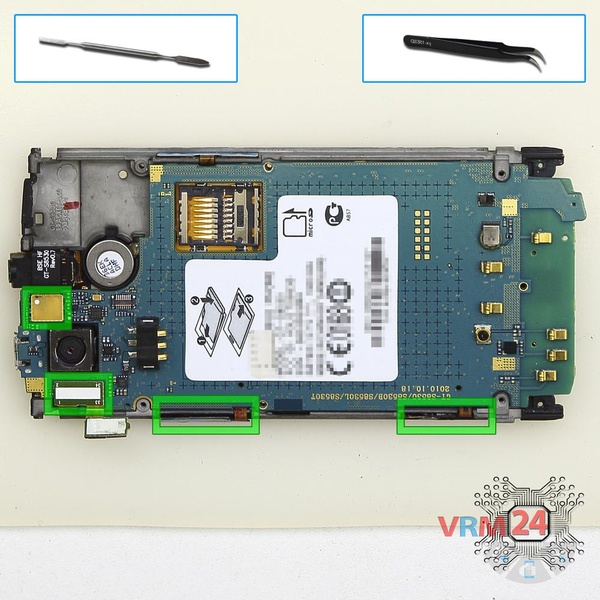

Step 16.

Disconnect connectors on the PCB and pry up the volume buttons flex cable.

How to disassemble Samsung Wave 2 GT-S8530, Step 17/1 How to disassemble Samsung Wave 2 GT-S8530, Step 17/2 How to disassemble Samsung Wave 2 GT-S8530, Step 17/3

Step 17.

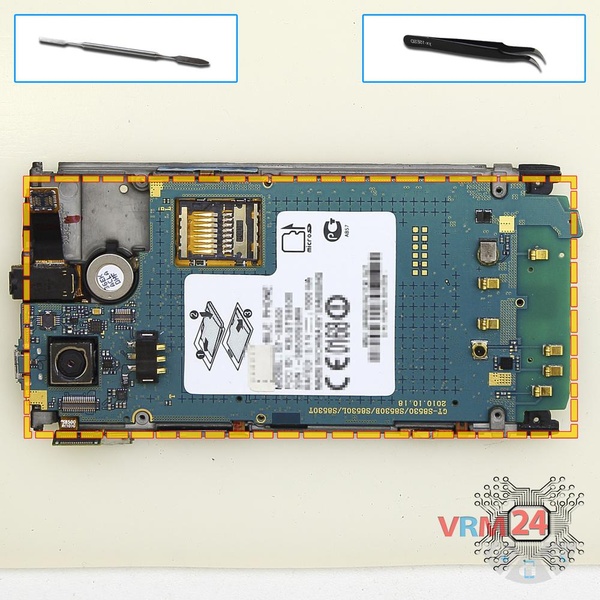

Turn over PCB, disconnect the connectors of from the inside and remove the board.

How to disassemble Samsung Wave 2 GT-S8530, Step 18/1 How to disassemble Samsung Wave 2 GT-S8530, Step 18/2

Step 18.

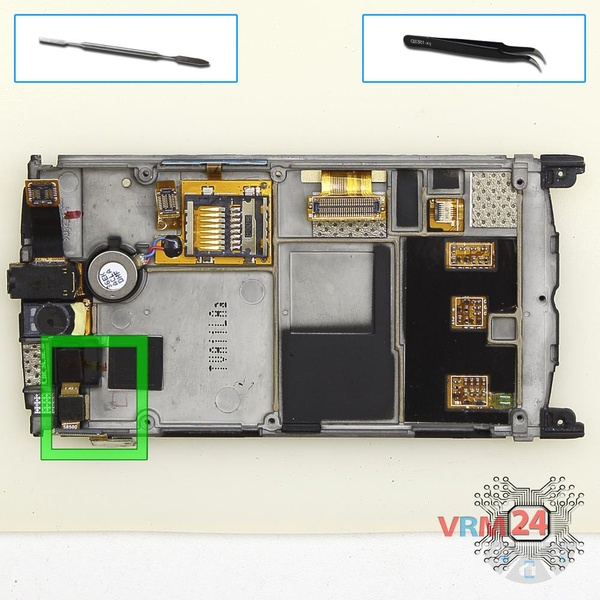

Remove the cable with a camera and proximity sensor.

How to disassemble Samsung Wave 2 GT-S8530, Step 19/1 How to disassemble Samsung Wave 2 GT-S8530, Step 19/2

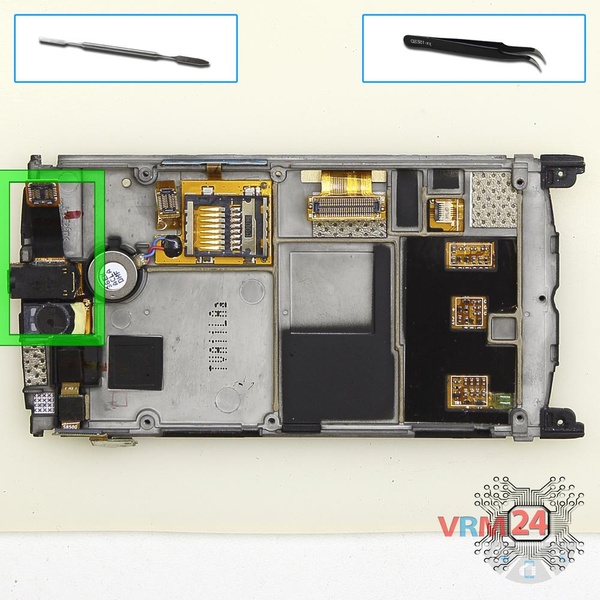

Step 19.

Pry and remove the cable with a headphone jack/socket and earpiece speaker.

How to disassemble Samsung Wave 2 GT-S8530, Step 20/1 How to disassemble Samsung Wave 2 GT-S8530, Step 20/2 How to disassemble Samsung Wave 2 GT-S8530, Step 20/3

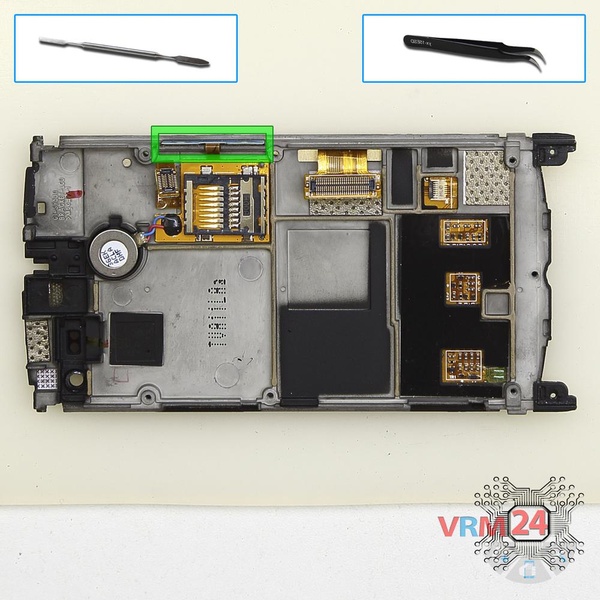

Step 20.

Remove the board with a vibration motor, Micro SD card holder, and volume buttons.

How to disassemble Samsung Wave 2 GT-S8530, Step 21/1

Step 21.

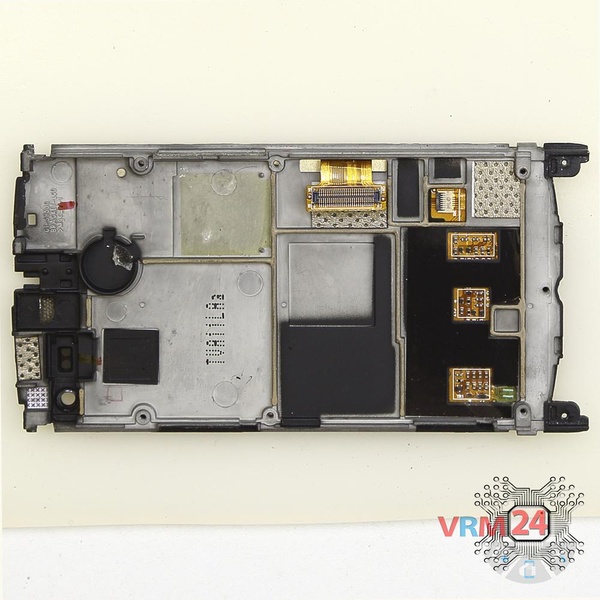

Parts are in the frame of the display module.

Detailed disassembly instructions of Samsung Wave 2 GT-S8530 in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

#instructions #Samsung #Samsung Wave 2 GT-S8530
Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer

Disassembling\Repair has medium complexity and takes about 8 minutes in time.
Our manual is suitable for all models Samsung Wave 2 GT-S8530 released for markets in different countries.
