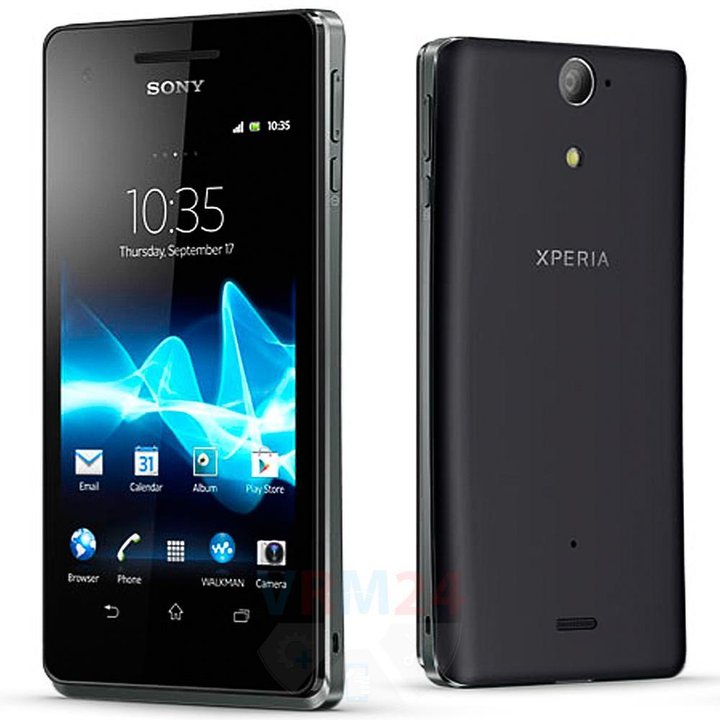

Sony Xperia V
Sony Xperia V
Teardown difficulty:
Moderate
Duration:
4 min

Recommended tools

Screwdriver Torx T5 Screwdriver torx t5
Screwdriver Phillips #000 Screwdriver phillips #000
Opening tool / Spudger Opening tool / spudger
Tweezers Tweezers

Disassembly/Repair of the mobile device Sony Xperia V (Sony Xperia V LT25i) with each step description and the required set of tools.

Vadim Popoff

Author, currently - Quality Assurance Specialist

How to disassemble Sony Xperia V, Step 1/1 How to disassemble Sony Xperia V, Step 1/2

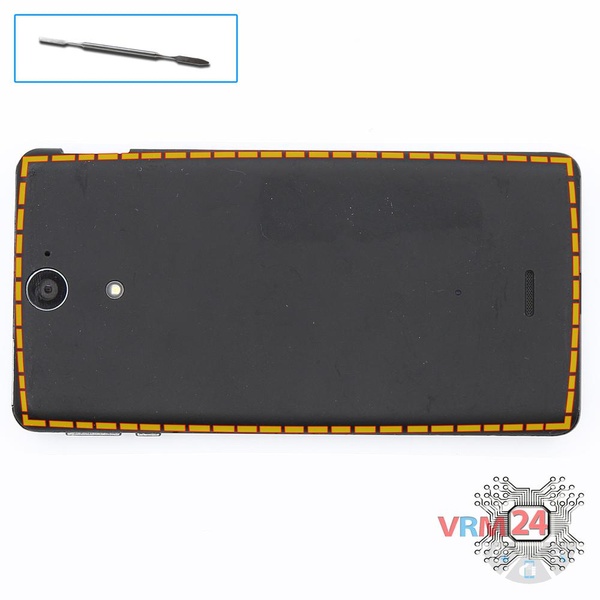

Step 1.

Open the back cover.

How to disassemble Sony Xperia V, Step 2/1 How to disassemble Sony Xperia V, Step 2/2

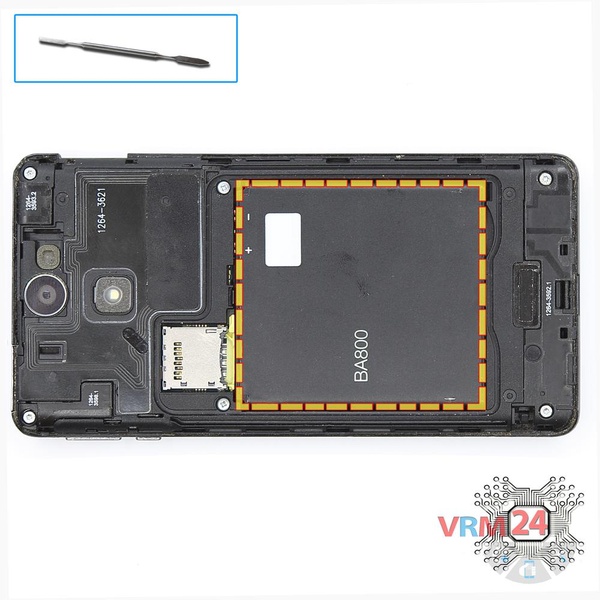

Step 2.

Lift and remove the battery.

How to disassemble Sony Xperia V, Step 3/1 How to disassemble Sony Xperia V, Step 3/2

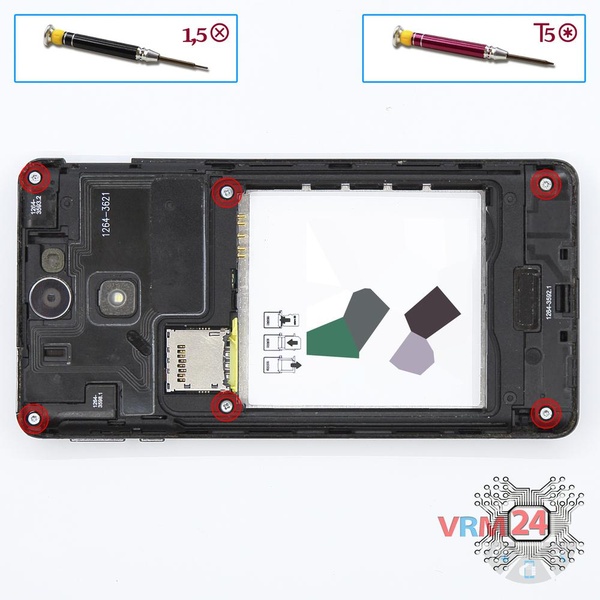

Step 3.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 2 bolts and a screwdriver (hex T5) unscrew 4 bolts.

How to disassemble Sony Xperia V, Step 4/1 How to disassemble Sony Xperia V, Step 4/2

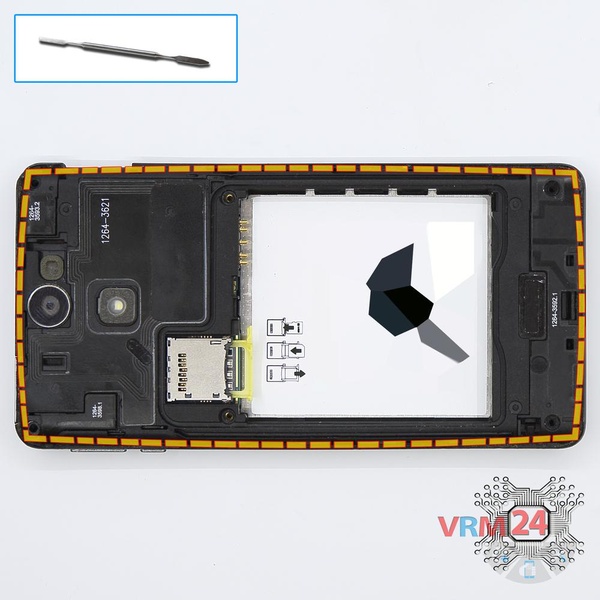

Step 4.

Pry and remove the middle frame.

How to disassemble Sony Xperia V, Step 5/1

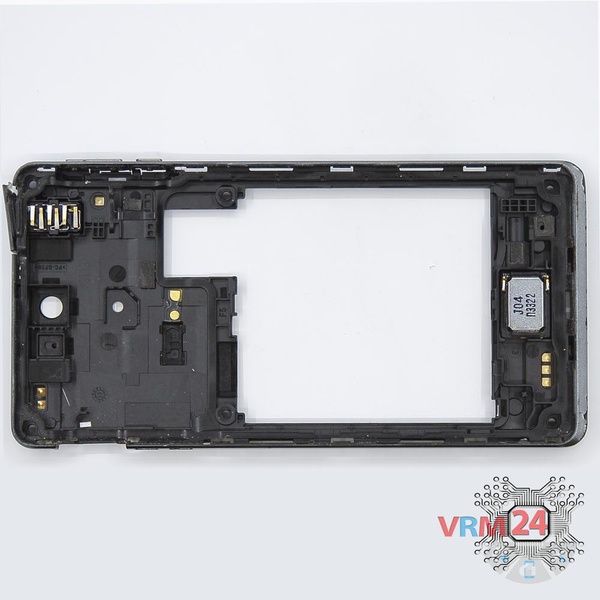

Step 5.

The middle frame.

How to disassemble Sony Xperia V, Step 6/1 How to disassemble Sony Xperia V, Step 6/2 How to disassemble Sony Xperia V, Step 6/3

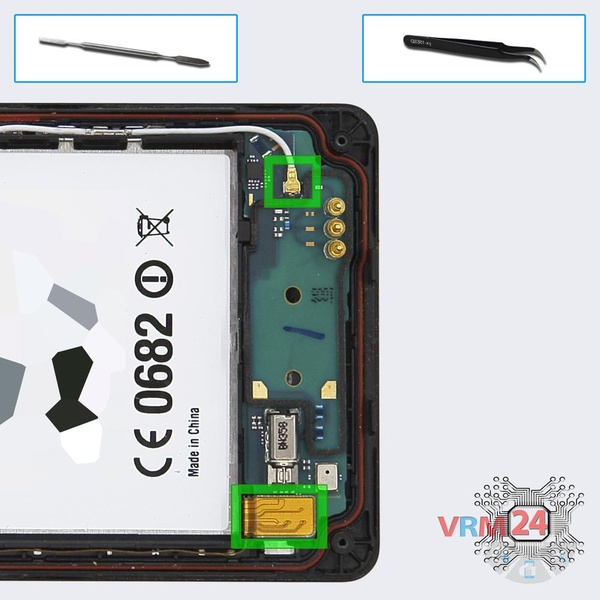

Step 6.

Disconnect connectors on the lower PCB and remove it.

How to disassemble Sony Xperia V, Step 7/1 How to disassemble Sony Xperia V, Step 7/2 How to disassemble Sony Xperia V, Step 7/3

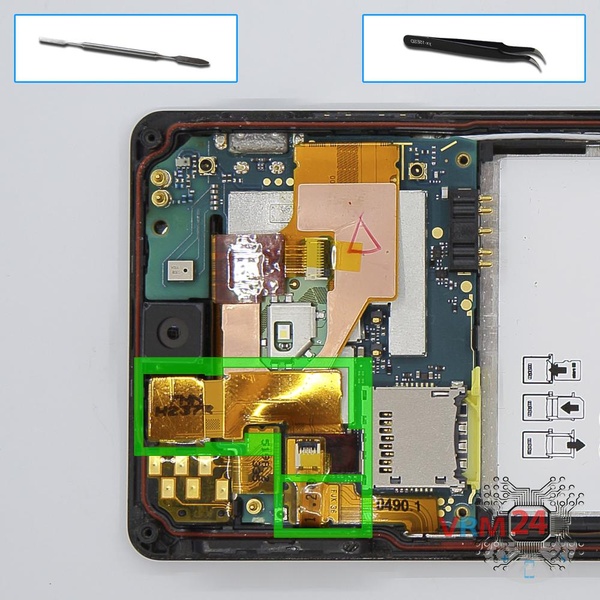

Step 7.

Disconnect the connector on PCB, and remove the main camera.

How to disassemble Sony Xperia V, Step 8/1 How to disassemble Sony Xperia V, Step 8/2

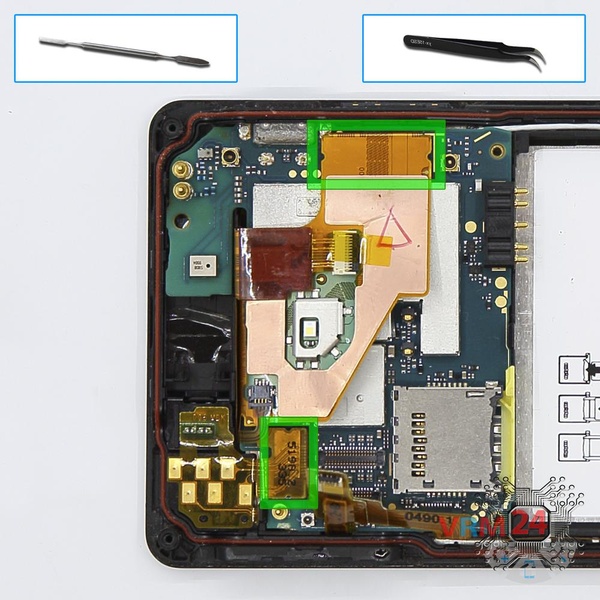

Step 8.

Disconnect connectors on the PCB.

How to disassemble Sony Xperia V, Step 9/1 How to disassemble Sony Xperia V, Step 9/2

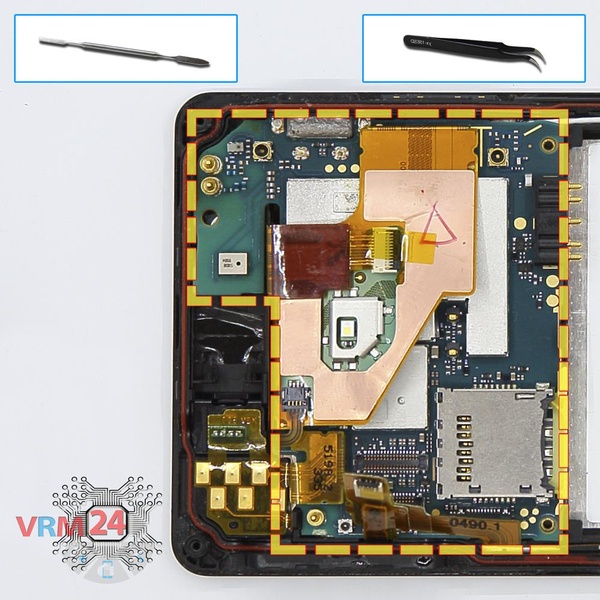

Step 9.

Remove the PCB.

How to disassemble Sony Xperia V, Step 10/1 How to disassemble Sony Xperia V, Step 10/2 How to disassemble Sony Xperia V, Step 10/3

Step 10.

Parts are in the frame of the display module.

Detailed disassembly instructions of Sony Xperia V in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

#instructions #Sony #Sony Xperia V
Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer

Disassembling\Repair has medium complexity and takes about 4 minutes in time.
Our manual is suitable for all models Sony Xperia V — Sony Xperia V LT25i released for markets in different countries.
