Sony Xperia XA2 Ultra
Sony Xperia XA2 Ultra
Teardown difficulty:
Easy
Duration:
6 min

Recommended tools

Heat gun Heat gun
Screwdriver Phillips #000 Screwdriver phillips #000
Opening tool / Spudger Opening tool / spudger
Tweezers Tweezers

Disassembly/Repair of the mobile device Sony Xperia XA2 Ultra (Sony Xperia XA2 Ultra H3213, H3223, H4213, H4233) with each step description and the required set of tools.

Vadim Popoff

Author / Content specialist with 10+ years of experience

How to disassemble Sony Xperia XA2 Ultra, Step 1/1 How to disassemble Sony Xperia XA2 Ultra, Step 1/2

Step 1.

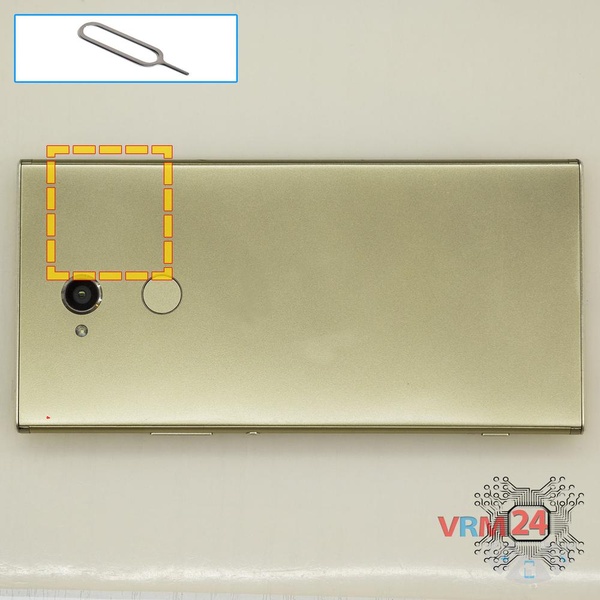

Open the SIM cards tray and remove it.

How to disassemble Sony Xperia XA2 Ultra, Step 2/1 How to disassemble Sony Xperia XA2 Ultra, Step 2/2

Step 2.

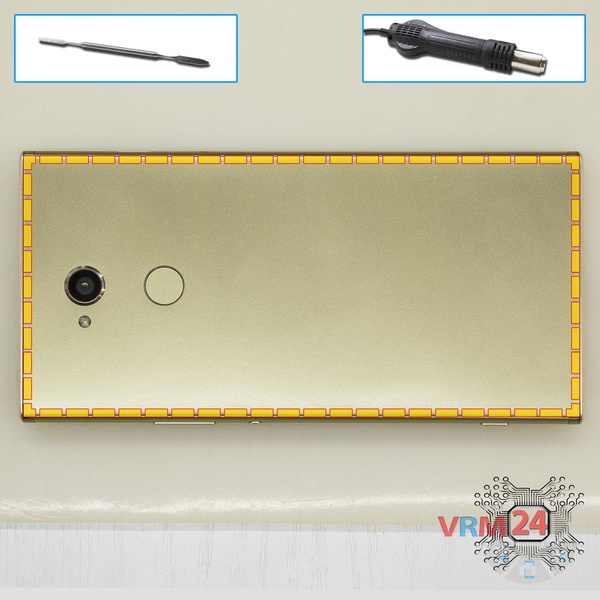

Open the back cover.

⚠️ Warning!

For careful separation, we recommend using a heat gun. At the same time, it is necessary to heat carefully in order, not to damage the surface of the device.

How to disassemble Sony Xperia XA2 Ultra, Step 3/1 How to disassemble Sony Xperia XA2 Ultra, Step 3/2 How to disassemble Sony Xperia XA2 Ultra, Step 3/3

Step 3.

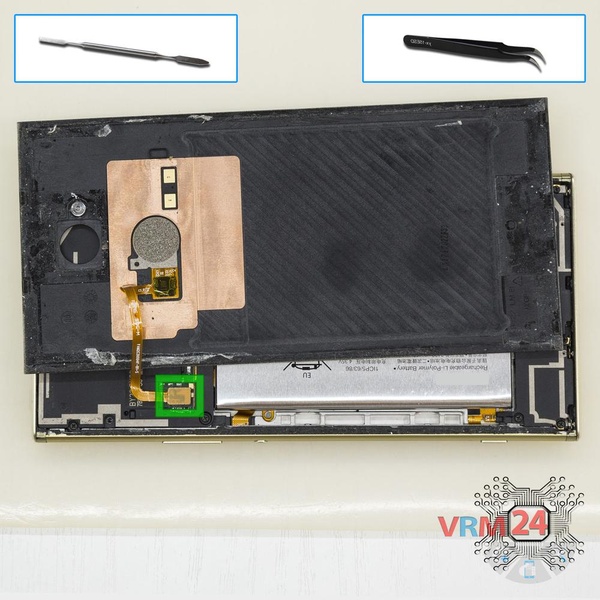

Pry up the fingerprint sensor connector on the PCB and remove the back cover.

How to disassemble Sony Xperia XA2 Ultra, Step 4/1 How to disassemble Sony Xperia XA2 Ultra, Step 4/2

Step 4.

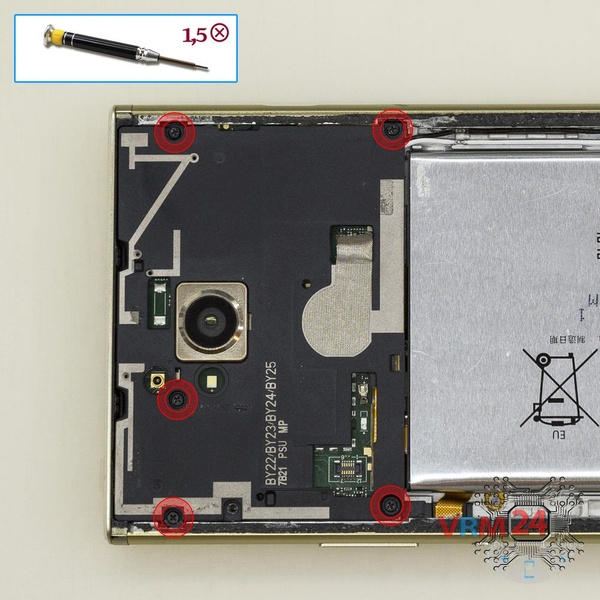

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 5 bolts.

How to disassemble Sony Xperia XA2 Ultra, Step 5/1 How to disassemble Sony Xperia XA2 Ultra, Step 5/2

Step 5.

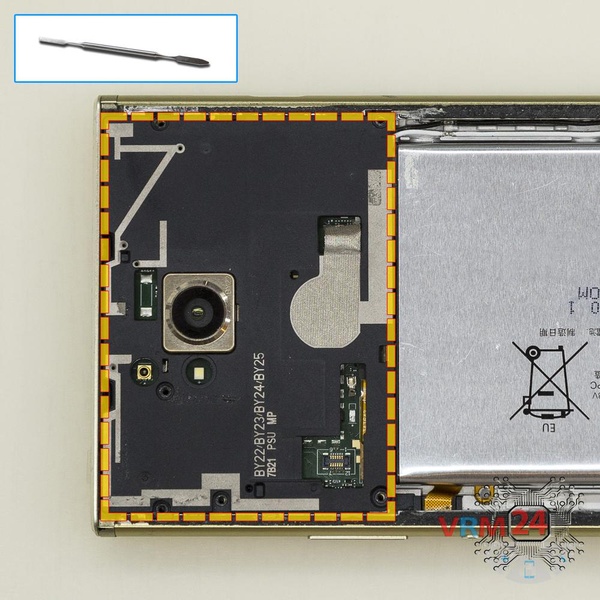

Remove the upper cover.

How to disassemble Sony Xperia XA2 Ultra, Step 6/1 How to disassemble Sony Xperia XA2 Ultra, Step 6/2

Step 6.

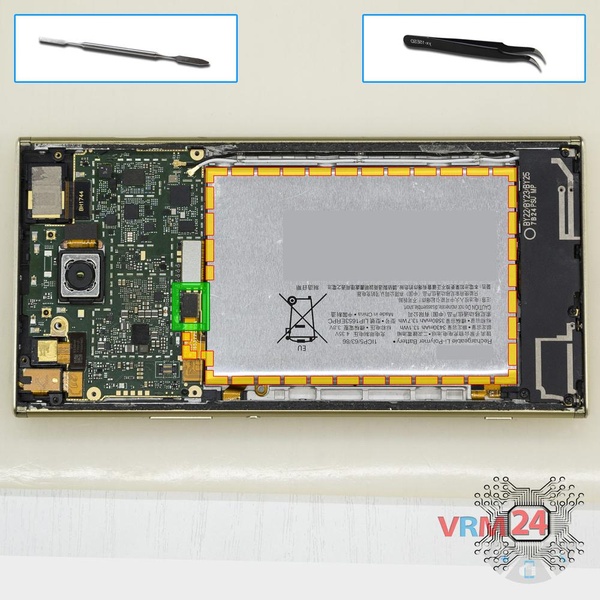

Disconnect the connector on PCB and remove the battery.

How to disassemble Sony Xperia XA2 Ultra, Step 7/1 How to disassemble Sony Xperia XA2 Ultra, Step 7/2

Step 7.

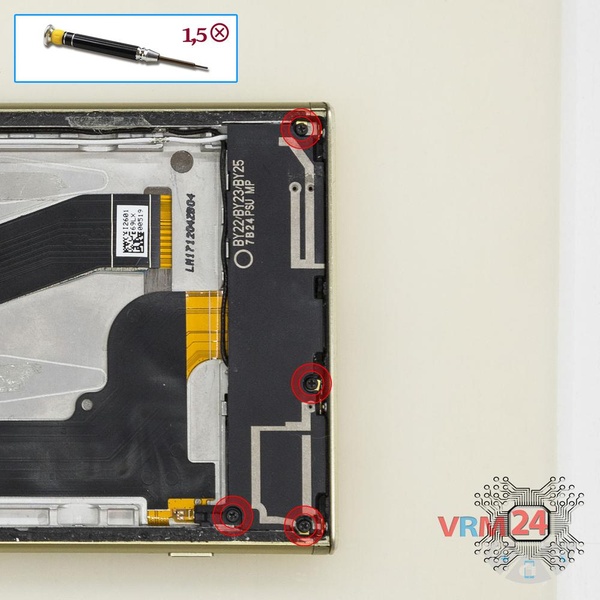

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 4 bolts.

How to disassemble Sony Xperia XA2 Ultra, Step 8/1 How to disassemble Sony Xperia XA2 Ultra, Step 8/2

Step 8.

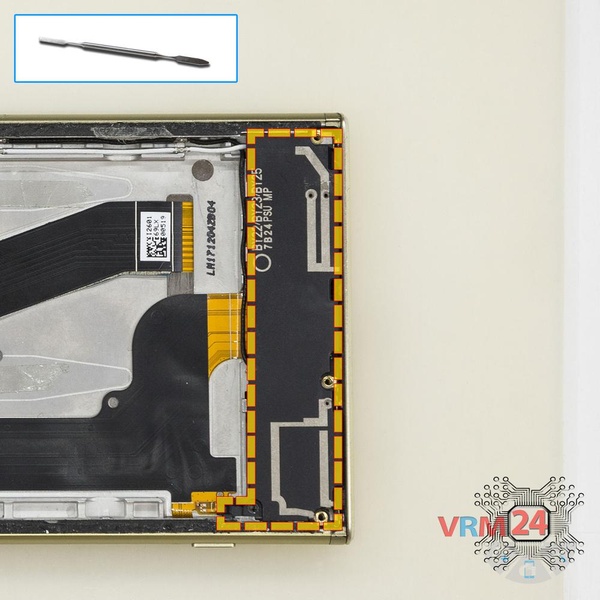

Pry and remove the buzzer (speaker) assembly.

How to disassemble Sony Xperia XA2 Ultra, Step 9/1 How to disassemble Sony Xperia XA2 Ultra, Step 9/2

Step 9.

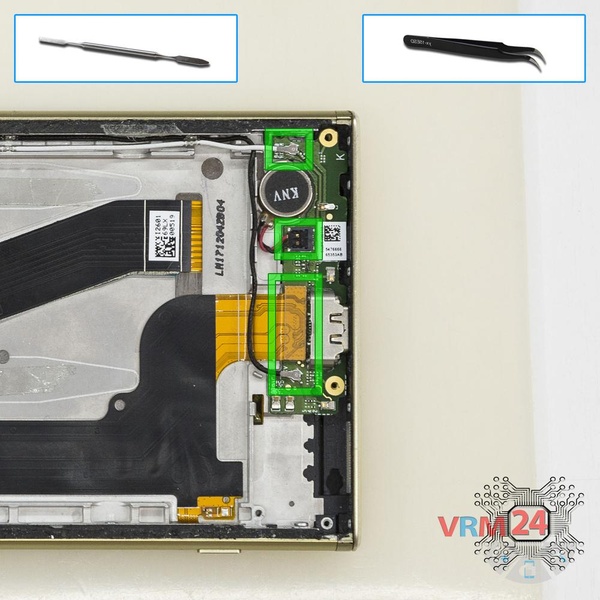

Disconnect connectors on the daughterboard.

How to disassemble Sony Xperia XA2 Ultra, Step 10/1 How to disassemble Sony Xperia XA2 Ultra, Step 10/2

Step 10.

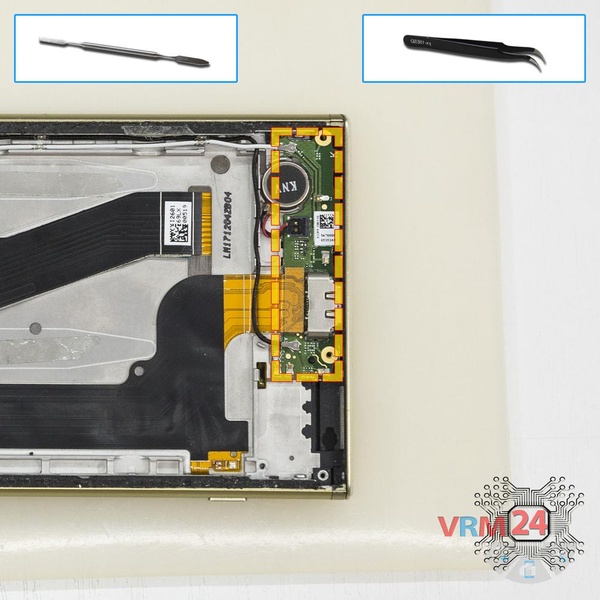

Remove the daughterboard.

How to disassemble Sony Xperia XA2 Ultra, Step 11/1 How to disassemble Sony Xperia XA2 Ultra, Step 11/2 How to disassemble Sony Xperia XA2 Ultra, Step 11/3

Step 11.

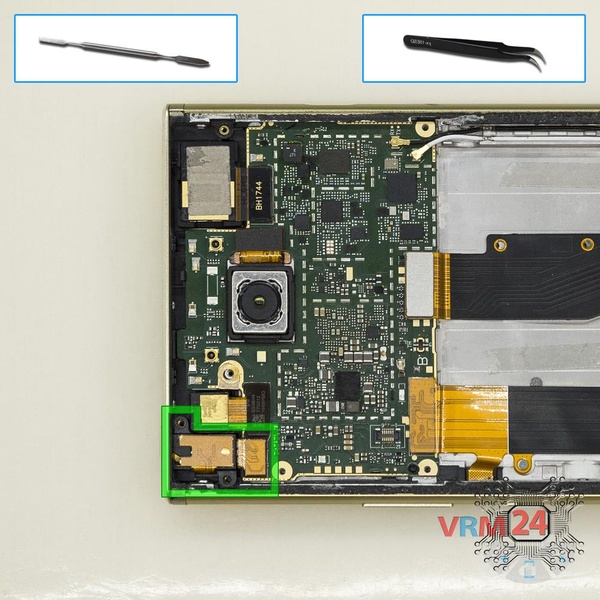

Pry up the connector on PCB and remove the headphone jack/socket.

How to disassemble Sony Xperia XA2 Ultra, Step 12/1 How to disassemble Sony Xperia XA2 Ultra, Step 12/2

Step 12.

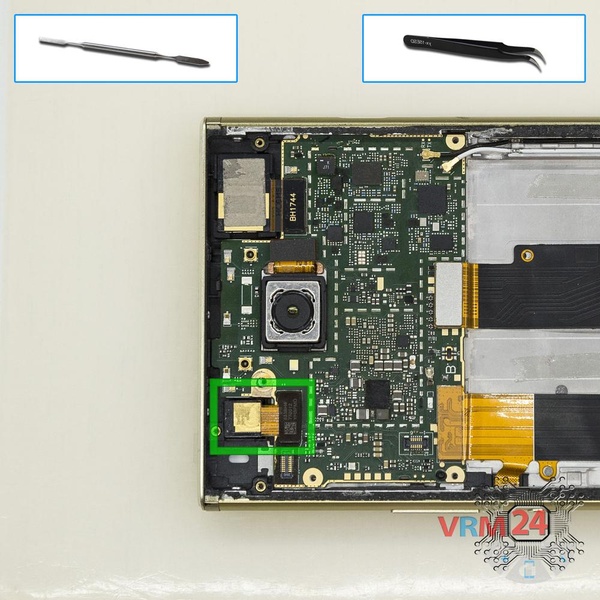

Disconnect the connector on PCB, and remove the front (selfie) camera.

How to disassemble Sony Xperia XA2 Ultra, Step 13/1 How to disassemble Sony Xperia XA2 Ultra, Step 13/2

Step 13.

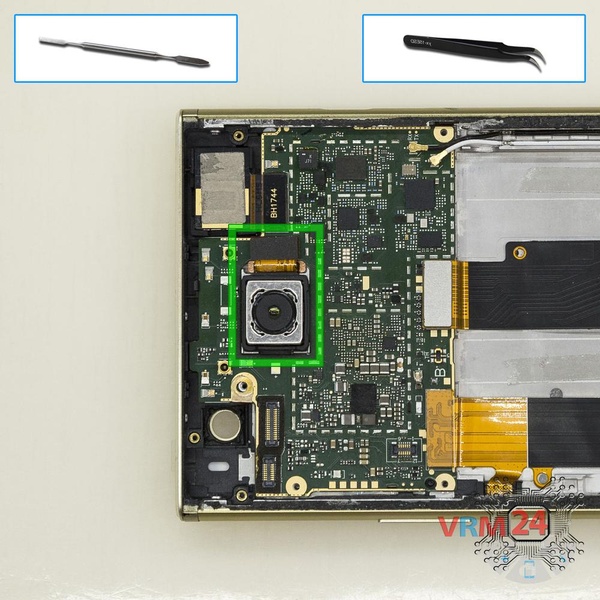

Disconnect the connector on PCB, and remove the main camera.

How to disassemble Sony Xperia XA2 Ultra, Step 14/1 How to disassemble Sony Xperia XA2 Ultra, Step 14/2

Step 14.

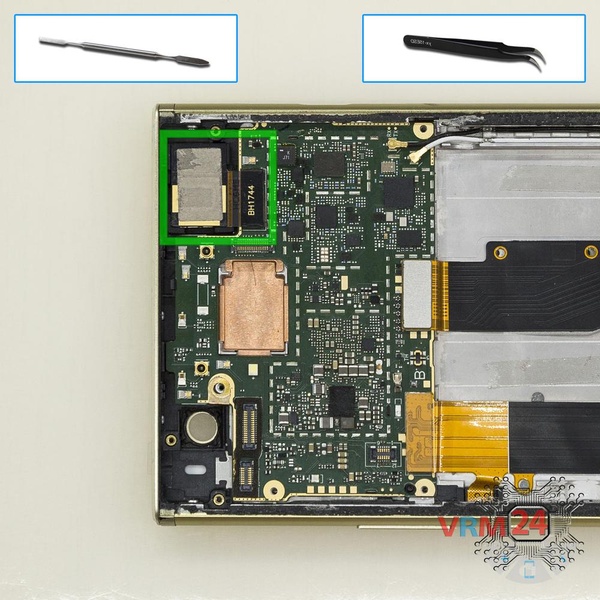

Disconnect the connector on PCB, and remove the second front (selfie) camera.

How to disassemble Sony Xperia XA2 Ultra, Step 15/1 How to disassemble Sony Xperia XA2 Ultra, Step 15/2 How to disassemble Sony Xperia XA2 Ultra, Step 15/3

Step 15.

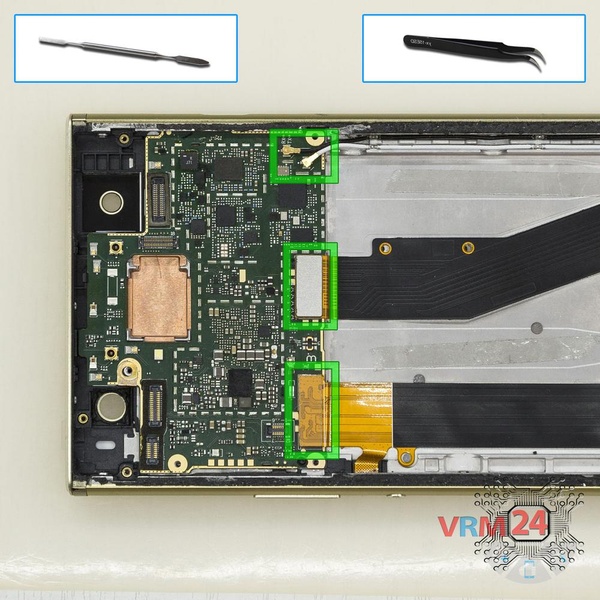

Disconnect connectors on the PCB.

How to disassemble Sony Xperia XA2 Ultra, Step 16/1 How to disassemble Sony Xperia XA2 Ultra, Step 16/2

Step 16.

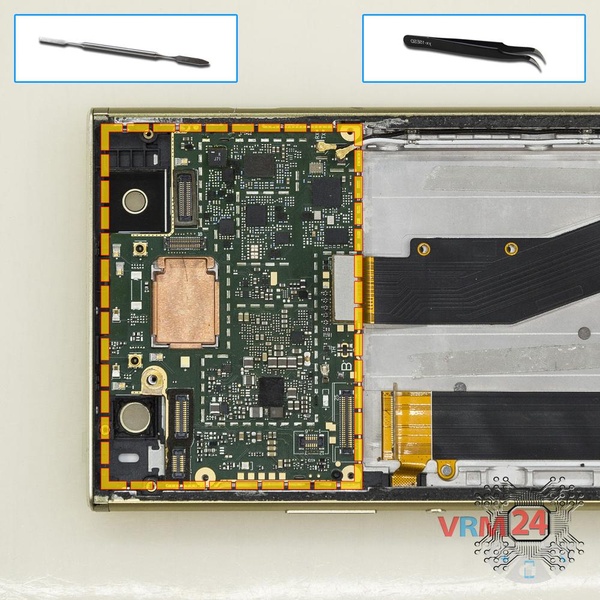

Remove the PCB.

How to disassemble Sony Xperia XA2 Ultra, Step 17/1 How to disassemble Sony Xperia XA2 Ultra, Step 17/2 How to disassemble Sony Xperia XA2 Ultra, Step 17/3

Step 17.

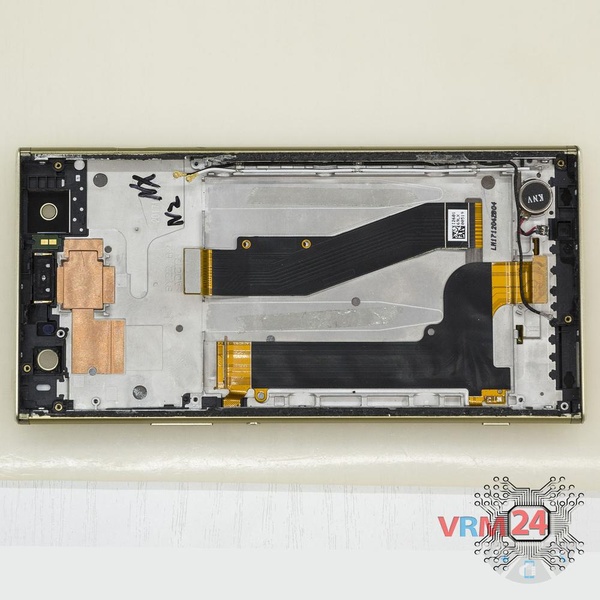

Parts are in the frame of the display module.

Detailed disassembly instructions of Sony Xperia XA2 Ultra in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

#instructions #Sony #Sony Xperia XA2 Ultra
Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer

Disassembling\Repair has easy complexity and takes about 6 minutes in time.
Our manual is suitable for all models Sony Xperia XA2 Ultra — Sony Xperia XA2 Ultra H3213, H3223, H4213, H4233 released for markets in different countries.
