VRM24 🤖 AI Review: Asus Asus ZenFone Max Pro ZB602KL

Asus ZenFone Max Pro ZB602KL: a technical overview based on VRM24’s recorded device data.

Design and display

Type: Smartphone; Announced: 2018, April; Dimensions: 159 x 76 x 8.5 mm (6.26 x 2.99 x 0.33 in); Weight: 180 g (6.35 oz); Display: IPS LCD capacitive touchscreen, 16M colors; Size: 5.99 inches, 92.1 cm2 (~76.2% screen-to-body ratio); Resolution: 1080 x 2160 pixels, 18:9 ratio.

Display size and resolution describe the viewing format; brightness, colour accuracy and durability require separate testing.

Platform and memory

OS: Android 8.1 (Oreo); Chipset: Qualcomm Snapdragon 636 SDM636; CPU: Octa-Core 4Ñ… Kryo 260 Gold 1.8 GHz & 4x Kryo 260 Silver 1.6 GHz; GPU: Adreno 509; RAM: 6 GB; Storage: 64 GB; Memory card: Micro SD, up to 1 TB (dedicated slot).

The chipset and memory describe the hardware configuration. They do not establish measured speed, gaming performance or current software support.

Cameras

Rear camera: 13 MP, f/2.2, 25mm (wide), 1.12µm, PDAF 5 MP, f/2.4, 1.12µm, depth sensor; Rear video: 2160p, 30fps; Front camera: 16 MP MP, f/2.2, 26mm (wide), 1.0µm / 5 MP, f/2.4, depth sensor; Front video: 1080p, 30fps.

These are the recorded camera specifications. Image quality and stabilisation cannot be judged from resolution alone.

Battery and connections

Battery capacity: Li-Po 5000 mAh; Battery model: C11P1706; Charging port: Micro USB 2.0, USB On-The-Go; Headphone jack: 3.5mm Jack. Active noise cancellation with dedicated mic; Interfaces: Wi-Fi 802.11 b/g/n, Wi-Fi Direct, hotspot, Bluetooth 5.0, A2DP, LE; Networks: GSM / HSPA / LTE; SIM: Dual SIM.

Battery capacity is not a measured runtime. Charging speed, battery condition and compatibility of replacement parts need separate verification.

What the specifications tell us

Use this overview to compare the recorded configuration with your needs. It does not provide benchmarks or hands-on performance measurements.

Prepared using ChatGPT-authored templates and VRM24’s own collected device data. Device details are inserted from our records; each overview is not individually written by a model. AI-assisted text and source data may contain errors. Actual performance may vary. Verify specifications and part compatibility before repair.

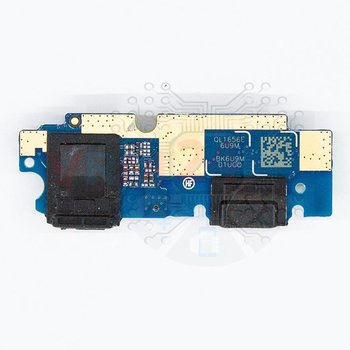

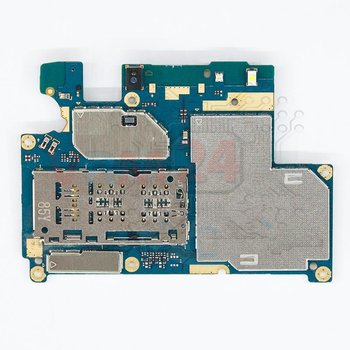

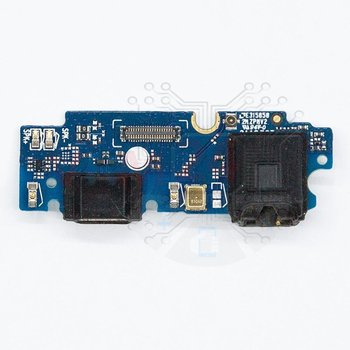

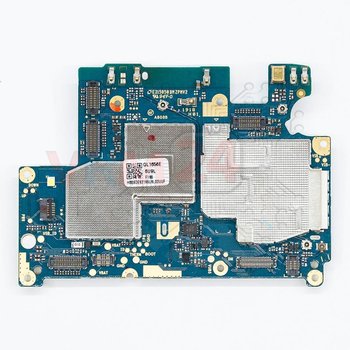

Main and additional circuit boards

Asus ZenFone Max Pro ZB602KL
Side 1
Side 2

Spare parts

and components

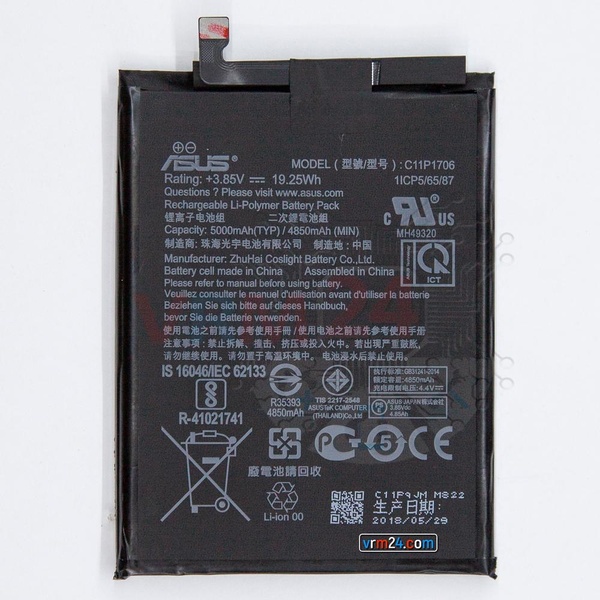

Battery
tech-review-of-Asus ZenFone Max Pro ZB602KL
Loading...

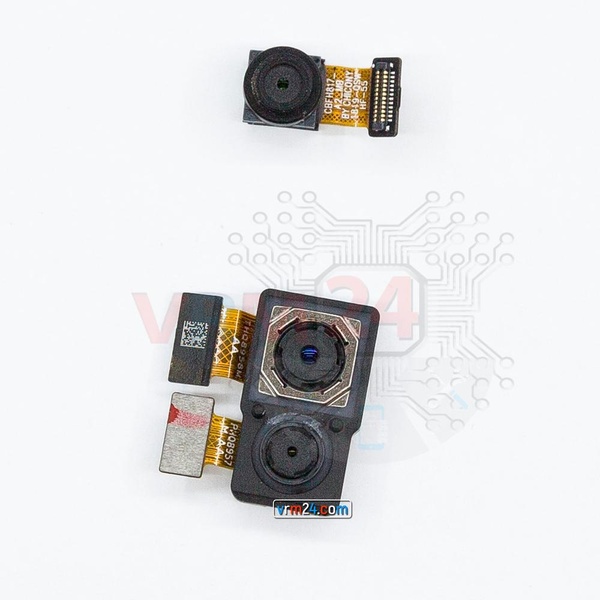

Cameras
tech-review-of-Asus ZenFone Max Pro ZB602KL
Loading...

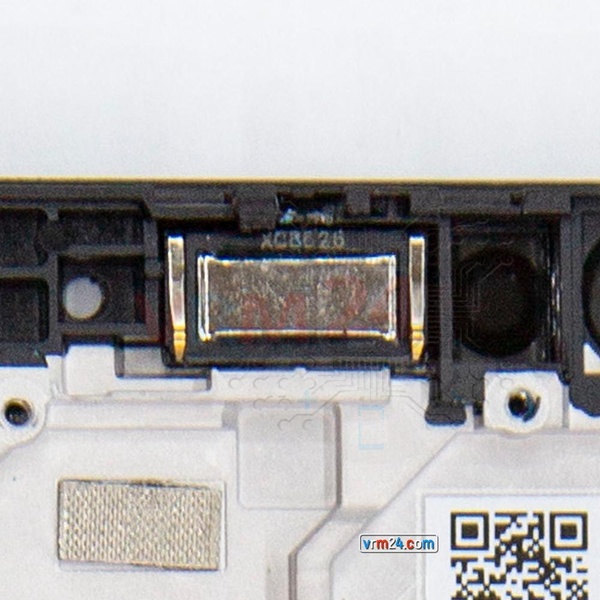

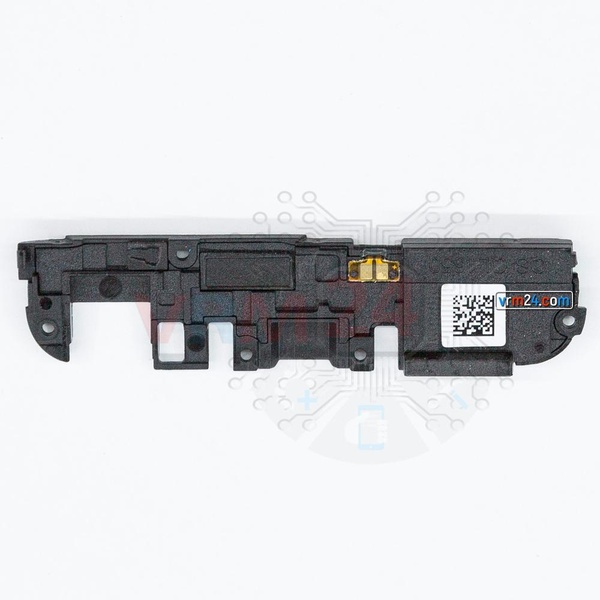

Loudspeaker
tech-review-of-Asus ZenFone Max Pro ZB602KL
Loading...

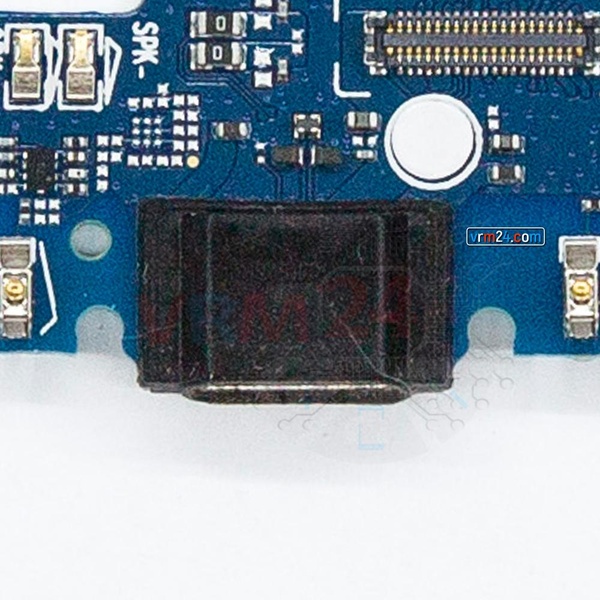

Charging port
tech-review-of-Asus ZenFone Max Pro ZB602KL
Loading...

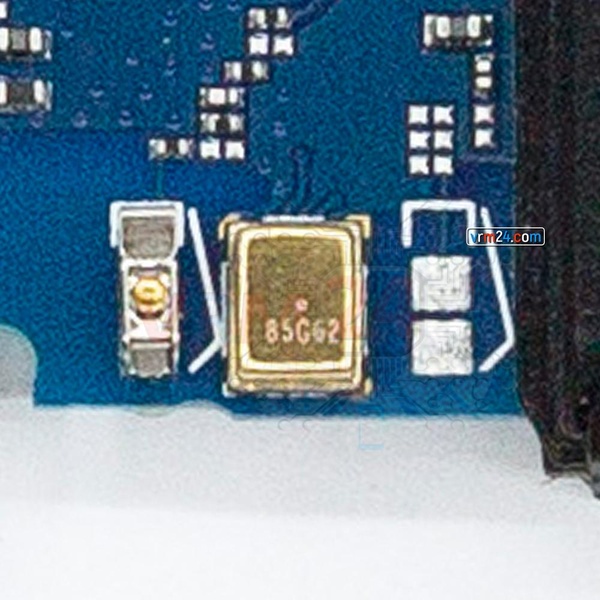

Microphone
tech-review-of-Asus ZenFone Max Pro ZB602KL
Loading...

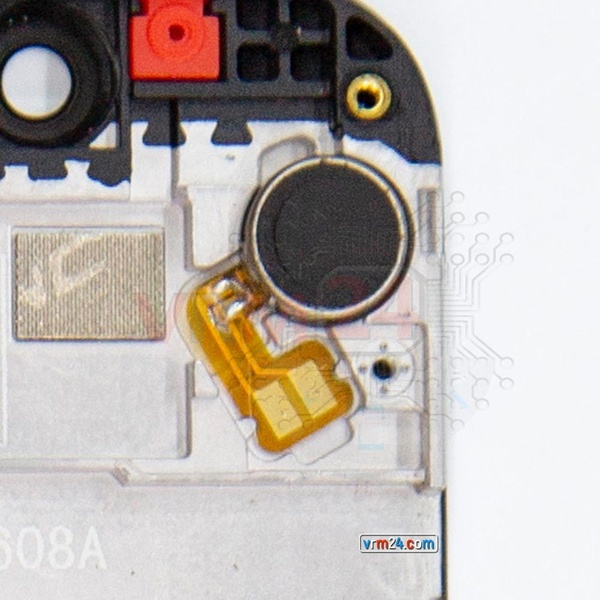

Vibration motor
tech-review-of-Asus ZenFone Max Pro ZB602KL
Loading...

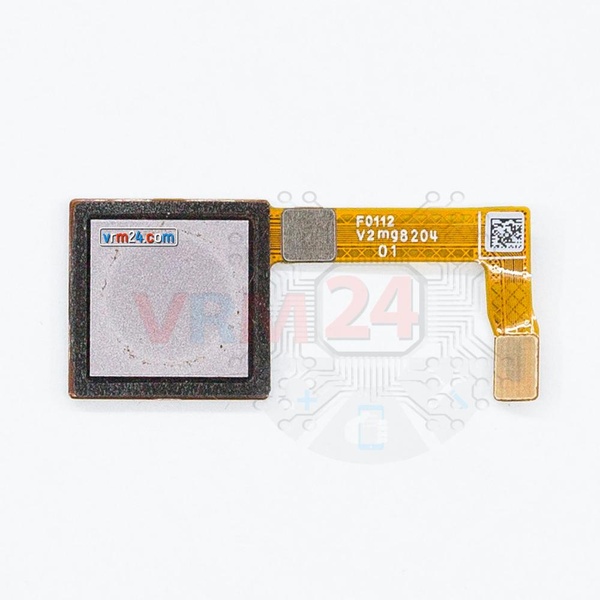

Fingerprint sensor
tech-review-of-Asus ZenFone Max Pro ZB602KL
Loading...

Characteristics

and Features

Features

Type Smartphone
OS Android 8.1 (Oreo)
SIM type/size Nano SIM
SIM Dual SIM
Dimensions 159 x 76 x 8.5 mm (6.26 x 2.99 x 0.33 in)
Weight 180 g (6.35 oz)

Display

Display type IPS LCD capacitive touchscreen, 16M colors
Size 5.99 inches, 92.1 cm2 (~76.2% screen-to-body ratio)
Resolution 1080 x 2160 pixels, 18:9 ratio
PPI density 404
Protection ---

Multimedia

Main camera 13 MP, f/2.2, 25mm (wide), 1.12µm, PDAF 5 MP, f/2.4, 1.12µm, depth sensor
Main camera Video 2160p, 30fps
Front (selfie) camera 16 MP MP, f/2.2, 26mm (wide), 1.0µm / 5 MP, f/2.4, depth sensor
Front (selfie) camera Video 1080p, 30fps
Audio MP3, AAC, WAV, WMA, FM-radio
Headphone jack 3.5mm Jack. Active noise cancellation with dedicated mic

Network

Technology GSM / HSPA / LTE
Bands Yes, band 1,3,5,7,8,20,40
Interfaces Wi-Fi 802.11 b/g/n, Wi-Fi Direct, hotspot, Bluetooth 5.0, A2DP, LE
Satellite navigation GPS with A-GPS, GLONASS, BDS

Processor and Memory

System on a chip Qualcomm Snapdragon 636 SDM636
CPU Octa-Core 4Ñ… Kryo 260 Gold 1.8 GHz & 4x Kryo 260 Silver 1.6 GHz
GPU Adreno 509
Internal memory 64 GB
RAM 6 GB
Card slot Micro SD, up to 1 TB (dedicated slot)

Battery

Battery capacity Li-Po 5000 mAh
Charging port Micro USB 2.0, USB On-The-Go
Battery model C11P1706

Models with the same battery

Other

Announced 2018, April
