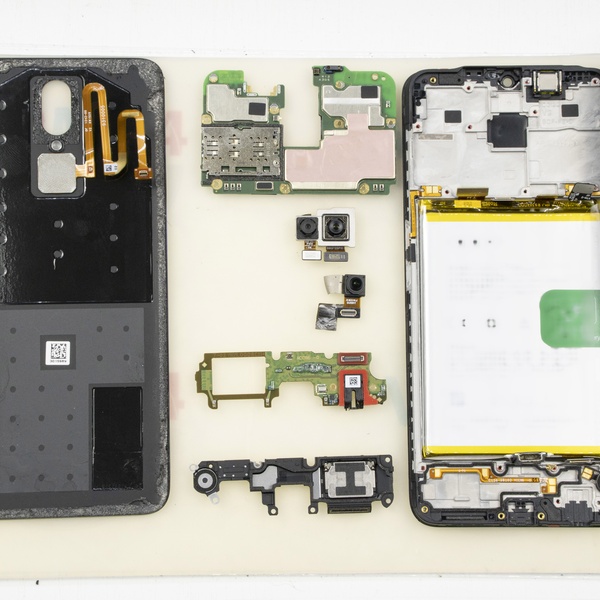

Tech review of Oppo A9

Compare this model

Yurii Rodionov

Author, Content Specialist

Experienced tech specialist

Views

Likes

—

Questions

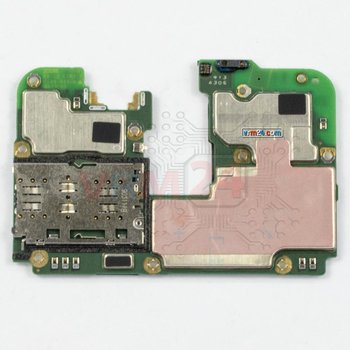

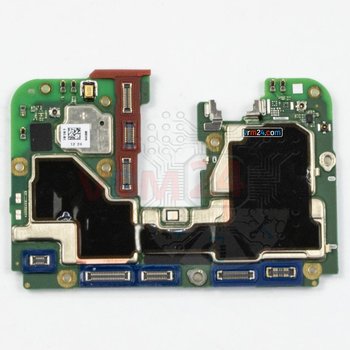

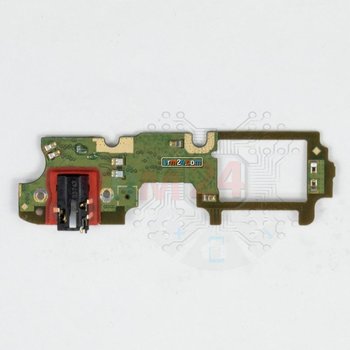

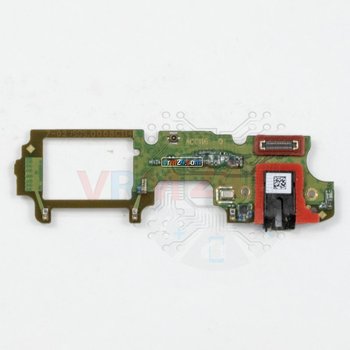

Main and additional circuit boards

Oppo A9

Side 1

Side 2

Spare parts

and components

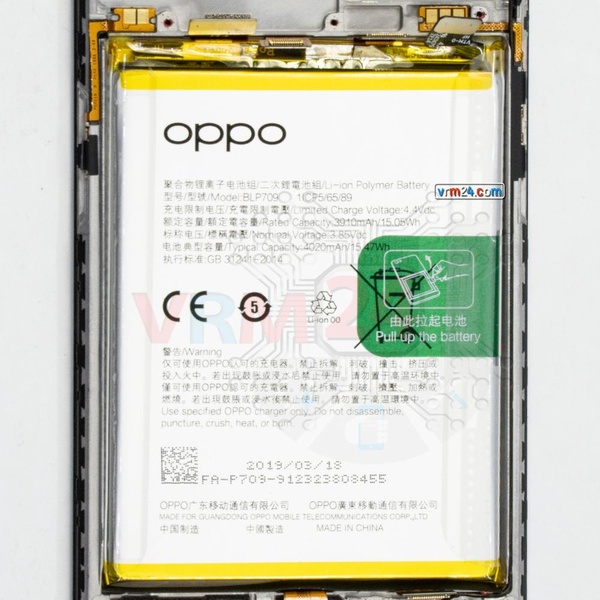

Battery

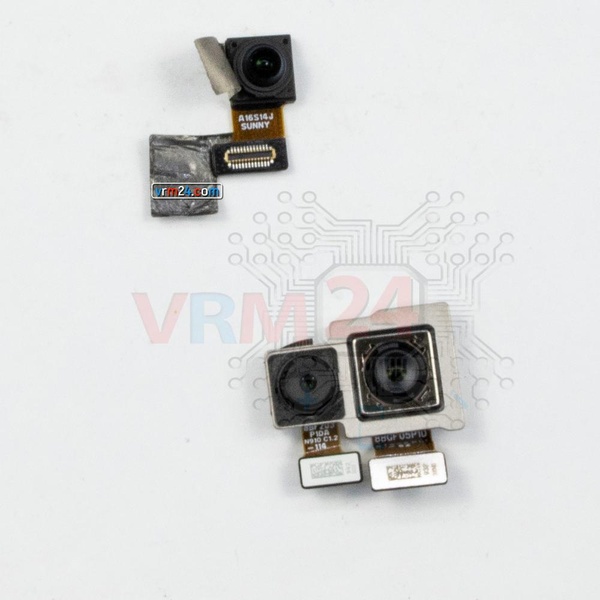

Cameras

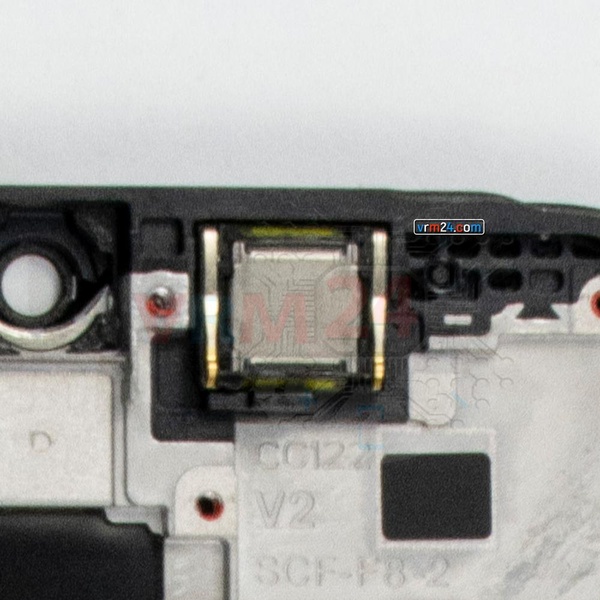

Earpiece speaker

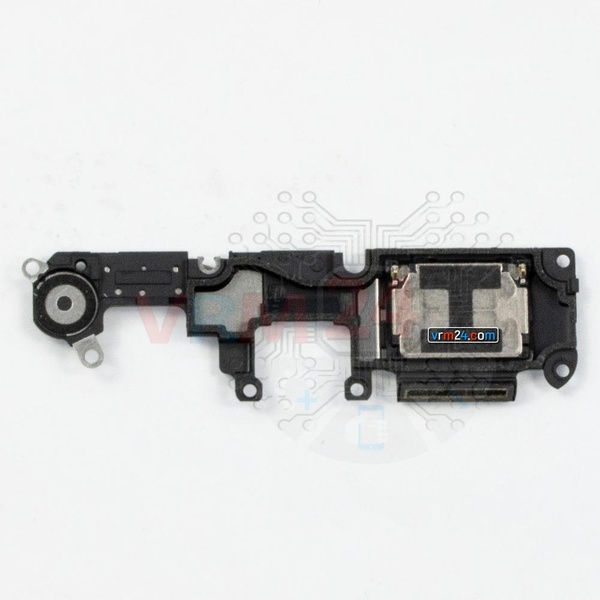

Loudspeaker

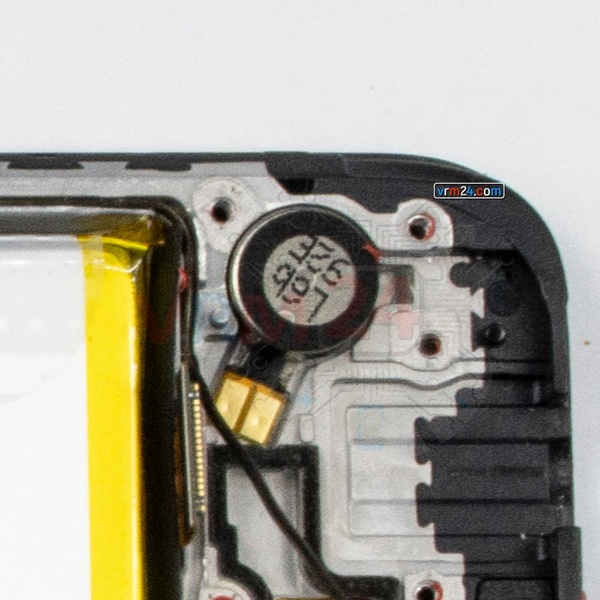

Vibration motor

Features

Type Smartphone

OS Android 9.0 (Pie)

SIM type/size Nano SIM

SIM Hybrid Dual SIM

Dimensions 162 x 76.1 x 8.3 mm (6.38 x 3.00 x 0.33 in)

Weight 190 g (6.70 oz)

Display

Display type LTPS IPS LCD

Size 6.53 inches

Resolution 1080 x 2340 pixels, 19.5:9 ratio

PPI density 395

Protection Corning Gorilla Glass 5

Multimedia

Main camera 16 MP / 2 MP

Main camera Video 1080p, 30fps

Front (selfie) camera 16 MP

Front (selfie) camera Video 1080p, 30fps

Audio MP3, AAC, WAV, WMA, FM-radio

Headphone jack Mini jack 3.5 mm

Network

Technology GSM/3G/4G LTE

Bands Yes, Band 1, 3, 4, 5, 8, 34, 38, 39, 40, 41

Interfaces Wi-Fi 802.11ac, Bluetooth 4.2, NFC

Satellite navigation GPS with A-GPS, GLONASS, BDS

Processor and Memory

System on a chip Mediatek MT6771V Helio P70

CPU Octa-core 4x Cortex-A73 2.1 GHz + 4x Cortex-A53 2.0 GHz

GPU Mali-G72 MP3

Internal memory 128 GB

RAM 8 GB

Card slot Micro SD, up to 256 GB (uses shared SIM slot)

Battery

Battery capacity Li-Po 4020 mAh

Charging port Micro USB 2.0

Battery model BLP709

Other

Announced 2019, April

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

Views

Likes

—

Questions

Evgenii Kuzmin

Senior maintenance service and repair engineer

Based on our experience, we made a selection of the most common malfunctions of mobile devices and evaluated the difficulty of performing repairs for each of them. The final evaluation of the difficulty of the repair is the sum of all the parameters. This difficulty rating is also applicable for all models Oppo A9 released for markets in different countries.

#reviews #Oppo #Oppo A9
