Tech review of Samsung Galaxy A54 SM-A546

Compare this model

Vadim Popoff

Content manager / Author / Content specialist

Content specialist with over 10 years of experience in the technology industry.

Views

Likes

—

Questions

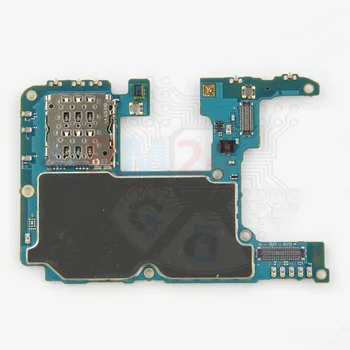

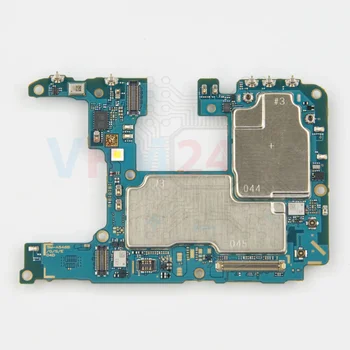

Main and additional circuit boards

Samsung Galaxy A54 SM-A546

Side 1

Side 2

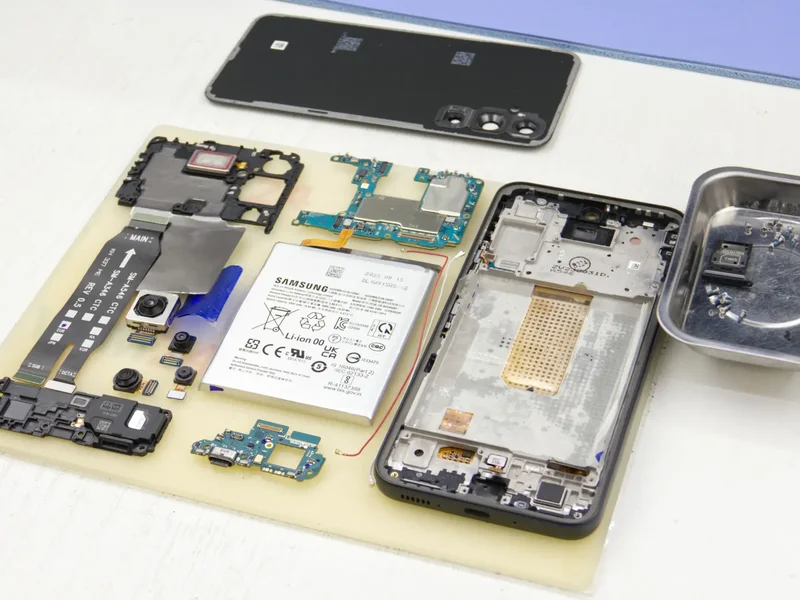

Spare parts

and components

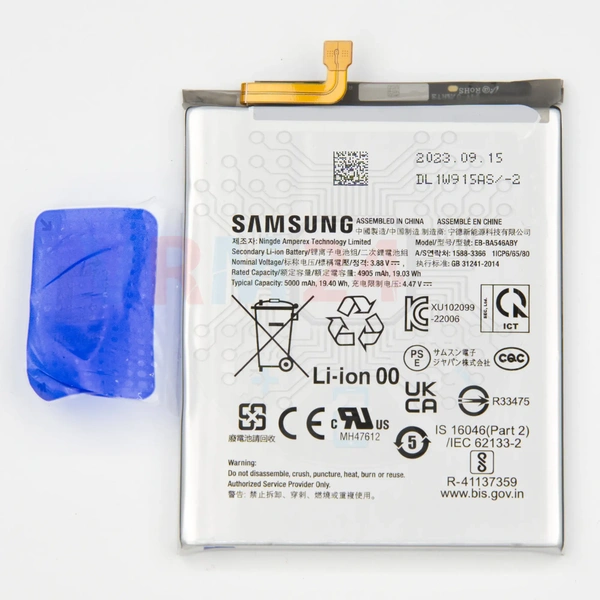

Battery

tech-review-of-Samsung Galaxy A54 SM-A546

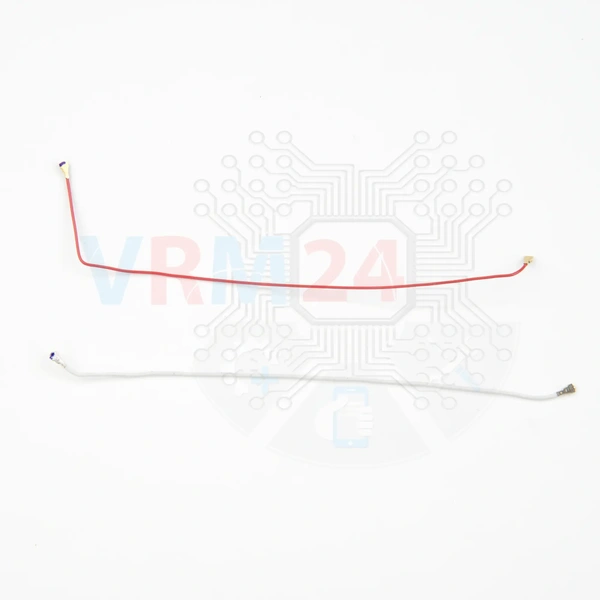

Cables

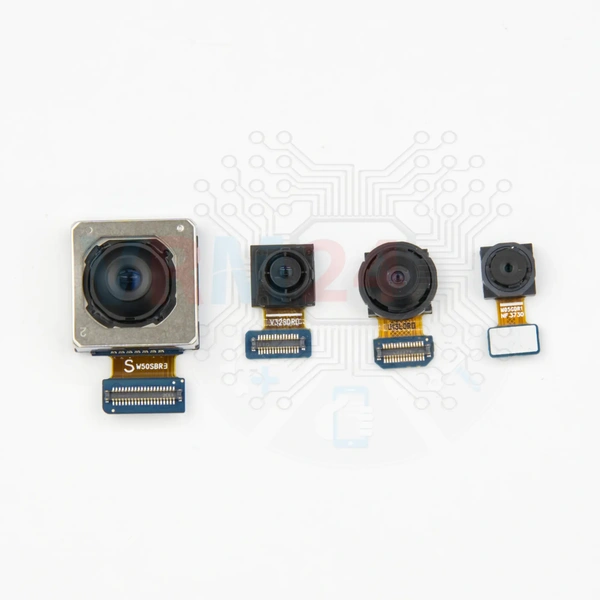

Cameras

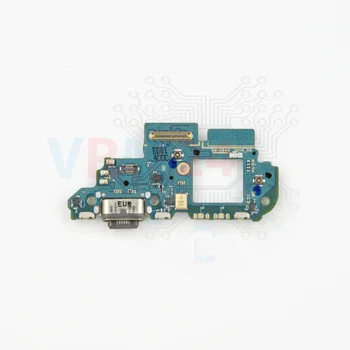

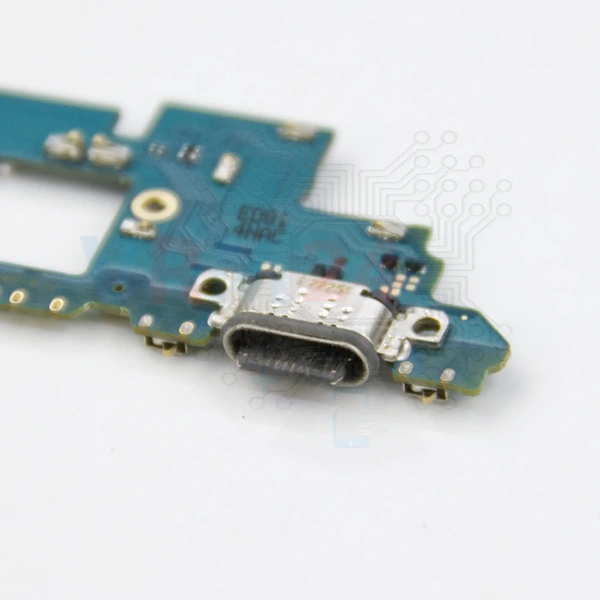

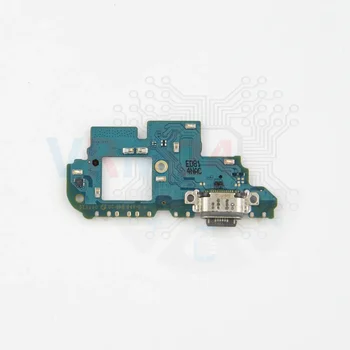

Charging port

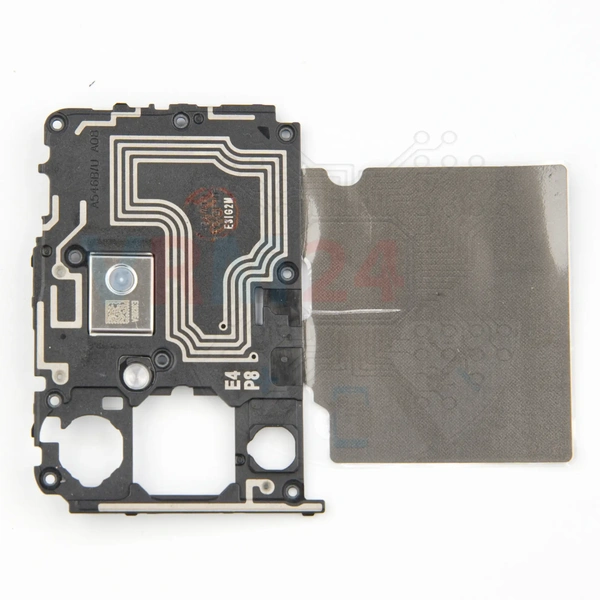

Cover

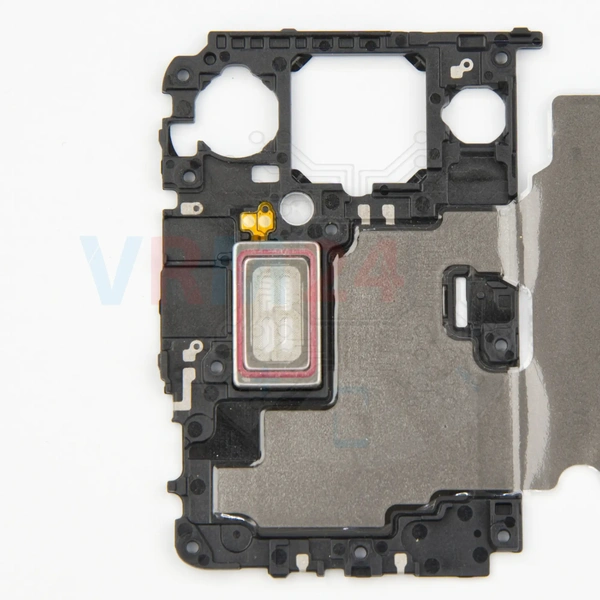

Earpiece speaker

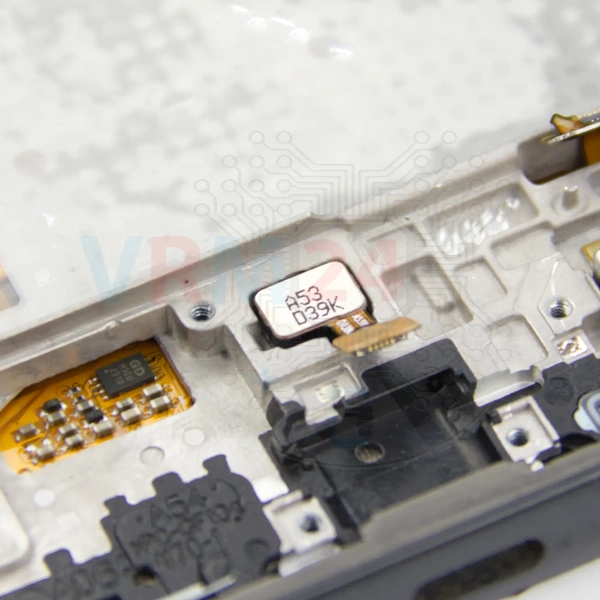

Fingerprint sensor

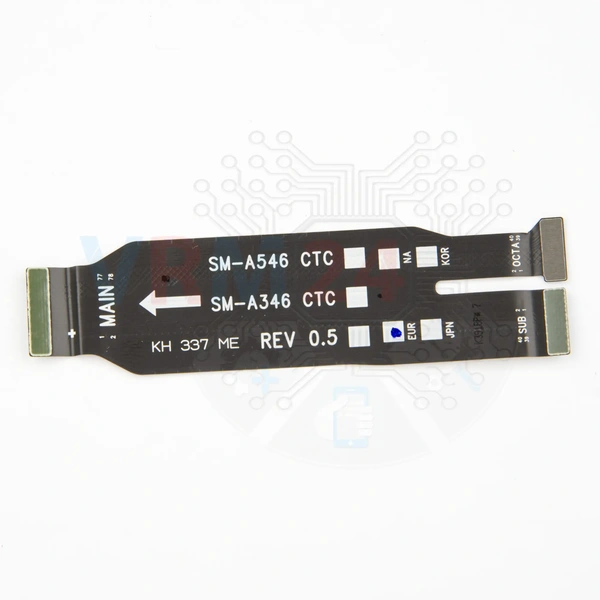

Cable

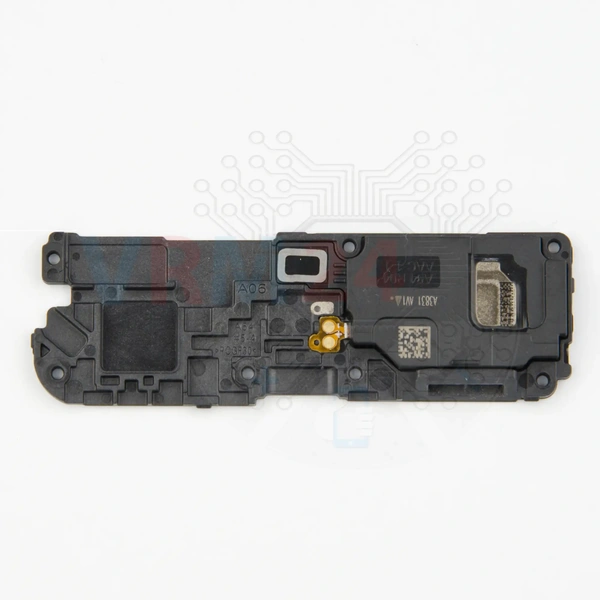

Loudspeaker

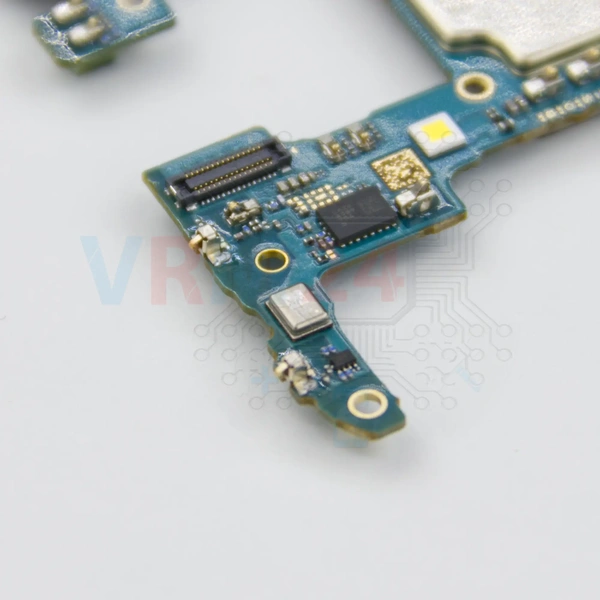

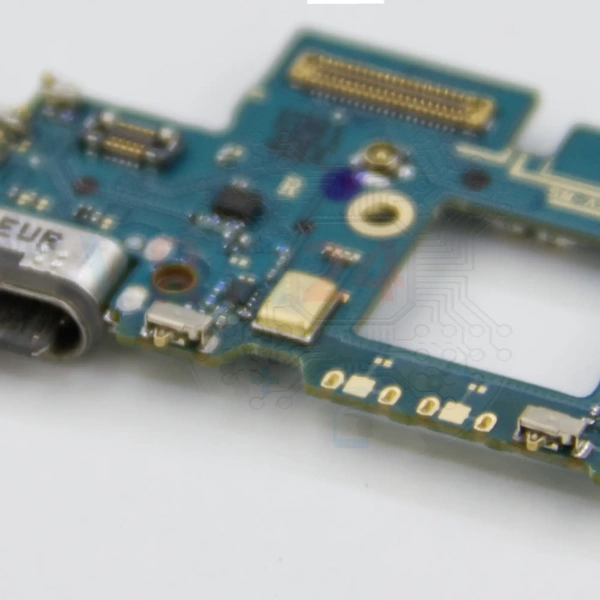

Microphone

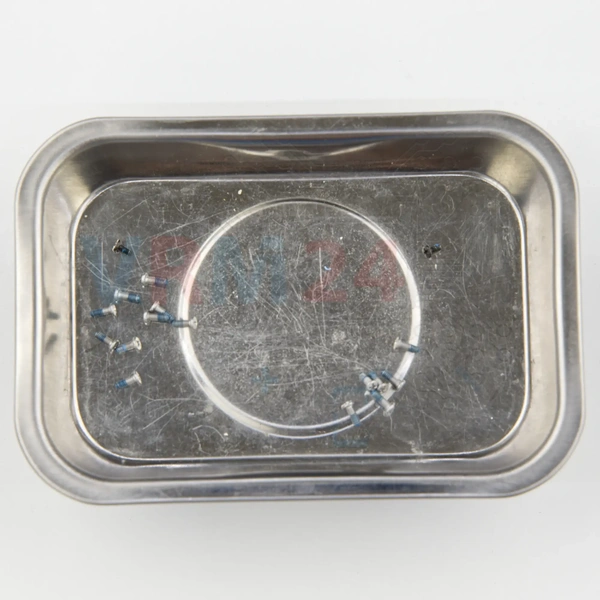

Screws

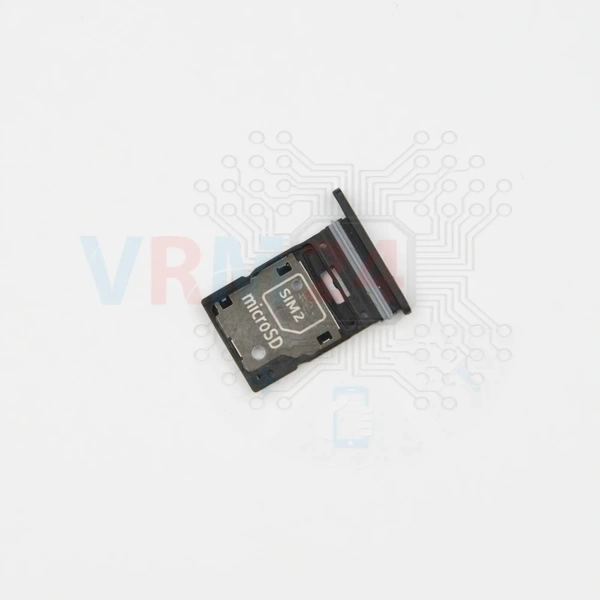

Card tray

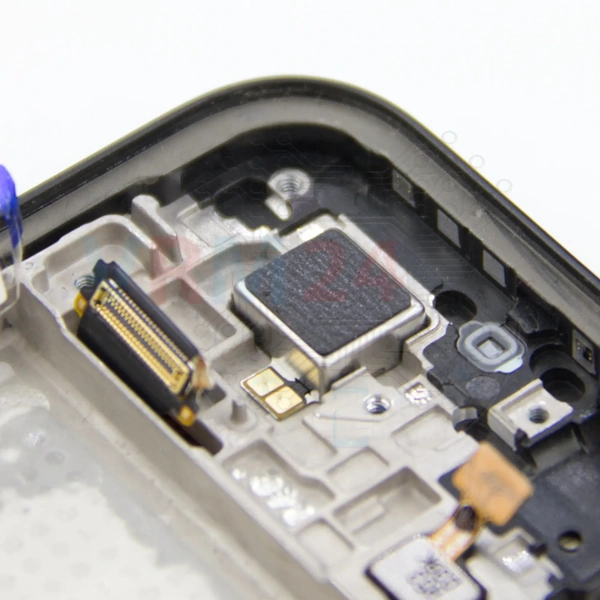

Vibration motor

Features

Type Smartphone

OS Android 13, One UI 6.1

SIM type/size Nano SIM and eSIM

SIM Single SIM or Hybrid Dual SIM

Dimensions 158.2 x 76.7 x 8.2 mm (6.23 x 3.02 x 0.32 in)

Weight 202 g (7.13 oz)

Display

Display type Super AMOLED

Size 6.4 inches

Resolution 1080 x 2340 pixels, 19.5:9 ratio

PPI density 403

Protection Corning Gorilla Glass 5

Multimedia

Main camera 50 MP / 12 MP / 5 MP

Main camera Video 2160p, 30fps

Front (selfie) camera 32 MP

Front (selfie) camera Video 2160p, 30fps

Audio - - -

Headphone jack No

Network

Technology GSM / HSPA / LTE / 5G

Bands Yes, 5G bands 1, 3, 7, 8, 20, 28, 38, 40, 41, 77, 78 SA/NSA/Sub6

Interfaces Wi-Fi 802.11 a/b/g/n/ac/6, dual-band, Wi-Fi Direct, Bluetooth 5.3, A2DP, LE

Satellite navigation Yes, GPS, GLONASS, GALILEO, BDS

Processor and Memory

System on a chip Exynos 1380

CPU Octa Core 4x Cortex-A78 2.4 GHz & 4x Cortex-A55 2.0 GHz

GPU Mali-G68 MP5

Internal memory 128 GB or 256 GB

RAM 4 GB or 6 GB or 8 GB

Card slot Yes

Battery

Battery capacity Li-Po 5000 mAh

Charging port USB Type-C 2.0

Battery model EB-BA546ABY

Other

Announced 2023, March

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

Views

Likes

—

Questions

Evgenii Kuzmin

Senior maintenance service and repair engineer

Based on our experience, we made a selection of the most common malfunctions of mobile devices and evaluated the difficulty of performing repairs for each of them. The final evaluation of the difficulty of the repair is the sum of all the parameters. This difficulty rating is also applicable for all models Samsung Galaxy A54 SM-A546 — Samsung Galaxy A54 SM-A546V, SM-A546U, SM-A546U1, SM-A546B, SM-A546B/DS, SM-A546E, SM-A546E/DS, SM-A5460, SM-A546M, SM-A546M/DS released for markets in different countries.
