General characteristics Explay Golf declared by the manufacturer. The high-resolution pictures of the motherboard and electronic components.

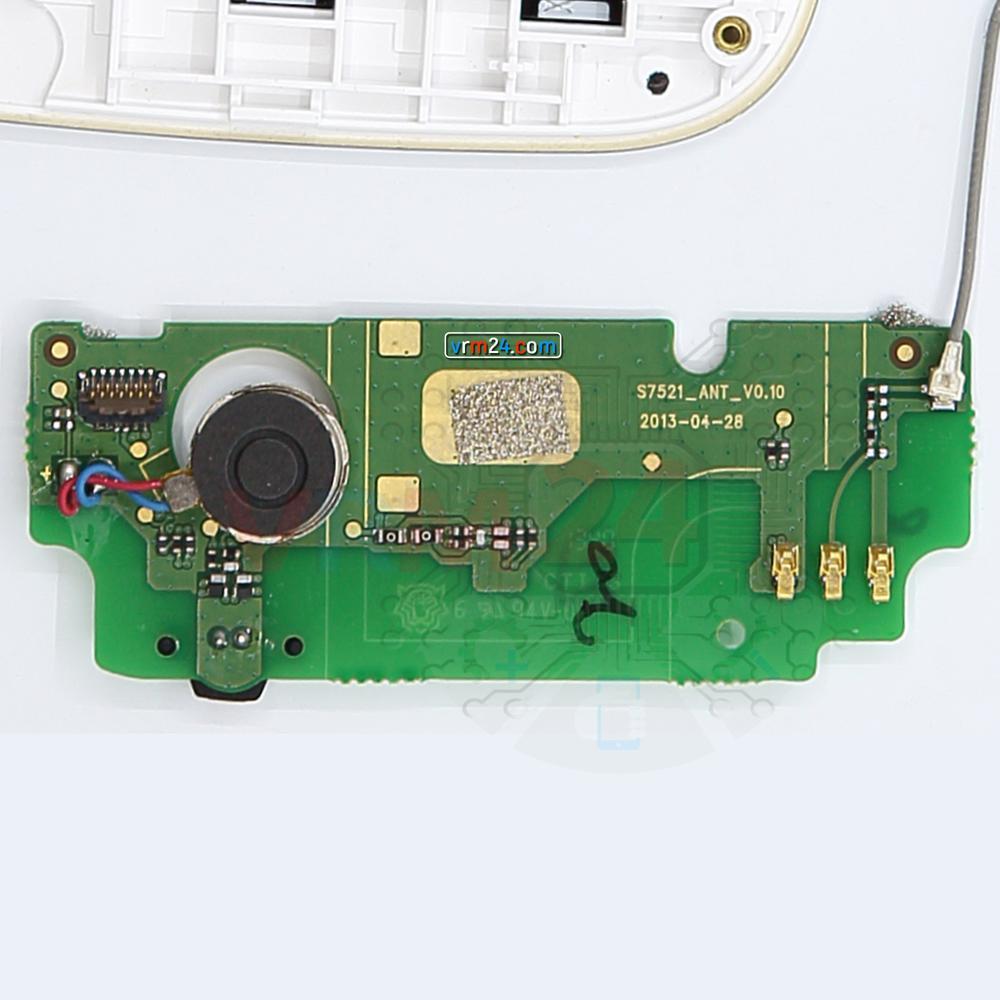

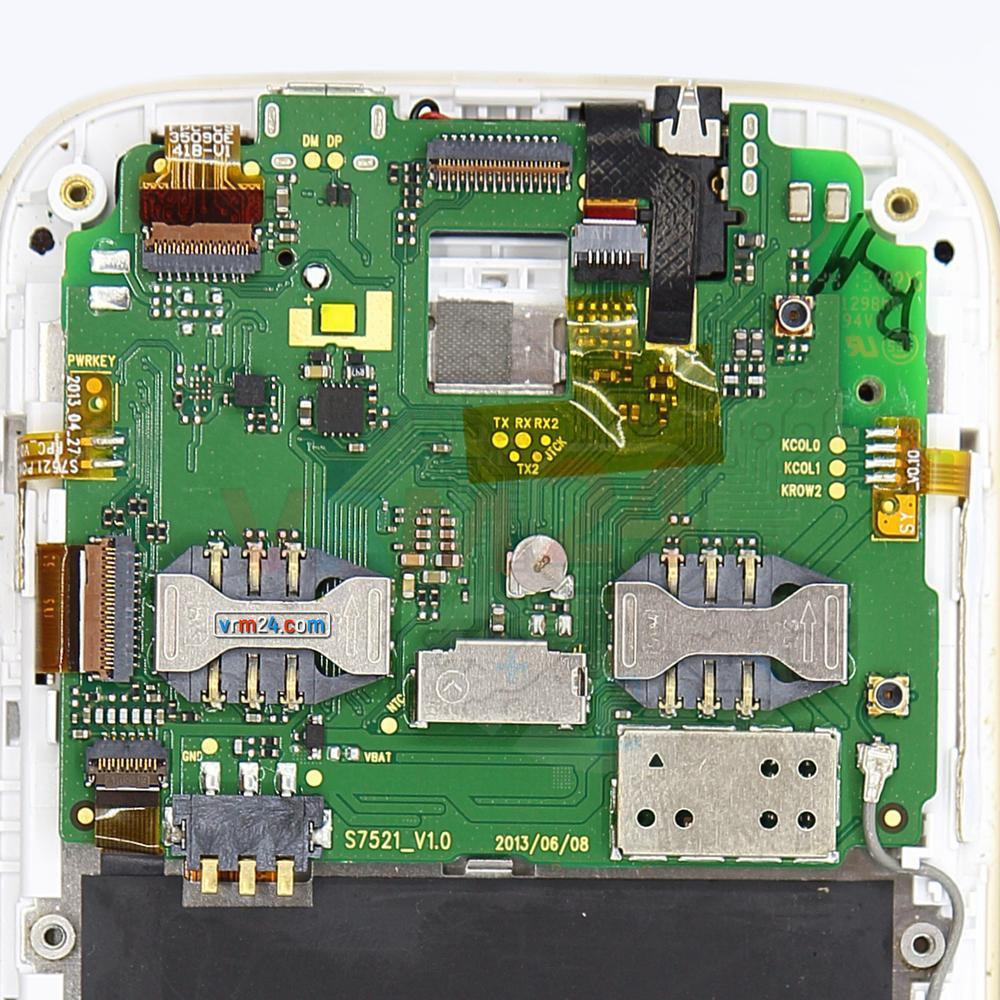

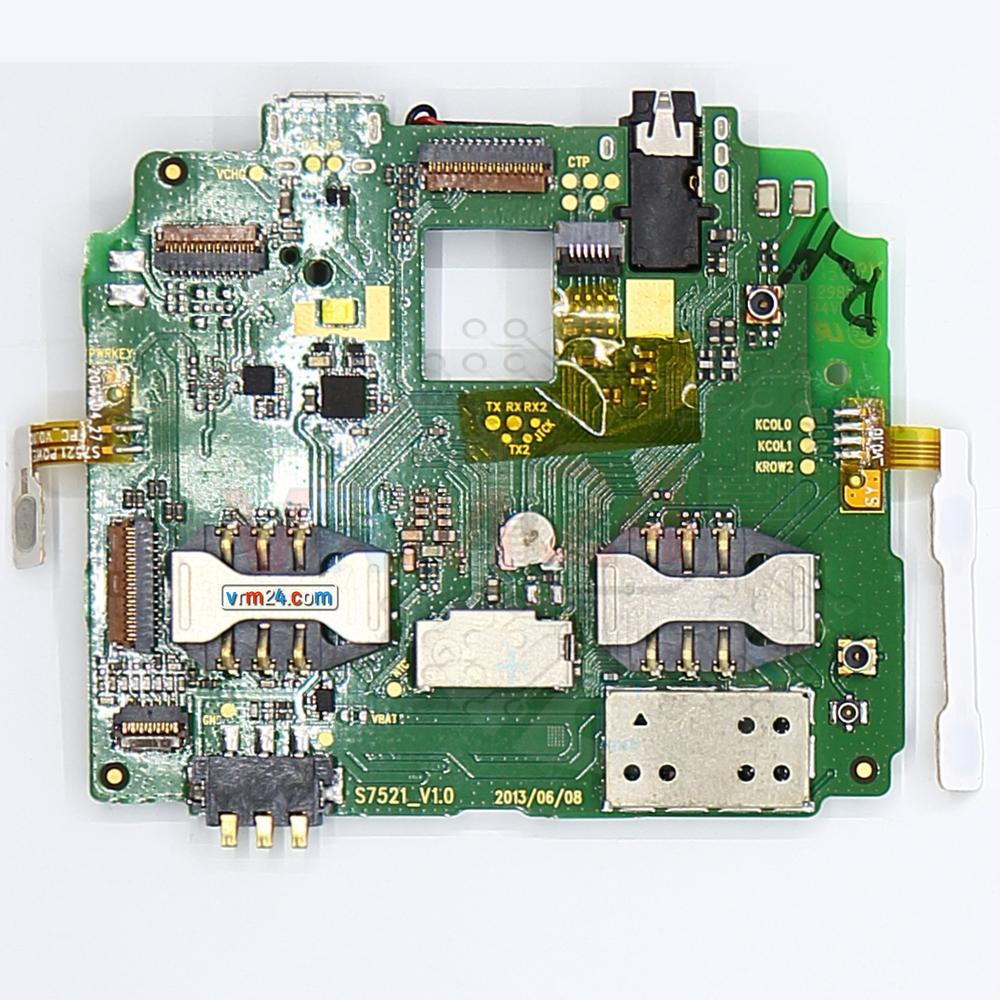

Main and additional circuit boards Explay Golf
Side 1
Side 2
Characteristics
Features
Type
Smartphone
OS
Android 4.2 (Jelly Bean)
SIM type/size
Mini SIM
SIM
Dual SIM
Dimensions
136 x 69 x 11 mm (53.54 x 27.17 x 4.33 in)
Weight
152 g
Display
Display type
IPS LCD capacitive touchscreen, 16M colors
Size
4.5 inches
Resolution
480 x 854 pixels
PPI density
218
Protection
No
Multimedia
Main camera
5 MP
Main camera Video
480 x 640 pixels, 15fps
Front (selfie) camera
0.3 MP
Front (selfie) camera Video
---
Audio
MP3, FM-radio
Headphone jack
3.5mm Jack
Network
Technology
GSM / HSPA
LTE
No
Interfaces
Wi-Fi, Bluetooth 4.0
Satellite navigation
GPS with A-GPS
Processor and Memory
System on a chip
Mediatek MT6572
CPU
Dual-Core Cortex-A7 1.2 GHz
GPU
Mali-400 MP2
Internal memory
4 GB
RAM
512 MB
Card slot
Micro SD, up to 32 GB
Battery
Battery capacity
Li-Po 1600 mAh
Charging port
Micro USB 2.0
Other
Announced
2014, January
If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.
Based on our experience, we made a selection of the most common malfunctions of mobile devices and evaluated the difficulty of performing repairs for each of them. The final evaluation of the difficulty of the repair is the sum of all the parameters.
This difficulty rating is also applicable for all models Explay Golf released for markets in different countries.
