General characteristics Fly IQ4516 Tornado Slim Octa declared by the manufacturer. The high-resolution pictures of the motherboard and electronic components.


Load more

Generates new content, creates blogs, events, and news.


Technical review Fly IQ4516 Tornado Slim Octa

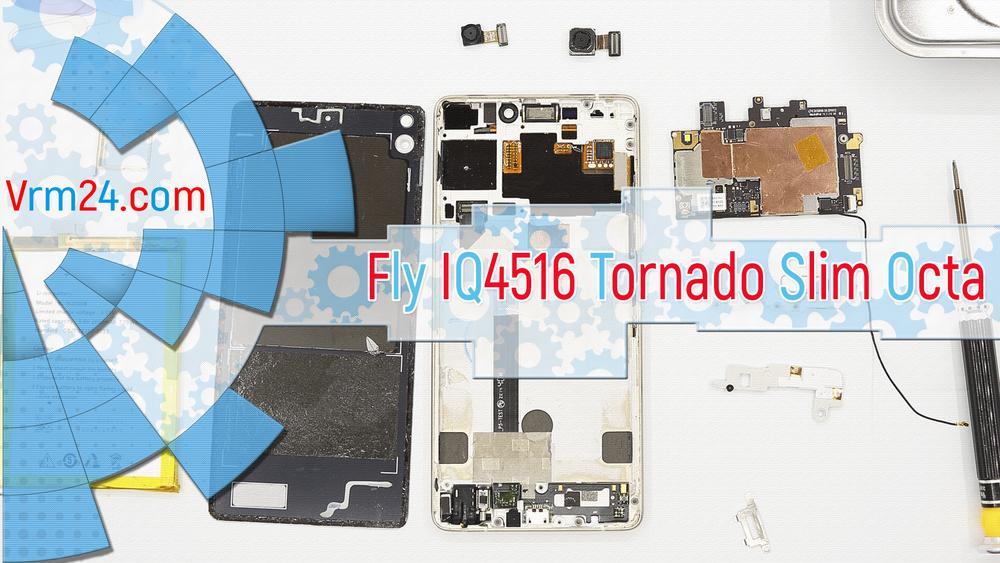

Main and additional circuit boards Fly IQ4516 Tornado Slim Octa

Side 1
Characteristics
Features
Type
Smartphone
OS
Android 4.4 (KitKat)
SIM type/size
Micro SIM
SIM
Single SIM
Dimensions
67.5 x 139.8 x 5.15 mm (2.65 x 5.50 x 0.20 in)
Weight
96 g (3.39 oz)
Display
Display type
Super AMOLED
Size
4.8 inches
Resolution
720 x 1280 pixels, 16:9 ratio
PPI density
306
Protection
Corning Gorilla Glass 3
Multimedia
Main camera
8 MP
Main camera Video
1080p, 30fps
Front (selfie) camera
5 MP
Front (selfie) camera Video
---
Audio
MP3, FM radio
Headphone jack
Mini jack 3.5 mm
Network
Technology
GSM/ 3G
LTE
No
Interfaces
Wi-Fi 802.11n, Bluetooth 4.0
Satellite navigation
GPS with A-GPS
Processor and Memory
System on a chip
MediaTek MT6592
CPU
Quad-core Cortex-A7 1.7 GHz
GPU
Mali-450 MP4
Internal memory
16 GB
RAM
1 GB
Card slot
Micro SD, up to 32 GB (dedicated slot)
Battery
Battery capacity
Li-Po 2050 mAh
Charging port
Micro USB 2.0
Other
Announced
2014

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

Load more


Based on our experience, we made a selection of the most common malfunctions of mobile devices and evaluated the difficulty of performing repairs for each of them. The final evaluation of the difficulty of the repair is the sum of all the parameters. This difficulty rating is also applicable for all models Fly IQ4516 Tornado Slim Octa released for markets in different countries.
