General characteristics LG Optimus G E975 declared by the manufacturer. The high-resolution pictures of the motherboard and electronic components.


Load more

Generates new content, creates blogs, events, and news.


Technical review LG Optimus G E975

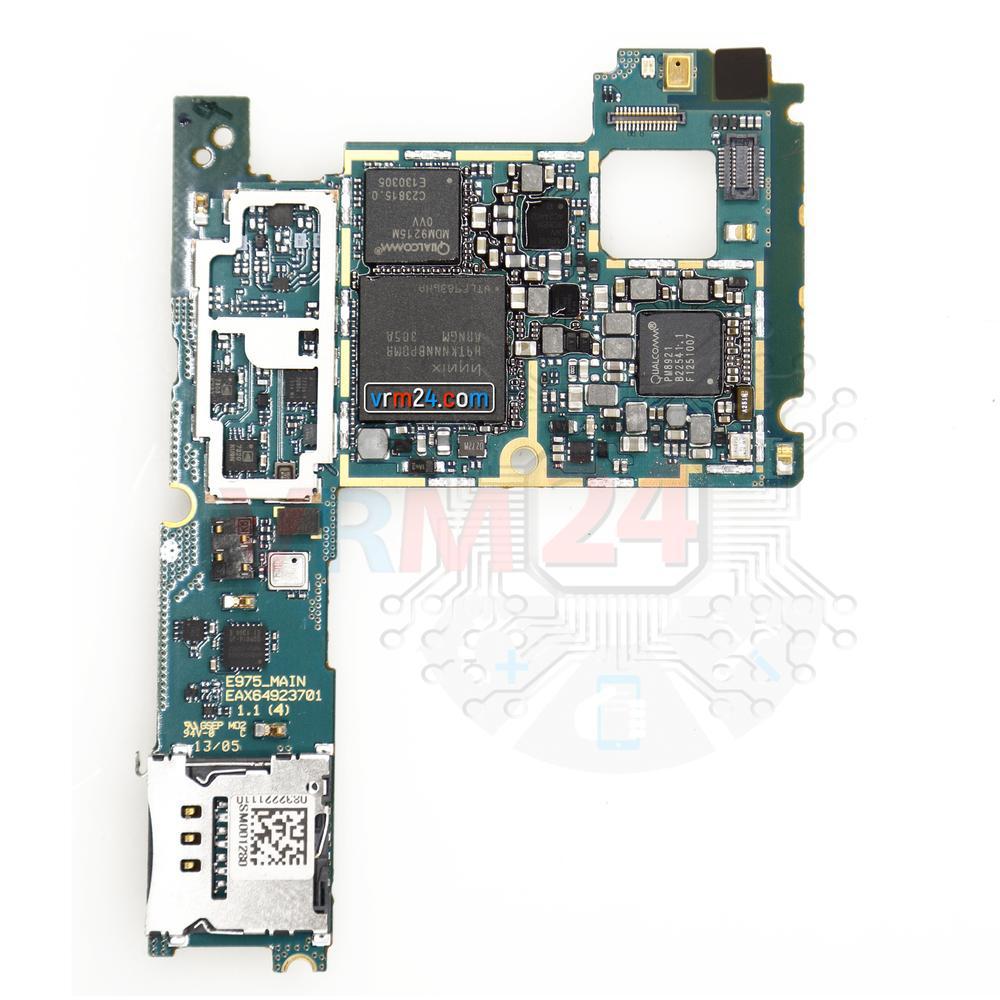

Main and additional circuit boards LG Optimus G E975

Side 1
Side 2
Characteristics
Features
Type
Smartphone
OS
Android 4.1.2 (Jelly Bean)
SIM type/size
Micro SIM
SIM
Single SIM
Dimensions
131.9 x 68.9 x 8.5 mm (5.19 x 2.71 x 0.33 in)
Weight
145 g (5.11 oz)
Display
Display type
True HD-IPS + LCD
Size
4.7 inches
Resolution
768 x 1280 pixels, 5:3 ratio
PPI density
318
Protection
Corning Gorilla Glass 2
Multimedia
Main camera
13 MP/8 MP
Main camera Video
1080p, 30fps
Front (selfie) camera
1.3 MP
Front (selfie) camera Video
- - -
Audio
MP3, AAC, WAV, WMA, FM-radio
Headphone jack
Mini jack 3.5 mm
Network
Technology
GSM/3G/4G LTE
LTE
Band 1, 3, 7, 8, 20
Interfaces
Wi-Fi 802.11, Bluetooth 4.0, NFC
Satellite navigation
GPS with A-GPS, GLONASS
Processor and Memory
System on a chip
Qualcomm APQ8064 Snapdragon S4 Pro
CPU
Quad-core Krait 1.5 GHz
GPU
Adreno 320
Internal memory
32 GB
RAM
2 GB
Card slot
No
Battery
Battery capacity
Li-Po 2100 mAh
Charging port
Micro USB 2.0
Other
Announced
2012, August

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

Load more


Based on our experience, we made a selection of the most common malfunctions of mobile devices and evaluated the difficulty of performing repairs for each of them. The final evaluation of the difficulty of the repair is the sum of all the parameters. This difficulty rating is also applicable for all models LG Optimus G E975 released for markets in different countries.
