General characteristics Nokia Lumia 920 RM-820 declared by the manufacturer. The high-resolution pictures of the motherboard and electronic components.


Creates new content, including blogs, events, and news.


Technical review Nokia Lumia 920 RM-820

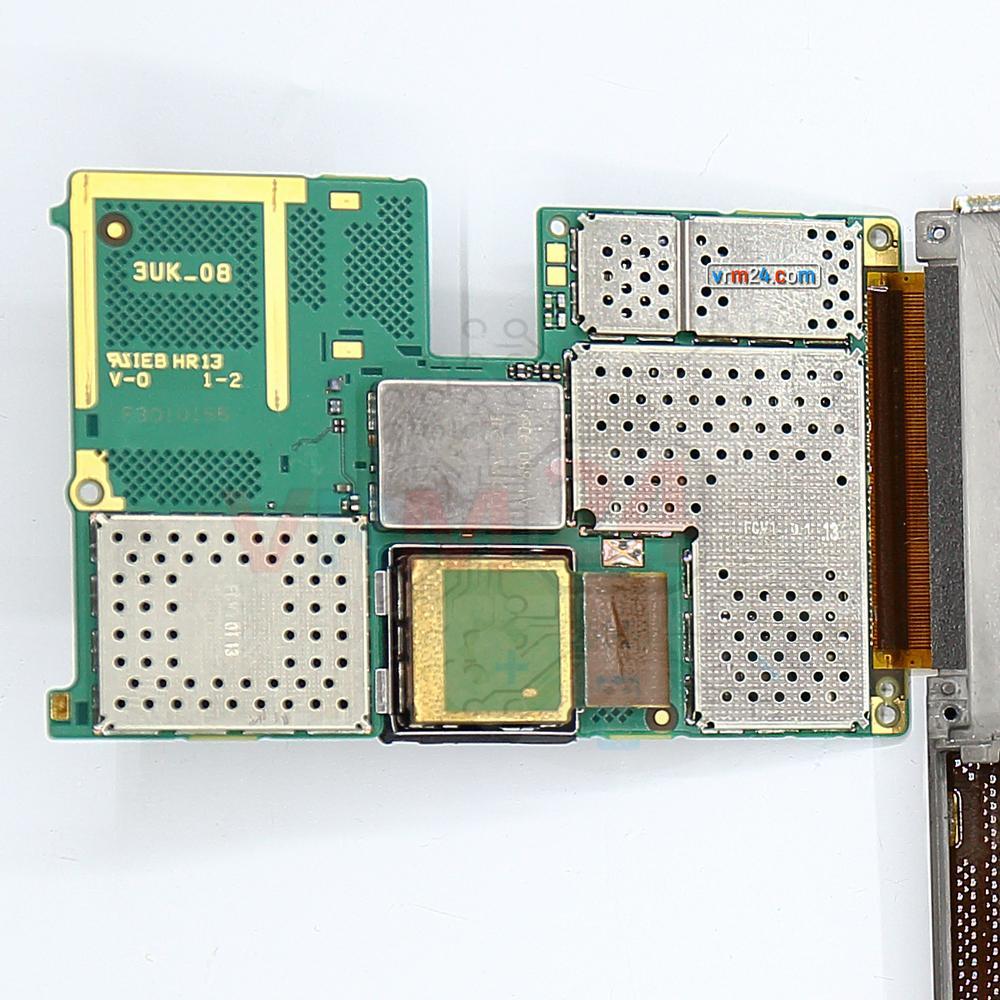

Main and additional circuit boards Nokia Lumia 920 RM-820

Side 1
Side 2
Characteristics
Features
Type
Smartphone
OS
Microsoft Windows Phone 8
SIM type/size
Micro SIM
SIM
Single SIM
Dimensions
130.3 x 70.8 x 10.7 mm, 99 cc (5.13 x 2.79 x 0.42 in)
Weight
185 g (6.53 oz)
Display
Display type
IPS LCD
Size
4.5 inches
Resolution
768 x 1280 pixels, 5:3 ratio
PPI density
332
Protection
Corning Gorilla Glass 2
Multimedia
Main camera
8 MP
Main camera Video
1080p, 30fps
Front (selfie) camera
1.3 MP
Front (selfie) camera Video
720p, 30fps
Audio
MP3, AAC, WAV, WMA, FM radio
Headphone jack
Mini jack 3.5 mm
Network
Technology
GSM/ 3G/ 4G LTE
LTE
Band 4, 17
Interfaces
Wi-Fi 802.11n, Bluetooth 4.0, NFC
Satellite navigation
GPS with A-GPS, GLONASS
Processor and Memory
System on a chip
Qualcomm MSM8960 Snapdragon S4 Plus
CPU
Dual-core Krait 1.5 GHz
GPU
Adreno 225
Internal memory
32 GB
RAM
1 GB
Card slot
No
Battery
Battery capacity
Li-Ion 2000 mAh
Charging port
Micro USB 2.0
Other
Announced
2012, September

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.



Based on our experience, we made a selection of the most common malfunctions of mobile devices and evaluated the difficulty of performing repairs for each of them. The final evaluation of the difficulty of the repair is the sum of all the parameters. This difficulty rating is also applicable for all models Nokia Lumia 920 RM-820 released for markets in different countries.
