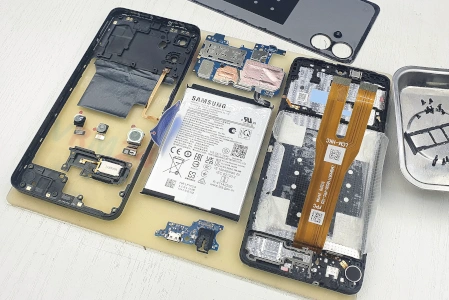

General characteristics Samsung Galaxy A06 SM-A065 (Samsung Galaxy A06 SM-A065F, SM-A065F/DS, SM-A065M, SM-A065M/DS) declared by the manufacturer. The high-resolution pictures of the motherboard and electronic components.

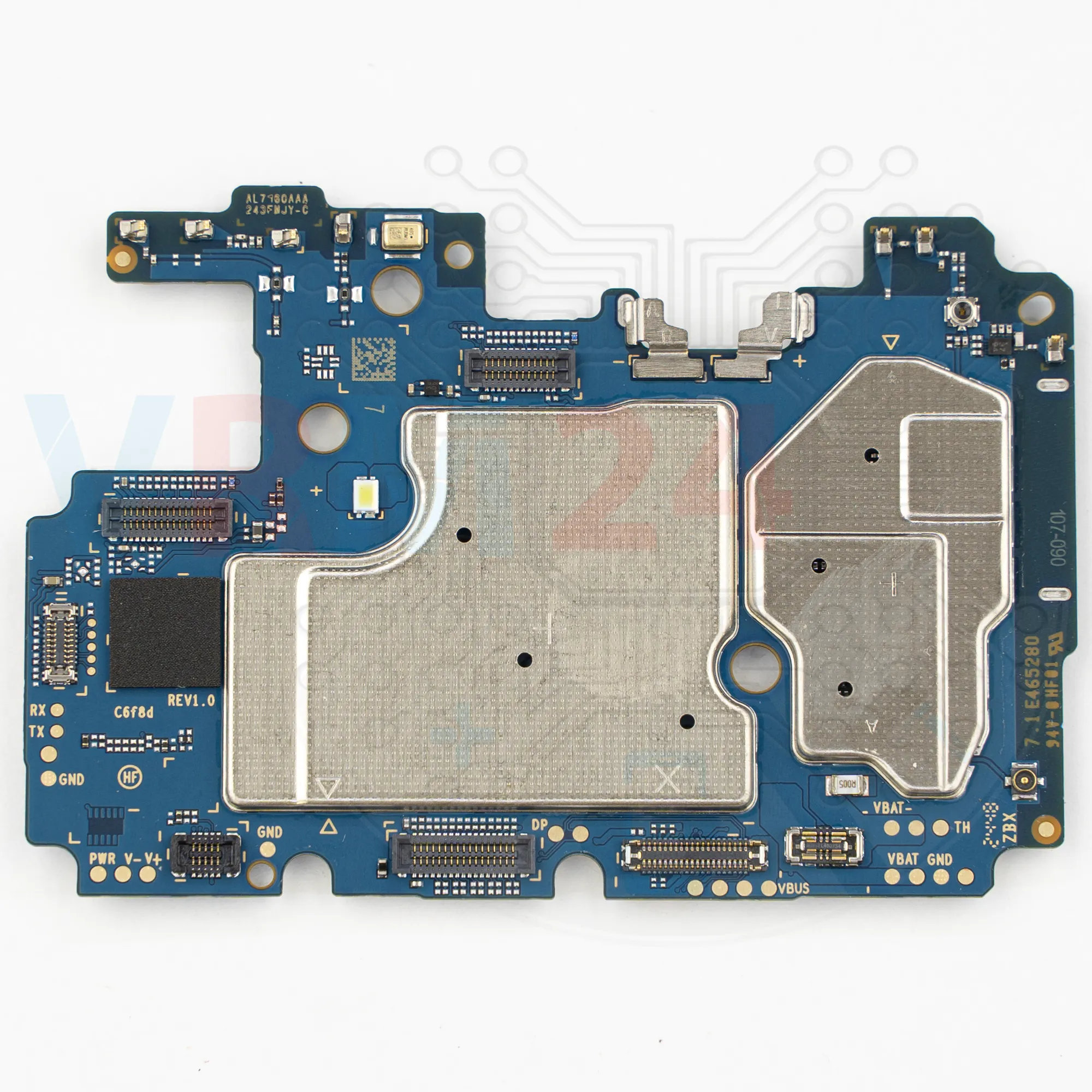

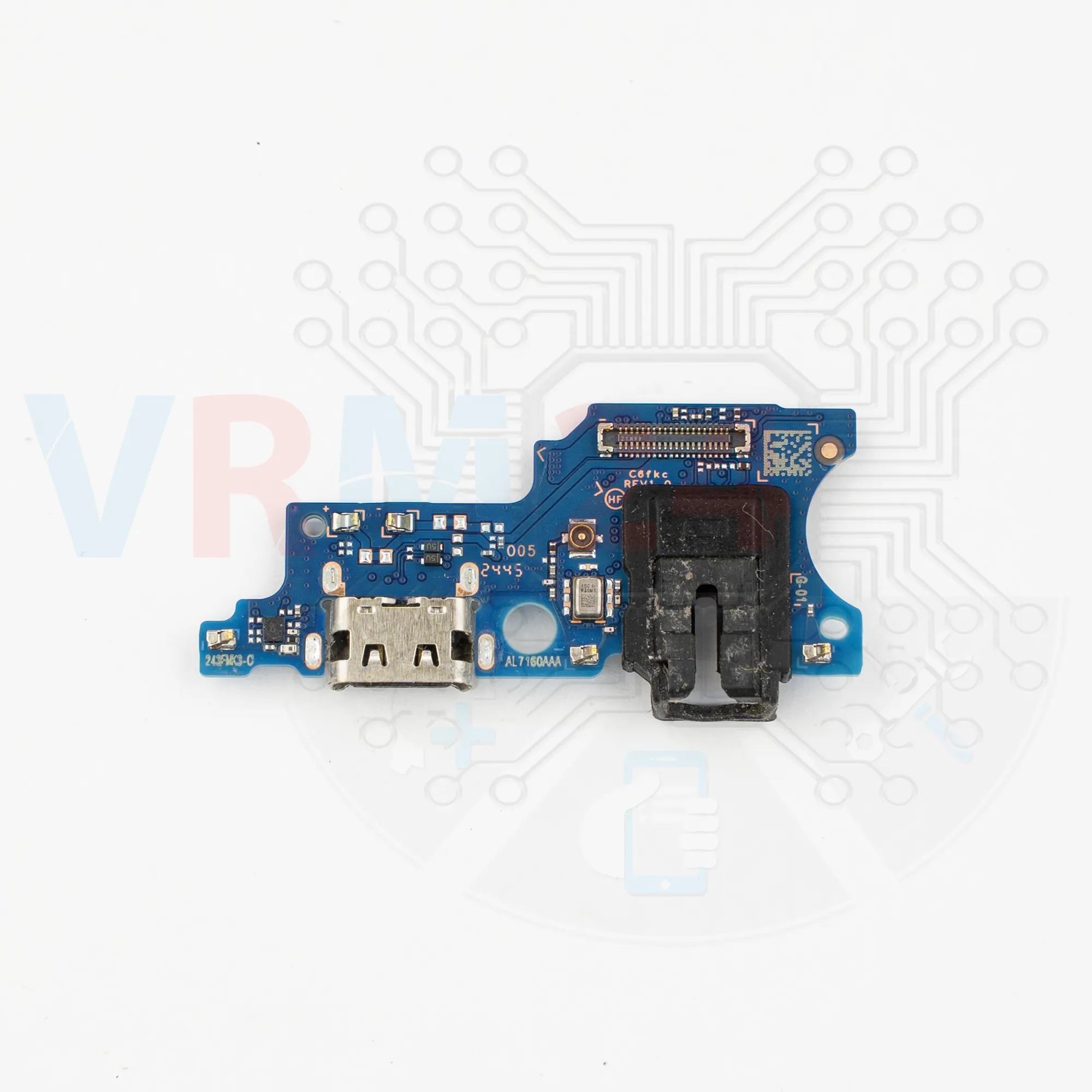

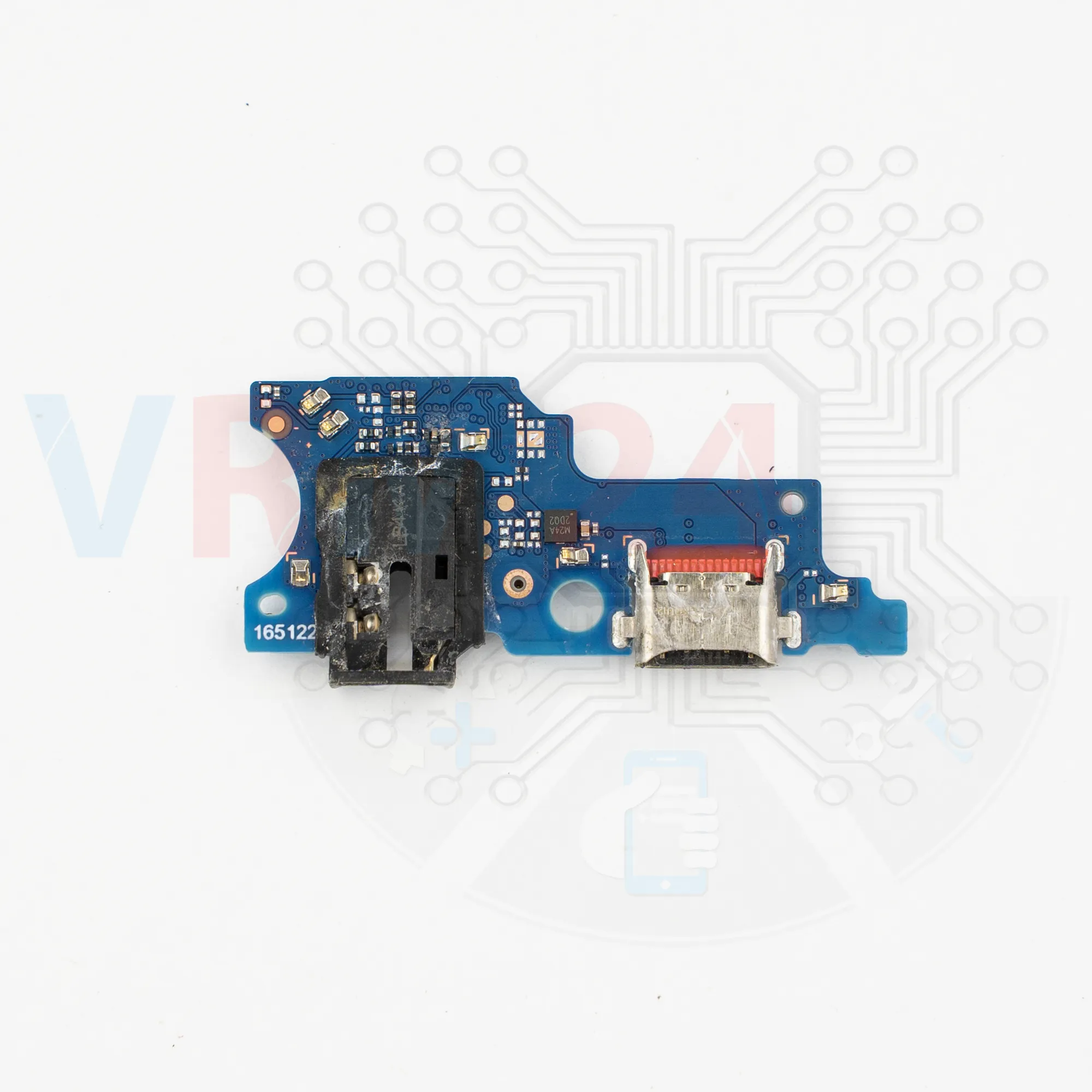

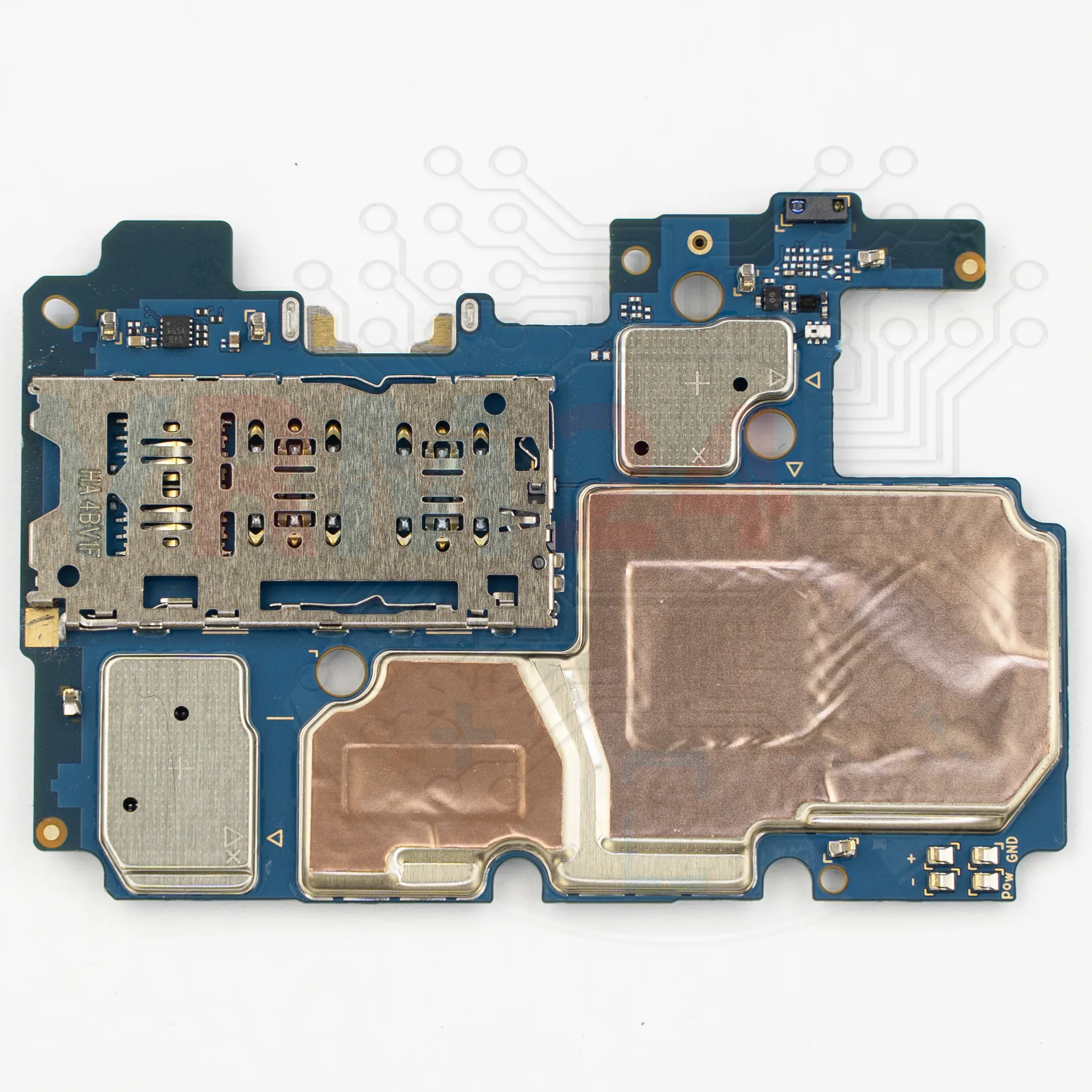

Main and additional circuit boards Samsung Galaxy A06 SM-A065
Side 1
Side 2
Characteristics
Features
Type
Smartphone
OS
Android 14, One UI 8
SIM type/size
Nano SIM
SIM
Dual SIM
Dimensions
167.3 x 77.3 x 8 mm (6.59 x 3.04 x 0.31 in)
Weight
189 g (6.67 oz)
Display
Display type
PLS LCD
Size
6.7 inches
Resolution
720 x 1600 pixels, 20:9 ratio
PPI density
262
Protection
- - -
Multimedia

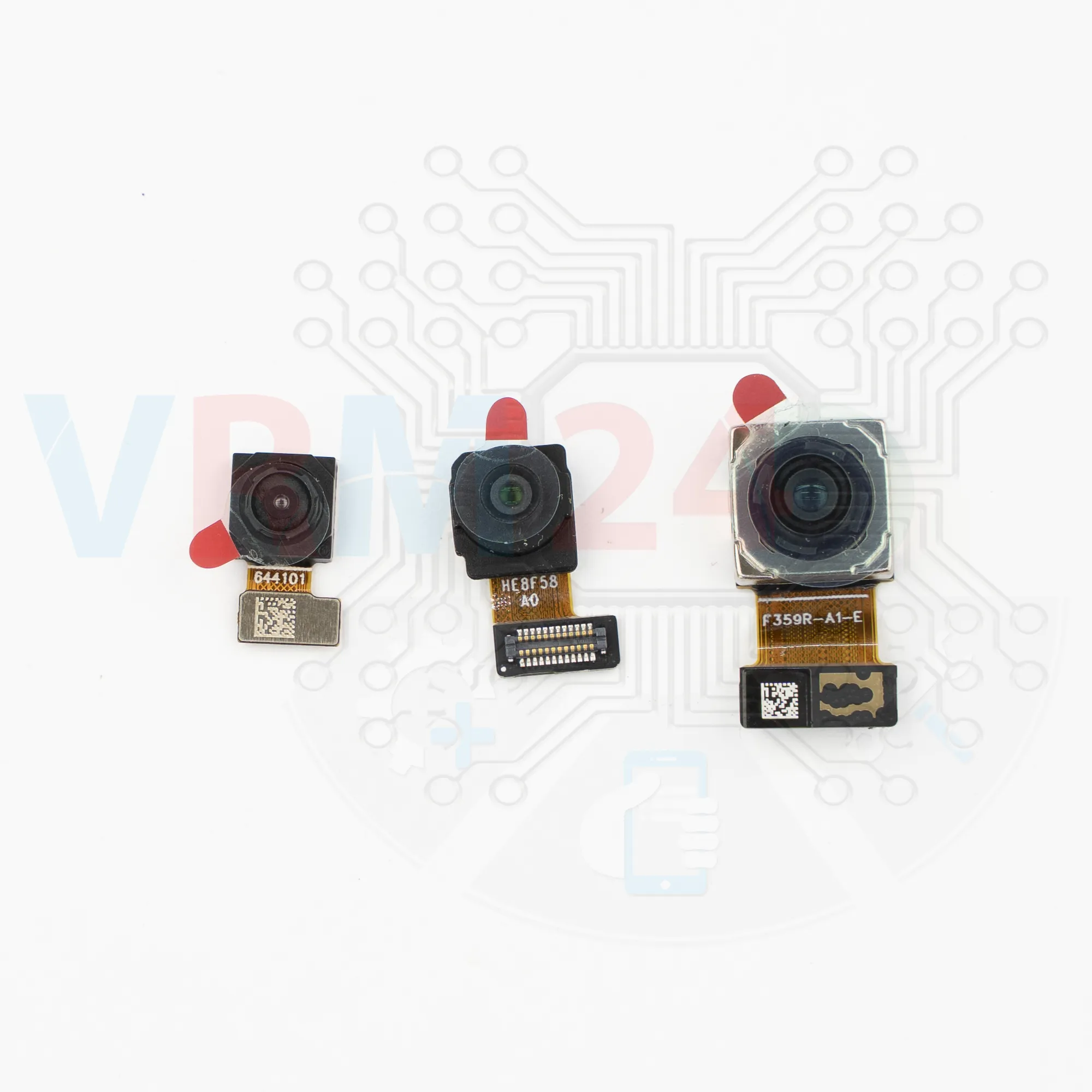

Main camera
50 MP / 2 MP
Main camera Video
1080p, 60fps
Front (selfie) camera
8 MP
Front (selfie) camera Video
1080p, 30fps
Audio
- - -

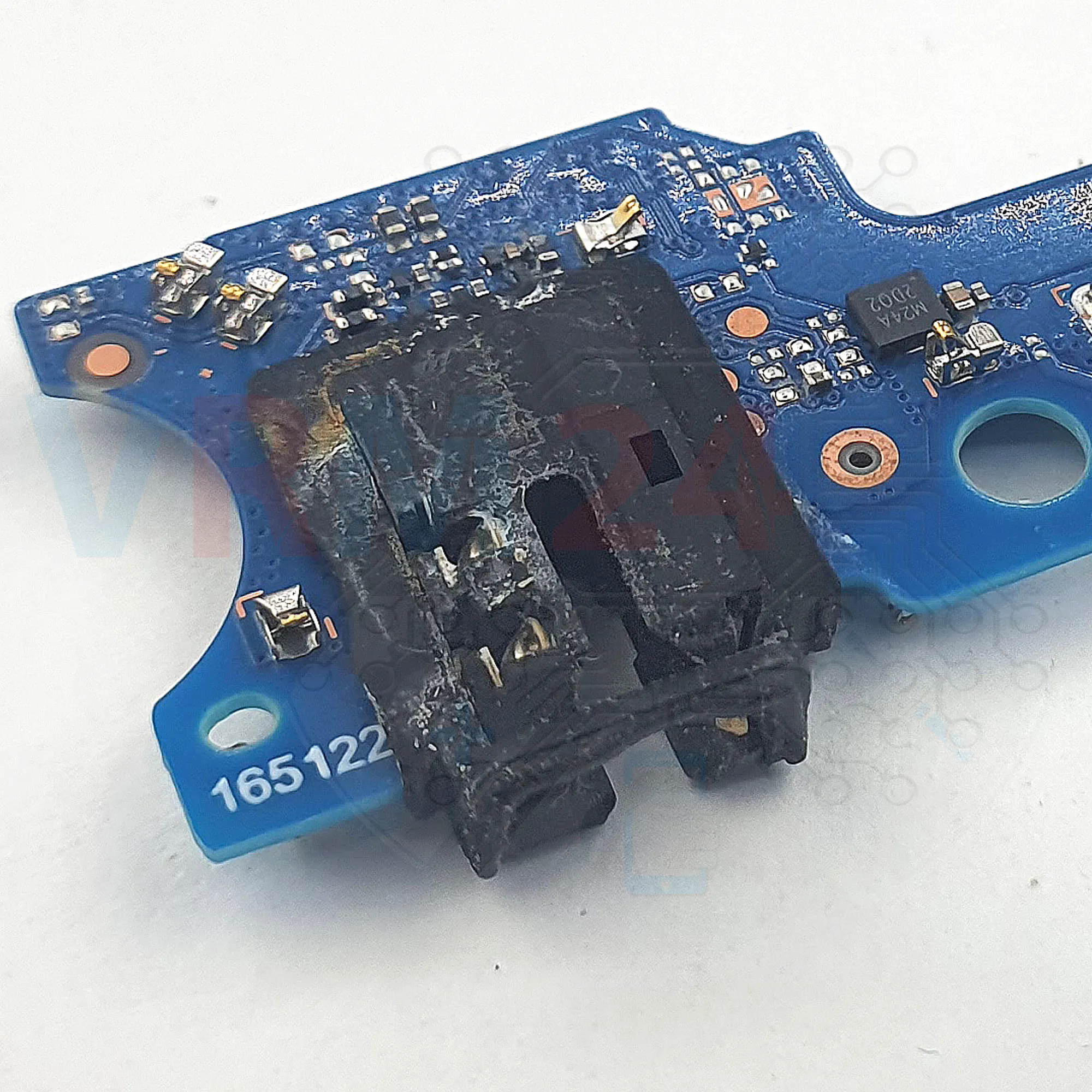

Headphone jack
Yes, 3.5mm jack
Network
Technology
GSM / HSPA / LTE
LTE
Yes, 4G bands 1, 3, 5, 7, 8, 20, 28, 38, 40, 41
Interfaces
Wi-Fi 802.11 a/b/g/n/ac, dual-band, Wi-Fi Direct, Bluetooth 5.3, A2DP, LE
Satellite navigation
Yes, GPS, GLONASS, GALILEO, BDS
Processor and Memory
System on a chip
Mediatek Helio G85
CPU
Octa Core 2x Cortex-A75 2.0 GHz & 6x Cortex-A55 1.8 GHz
GPU
Mali-G52 MC2
Internal memory
64 GB or 128 GB
RAM
4 GB or 6 GB
Card slot
Yes

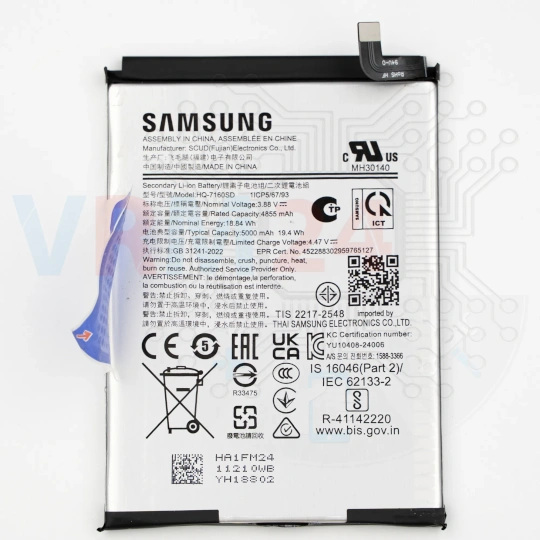

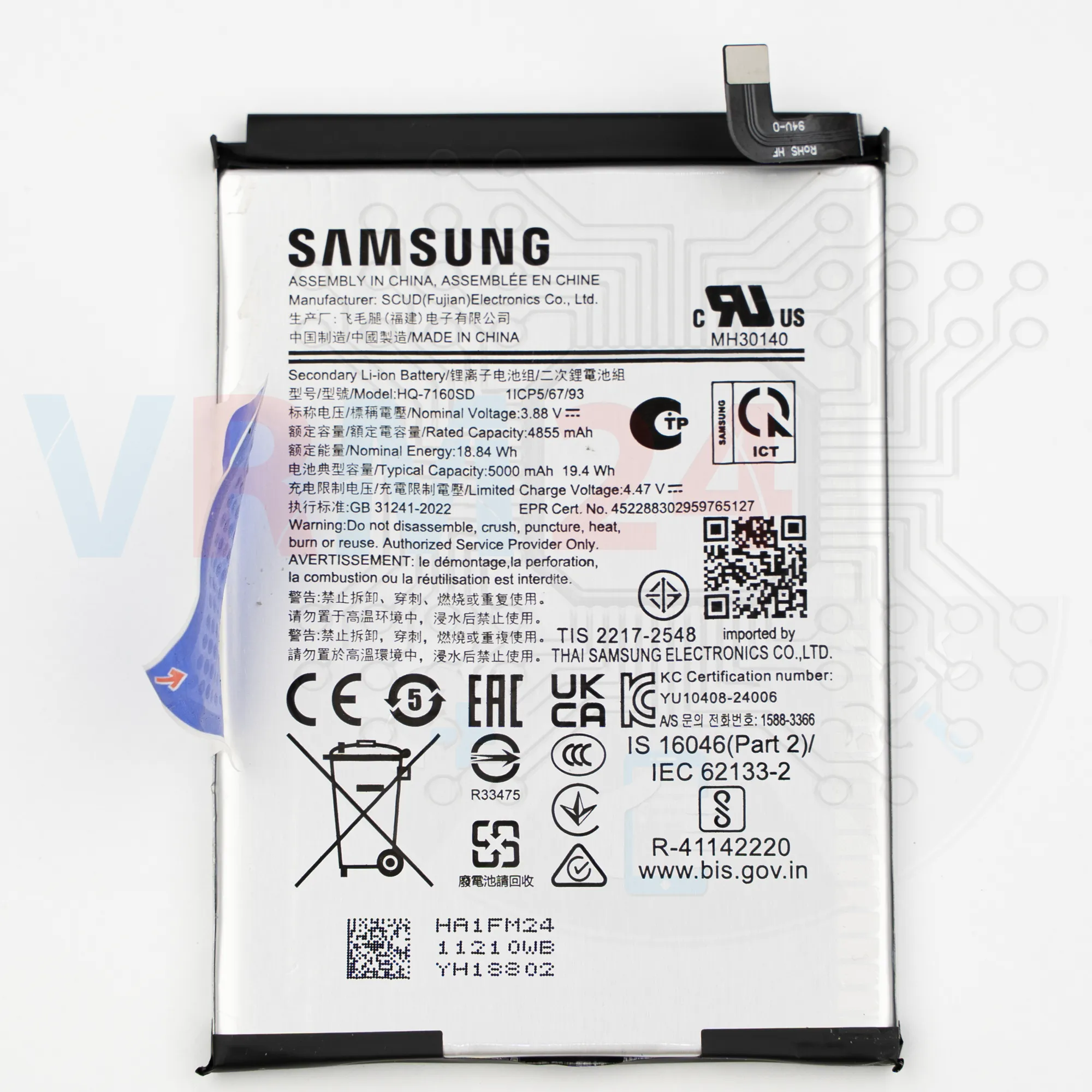

Battery
Battery capacity
Li-Po 5000 mAh

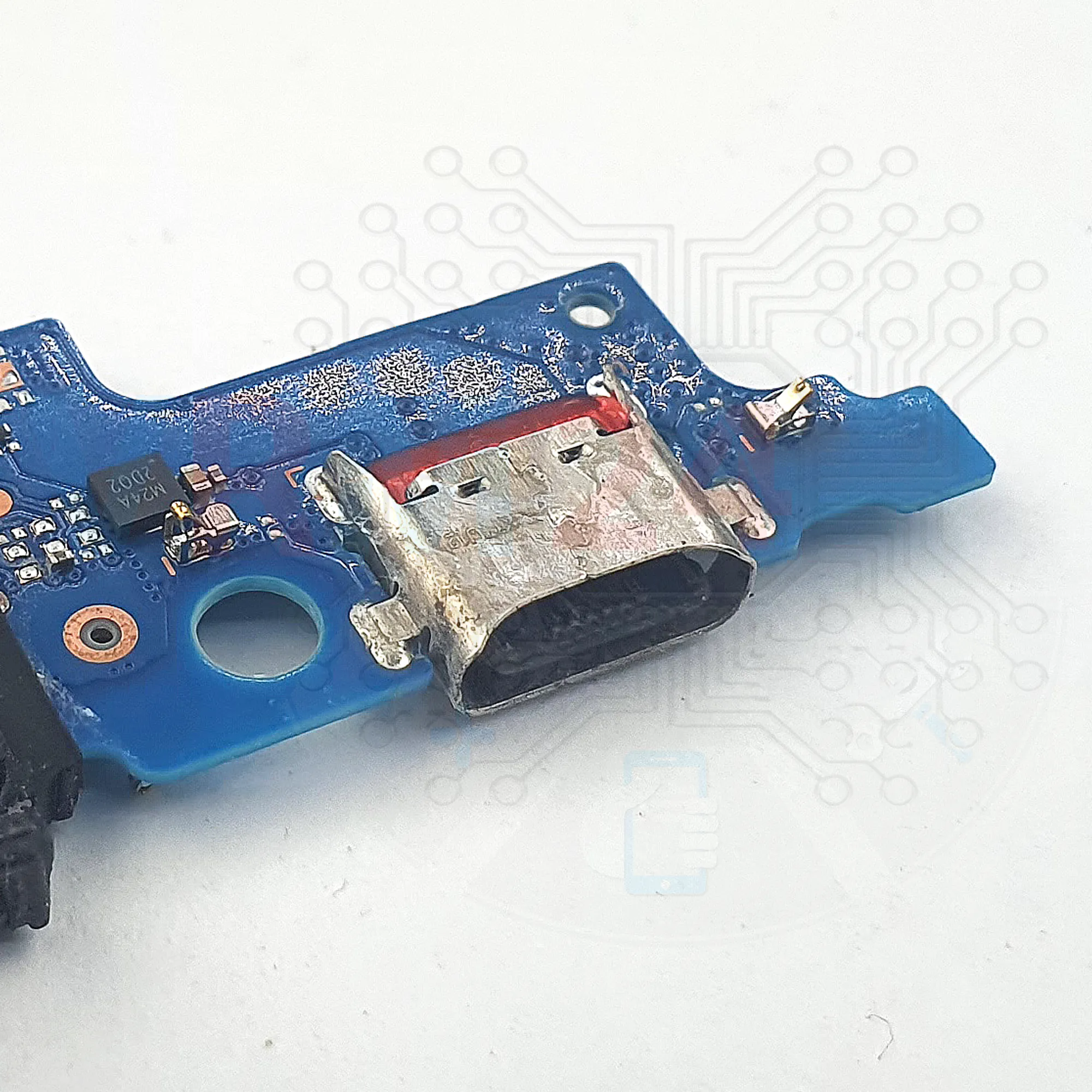

Charging port
USB Type-C 2.0
Other
Announced
2024, August
If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.
Based on our experience, we made a selection of the most common malfunctions of mobile devices and evaluated the difficulty of performing repairs for each of them. The final evaluation of the difficulty of the repair is the sum of all the parameters.
This difficulty rating is also applicable for all models Samsung Galaxy A06 SM-A065 — Samsung Galaxy A06 SM-A065F, SM-A065F/DS, SM-A065M, SM-A065M/DS released for markets in different countries.
