General characteristics Samsung Galaxy A26 SM-A268 (Samsung A26 SM-A266E, SM-A266E/DS, SM-A266E/DSN, SM-A266B, SM-A266B/DS, SM-A266B/DSN, SM-A266U, SM-A266U1, SM-A266W) declared by the manufacturer. The high-resolution pictures of the motherboard and electronic components.

Vadim Popoff

Content specialist with over 10 years of experience in the technology industry.

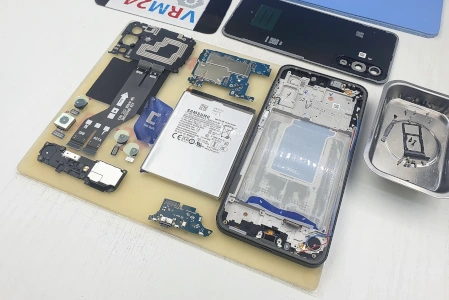

Technical review Samsung Galaxy A26 SM-A268

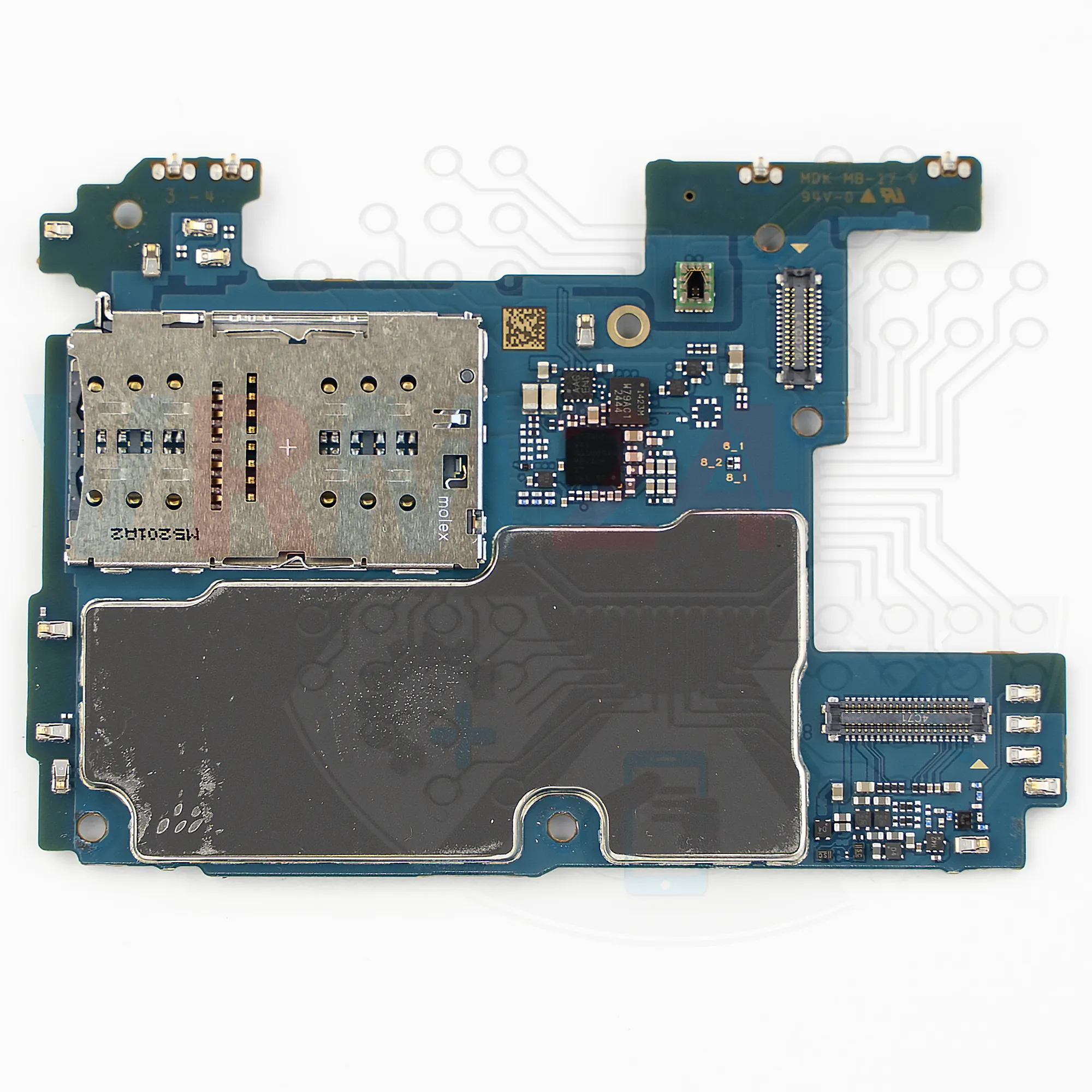

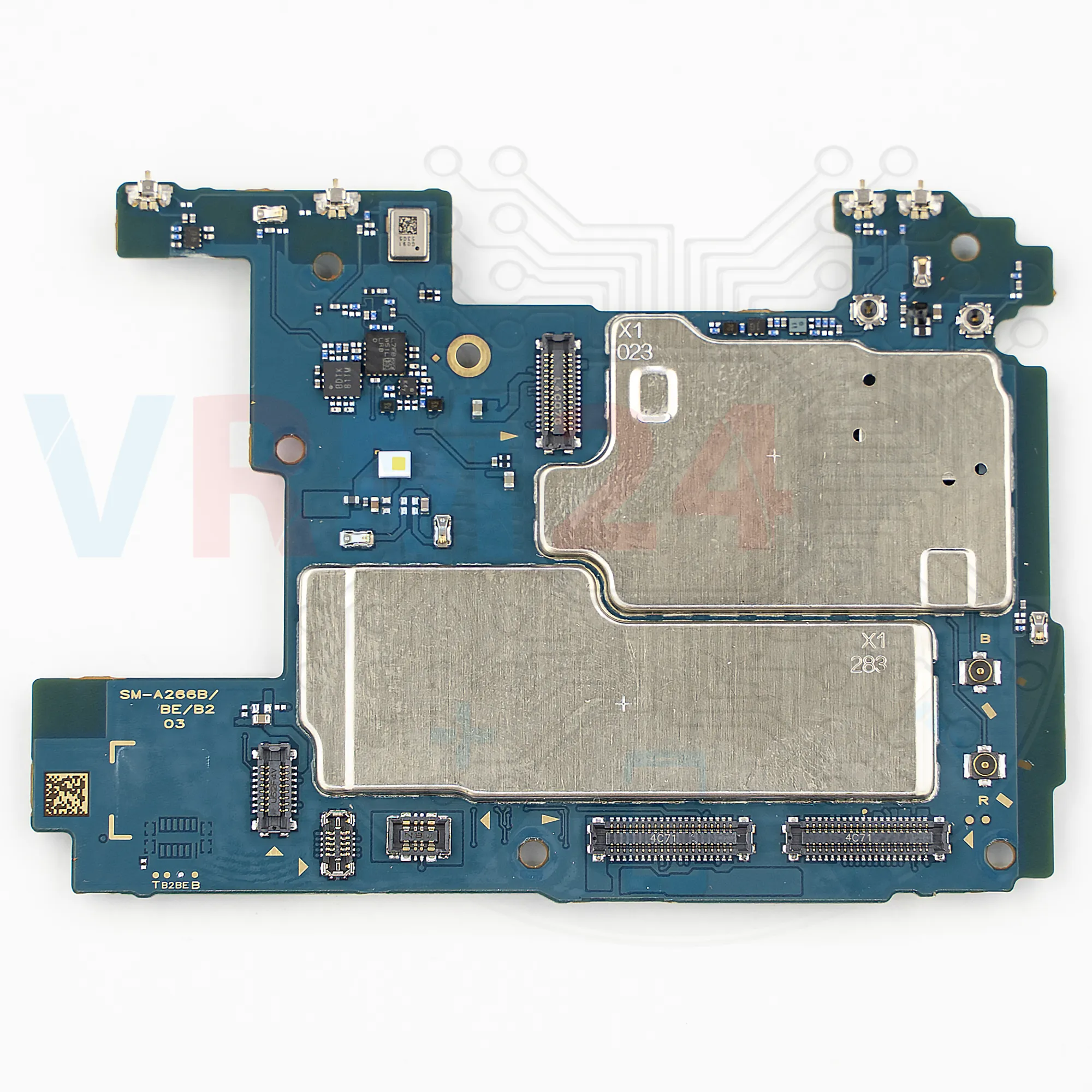

Main and additional circuit boards Samsung Galaxy A26 SM-A268

Side 1
Samsung Galaxy A26 SM-A268
Samsung Galaxy A26 SM-A268
Side 2
Samsung Galaxy A26 SM-A268
Samsung Galaxy A26 SM-A268

Spare parts

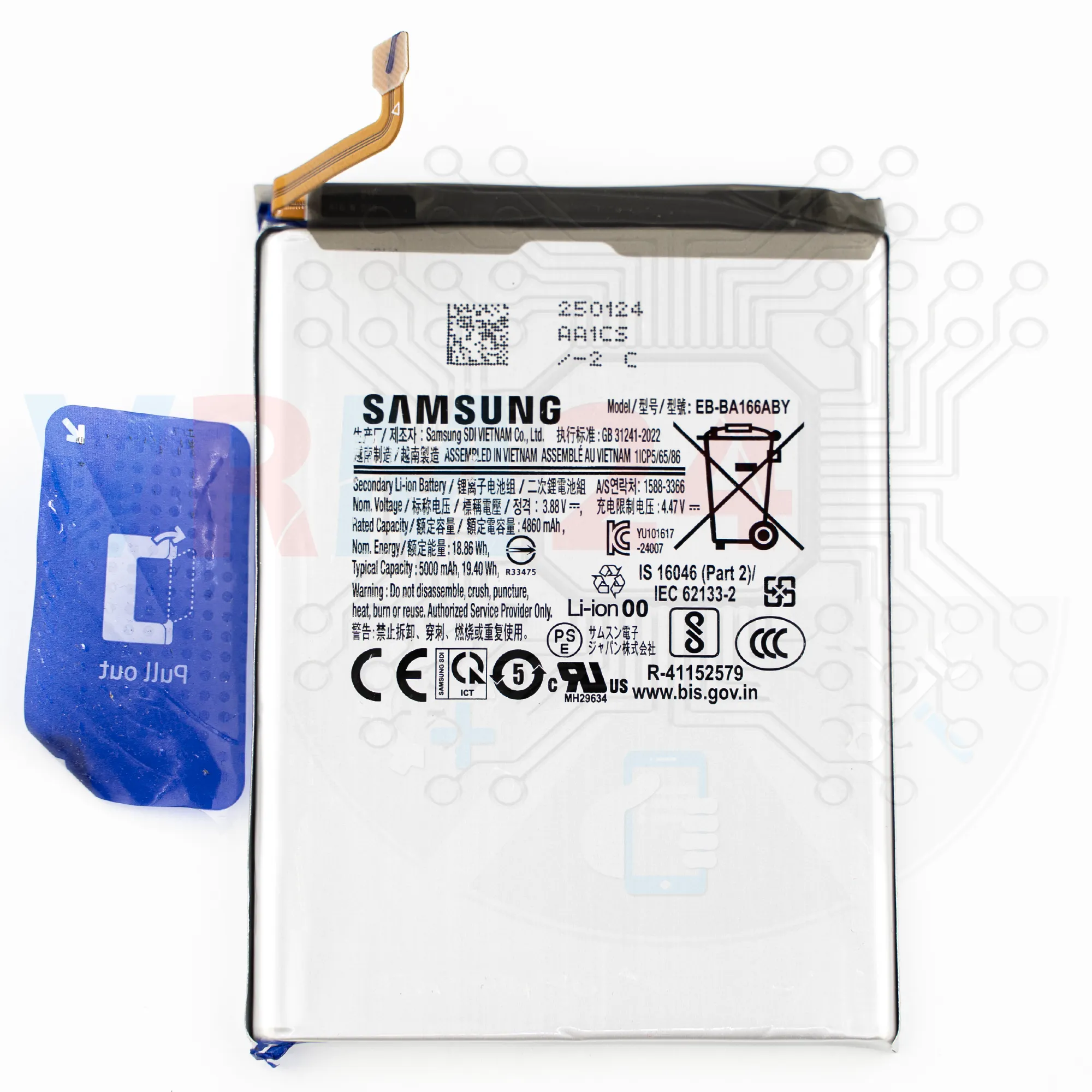

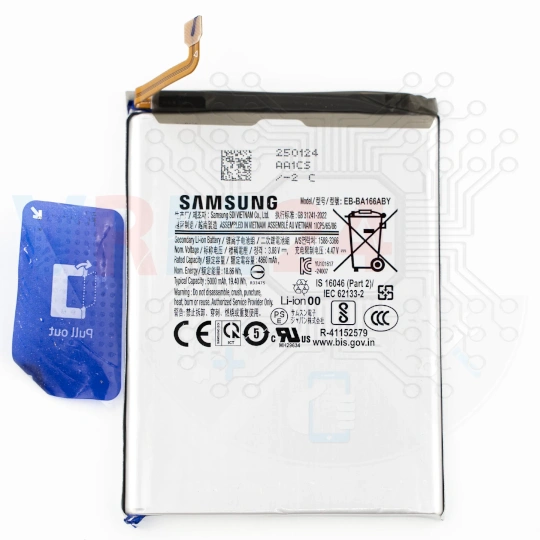

Battery Battery

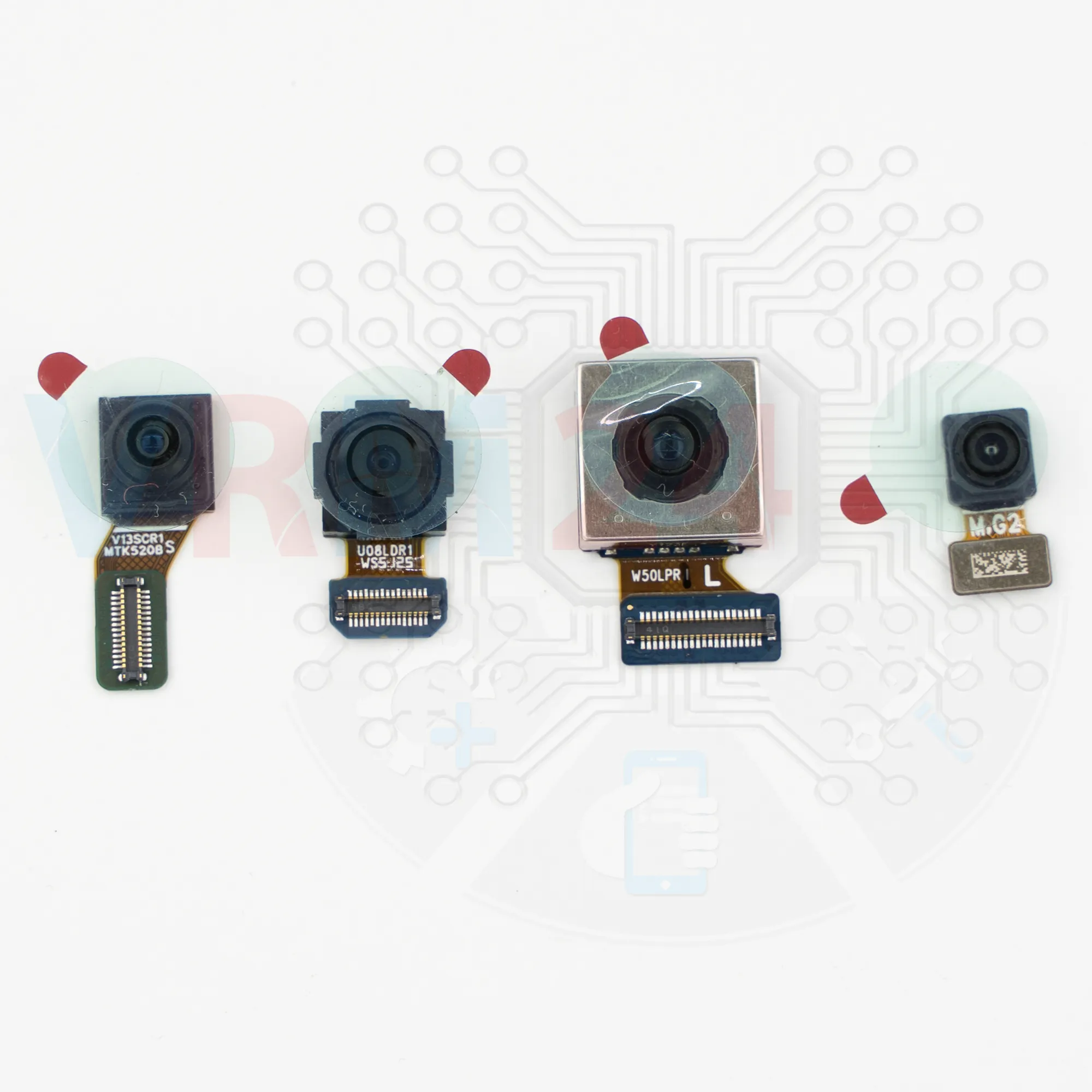

Cameras Cameras

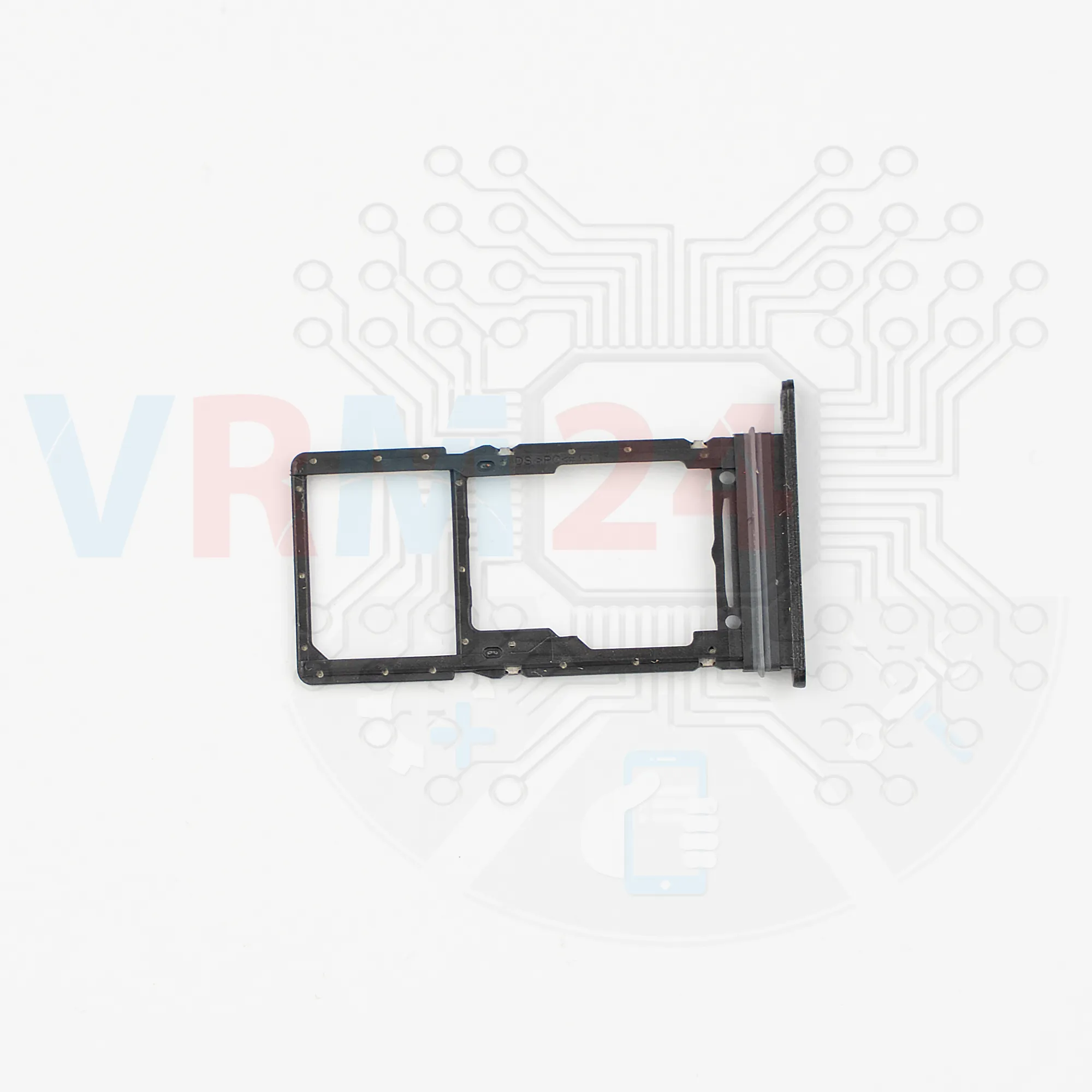

Card tray Card tray

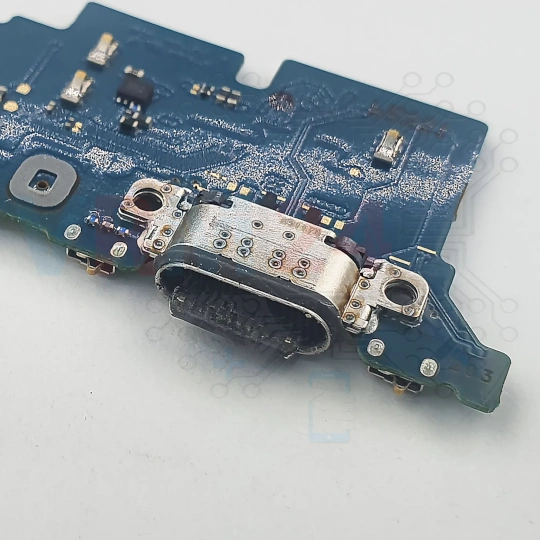

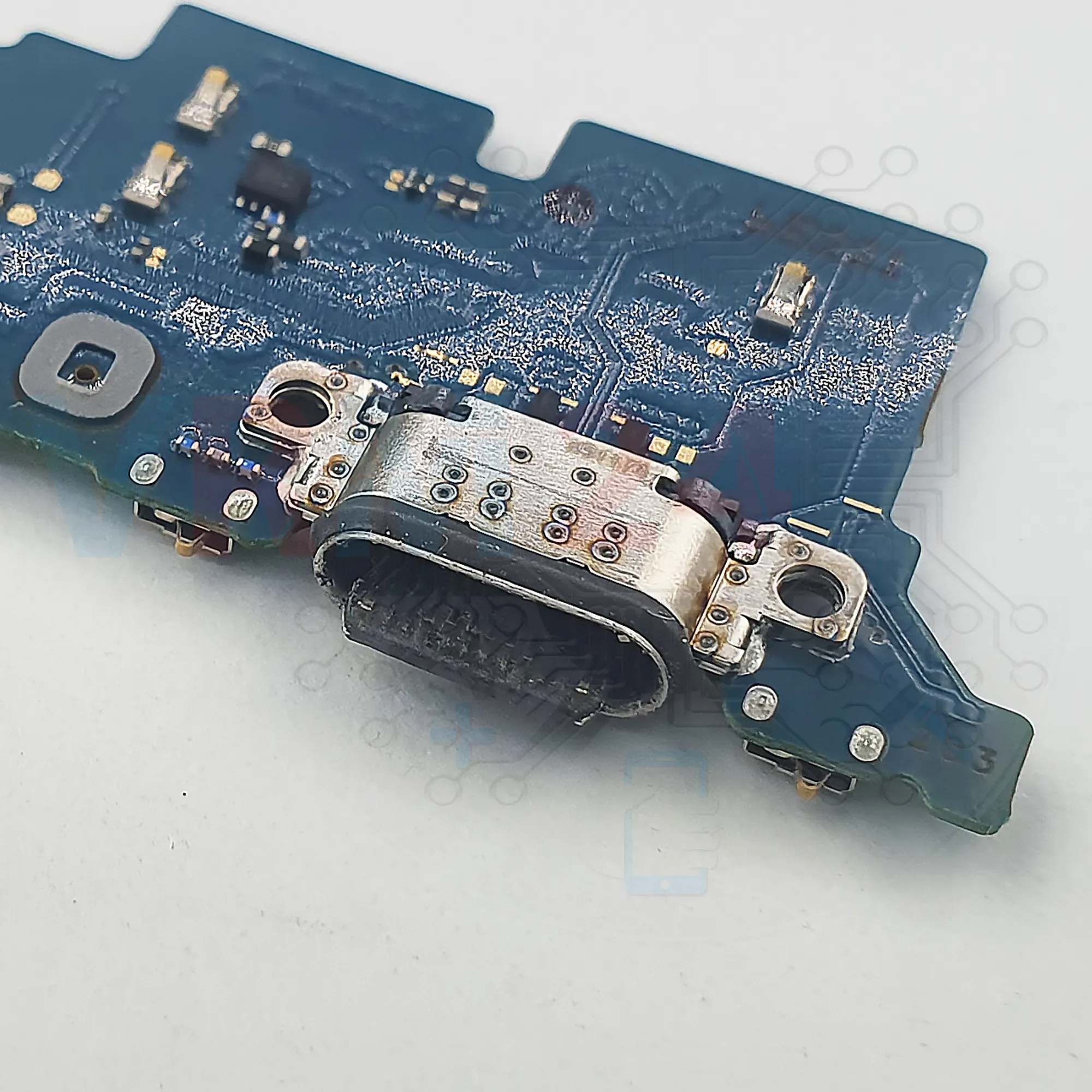

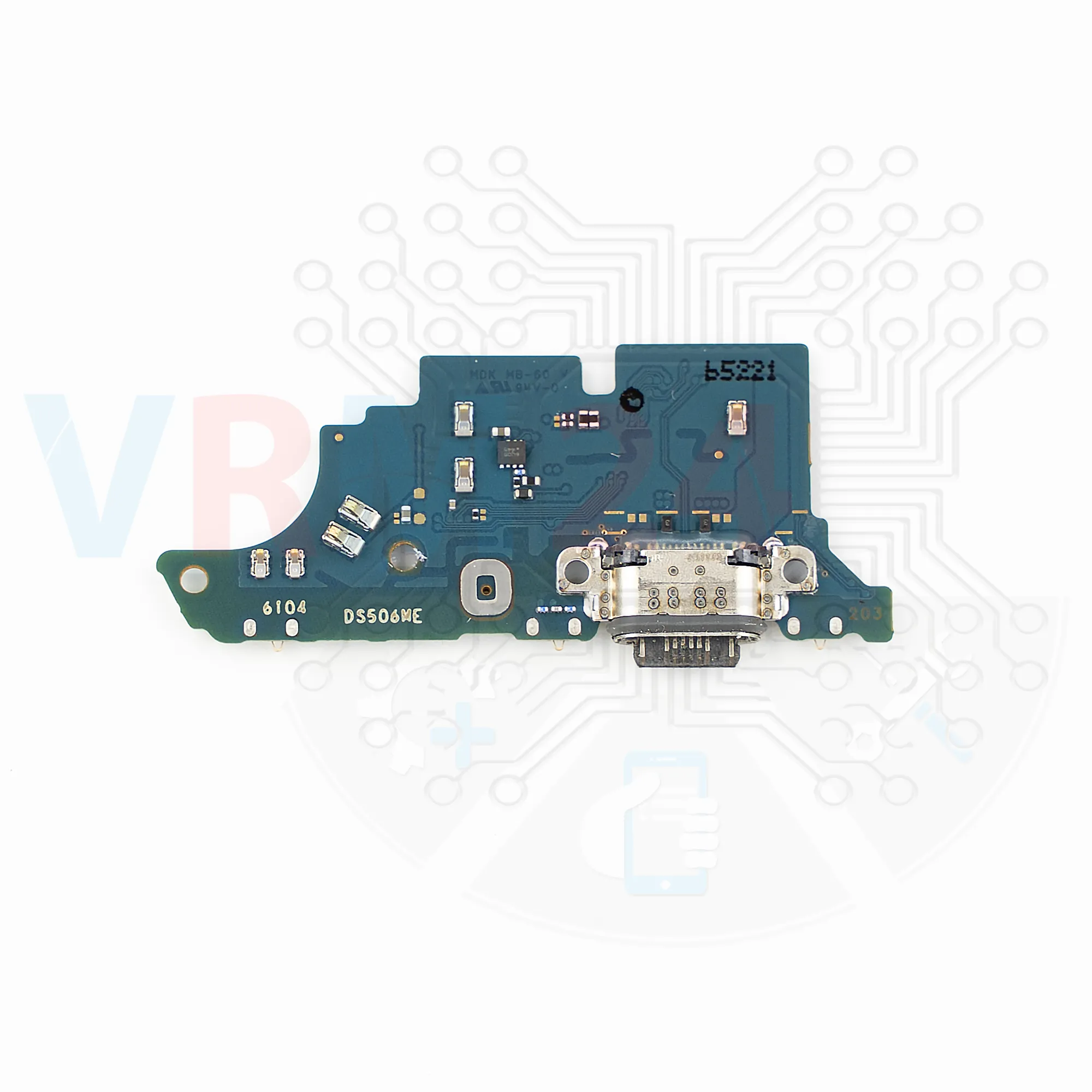

Charging port Charging port

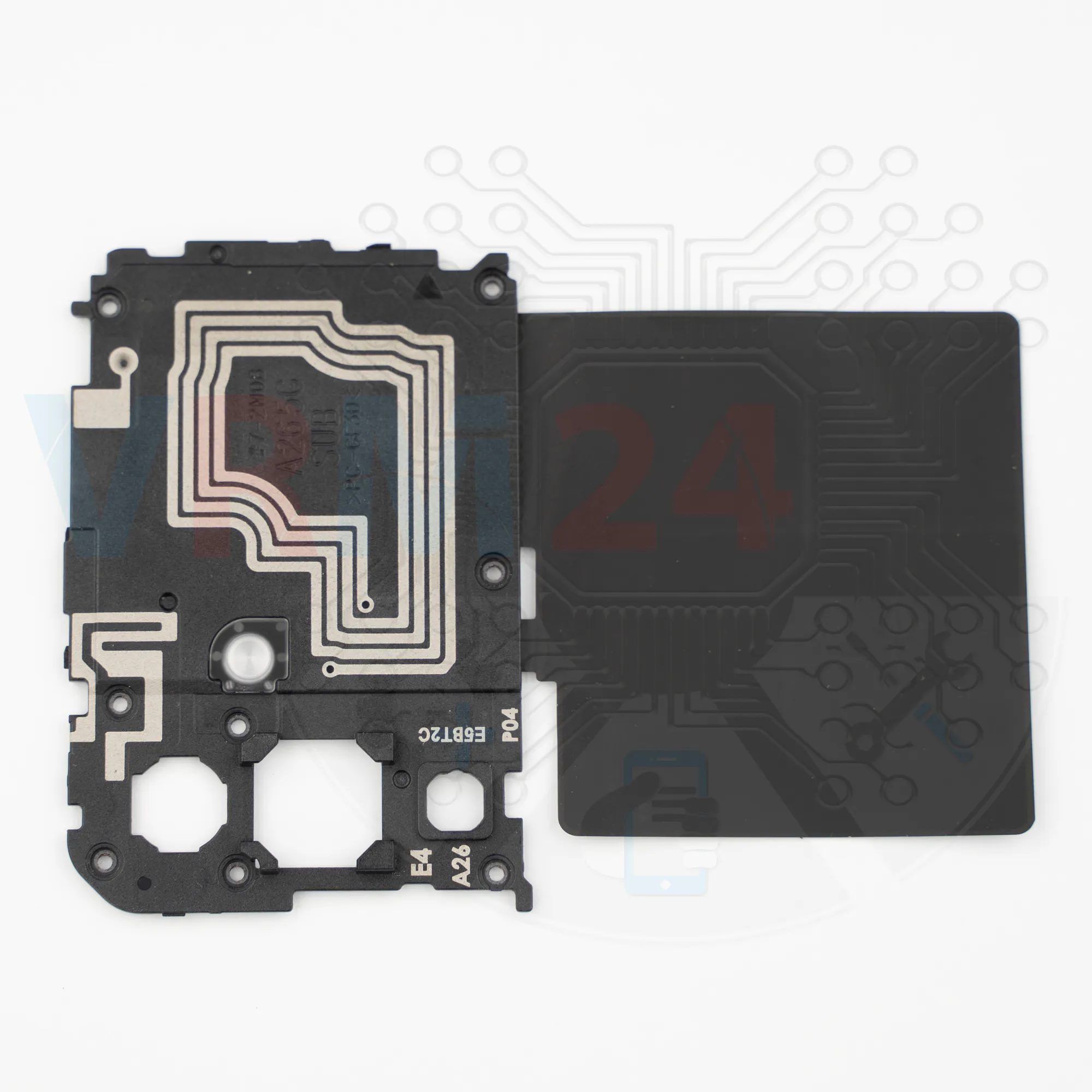

Cover Cover

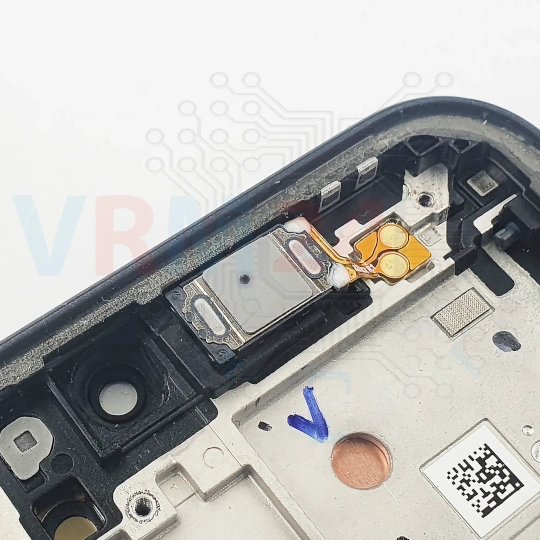

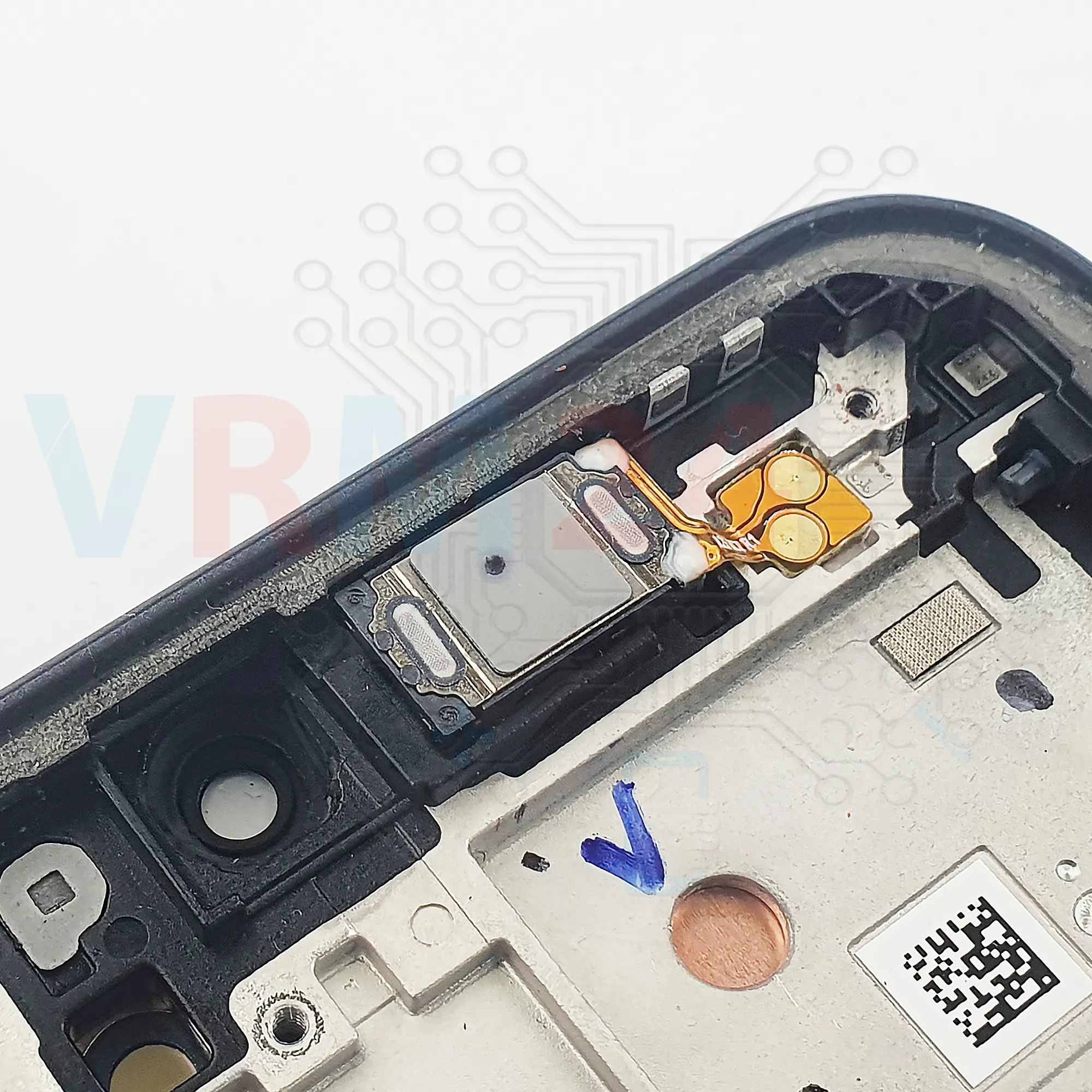

Earpiece speaker Earpiece speaker

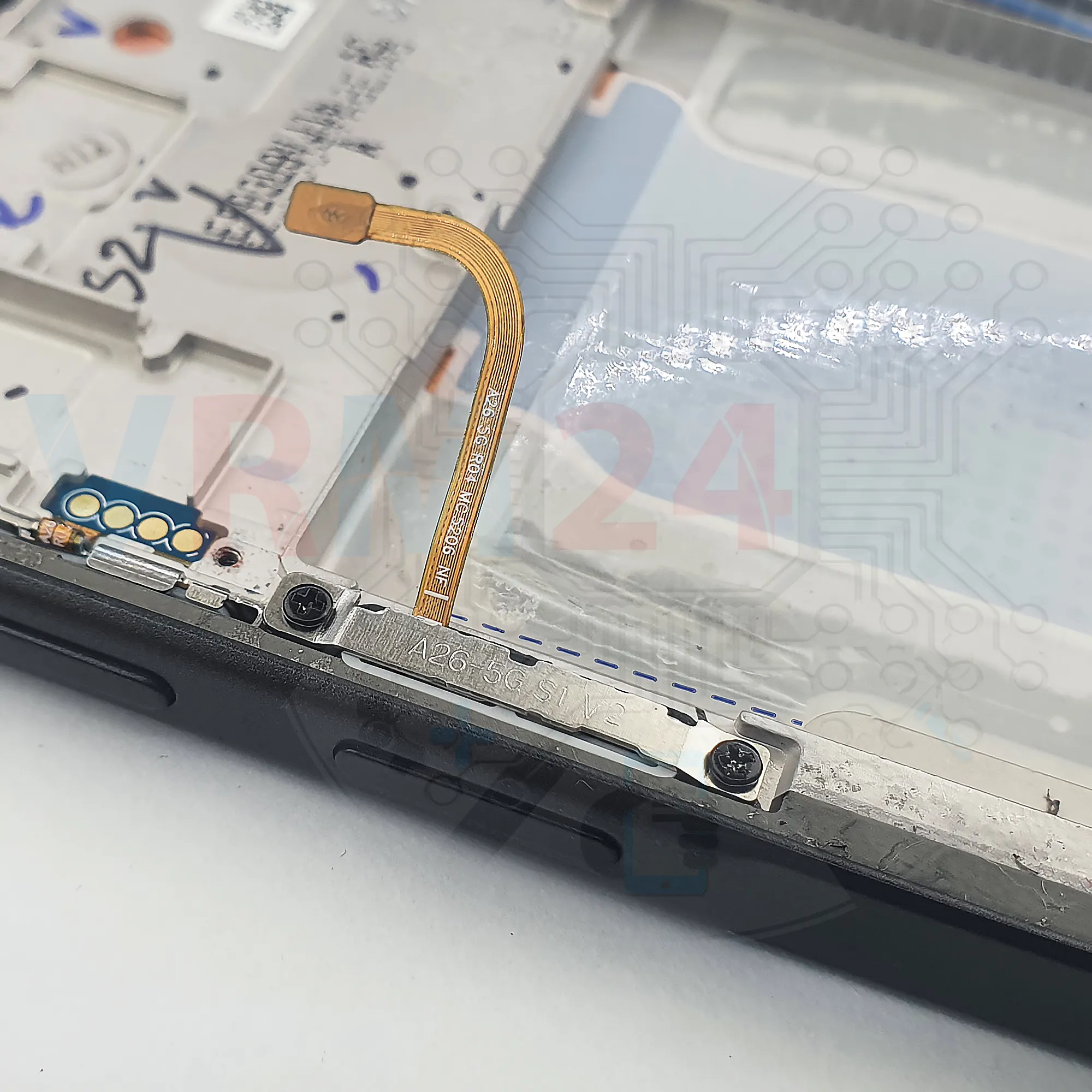

Fingerprint sensor Fingerprint sensor

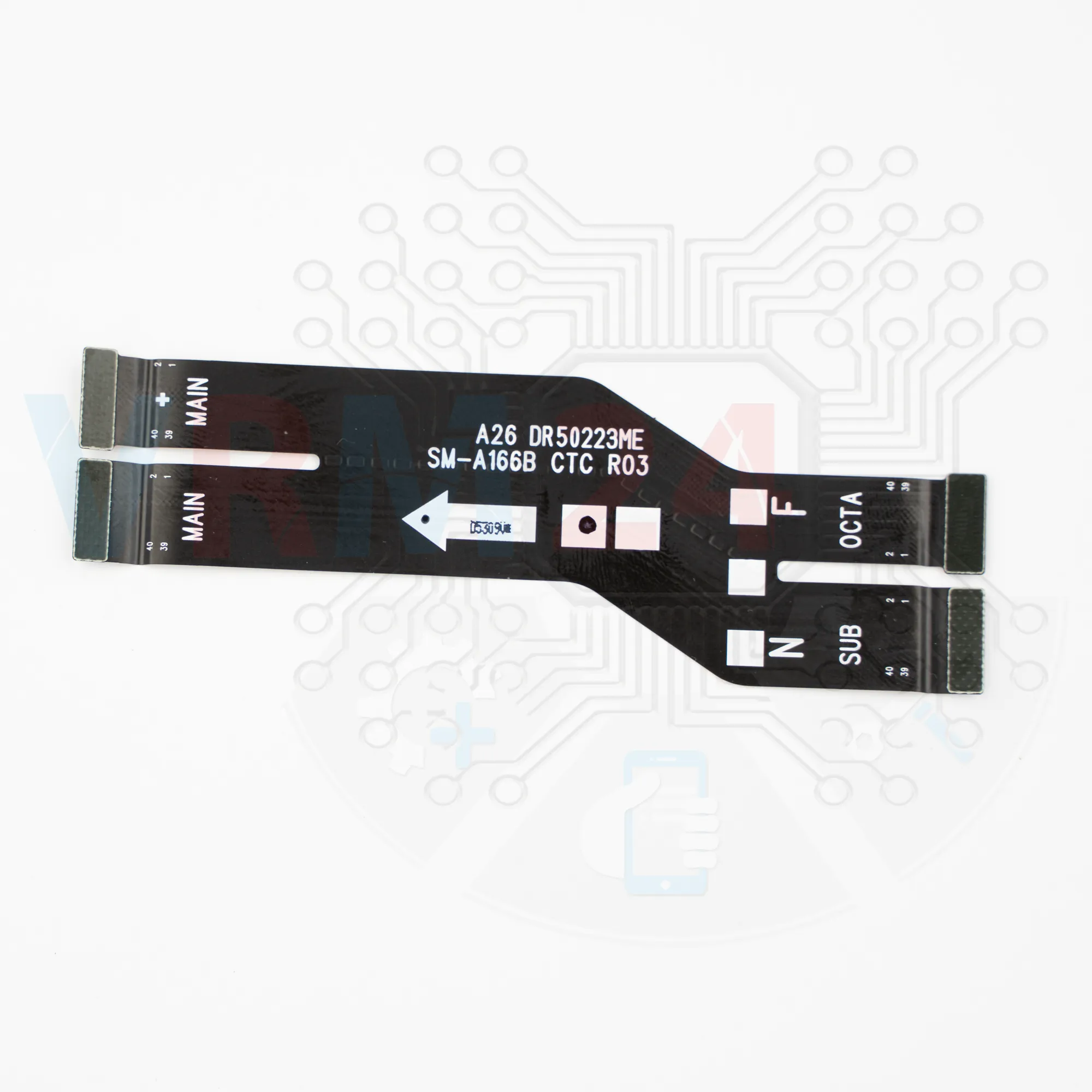

Cable Cable

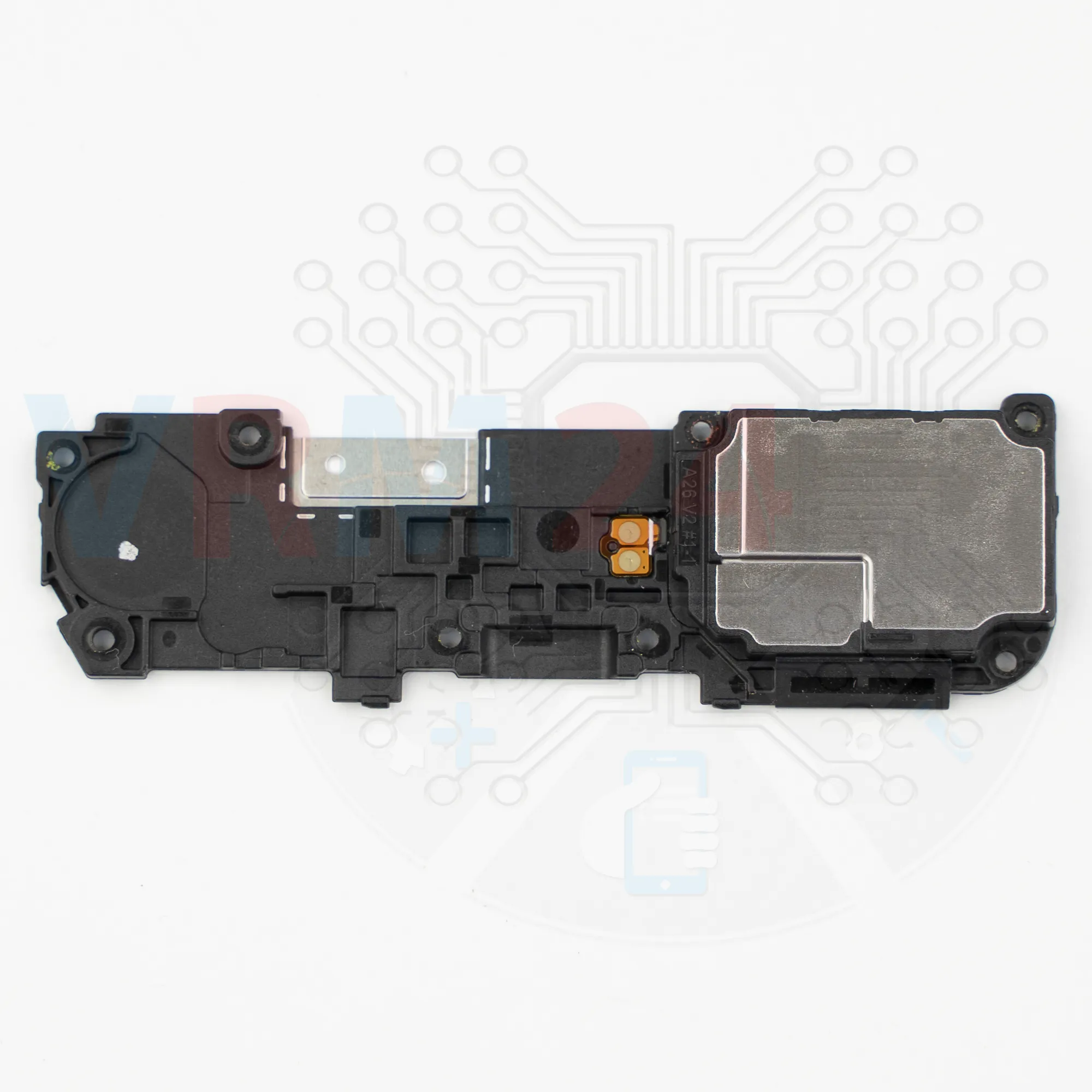

Loudspeaker Loudspeaker

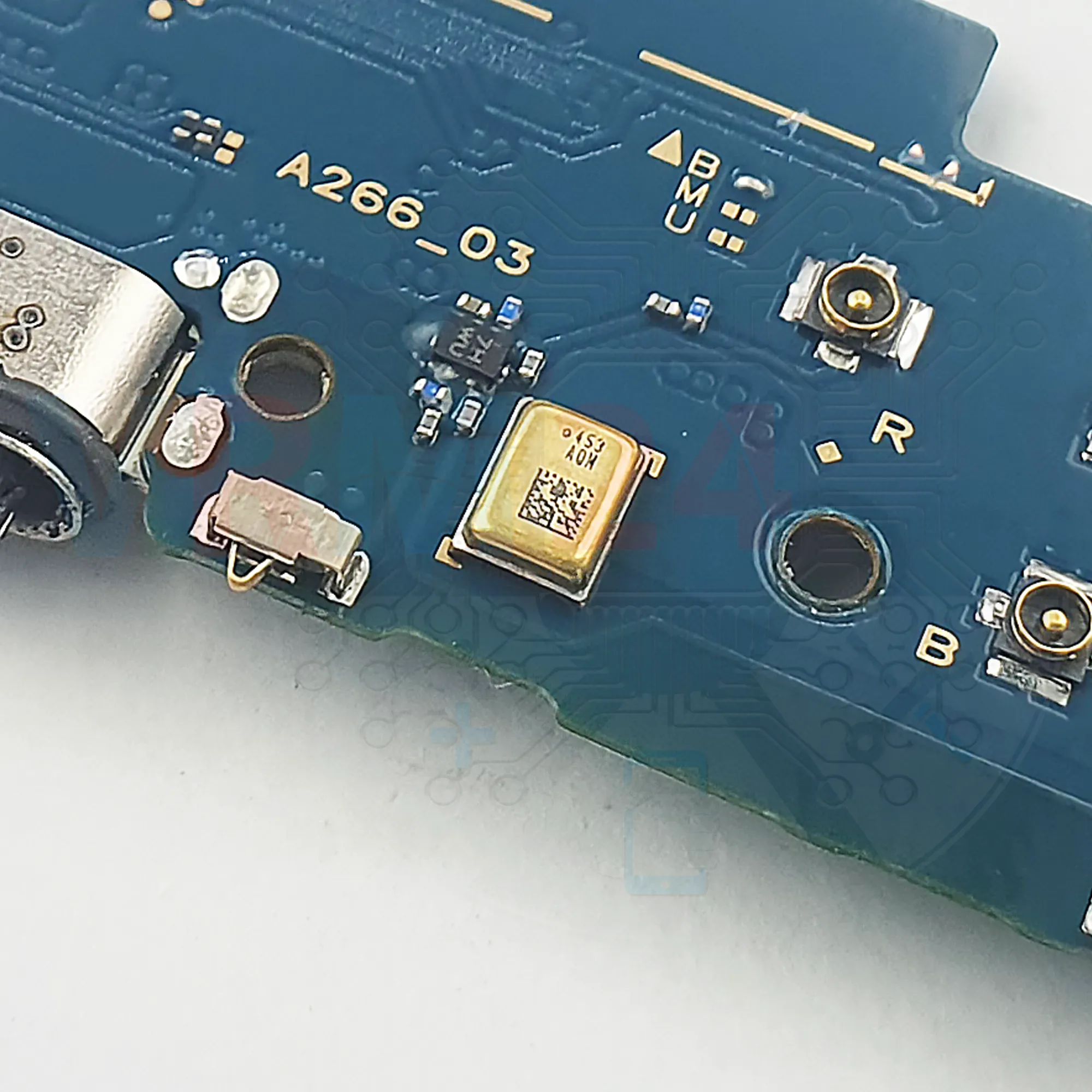

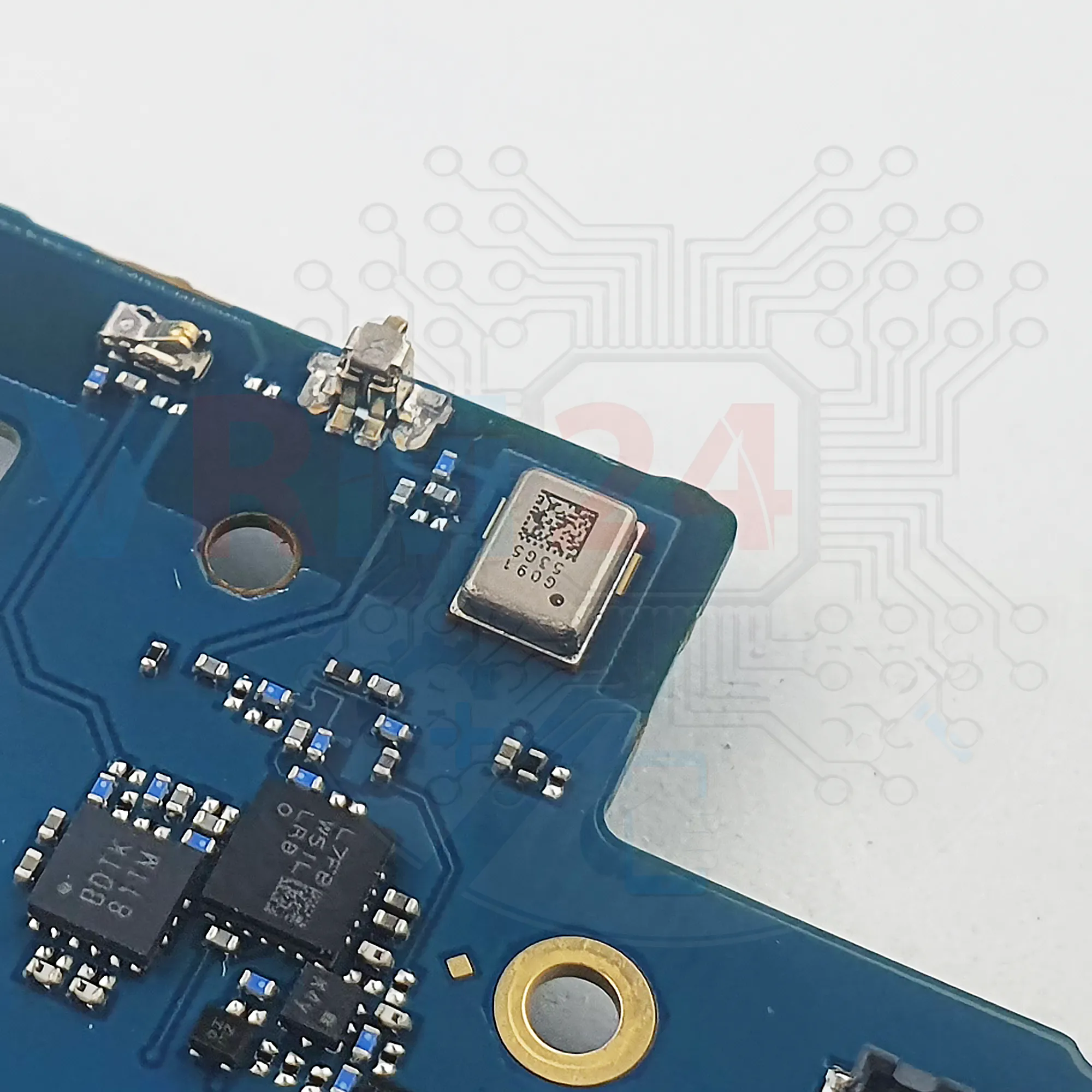

Microphone Microphone
Microphone Microphone
Characteristics
Features
Type
Smartphone
OS
Android 15, One UI 7
SIM type/size
Nano SIM and eSIM
SIM
Dual SIM
Dimensions
164 x 77.5 x 7.7 mm (6.46 x 3.05 x 0.30 in)
Weight
200 g (7.05 oz)
Display
Display type
Super AMOLED
Size
6.7 inches
Resolution
1080 x 2340 pixels, 19.5:9 ratio
PPI density
385
Protection
Corning Gorilla Glass Victus+
Multimedia
Main camera
50 MP / 8 MP / 2 MP
Main camera Video
2160p, 30fps
Front (selfie) camera
13 MP
Front (selfie) camera Video
1080p, 30fps
Audio
Loudspeaker
Headphone jack
No
Network
Technology
GSM / HSPA / LTE / 5G
LTE
Yes, 5G bands 1, 3, 5, 7, 8, 20, 28, 38, 40, 41, 66, 77, 78 SA/NSA/Sub6
Interfaces
Wi-Fi 802.11 a/b/g/n/ac, dual-band, Wi-Fi Direct, Bluetooth 5.3, A2DP, LE
Satellite navigation
Yes, GPS, GLONASS, BDS, GALILEO, QZSS
Processor and Memory
System on a chip
Exynos 1380
CPU
Octa Core 4x Cortex-A78 2.4 GHz & 4x Cortex-A55 2.0 GHz
GPU
Mali-G68 MP5
Internal memory
128 GB or 256 GB
RAM
4 GB or 6 GB
Card slot
Yes (uses shared SIM slot)
Battery
Battery capacity
Li-Ion 5000 mAh
Charging port
USB Type-C 2.0
Other
Announced
2025, March

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

#reviews #Samsung #Samsung Galaxy A26 SM-A268
Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer
Based on our experience, we made a selection of the most common malfunctions of mobile devices and evaluated the difficulty of performing repairs for each of them. The final evaluation of the difficulty of the repair is the sum of all the parameters. This difficulty rating is also applicable for all models Samsung Galaxy A26 SM-A268 — Samsung A26 SM-A266E, SM-A266E/DS, SM-A266E/DSN, SM-A266B, SM-A266B/DS, SM-A266B/DSN, SM-A266U, SM-A266U1, SM-A266W released for markets in different countries.
