General characteristics Xiaomi Mi 5S declared by the manufacturer. The high-resolution pictures of the motherboard and electronic components.


Experienced tech specialist

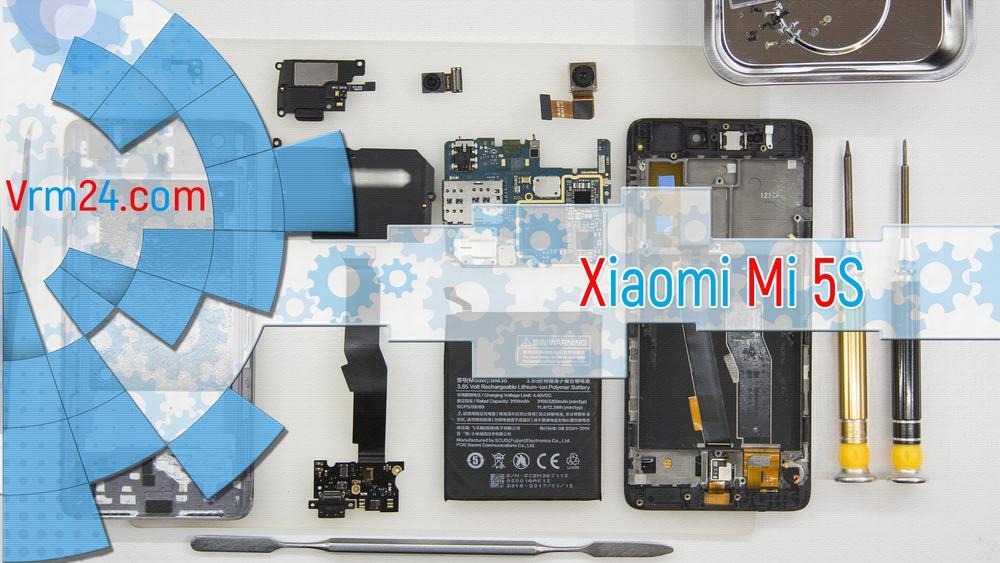

Technical review Xiaomi Mi 5S

Main and additional circuit boards Xiaomi Mi 5S

Side 1
Side 2
Characteristics
Features
Type
Smartphone
OS
Android 6.0 (Marshmallow)
SIM type/size
Nano SIM
SIM
Dual SIM
Dimensions
145.6 x 70.3 x 8.3 mm (5.73 x 2.77 x 0.33 in)
Weight
145 g (5.11 oz)
Display
Display type
IPS LCD
Size
5.15 inches
Resolution
1080 x 1920 pixels, 16:9 ratio
PPI density
428
Protection
---
Multimedia
Main camera
12 MP
Main camera Video
2160p, 30fps
Front (selfie) camera
4 MP
Front (selfie) camera Video
1080p, 30fps
Audio
MP3, AAC, WAV, WMA
Headphone jack
Mini jack 3.5 mm
Network
Technology
GSM /3G/4G/ LTE/ LTE-A Cat. 12/ VoLTE
LTE
Yes, Band 1(2100), 3(1800), 5(850), 7(2600), 8(900), 38(2600), 39(1900), 40(2300), 41(2500)
Interfaces
Wi-Fi 802.11, Bluetooth 4.2, NFC
Satellite navigation
GPS with A-GPS, GLONASS, BDS
Processor and Memory
System on a chip
Qualcomm MSM8996 Snapdragon 821
CPU
Quad-core 2x Kryo 2.15 GHz + 2x Kryo 1.6 GHz
GPU
Adreno 530
Internal memory
128 GB
RAM
4 GB
Card slot
No
Battery
Battery capacity
Li-Ion 3200 mAh
Charging port
USB Type-C
Other
Announced
2016, September

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.



Based on our experience, we made a selection of the most common malfunctions of mobile devices and evaluated the difficulty of performing repairs for each of them. The final evaluation of the difficulty of the repair is the sum of all the parameters. This difficulty rating is also applicable for all models Xiaomi Mi 5S released for markets in different countries.
