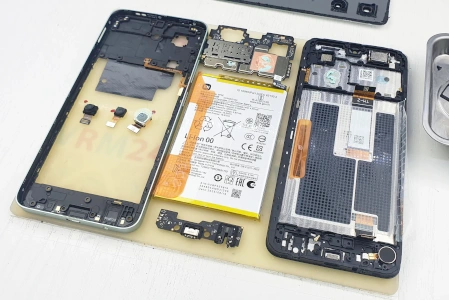

General characteristics Xiaomi RedMi A5 (Xiaomi RedMi A5 25028RN03A) declared by the manufacturer. The high-resolution pictures of the motherboard and electronic components.

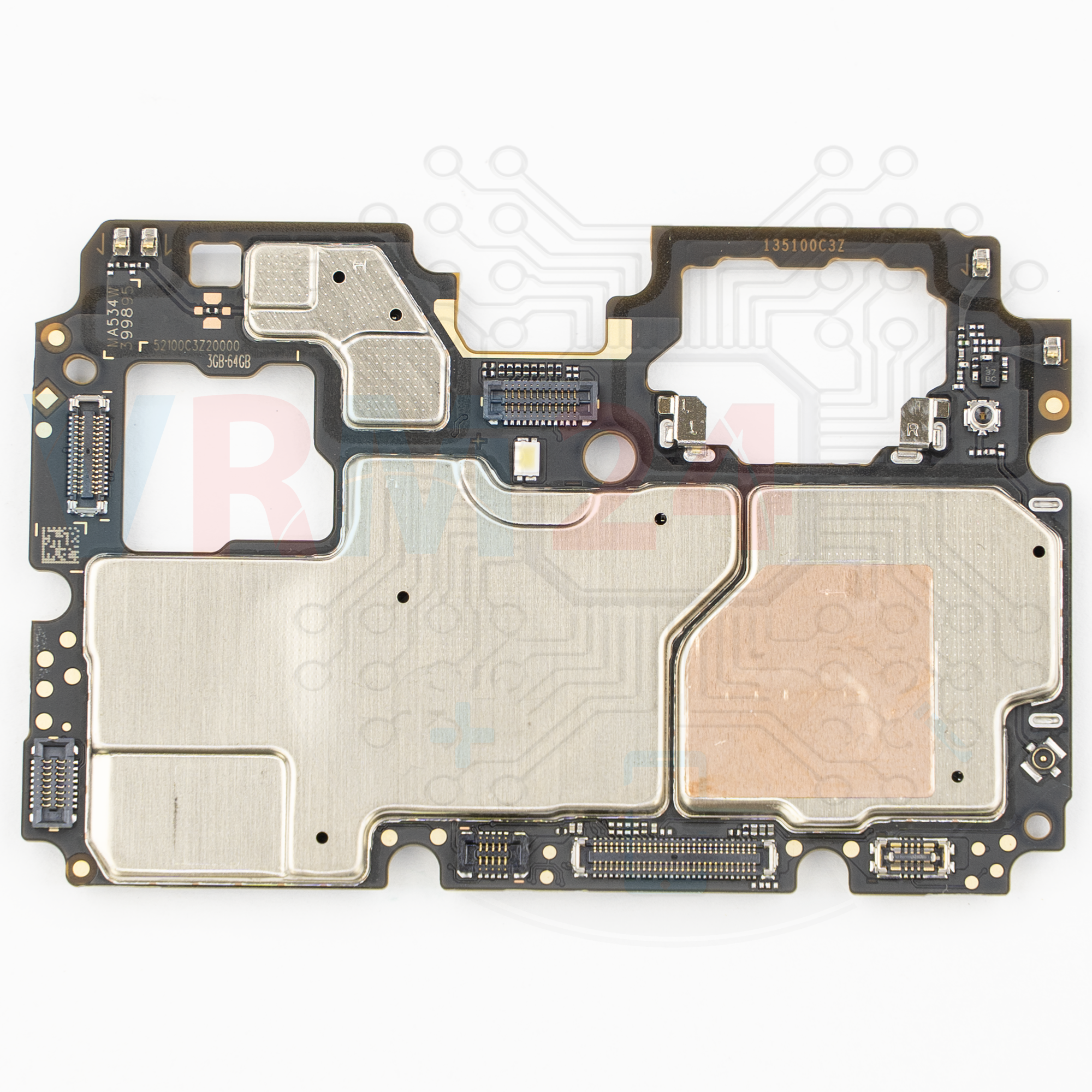

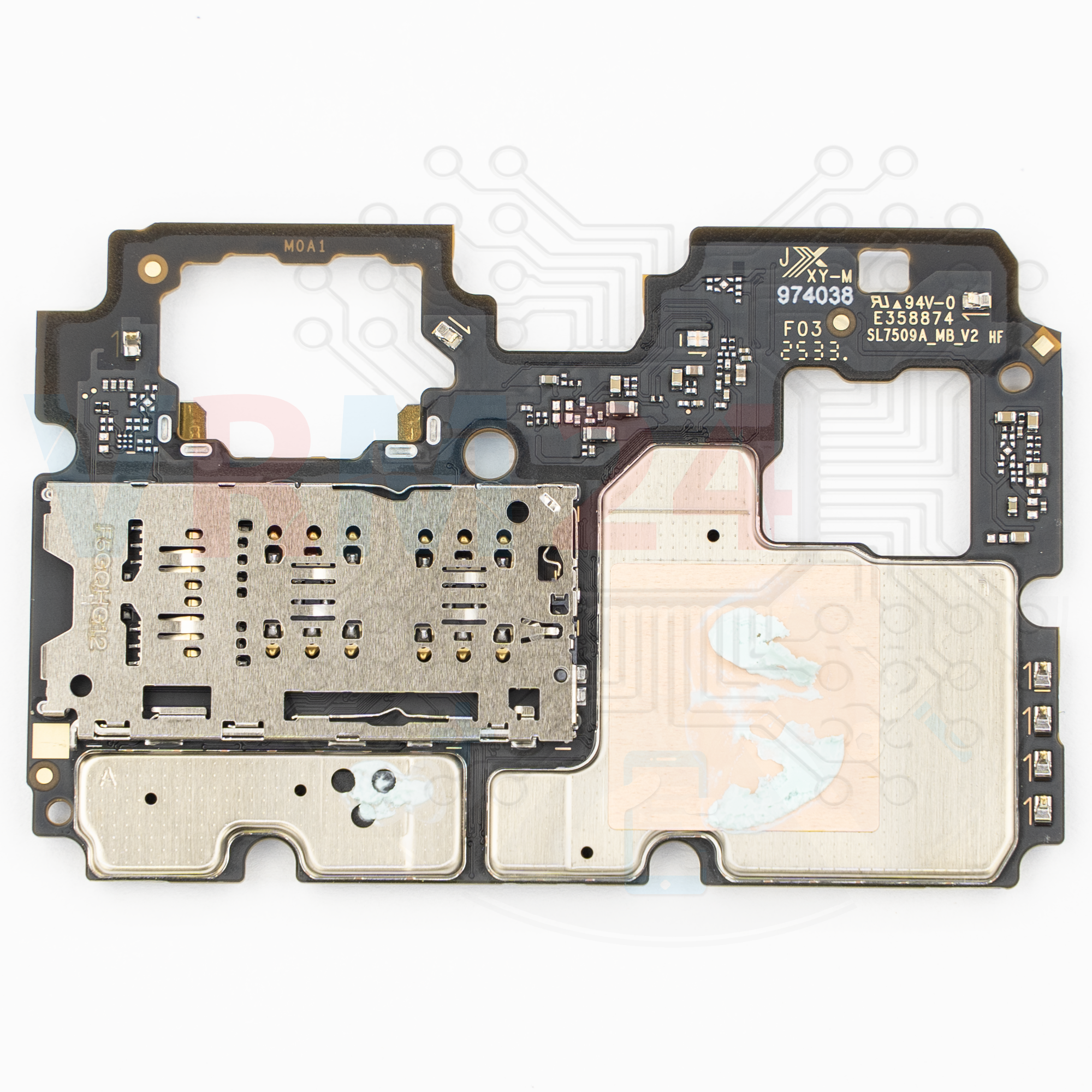

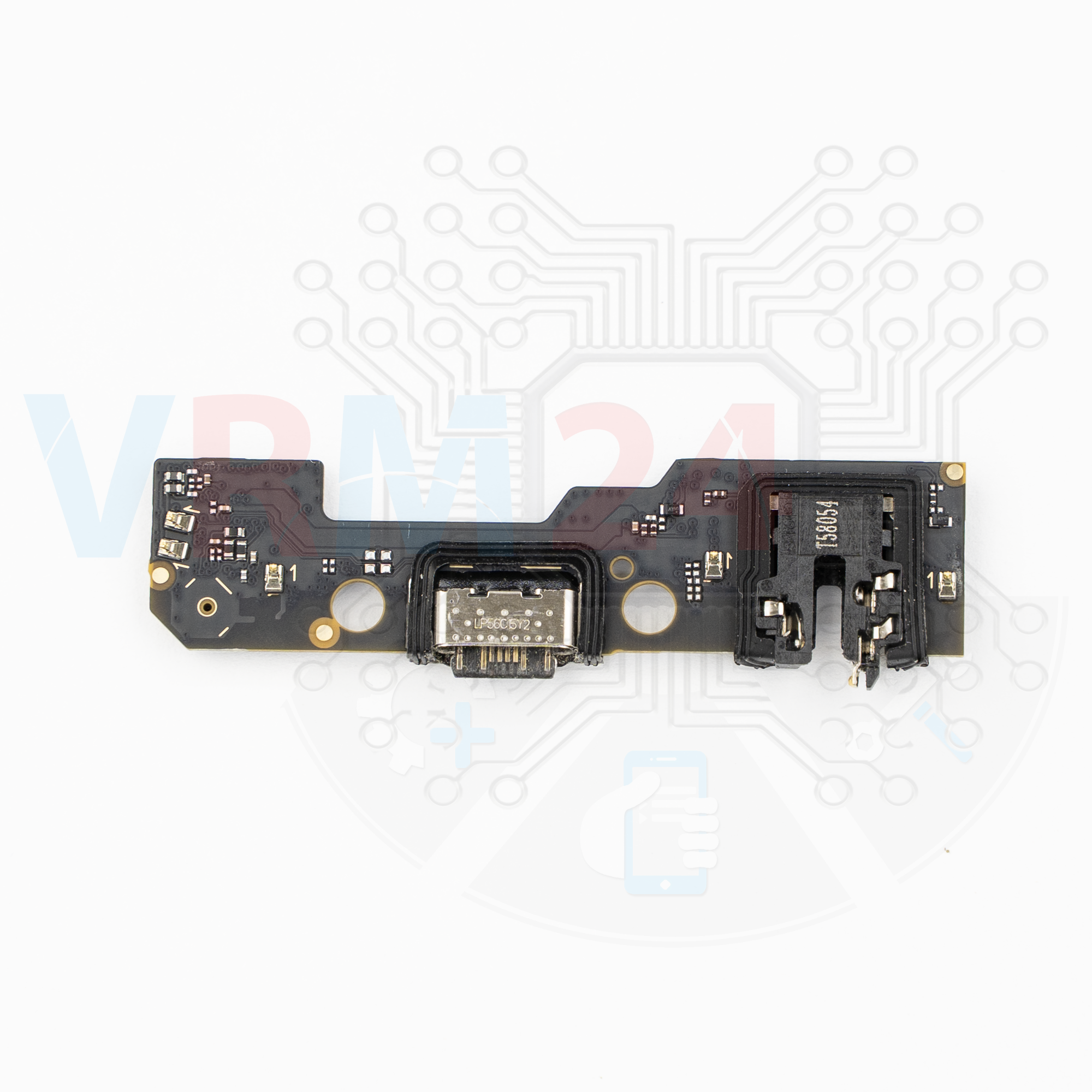

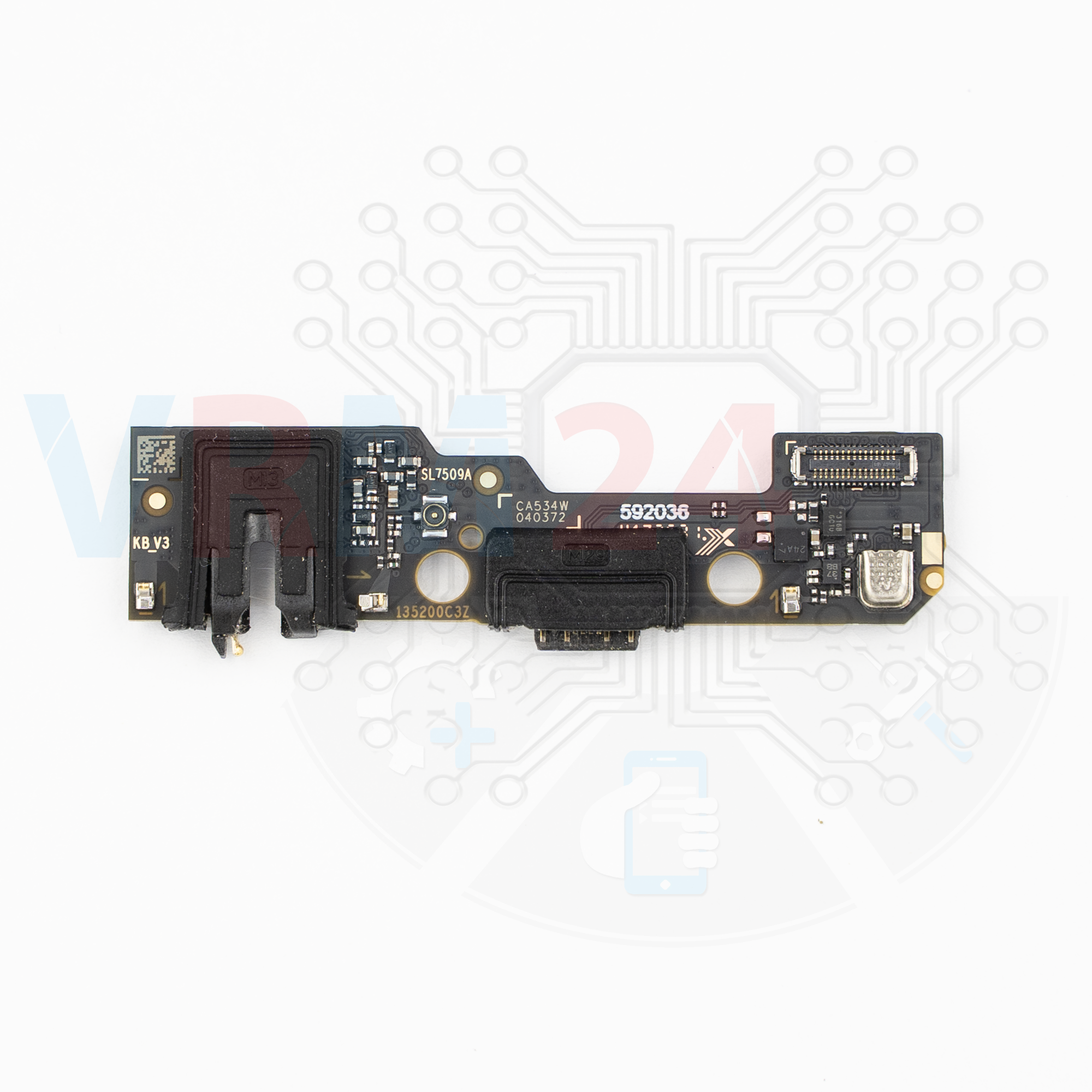

Main and additional circuit boards Xiaomi RedMi A5
Side 1
Side 2
Characteristics
Features
Type
Smartphone
OS
Android 15 (Go edition)

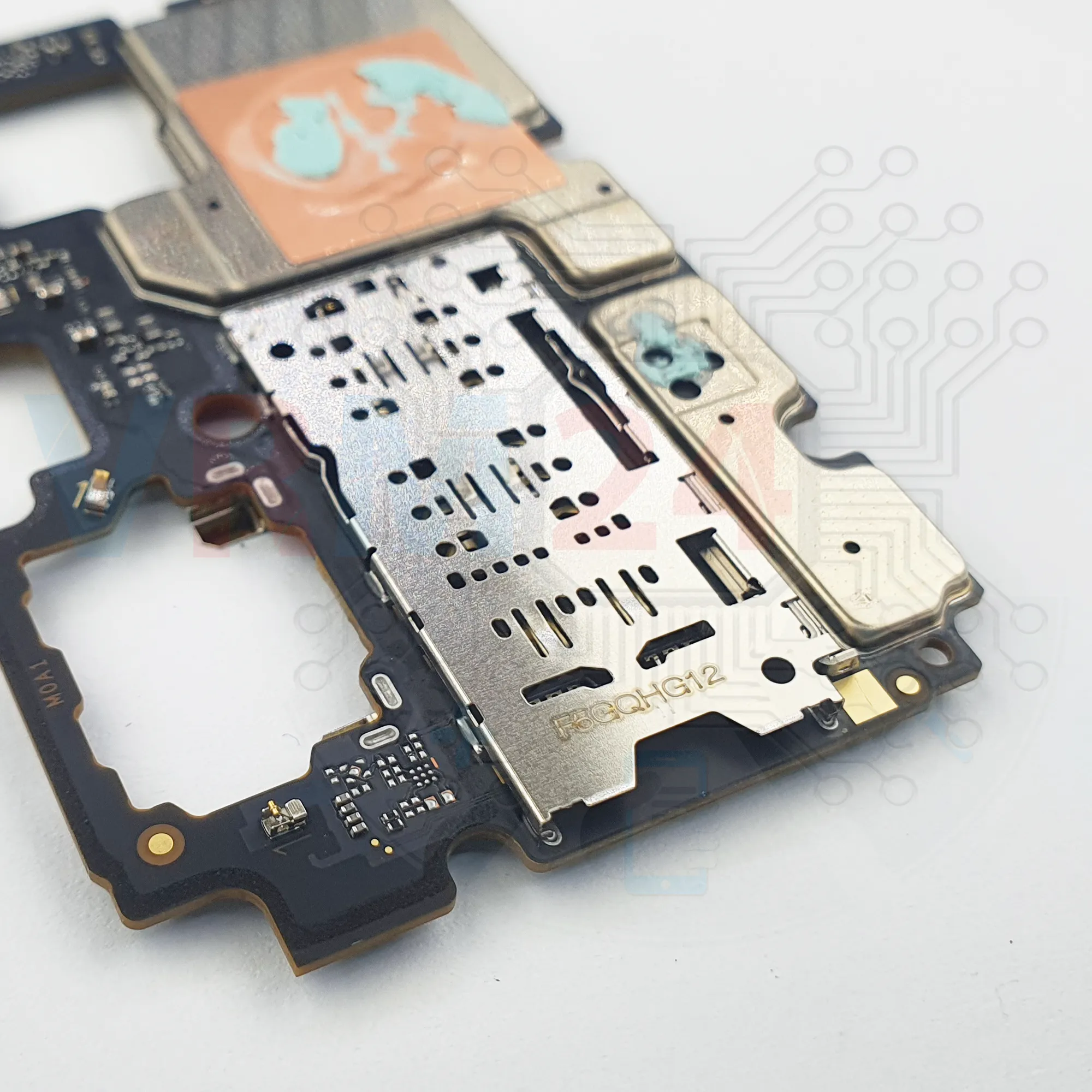

SIM type/size
Nano SIM
SIM
Dual SIM
Dimensions
171.7 x 77.8 x 8.3 mm (6.76 x 3.06 x 0.33 in)
Weight
193 g (6.81 oz)
Display
Display type
IPS LCD
Size
6.88 inches
Resolution
720 x 1640 pixels
PPI density
260
Protection
- - -
Multimedia

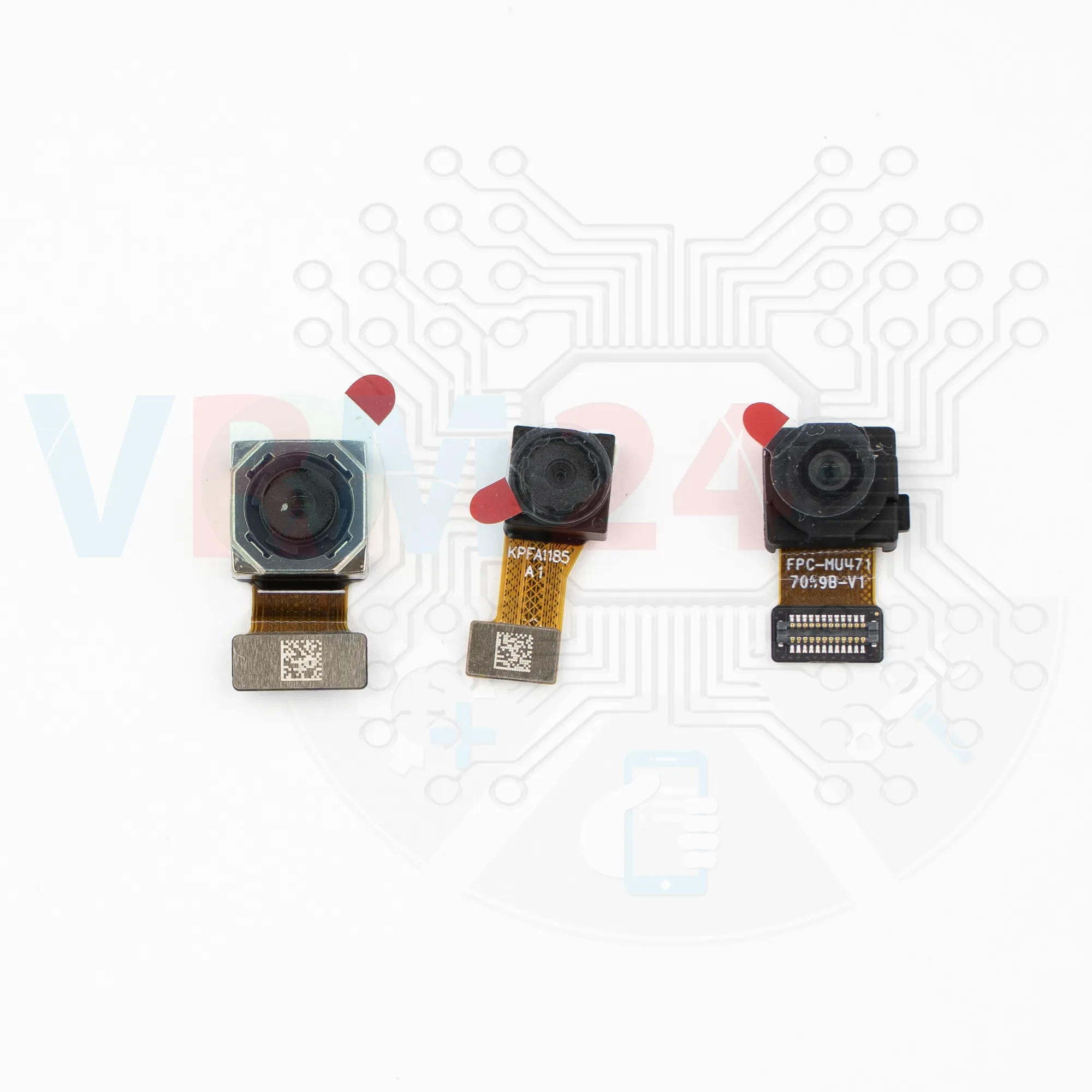

Main camera
32 MP / Auxiliary lens
Main camera Video
1080p, 30fps
Front (selfie) camera
8 MP
Front (selfie) camera Video
1080p, 30fps

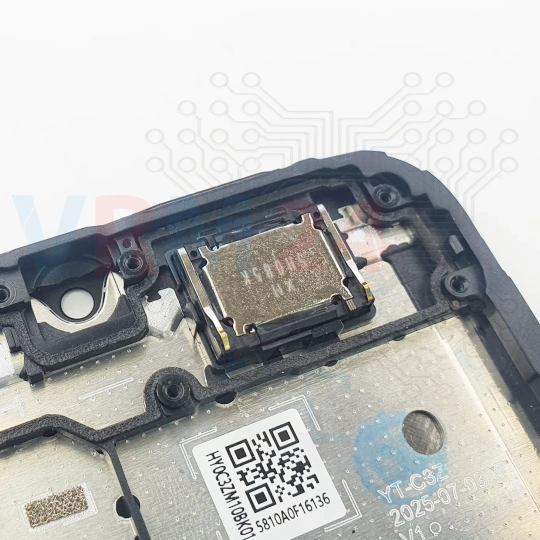

Audio
Yes

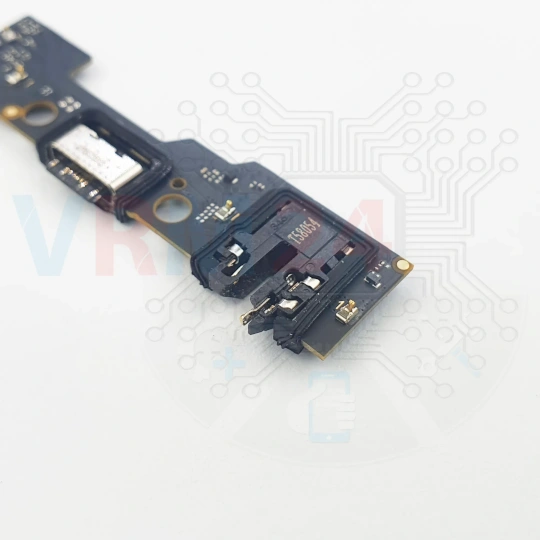

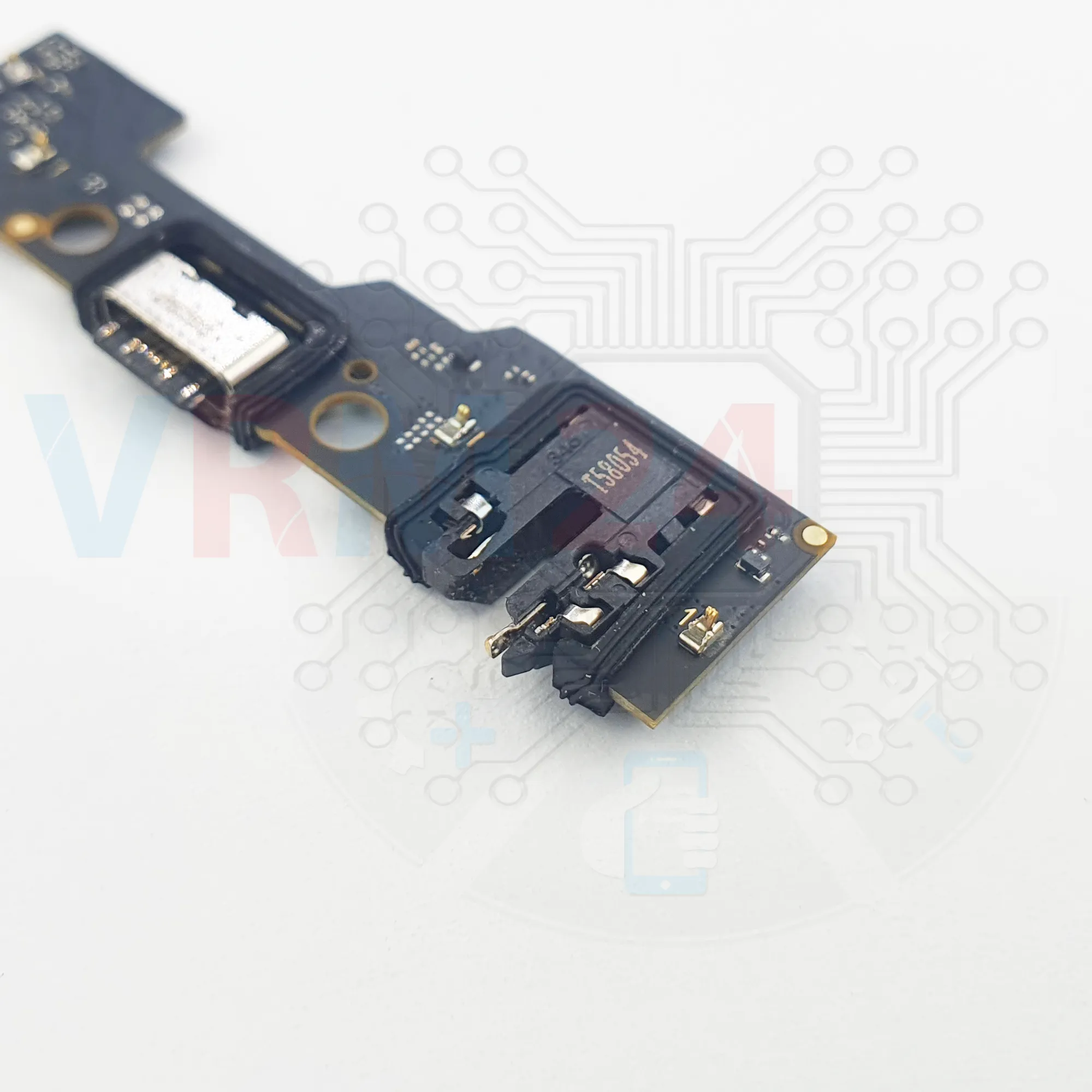

Headphone jack
Yes, 3.5mm jack
Network
Technology
GSM / HSPA / LTE
LTE
Yes, 4G bands 1, 3, 5, 7, 8, 20, 28, 38, 40, 41
Interfaces
Wi-Fi 802.11 a/b/g/n/ac, dual-band, Bluetooth 5.2, A2DP, LE
Satellite navigation
Yes, GPS, GLONASS, GALILEO, BDS
Processor and Memory
System on a chip
Unisoc T7250
CPU
Octa Core 2x Cortex-A75 1.8 GHz & 6x Cortex-A55 1.6 GHz
GPU
Mali-G57 MP1
Internal memory
64 GB or 128 GB
RAM
3 GB or 4 GB or 6 GB
Card slot
Yes

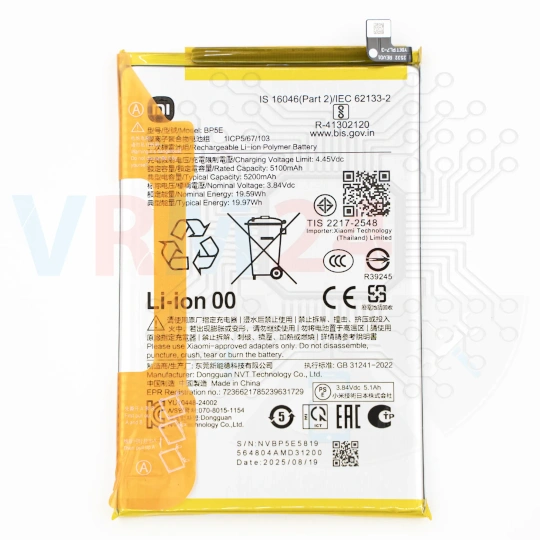

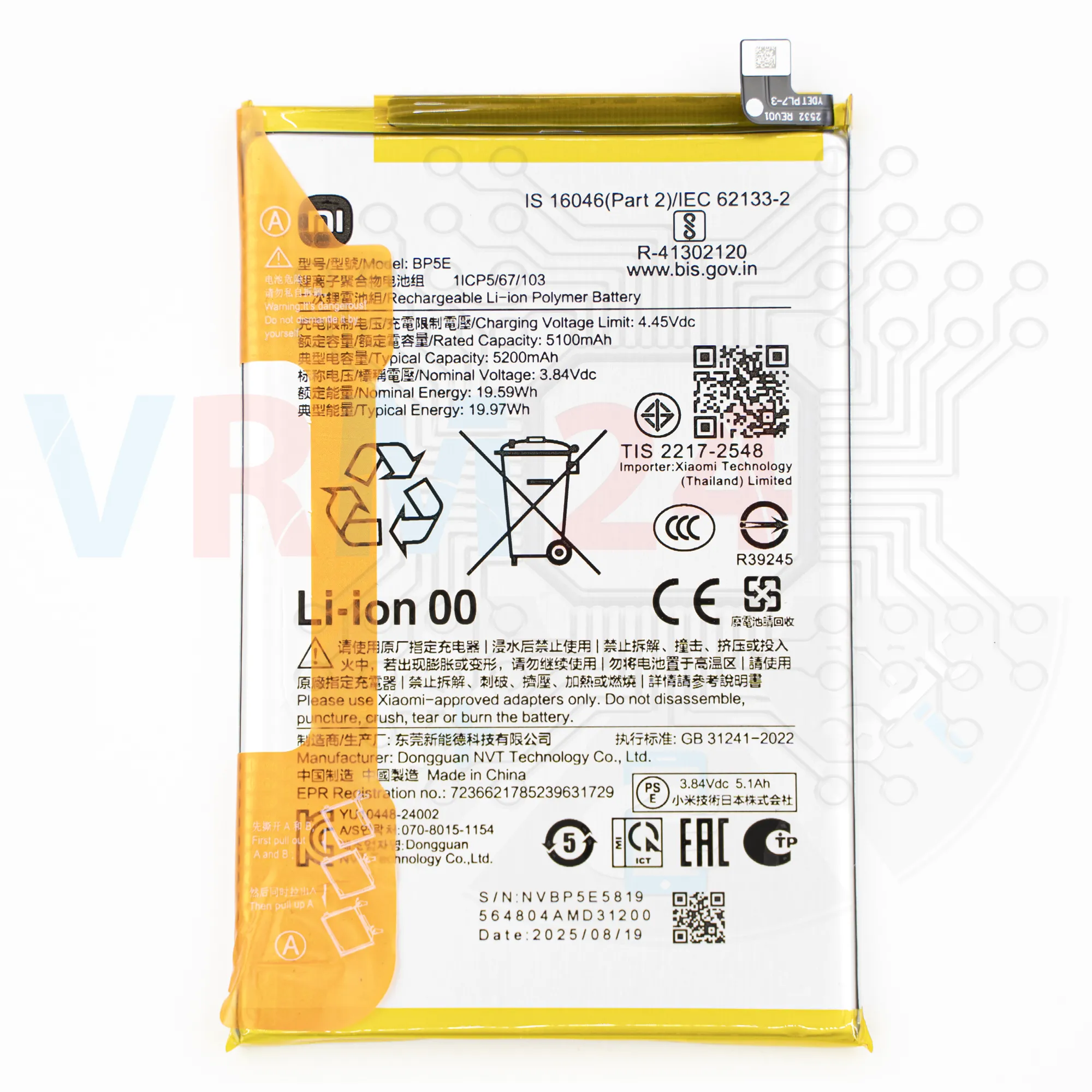

Battery
Battery capacity
Li-Ion 5200 mAh

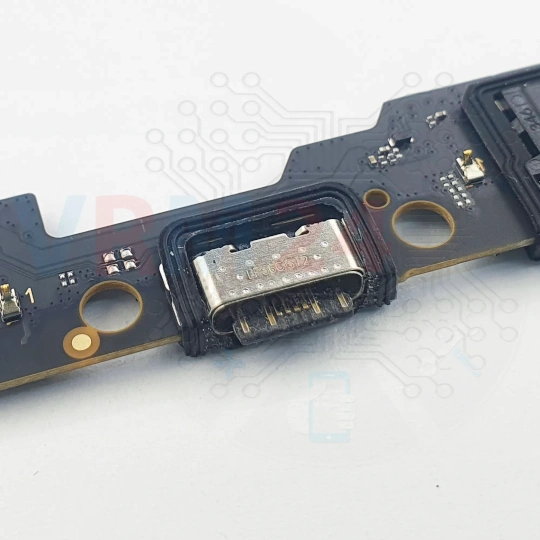

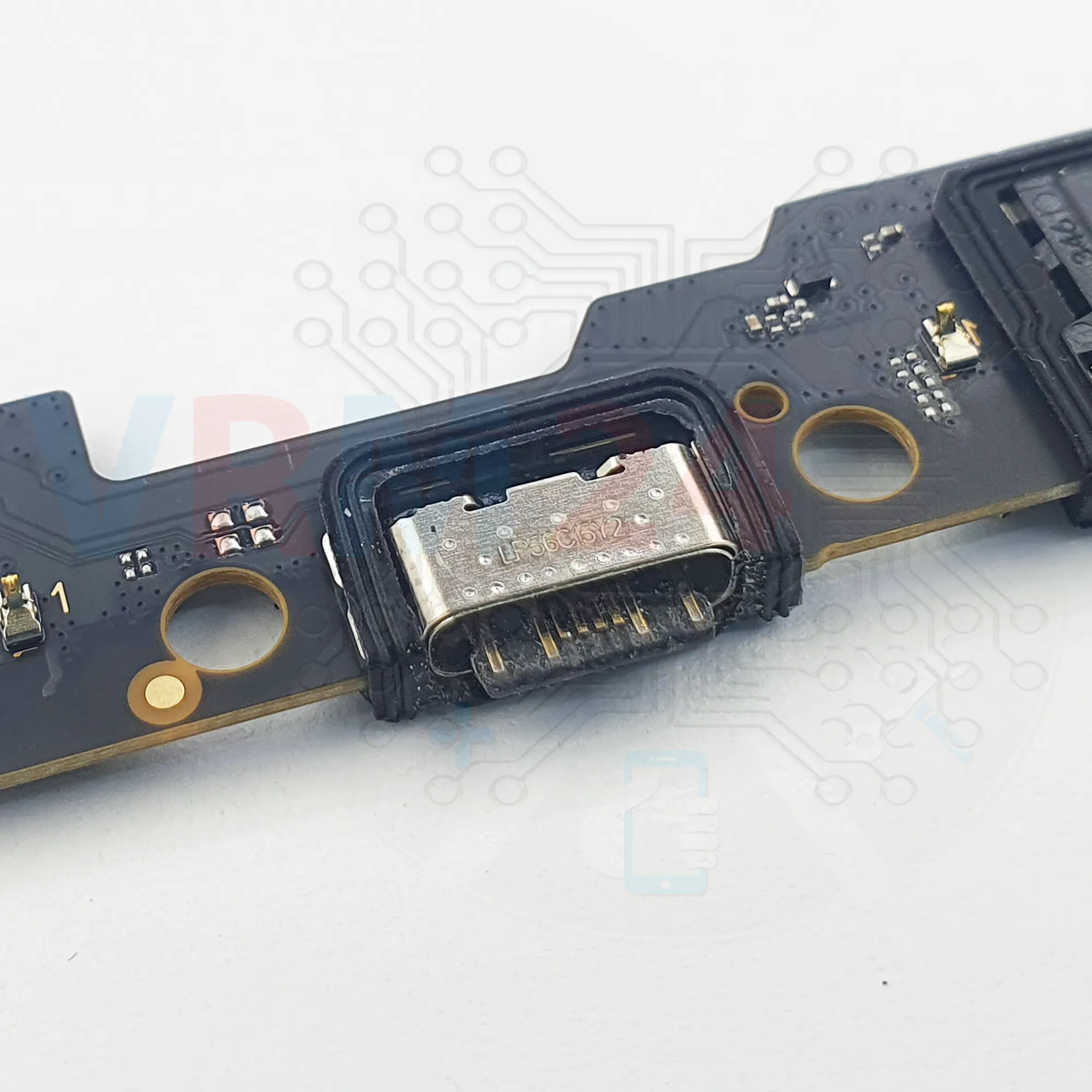

Charging port
USB Type-C 2.0
Other
Announced
2025, March
If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.
Based on our experience, we made a selection of the most common malfunctions of mobile devices and evaluated the difficulty of performing repairs for each of them. The final evaluation of the difficulty of the repair is the sum of all the parameters.
This difficulty rating is also applicable for all models Xiaomi RedMi A5 — Xiaomi RedMi A5 25028RN03A released for markets in different countries.
