Asus ZenFone Go ZB551KL
Asus ZenFone Go ZB551KL
Teardown difficulty:
Easy
Duration:
6 min

Recommended tools

Screwdriver Torx T5 Screwdriver torx t5
Opening tool / Spudger Opening tool / spudger
Tweezers Tweezers

Disassembly/Repair of the mobile device Asus ZenFone Go ZB551KL with each step description and the required set of tools.

Vadim Popoff

Specialist in content creation, distribution and content management.

How to disassemble Asus ZenFone Go ZB551KL, Step 1/1 How to disassemble Asus ZenFone Go ZB551KL, Step 1/2

Step 1.

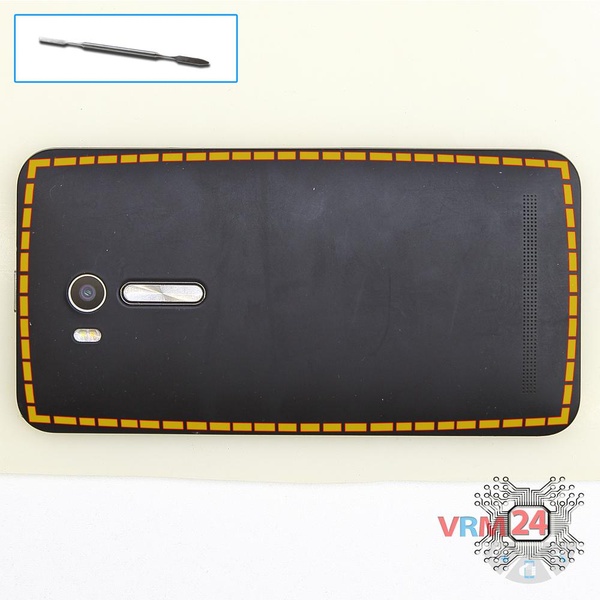

Open the back cover.

How to disassemble Asus ZenFone Go ZB551KL, Step 2/1 How to disassemble Asus ZenFone Go ZB551KL, Step 2/2

Step 2.

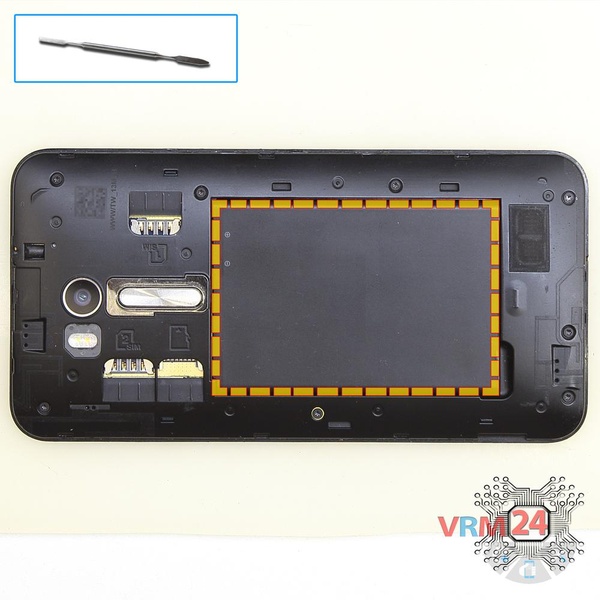

Lift and remove the battery.

How to disassemble Asus ZenFone Go ZB551KL, Step 3/1 How to disassemble Asus ZenFone Go ZB551KL, Step 3/2

Step 3.

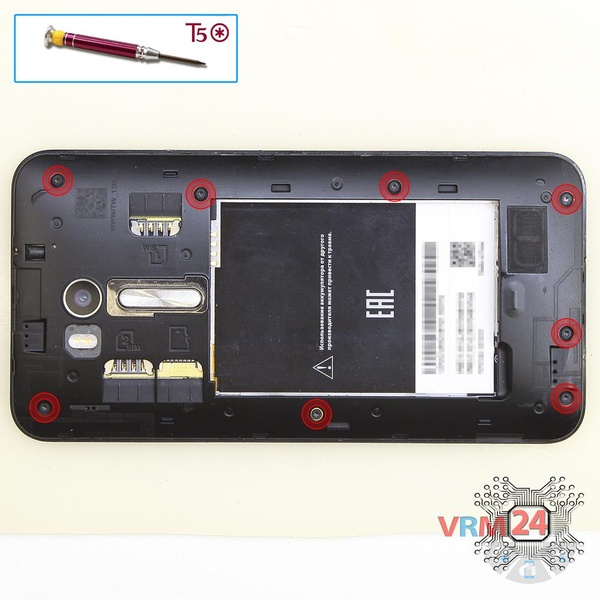

Using a screwdriver (hex T5), unscrew 8 bolts in the frame of the phone.

How to disassemble Asus ZenFone Go ZB551KL, Step 4/1 How to disassemble Asus ZenFone Go ZB551KL, Step 4/2

Step 4.

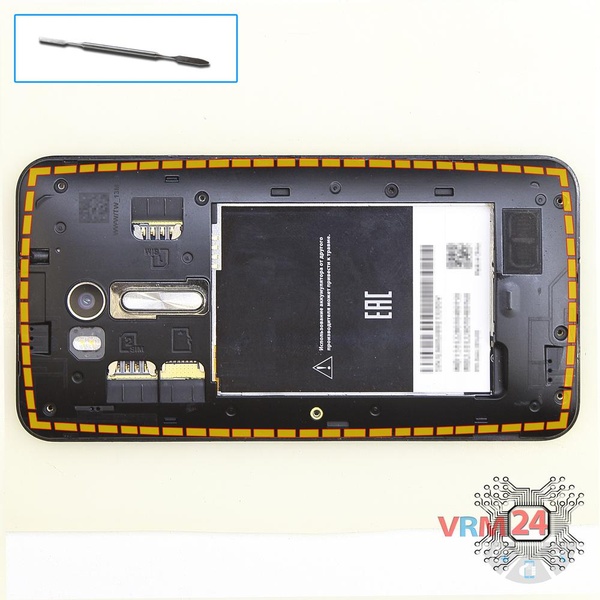

Pry and remove the middle frame.

How to disassemble Asus ZenFone Go ZB551KL, Step 5/1

Step 5.

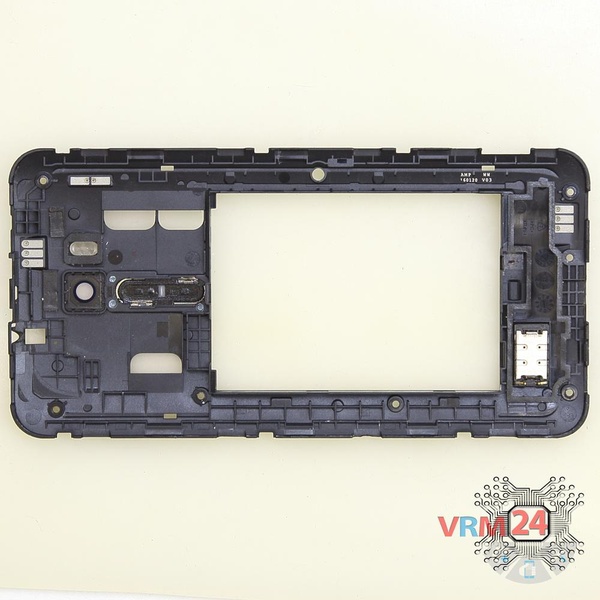

The middle frame.

How to disassemble Asus ZenFone Go ZB551KL, Step 6/1 How to disassemble Asus ZenFone Go ZB551KL, Step 6/2

Step 6.

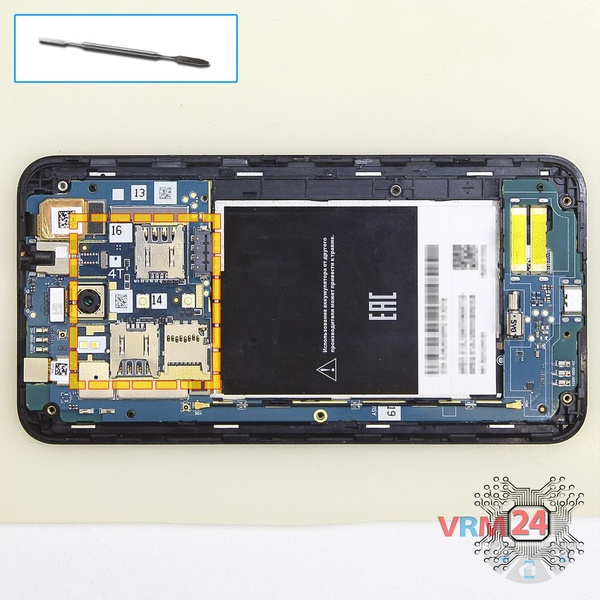

Pry off the board with SIM and Memory card connectors/holders.

⚠️ Warning!

The connector locates on the inside.

How to disassemble Asus ZenFone Go ZB551KL, Step 7/1 How to disassemble Asus ZenFone Go ZB551KL, Step 7/2

Step 7.

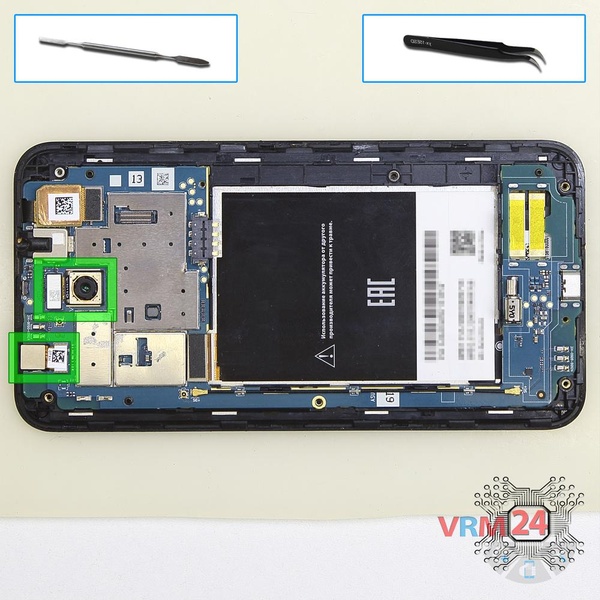

Disconnect connectors on the PCB and remove the main and front (selfie) cameras.

How to disassemble Asus ZenFone Go ZB551KL, Step 8/1 How to disassemble Asus ZenFone Go ZB551KL, Step 8/2 How to disassemble Asus ZenFone Go ZB551KL, Step 8/3

Step 8.

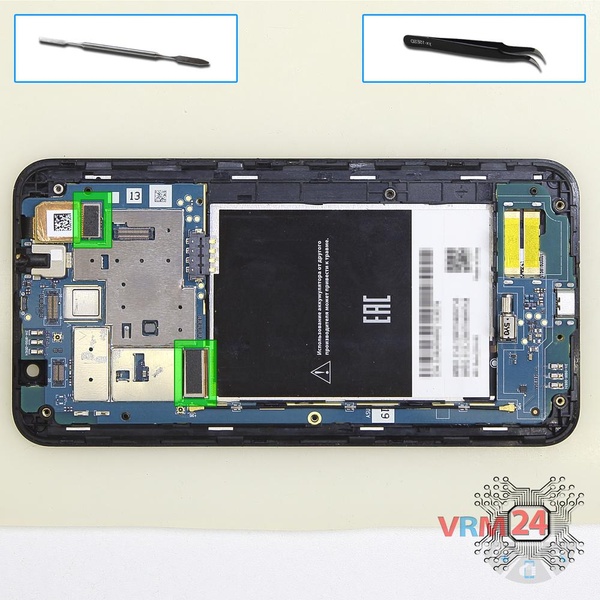

Disconnect connectors on the PCB.

How to disassemble Asus ZenFone Go ZB551KL, Step 9/1 How to disassemble Asus ZenFone Go ZB551KL, Step 9/2

Step 9.

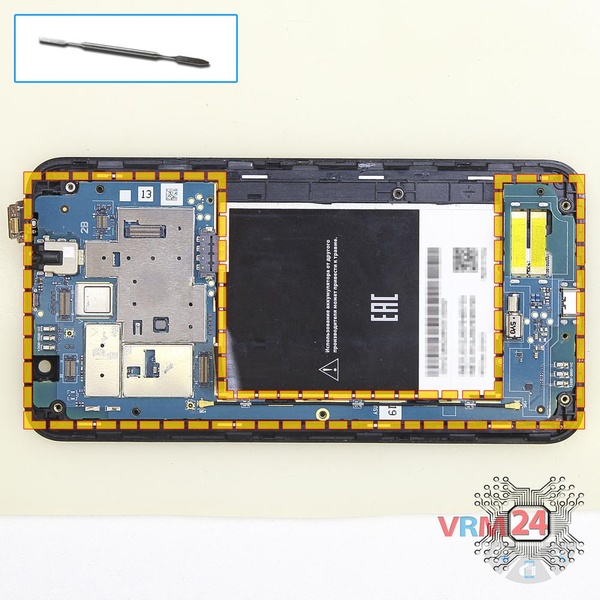

Remove the PCB.

How to disassemble Asus ZenFone Go ZB551KL, Step 10/1 How to disassemble Asus ZenFone Go ZB551KL, Step 10/2

Step 10.

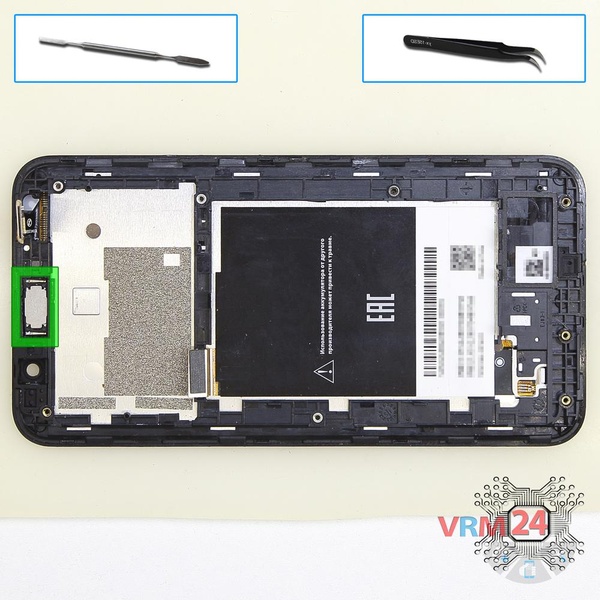

Pry and remove the earpiece speaker.

How to disassemble Asus ZenFone Go ZB551KL, Step 11/1 How to disassemble Asus ZenFone Go ZB551KL, Step 11/2 How to disassemble Asus ZenFone Go ZB551KL, Step 11/3

Step 11.

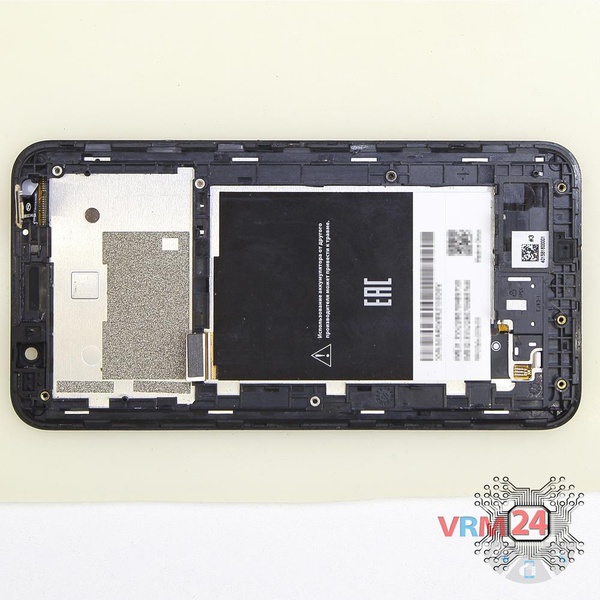

Parts in the frame of the display module.

Detailed disassembly instructions of Asus ZenFone Go ZB551KL in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

#instructions #Asus #Asus ZenFone Go ZB551KL
Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer

Disassembling\Repair has easy complexity and takes about 6 minutes in time.
Our manual is suitable for all models Asus ZenFone Go ZB551KL released for markets in different countries.
