Samsung Gear S2 SM-R720
Samsung Gear S2 SM-R720
Teardown difficulty:
Easy
Duration:
9 min

Recommended tools

Screwdriver Phillips #000 Screwdriver phillips #000
Opening tool / Spudger Opening tool / spudger
Tweezers Tweezers

Disassembly/Repair of the mobile device Samsung Gear S2 SM-R720 with each step description and the required set of tools.

Vadim Popoff

Author, currently - Quality Assurance Specialist

How to disassemble Samsung Gear S2 SM-R720, Step 1/1 How to disassemble Samsung Gear S2 SM-R720, Step 1/2

Step 1.

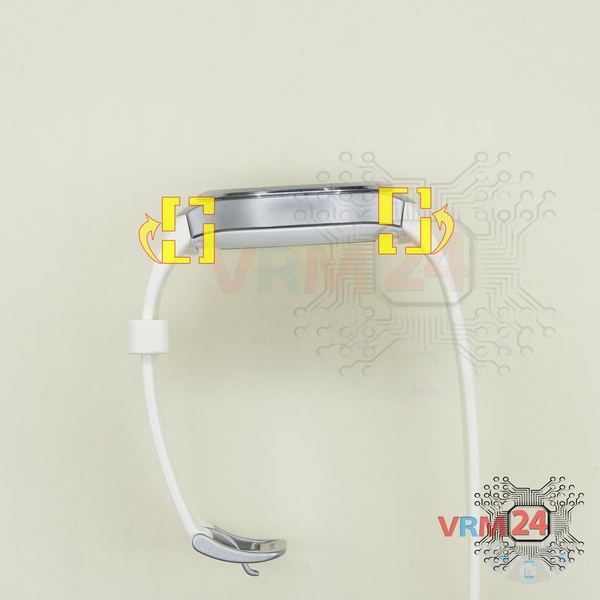

Remove the watch strap.

How to disassemble Samsung Gear S2 SM-R720, Step 2/1 How to disassemble Samsung Gear S2 SM-R720, Step 2/2

Step 2.

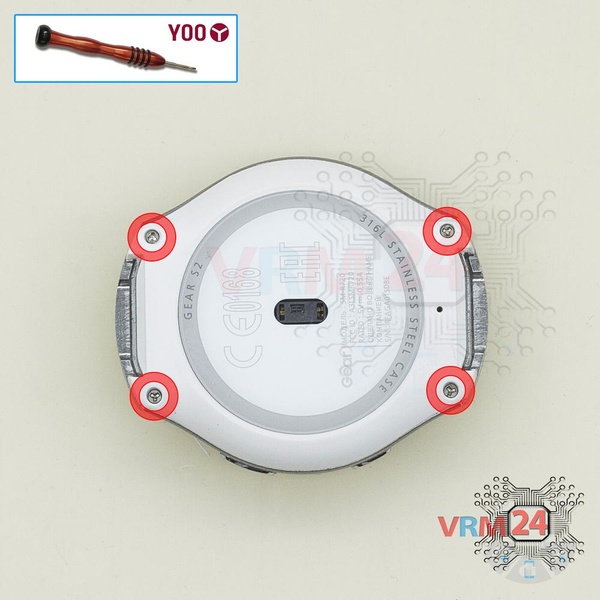

Using a screwdriver (tri point screwdriver Y00), unscrew 4 bolts.

How to disassemble Samsung Gear S2 SM-R720, Step 3/1 How to disassemble Samsung Gear S2 SM-R720, Step 3/2

Step 3.

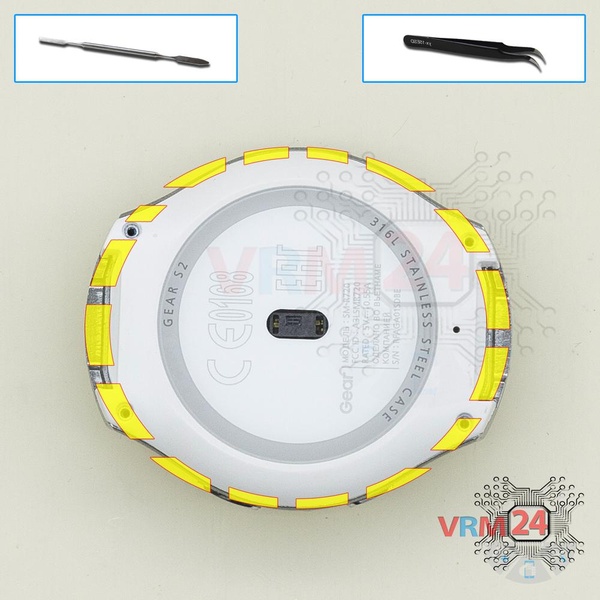

Open the back cover.

How to disassemble Samsung Gear S2 SM-R720, Step 4/1 How to disassemble Samsung Gear S2 SM-R720, Step 4/2

Step 4.

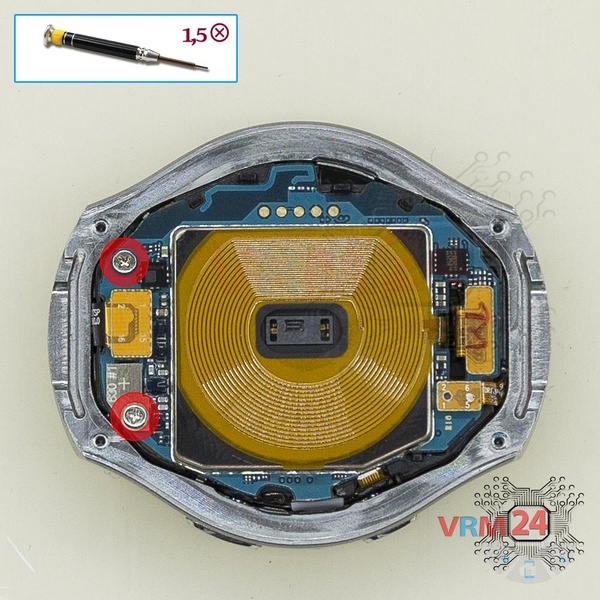

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 2 bolts in the PCB.

How to disassemble Samsung Gear S2 SM-R720, Step 5/1

Step 5.

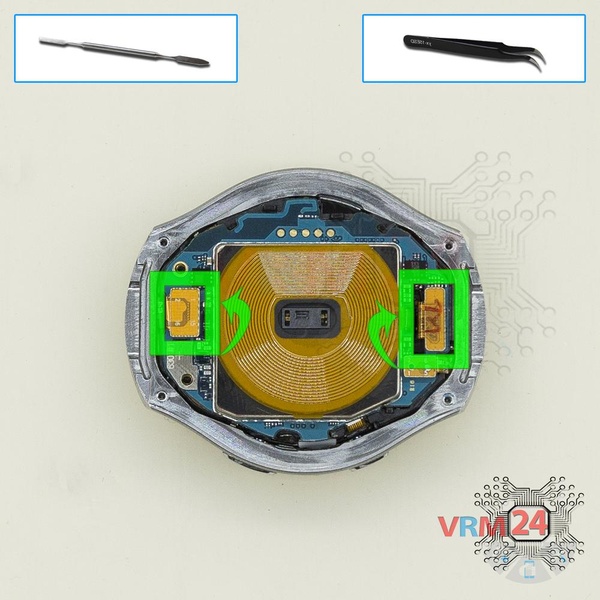

Disconnect connectors on the PCB.

How to disassemble Samsung Gear S2 SM-R720, Step 6/1 How to disassemble Samsung Gear S2 SM-R720, Step 6/2

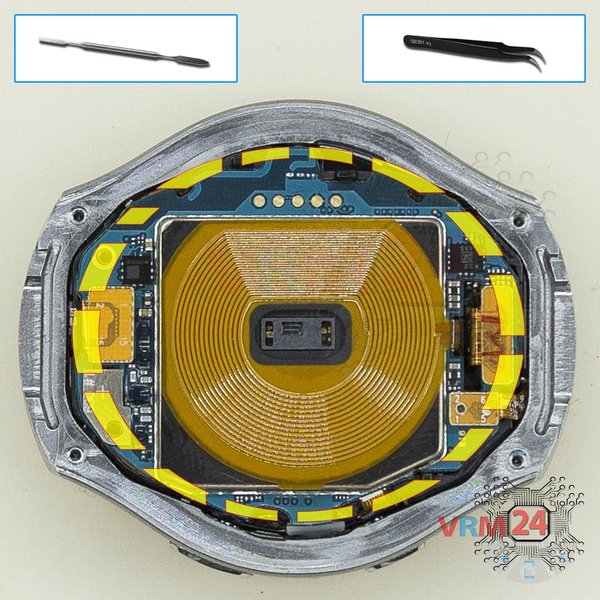

Step 6.

Remove the PCB.

How to disassemble Samsung Gear S2 SM-R720, Step 7/1

Step 7.

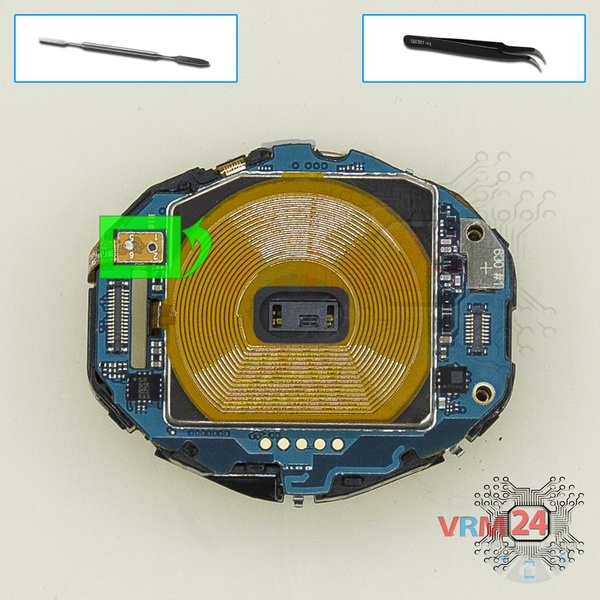

Disconnect a connector on the PCB.

How to disassemble Samsung Gear S2 SM-R720, Step 8/1 How to disassemble Samsung Gear S2 SM-R720, Step 8/2

Step 8.

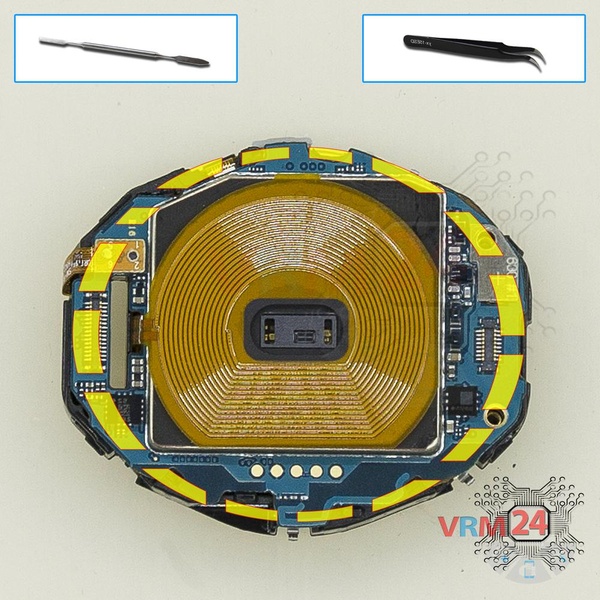

Separate PCB from the cover.

Detailed disassembly instructions of Samsung Gear S2 SM-R720 in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

#instructions #Samsung #Samsung Gear S2 SM-R720
Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer

Disassembling\Repair has easy complexity and takes about 9 minutes in time.
Our manual is suitable for all models Samsung Gear S2 SM-R720 released for markets in different countries.
