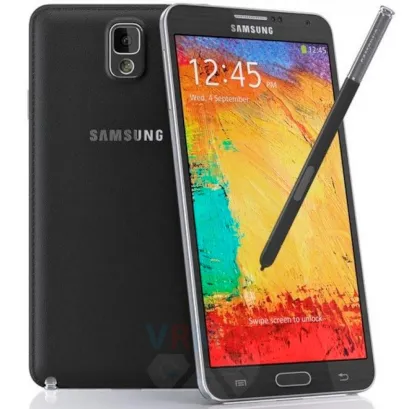

Samsung Galaxy Note 3 SM-N9000

Teardown difficulty:
Moderate

Duration:
4 min

Recommended tools

Screwdriver phillips #000

Opening tool / spudger

Tweezers

Disassembly/Repair of the mobile device Samsung Galaxy Note 3 SM-N9000 (Samsung N9000 (3G); N9005 (3G/LTE) or Samsung Galaxy Note III; Samsung Galaxy Note 3 N9002) with each step description and the required set of tools.

Vadim Popoff

Quality assurance specialist

Author, currently - Quality Assurance Specialist

How to disassemble Samsung Galaxy Note 3 SM-N9000, Step 1/1

How to disassemble Samsung Galaxy Note 3 SM-N9000, Step 1/2

Step 1.

Open the back cover. Pull out the stylus pen.

How to disassemble Samsung Galaxy Note 3 SM-N9000, Step 2/1

How to disassemble Samsung Galaxy Note 3 SM-N9000, Step 2/2

Step 2.

Lift and remove the battery.

How to disassemble Samsung Galaxy Note 3 SM-N9000, Step 3/1

How to disassemble Samsung Galaxy Note 3 SM-N9000, Step 3/2

Step 3.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 12 bolts in the frame of the phone.

How to disassemble Samsung Galaxy Note 3 SM-N9000, Step 4/1

How to disassemble Samsung Galaxy Note 3 SM-N9000, Step 4/2

Step 4.

Pry and remove the middle frame.

Step 5.

The middle frame.

How to disassemble Samsung Galaxy Note 3 SM-N9000, Step 6/1

How to disassemble Samsung Galaxy Note 3 SM-N9000, Step 6/2

Step 6.

Pry up the connectors and remove the coaxial cable.

How to disassemble Samsung Galaxy Note 3 SM-N9000, Step 7/1

How to disassemble Samsung Galaxy Note 3 SM-N9000, Step 7/2

How to disassemble Samsung Galaxy Note 3 SM-N9000, Step 7/3

Step 7.

Pry up the inter-board cable connector and remove the lower PCB.

How to disassemble Samsung Galaxy Note 3 SM-N9000, Step 8/1

How to disassemble Samsung Galaxy Note 3 SM-N9000, Step 8/2

Step 8.

Disconnect the connector on PCB, and remove the front (selfie) camera.

How to disassemble Samsung Galaxy Note 3 SM-N9000, Step 9/1

How to disassemble Samsung Galaxy Note 3 SM-N9000, Step 9/2

How to disassemble Samsung Galaxy Note 3 SM-N9000, Step 9/3

Step 9.

Disconnect connectors on the PCB.

How to disassemble Samsung Galaxy Note 3 SM-N9000, Step 10/1

How to disassemble Samsung Galaxy Note 3 SM-N9000, Step 10/2

Step 10.

Remove the PCB.

How to disassemble Samsung Galaxy Note 3 SM-N9000, Step 11/1

How to disassemble Samsung Galaxy Note 3 SM-N9000, Step 11/2

Step 11.

Pry and remove the vibration motor.

How to disassemble Samsung Galaxy Note 3 SM-N9000, Step 12/1

How to disassemble Samsung Galaxy Note 3 SM-N9000, Step 12/2

Step 12.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 1 bolt. Pry and remove the cable with a earpiece (speaker) and headphone jack/socket.

How to disassemble Samsung Galaxy Note 3 SM-N9000, Step 13/1

How to disassemble Samsung Galaxy Note 3 SM-N9000, Step 13/2

How to disassemble Samsung Galaxy Note 3 SM-N9000, Step 13/3

Step 13.

Parts are in the frame of the display module.

Detailed disassembly instructions of Samsung Galaxy Note 3 SM-N9000 in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

#instructions #Samsung #Samsung Galaxy Note 3 SM-N9000

Evgenii Kuzmin

Senior maintenance service and repair engineer

Disassembling\Repair has medium complexity and takes about 4 minutes in time.
Our manual is suitable for all models Samsung Galaxy Note 3 SM-N9000 — Samsung N9000 (3G); N9005 (3G/LTE) or Samsung Galaxy Note III; Samsung Galaxy Note 3 N9002 released for markets in different countries.
