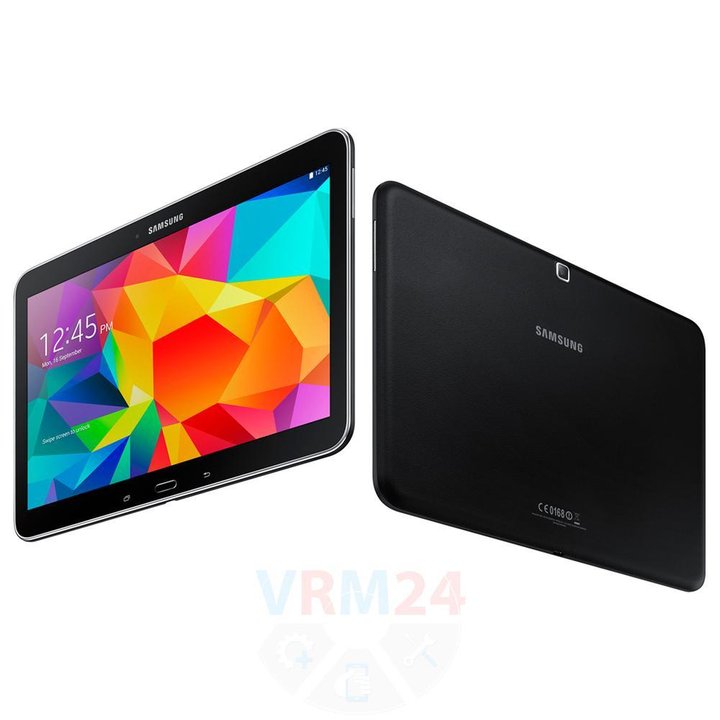

Samsung Galaxy Tab 4 10.1'' SM-T531
Samsung Galaxy Tab 4 10.1'' SM-T531
Teardown difficulty:
Moderate
Duration:
8 min

Recommended tools

Screwdriver Phillips #000 Screwdriver phillips #000
Opening tool / Spudger Opening tool / spudger
Tweezers Tweezers

Disassembly/Repair of the mobile device Samsung Galaxy Tab 4 10.1'' SM-T531 (Samsung T530, Galaxy Tab4 10.1) with each step description and the required set of tools.

Vadim Popoff

Author / Content specialist with 10+ years of experience

How to disassemble Samsung Galaxy Tab 4 10.1'' SM-T531, Step 1/1 How to disassemble Samsung Galaxy Tab 4 10.1'' SM-T531, Step 1/2

Step 1.

Open the back cover.

How to disassemble Samsung Galaxy Tab 4 10.1'' SM-T531, Step 2/1 How to disassemble Samsung Galaxy Tab 4 10.1'' SM-T531, Step 2/2 How to disassemble Samsung Galaxy Tab 4 10.1'' SM-T531, Step 2/3

Step 2.

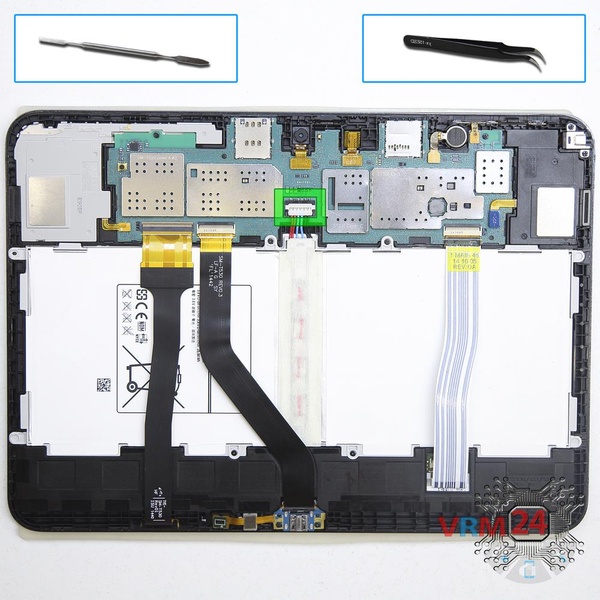

Disconnect the battery connector.

⚠️ Warning!

We strongly recommend disconnecting the connector to avoid a possible short circuit during disassembly.

How to disassemble Samsung Galaxy Tab 4 10.1'' SM-T531, Step 3/1 How to disassemble Samsung Galaxy Tab 4 10.1'' SM-T531, Step 3/2 How to disassemble Samsung Galaxy Tab 4 10.1'' SM-T531, Step 3/3

Step 3.

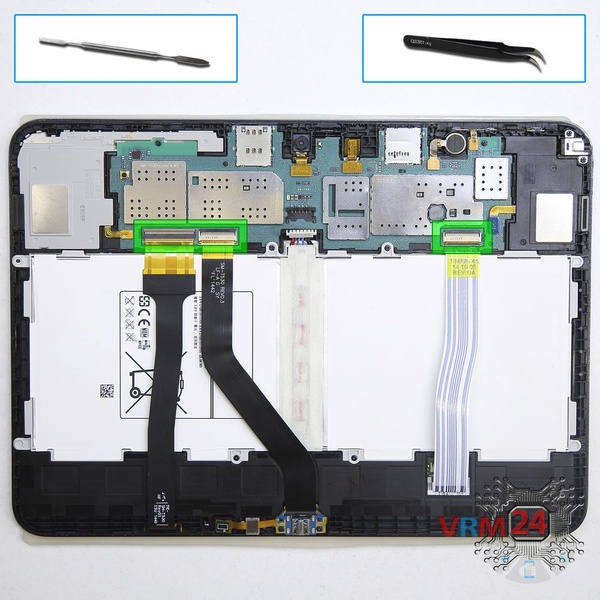

Disconnect connectors on the PCB.

How to disassemble Samsung Galaxy Tab 4 10.1'' SM-T531, Step 4/1 How to disassemble Samsung Galaxy Tab 4 10.1'' SM-T531, Step 4/2 How to disassemble Samsung Galaxy Tab 4 10.1'' SM-T531, Step 4/3

Step 4.

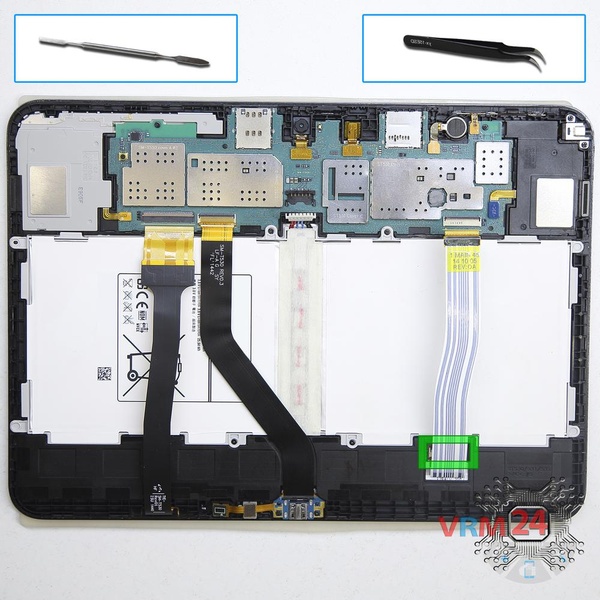

Disconnect the connector and remove the inter-board cable.

How to disassemble Samsung Galaxy Tab 4 10.1'' SM-T531, Step 5/1 How to disassemble Samsung Galaxy Tab 4 10.1'' SM-T531, Step 5/2

Step 5.

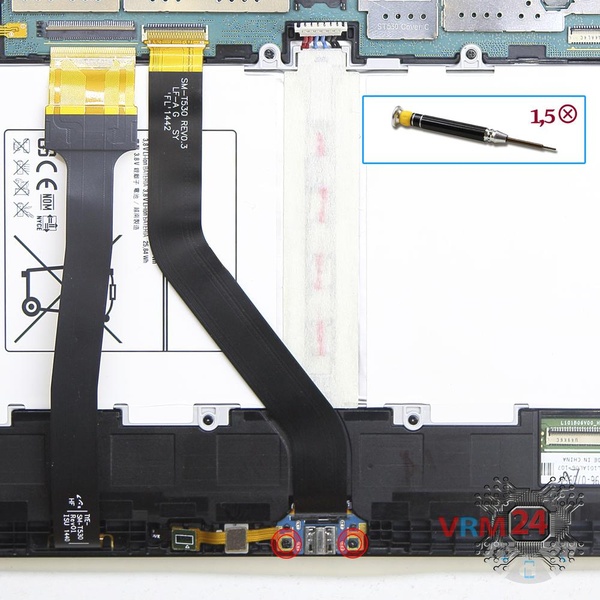

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 2 bolts securing the charging port.

How to disassemble Samsung Galaxy Tab 4 10.1'' SM-T531, Step 6/1 How to disassemble Samsung Galaxy Tab 4 10.1'' SM-T531, Step 6/2

Step 6.

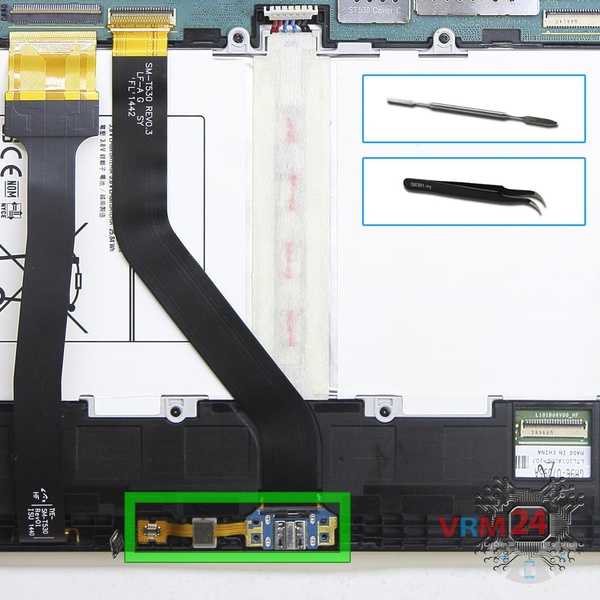

Disconnect the connector and remove the inter-board cable with charging port and microphone.

How to disassemble Samsung Galaxy Tab 4 10.1'' SM-T531, Step 7/1 How to disassemble Samsung Galaxy Tab 4 10.1'' SM-T531, Step 7/2

Step 7.

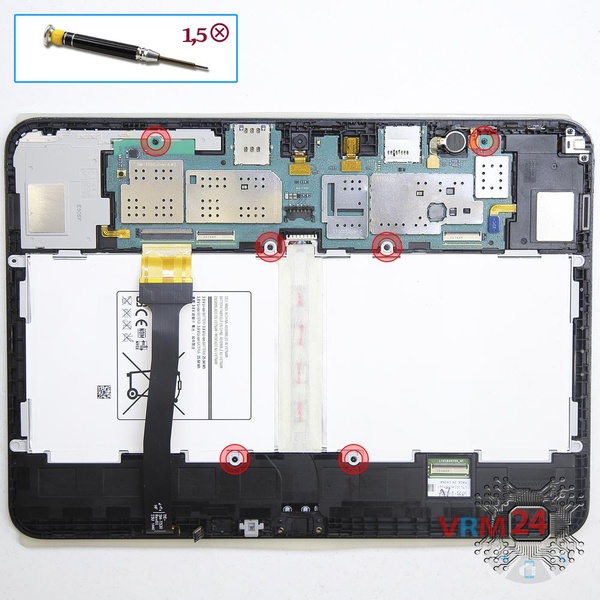

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 4 bolts securing the battery and unscrew 2 bolts in the PCB.

How to disassemble Samsung Galaxy Tab 4 10.1'' SM-T531, Step 8/1 How to disassemble Samsung Galaxy Tab 4 10.1'' SM-T531, Step 8/2

Step 8.

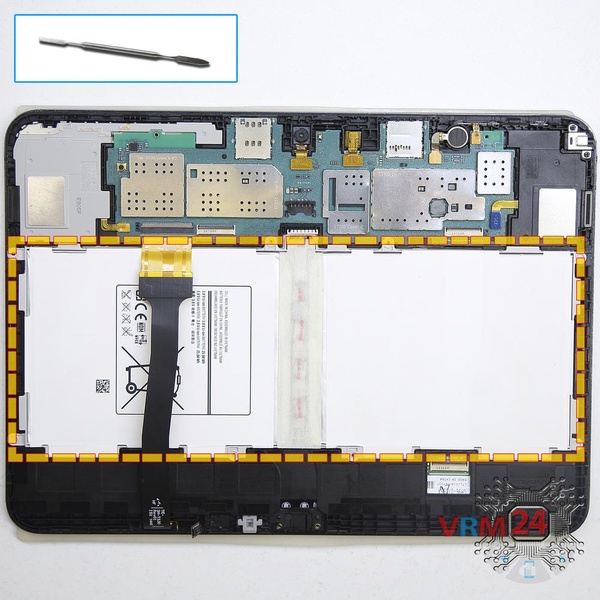

Lift and remove the battery.

How to disassemble Samsung Galaxy Tab 4 10.1'' SM-T531, Step 9/1 How to disassemble Samsung Galaxy Tab 4 10.1'' SM-T531, Step 9/2

Step 9.

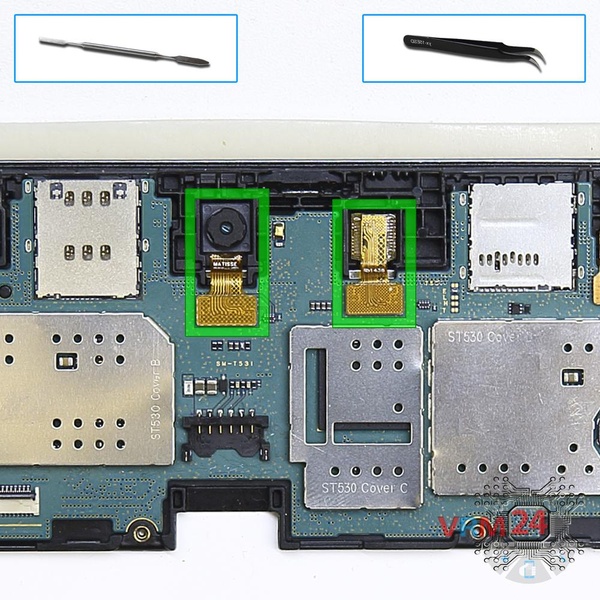

Disconnect connectors on PCB and remove the main and front (selfie) cameras.

How to disassemble Samsung Galaxy Tab 4 10.1'' SM-T531, Step 10/1 How to disassemble Samsung Galaxy Tab 4 10.1'' SM-T531, Step 10/2 How to disassemble Samsung Galaxy Tab 4 10.1'' SM-T531, Step 10/3

Step 10.

Disconnect connectors on the PCB.

How to disassemble Samsung Galaxy Tab 4 10.1'' SM-T531, Step 11/1 How to disassemble Samsung Galaxy Tab 4 10.1'' SM-T531, Step 11/2

Step 11.

Remove the PCB.

How to disassemble Samsung Galaxy Tab 4 10.1'' SM-T531, Step 12/1 How to disassemble Samsung Galaxy Tab 4 10.1'' SM-T531, Step 12/2

Step 12.

Pry & remove the vibration motor & power & volume buttons flex cable.

How to disassemble Samsung Galaxy Tab 4 10.1'' SM-T531, Step 13/1 How to disassemble Samsung Galaxy Tab 4 10.1'' SM-T531, Step 13/2

Step 13.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 2 bolts and remove the assembly with abuzzer (speaker) and headphone jack/socket.

How to disassemble Samsung Galaxy Tab 4 10.1'' SM-T531, Step 14/1 How to disassemble Samsung Galaxy Tab 4 10.1'' SM-T531, Step 14/2

Step 14.

Remove the other buzzer (speaker) assembly.

How to disassemble Samsung Galaxy Tab 4 10.1'' SM-T531, Step 15/1 How to disassemble Samsung Galaxy Tab 4 10.1'' SM-T531, Step 15/2 How to disassemble Samsung Galaxy Tab 4 10.1'' SM-T531, Step 15/3

Step 15.

Parts are in the frame of the display module.

Detailed disassembly instructions of Samsung Galaxy Tab 4 10.1'' SM-T531 in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

#instructions #Samsung #Samsung Galaxy Tab 4 10.1'' SM-T531
Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer

Disassembling\Repair has medium complexity and takes about 8 minutes in time.
Our manual is suitable for all models Samsung Galaxy Tab 4 10.1'' SM-T531 — Samsung T530, Galaxy Tab4 10.1 released for markets in different countries.
