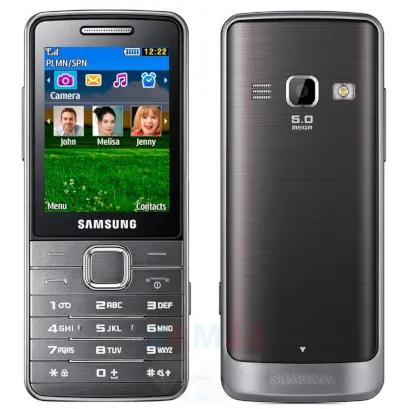

Disassembly/Repair of the mobile device Samsung Primo GT-S5610 with each step description and the required set of tools.

8620

Views

—

Share

18

Questions

Vadim Popoff

Vadim Popoff

Content manager / Author / Content specialist

Content specialist with over 10 years of experience in the technology industry.

Open the back cover

Step 1.

Open the back cover

Open the back cover.

Remove the battery

Step 2.

Remove the battery

Lift and remove the battery.

Unscrew the screws

Step 3.

Unscrew the screws

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 6 bolts in the frame of the phone.

Open the mid-frame

Step 4.

Open the mid-frame

Pry and remove the middle frame.

Disconnect the connector

Step 5.

Disconnect the connector

Disconnect the connector on PCB.

Remove the motherboard

Step 6.

Remove the motherboard

Remove the PCB.

In the display frame remained

Step 7.

In the display frame remained

The front frame with display.

Unscrew the screws

Step 8.

Unscrew the screws

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 2 bolts in the cover hiding the chips.

Remove the cameras

Step 9.

Remove the cameras

Disconnect connectors on the PCB, and remove the main camera and flash.
