VRM24 🤖 AI Review: Huawei Huawei Y5 (2017)

Huawei Y5 (2017): a technical overview based on VRM24’s recorded device data.

Design and display

Type: Smartphone; Announced: 2017, April; Dimensions: 143.8 x 72 x 8.4 mm (5.66 x 2.83 x 0.33 in); Weight: 150 g (5.29 oz); Display: IPS LCD; Size: 5.0 inches; Resolution: 720 x 1280 pixels, 16:9 ratio.

Display size and resolution describe the viewing format; brightness, colour accuracy and durability require separate testing.

Platform and memory

OS: Android 6.0 (Marshmallow); Chipset: Mediatek MT6737T; CPU: Quad-core Cortex-A53 1.4 GHz; GPU: Mali-T720MP2; RAM: 2 GB; Storage: 16 GB; Memory card: Micro SD, up to 128 GB (dedicated slot).

The chipset and memory describe the hardware configuration. They do not establish measured speed, gaming performance or current software support.

Cameras

Rear camera: 8 MP; Rear video: 1080p, 30fps; Front camera: 5 MP; Front video: 720p.

These are the recorded camera specifications. Image quality and stabilisation cannot be judged from resolution alone.

Battery and connections

Battery capacity: Li-Ion 3000 mAh; Battery model: HB405979ECW; Charging port: Micro USB 2.0; Headphone jack: Mini jack 3.5 mm; Interfaces: Wi-Fi 802.11n, Bluetooth 4.0; Networks: GSM/ 3G/ 4G LTE/LTE-A Cat.4; SIM: Dual SIM.

Battery capacity is not a measured runtime. Charging speed, battery condition and compatibility of replacement parts need separate verification.

What the specifications tell us

Use this overview to compare the recorded configuration with your needs. It does not provide benchmarks or hands-on performance measurements.

Prepared using ChatGPT-authored templates and VRM24’s own collected device data. Device details are inserted from our records; each overview is not individually written by a model. AI-assisted text and source data may contain errors. Actual performance may vary. Verify specifications and part compatibility before repair.

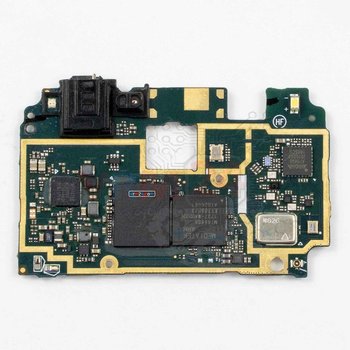

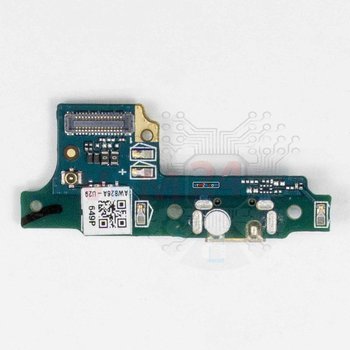

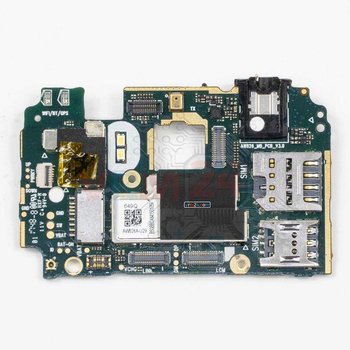

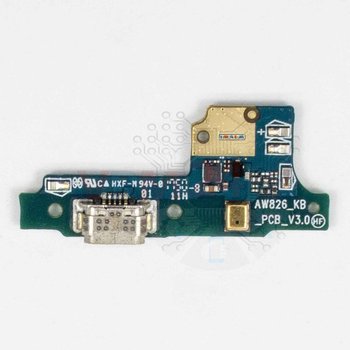

Main and additional circuit boards

Huawei Y5 (2017)
Side 1
Side 2

Spare parts

and components

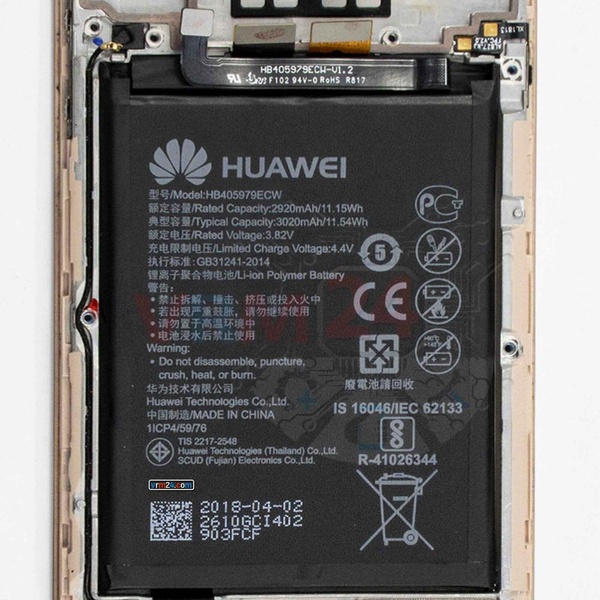

Battery
tech-review-of-Huawei Y5 (2017)
Loading...

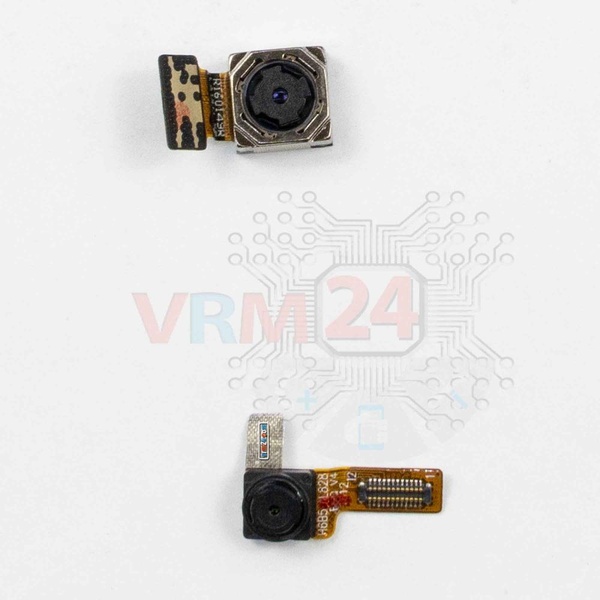

Cameras
tech-review-of-Huawei Y5 (2017)
Loading...

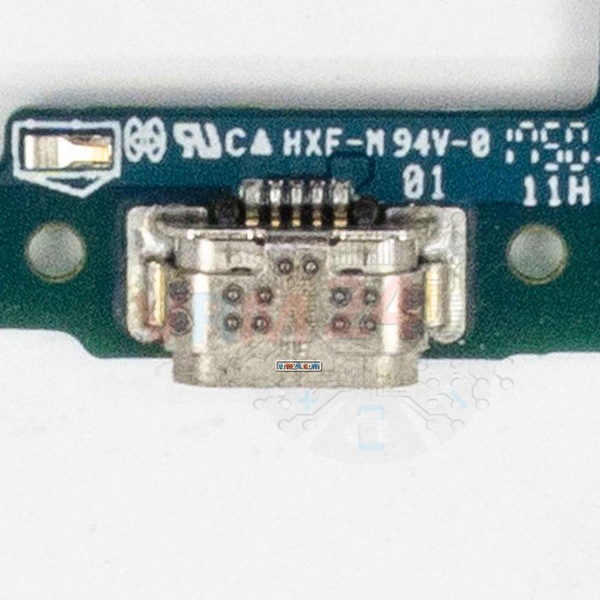

Charging port
tech-review-of-Huawei Y5 (2017)
Loading...

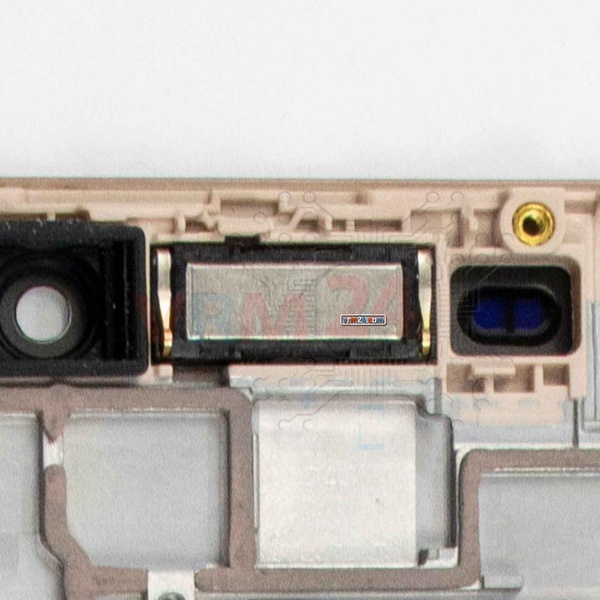

Earpiece speaker
tech-review-of-Huawei Y5 (2017)
Loading...

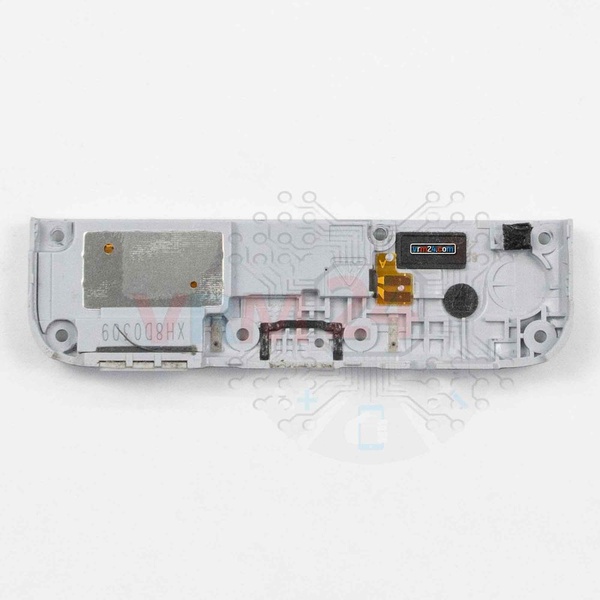

Loudspeaker
tech-review-of-Huawei Y5 (2017)
Loading...

Characteristics

and Features

Features

Type Smartphone
OS Android 6.0 (Marshmallow)
SIM type/size Micro-SIM / Nano SIM
SIM Dual SIM
Dimensions 143.8 x 72 x 8.4 mm (5.66 x 2.83 x 0.33 in)
Weight 150 g (5.29 oz)

Display

Display type IPS LCD
Size 5.0 inches
Resolution 720 x 1280 pixels, 16:9 ratio
PPI density 294
Protection ---

Multimedia

Main camera 8 MP
Main camera Video 1080p, 30fps
Front (selfie) camera 5 MP
Front (selfie) camera Video 720p
Audio MP3, AAC, WAV, WMA, FM-radio
Headphone jack Mini jack 3.5 mm

Network

Technology GSM/ 3G/ 4G LTE/LTE-A Cat.4
Bands Bands 1, 3, 7, 8, 20
Interfaces Wi-Fi 802.11n, Bluetooth 4.0
Satellite navigation GPS with A-GPS, GLONASS

Processor and Memory

System on a chip Mediatek MT6737T
CPU Quad-core Cortex-A53 1.4 GHz
GPU Mali-T720MP2
Internal memory 16 GB
RAM 2 GB
Card slot Micro SD, up to 128 GB (dedicated slot)

Battery

Battery capacity Li-Ion 3000 mAh
Charging port Micro USB 2.0
Battery model HB405979ECW

Other

Announced 2017, April

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

logo
519

Views

—

Share

8

Questions

Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer

Based on our experience, we made a selection of the most common malfunctions of mobile devices and evaluated the difficulty of performing repairs for each of them. The final evaluation of the difficulty of the repair is the sum of all the parameters. This difficulty rating is also applicable for all models Huawei Y5 (2017) — Huawei Y5 (2017) MYA-U29 released for markets in different countries.
