Tech review of Samsung Galaxy S9 SM-G960

Compare this model
Irene Lebed

Irene Lebed

Author, Content Specialist

Creates new content, including blogs, events, and news.

3

Views

—

Share

4

Questions

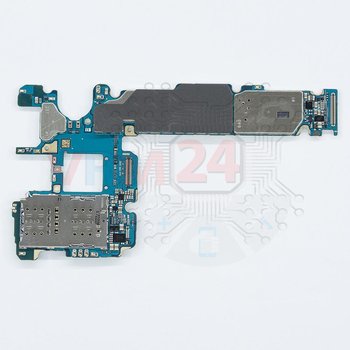

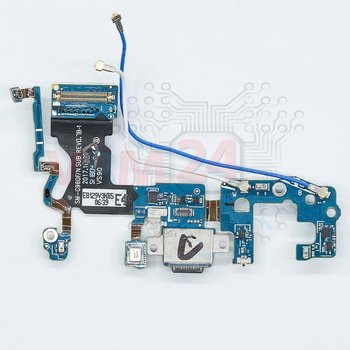

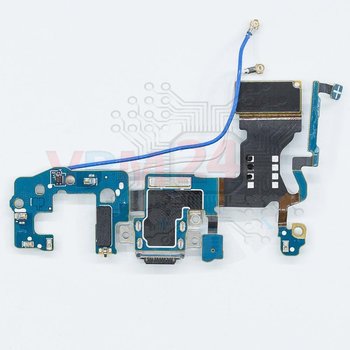

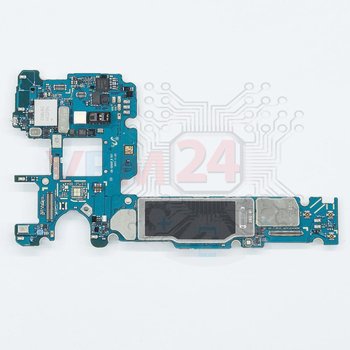

Main and additional circuit boards

Samsung Galaxy S9 SM-G960
Side 1
Side 2

Spare parts

and components
Battery
tech-review-of-Samsung Galaxy S9 SM-G960

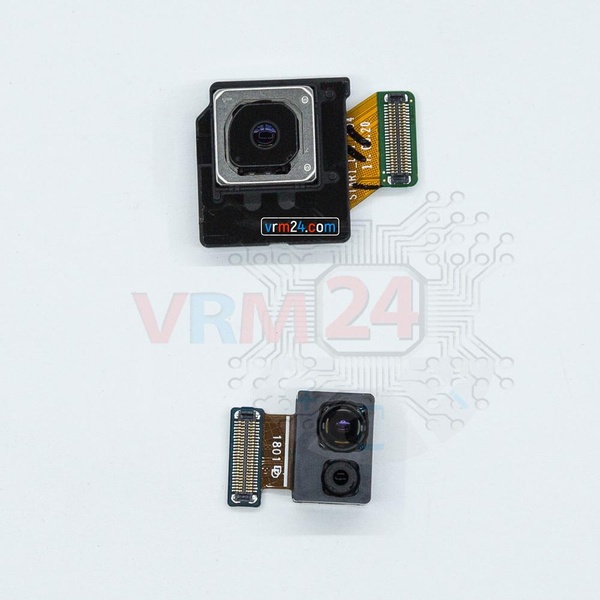

Cameras
tech-review-of-Samsung Galaxy S9 SM-G960

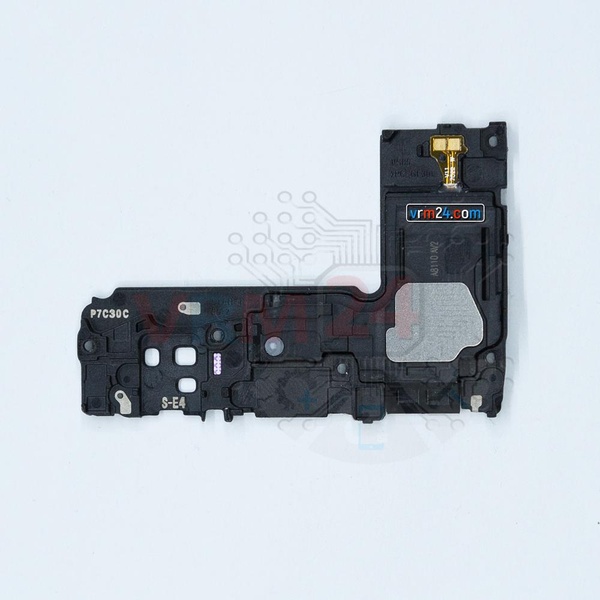

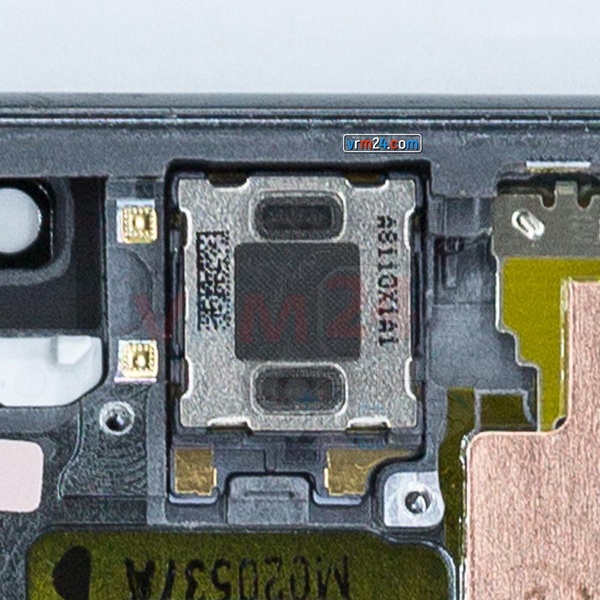

Loudspeaker
tech-review-of-Samsung Galaxy S9 SM-G960

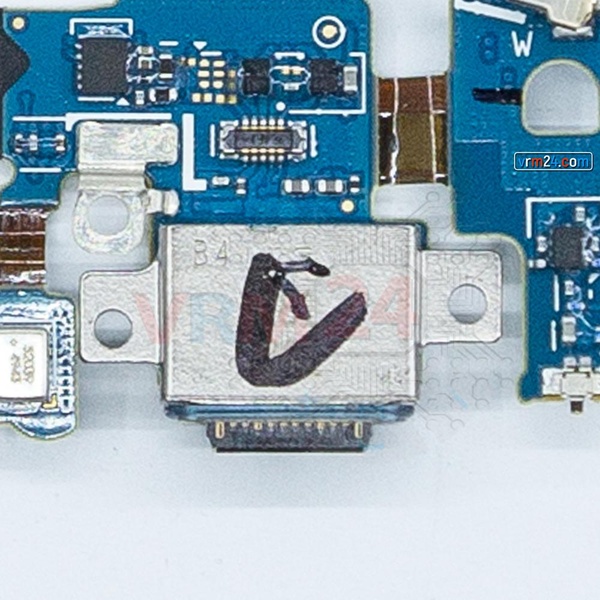

Charging port
tech-review-of-Samsung Galaxy S9 SM-G960
tech-review-of-Samsung Galaxy S9 SM-G960

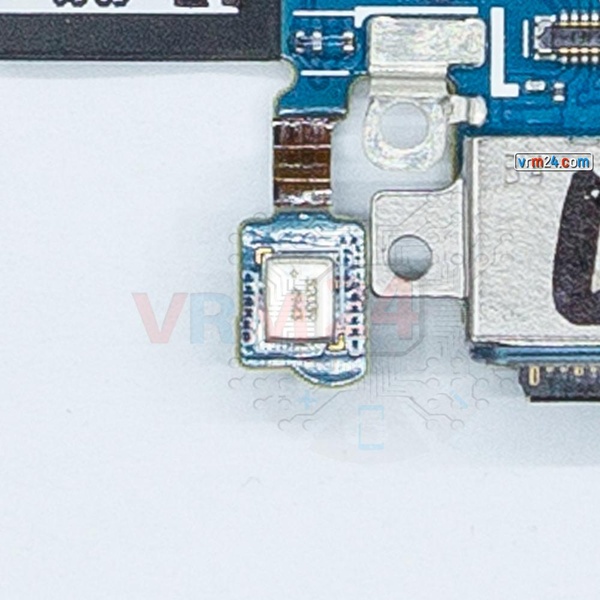

Microphone
tech-review-of-Samsung Galaxy S9 SM-G960
tech-review-of-Samsung Galaxy S9 SM-G960

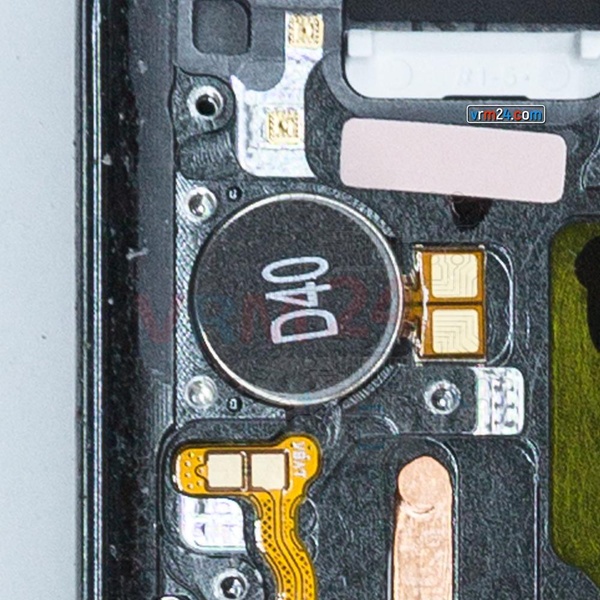

Vibration motor
tech-review-of-Samsung Galaxy S9 SM-G960

Characteristics

and Features

Features

Type Smartphone
OS Android 8.0 (Oreo)
SIM type/size Nano SIM
SIM Single SIM or Hybrid Dual SIM
Dimensions 147.7 x 68.7 x 8.5 mm (5.81 x 2.70 x 0.33 in)
Weight 163 g (5.75 oz)

Display

Display type Super AMOLED capacitive touchscreen, 16M colors
Size 5.8 inches, 84.8 cm2 (~83.6% screen-to-body ratio)
Resolution 1440 x 2960 pixels, 18.5:9 ratio
PPI density 570
Protection Corning Gorilla Glass 5

Multimedia

Main camera 12 MP, f/1.5-2.4, 26mm (wide), LED flash, auto-HDR, panorama
Main camera Video 2160p, 30fps
Front (selfie) camera Dual 8 MP, f/1.7, 25mm (wide) / 2 MP
Front (selfie) camera Video 1440p, 30fps
Audio MP3, AAC, WAV, WMA, FM radio
Headphone jack 3.5mm Jack

Network

Technology GSM / CDMA / HSPA / EVDO / LTE
Bands Yes, bands 1, 2, 3, 4, 5, 7, 8, 12, 13, 17, 18, 19, 20, 25, 26, 28, 32, 38, 39, 40, 41, 66
Interfaces Wi-Fi 802.11 a/b/g/n/ac, dual-band, Wi-Fi Direct, hotspot, Bluetooth 5.0, A2DP, LE, aptX, NFC
Satellite navigation GPS with A-GPS, GLONASS, BDS, GALILEO

Processor and Memory

System on a chip Samsung Exynos 9810
CPU Octa-Core 4x Exynos M3 2.9 GHz + 4x Cortex-A55 1.9 GHz
GPU Mali-G72 MP18
Internal memory 64 or 128 or 256 GB
RAM 4 GB
Card slot MicroSD, up to 1 TB (uses shared SIM slot)

Battery

Battery capacity Li-Ion 3000 mAh
Charging port USB-C 3.1, Type-C 1.0 reversible connector

Other

Announced 2018, February 25

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

logo
3

Views

—

Share

4

Questions
Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer

Based on our experience, we made a selection of the most common malfunctions of mobile devices and evaluated the difficulty of performing repairs for each of them. The final evaluation of the difficulty of the repair is the sum of all the parameters.

This difficulty rating is also applicable for all models Samsung Galaxy S9 SM-G960 — Samsung G960F (Europe, Global Single-SIM); G960F/DS (Europe, Global Dual-SIM); G960U (USA); G960W (Canada); G9600 (China, LATAM) released for markets in different countries.
