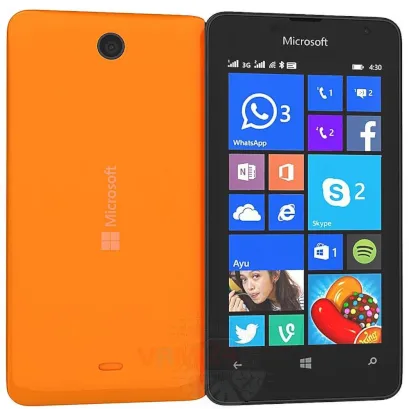

Microsoft Lumia 430 DS RM-1099
Microsoft Lumia 430 DS RM-1099
Teardown difficulty:
Easy
Duration:
6 min

Recommended tools

Screwdriver Torx T5 Screwdriver torx t5
Opening tool / Spudger Opening tool / spudger
Tweezers Tweezers

Disassembly/Repair of the mobile device Microsoft Lumia 430 DS RM-1099 (Microsoft Lumia RM-1099) with each step description and the required set of tools.

Vadim Popoff

Author / Content specialist with 10+ years of experience

How to disassemble Microsoft Lumia 430 DS RM-1099, Step 1/1 How to disassemble Microsoft Lumia 430 DS RM-1099, Step 1/2

Step 1.

Open the back cover.

How to disassemble Microsoft Lumia 430 DS RM-1099, Step 2/1 How to disassemble Microsoft Lumia 430 DS RM-1099, Step 2/2

Step 2.

Lift and remove the battery.

How to disassemble Microsoft Lumia 430 DS RM-1099, Step 3/1 How to disassemble Microsoft Lumia 430 DS RM-1099, Step 3/2

Step 3.

Using a screwdriver (hex T5), unscrew 9 bolts in the frame of the phone.

How to disassemble Microsoft Lumia 430 DS RM-1099, Step 4/1 How to disassemble Microsoft Lumia 430 DS RM-1099, Step 4/2

Step 4.

Pry and remove the middle frame.

How to disassemble Microsoft Lumia 430 DS RM-1099, Step 5/1 How to disassemble Microsoft Lumia 430 DS RM-1099, Step 5/2

Step 5.

Using a screwdriver (hex T5), unscrew 1 bolt in the PCB.

How to disassemble Microsoft Lumia 430 DS RM-1099, Step 6/1 How to disassemble Microsoft Lumia 430 DS RM-1099, Step 6/2 How to disassemble Microsoft Lumia 430 DS RM-1099, Step 6/3

Step 6.

Disconnect connectors on the PCB and remove the main and front (selfie) cameras.

How to disassemble Microsoft Lumia 430 DS RM-1099, Step 7/1 How to disassemble Microsoft Lumia 430 DS RM-1099, Step 7/2 How to disassemble Microsoft Lumia 430 DS RM-1099, Step 7/3 How to disassemble Microsoft Lumia 430 DS RM-1099, Step 7/4 How to disassemble Microsoft Lumia 430 DS RM-1099, Step 7/5

Step 7.

Disconnect connectors on the PCB.

How to disassemble Microsoft Lumia 430 DS RM-1099, Step 8/1 How to disassemble Microsoft Lumia 430 DS RM-1099, Step 8/2

Step 8.

Remove the PCB.

How to disassemble Microsoft Lumia 430 DS RM-1099, Step 9/1 How to disassemble Microsoft Lumia 430 DS RM-1099, Step 9/2 How to disassemble Microsoft Lumia 430 DS RM-1099, Step 9/3

Step 9.

Parts are in the frame of the display module.

Detailed disassembly instructions of Microsoft Lumia 430 DS RM-1099 in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

#instructions #Microsoft #Microsoft Lumia 430 DS RM-1099
Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer

Disassembling\Repair has easy complexity and takes about 6 minutes in time.
Our manual is suitable for all models Microsoft Lumia 430 DS RM-1099 — Microsoft Lumia RM-1099 released for markets in different countries.
