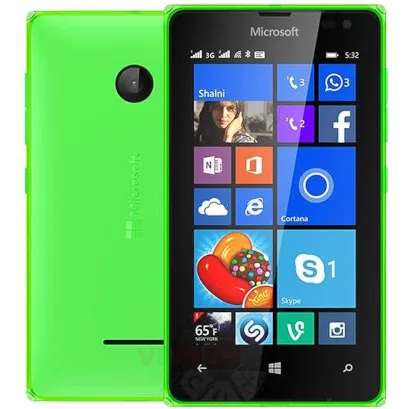

Disassembly/Repair of the mobile device Microsoft Lumia 532 DS RM-1032 (Lumia RM-1032) with each step description and the required set of tools.

5624

Views

—

Share

3

Questions

Vadim Popoff

Vadim Popoff

Content manager / Author / Content specialist

Content specialist with over 10 years of experience in the technology industry.

Open the back cover

Step 1.

Open the back cover

Open the back cover.

Remove the battery

Step 2.

Remove the battery

Lift and remove the battery.

Unscrew the screws

Step 3.

Unscrew the screws

Using a screwdriver (hex T6), unscrew 4 bolts in the frame of the phone.

Open the mid-frame

Step 4.

Open the mid-frame

Pry and remove the middle frame.

Disconnect the connectors

Step 5.

Disconnect the connectors

Disconnect connectors on the PCB.

Remove the motherboard

Step 6.

Remove the motherboard

Remove the PCB.

In the display frame remained

Step 7.

In the display frame remained

Parts are in the frame of the display module.

Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer
Disassembling\Repair has easy complexity and takes about 3 minutes in time. Our manual is suitable for all models Microsoft Lumia 532 DS RM-1032 or Lumia RM-1032 released for markets in different countries.
#instructions #Microsoft #Microsoft Lumia 532 DS RM-1032
Detailed disassembly instructions of Microsoft Lumia 532 DS RM-1032 in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.
