Samsung Ativ S GT-i8750
Samsung Ativ S GT-i8750
Teardown difficulty:
Easy
Duration:
4 min

Recommended tools

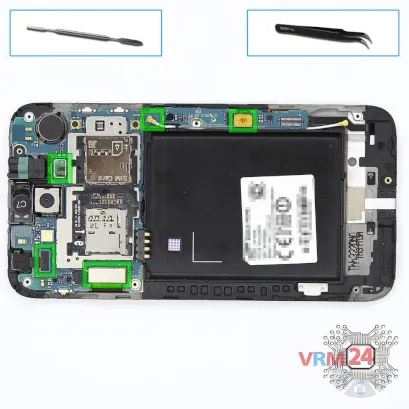

Screwdriver Phillips #000 Screwdriver phillips #000
Opening tool / Spudger Opening tool / spudger
Tweezers Tweezers

Disassembly/Repair of the mobile device Samsung Ativ S GT-i8750 with each step description and the required set of tools.

Vadim Popoff

Content specialist with over 10 years of experience in the technology industry.

How to disassemble Samsung Ativ S GT-i8750, Step 1/1 How to disassemble Samsung Ativ S GT-i8750, Step 1/2

Step 1.

Open the back cover.

How to disassemble Samsung Ativ S GT-i8750, Step 2/1 How to disassemble Samsung Ativ S GT-i8750, Step 2/2

Step 2.

Lift and remove the battery.

How to disassemble Samsung Ativ S GT-i8750, Step 3/1 How to disassemble Samsung Ativ S GT-i8750, Step 3/2

Step 3.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 7 bolts in the frame of the phone.

How to disassemble Samsung Ativ S GT-i8750, Step 4/1 How to disassemble Samsung Ativ S GT-i8750, Step 4/2

Step 4.

Pry and remove the middle frame.

How to disassemble Samsung Ativ S GT-i8750, Step 5/1 How to disassemble Samsung Ativ S GT-i8750, Step 5/2

Step 5.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 1 bolt and remove the buzzer (speaker) assembly.

How to disassemble Samsung Ativ S GT-i8750, Step 6/1 How to disassemble Samsung Ativ S GT-i8750, Step 6/2 How to disassemble Samsung Ativ S GT-i8750, Step 6/3

Step 6.

Disconnect connectors and remove the lower PCB.

How to disassemble Samsung Ativ S GT-i8750, Step 7/1 How to disassemble Samsung Ativ S GT-i8750, Step 7/2 How to disassemble Samsung Ativ S GT-i8750, Step 7/3

Step 7.

Disconnect connectors on the PCB.

How to disassemble Samsung Ativ S GT-i8750, Step 8/1 How to disassemble Samsung Ativ S GT-i8750, Step 8/2

Step 8.

Remove the PCB.

How to disassemble Samsung Ativ S GT-i8750, Step 9/1 How to disassemble Samsung Ativ S GT-i8750, Step 9/2

Step 9.

Pry and remove the cable with a headphone jack/socket, earpiece (speaker) and vibration motor and cable with a front (selfie) camera and proximity sensor.

How to disassemble Samsung Ativ S GT-i8750, Step 10/1 How to disassemble Samsung Ativ S GT-i8750, Step 10/2 How to disassemble Samsung Ativ S GT-i8750, Step 10/3

Step 10.

Parts are in the frame of the display module.

Detailed disassembly instructions of Samsung Ativ S GT-i8750 in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

#instructions #Samsung #Samsung Ativ S GT-i8750
Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer

Disassembling\Repair has easy complexity and takes about 4 minutes in time.
Our manual is suitable for all models Samsung Ativ S GT-i8750 released for markets in different countries.
