Samsung Galaxy J1 mini (2016) SM-J105
Samsung Galaxy J1 mini (2016) SM-J105
Teardown difficulty:
Moderate
Duration:
17 min

Recommended tools

Heat gun Heat gun
Screwdriver Phillips #000 Screwdriver phillips #000
Opening tool / Spudger Opening tool / spudger
Tweezers Tweezers

Disassembly/Repair of the mobile device Samsung Galaxy J1 mini (2016) SM-J105 with each step description and the required set of tools.

Vadim Popoff

Author, currently - Quality Assurance Specialist

How to disassemble Samsung Galaxy J1 mini (2016) SM-J105, Step 1/1 How to disassemble Samsung Galaxy J1 mini (2016) SM-J105, Step 1/2

Step 1.

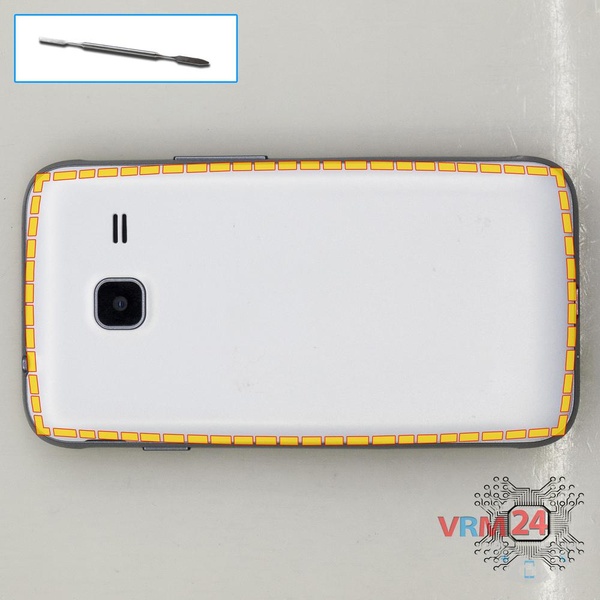

Open the back cover.

How to disassemble Samsung Galaxy J1 mini (2016) SM-J105, Step 2/1 How to disassemble Samsung Galaxy J1 mini (2016) SM-J105, Step 2/2

Step 2.

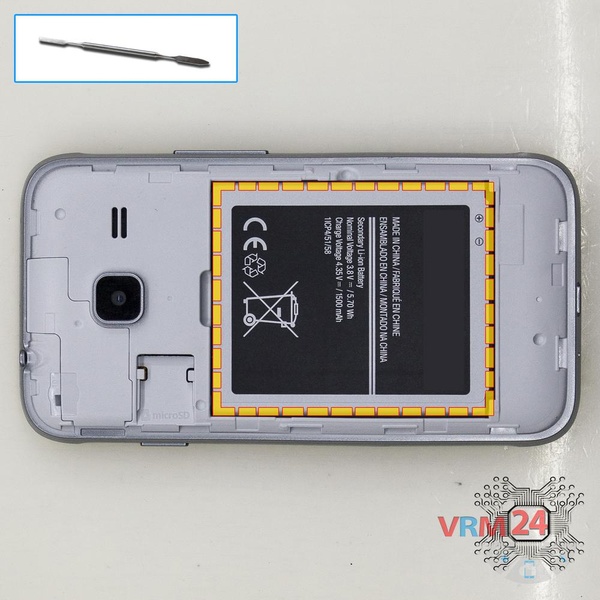

Lift and remove the battery.

How to disassemble Samsung Galaxy J1 mini (2016) SM-J105, Step 3/1 How to disassemble Samsung Galaxy J1 mini (2016) SM-J105, Step 3/2

Step 3.

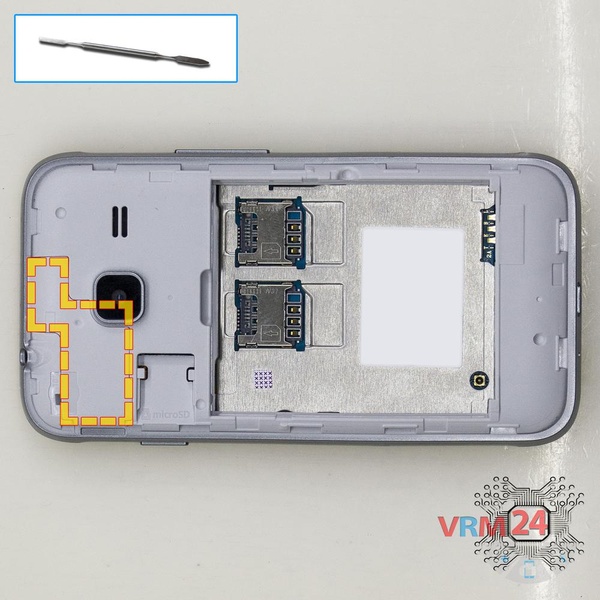

Remove the panel plug in the back.

How to disassemble Samsung Galaxy J1 mini (2016) SM-J105, Step 4/1 How to disassemble Samsung Galaxy J1 mini (2016) SM-J105, Step 4/2 How to disassemble Samsung Galaxy J1 mini (2016) SM-J105, Step 4/3

Step 4.

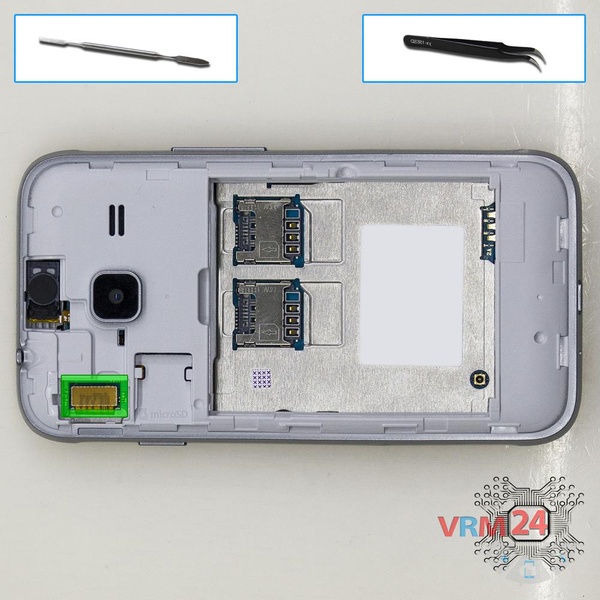

Disconnect the connector of LCD.

How to disassemble Samsung Galaxy J1 mini (2016) SM-J105, Step 5/1 How to disassemble Samsung Galaxy J1 mini (2016) SM-J105, Step 5/2

Step 5.

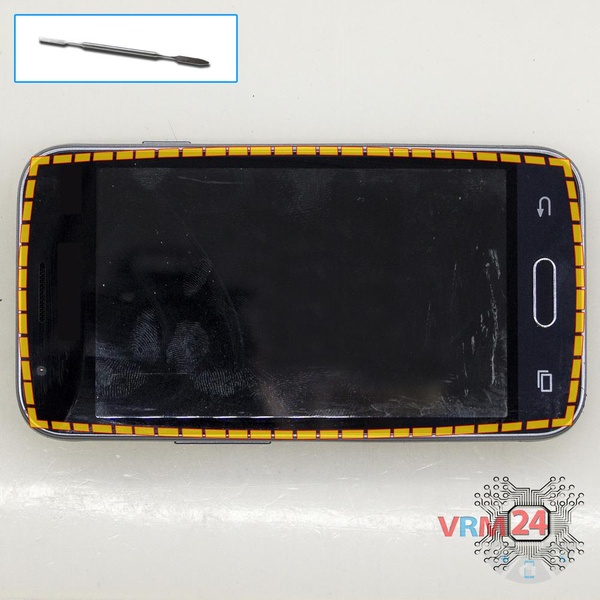

Unglue the touchscreen.

How to disassemble Samsung Galaxy J1 mini (2016) SM-J105, Step 6/1 How to disassemble Samsung Galaxy J1 mini (2016) SM-J105, Step 6/2

Step 6.

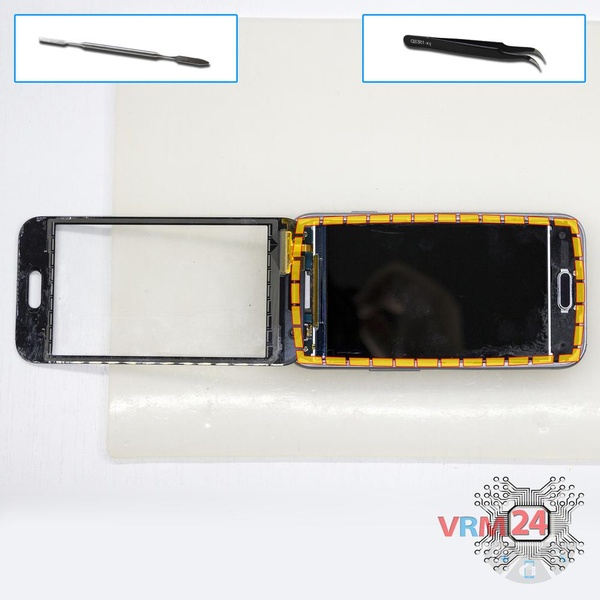

Lift the display and the touchscreen. More detail in our video.

How to disassemble Samsung Galaxy J1 mini (2016) SM-J105, Step 7/1 How to disassemble Samsung Galaxy J1 mini (2016) SM-J105, Step 7/2 How to disassemble Samsung Galaxy J1 mini (2016) SM-J105, Step 7/3

Step 7.

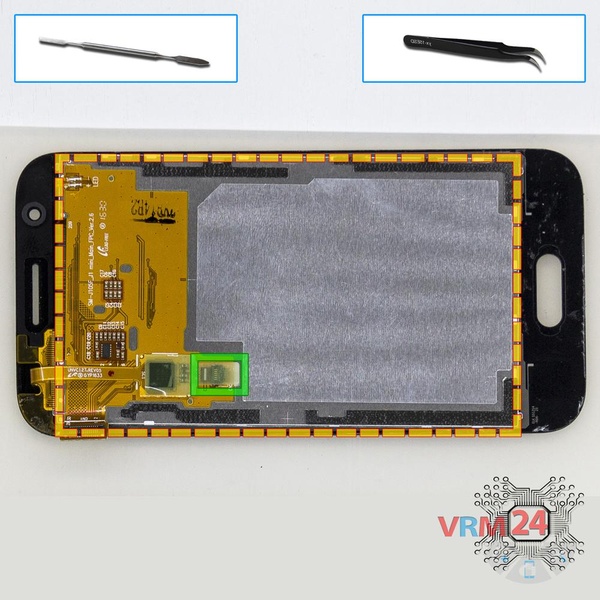

Disconnect the connector and separate the display from the touchscreen.

How to disassemble Samsung Galaxy J1 mini (2016) SM-J105, Step 8/1 How to disassemble Samsung Galaxy J1 mini (2016) SM-J105, Step 8/2

Step 8.

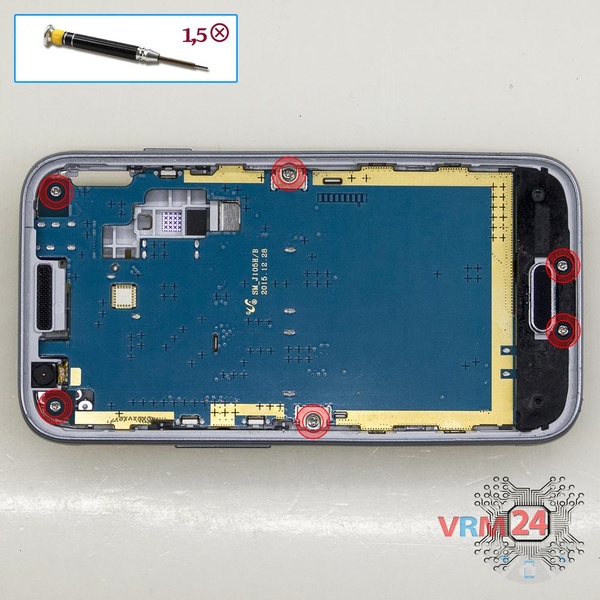

Using a screwdriver (Phillips 1.5 mm cross-head), unscrew 6 bolts.

How to disassemble Samsung Galaxy J1 mini (2016) SM-J105, Step 9/1 How to disassemble Samsung Galaxy J1 mini (2016) SM-J105, Step 9/2

Step 9.

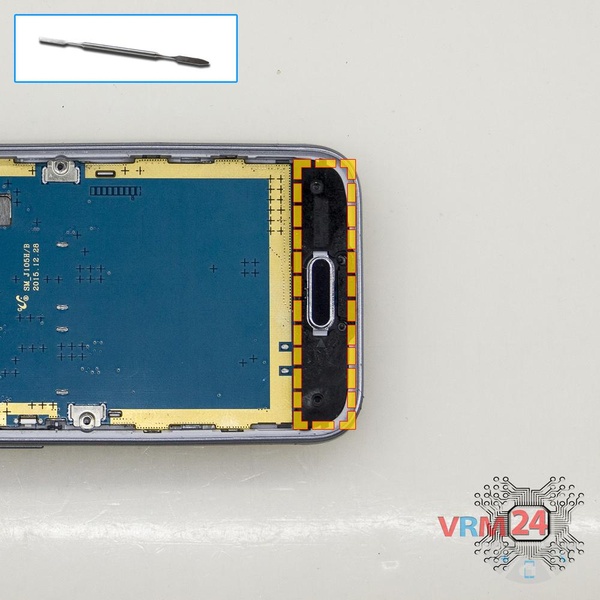

Remove the panel with the Home button.

How to disassemble Samsung Galaxy J1 mini (2016) SM-J105, Step 10/1 How to disassemble Samsung Galaxy J1 mini (2016) SM-J105, Step 10/2

Step 10.

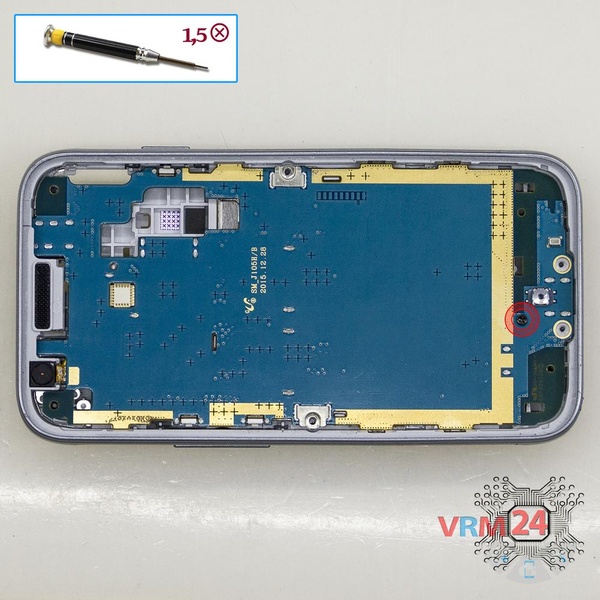

Using a screwdriver (Phillips 1.5 mm cross-head), unscrew 1 bolts in the PCB.

How to disassemble Samsung Galaxy J1 mini (2016) SM-J105, Step 11/1 How to disassemble Samsung Galaxy J1 mini (2016) SM-J105, Step 11/2

Step 11.

Remove the PCB.

How to disassemble Samsung Galaxy J1 mini (2016) SM-J105, Step 12/1 How to disassemble Samsung Galaxy J1 mini (2016) SM-J105, Step 12/2 How to disassemble Samsung Galaxy J1 mini (2016) SM-J105, Step 12/3

Step 12.

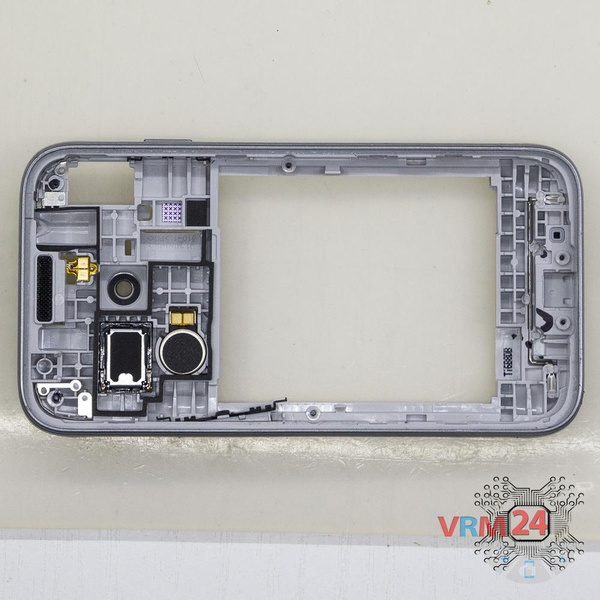

Parts in the frame.

Detailed disassembly instructions of Samsung Galaxy J1 mini (2016) SM-J105 in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

#instructions #Samsung #Samsung Galaxy J1 mini (2016) SM-J105
Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer

Disassembling\Repair has medium complexity and takes about 17 minutes in time.
Our manual is suitable for all models Samsung Galaxy J1 mini (2016) SM-J105 released for markets in different countries.
