Samsung Galaxy J5 SM-J500

Teardown difficulty:
Hard

Duration:
8 min

Recommended tools

Heat gun

Screwdriver phillips #000

Opening tool / spudger

Tweezers

Disassembly/Repair of the mobile device Samsung Galaxy J5 SM-J500 (Samsung J500F/J700FN (Global Single-SIM); J500F/DS (Global Dual-SIM); J500G/DS (Malaysia, Indonesia, Singapore, Thailand); J500Y (Australia, New Zealand); J500M (LATAM); J500M/DS (Brazil); J500H/DS (Philippines, Russia, Ukraine)) with each step description and the required set of tools.

Vadim Popoff

Author / content specialist

Author / Content specialist with 10+ years of experience

How to disassemble Samsung Galaxy J5 SM-J500, Step 1/1

How to disassemble Samsung Galaxy J5 SM-J500, Step 1/2

Step 1.

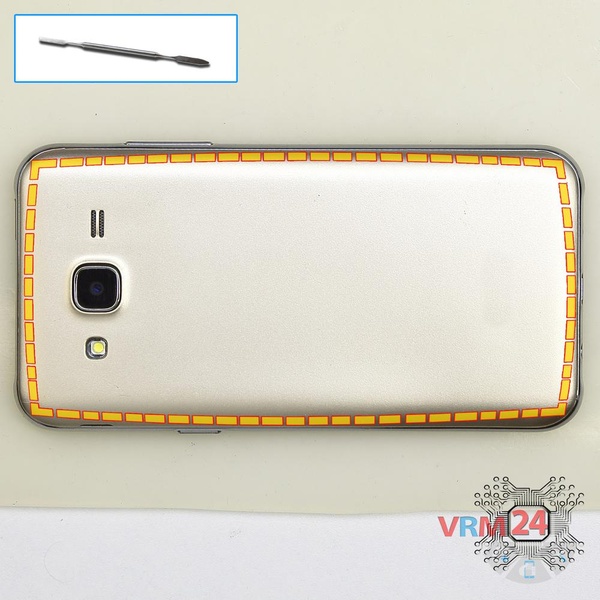

Open the back cover.

How to disassemble Samsung Galaxy J5 SM-J500, Step 2/1

How to disassemble Samsung Galaxy J5 SM-J500, Step 2/2

Step 2.

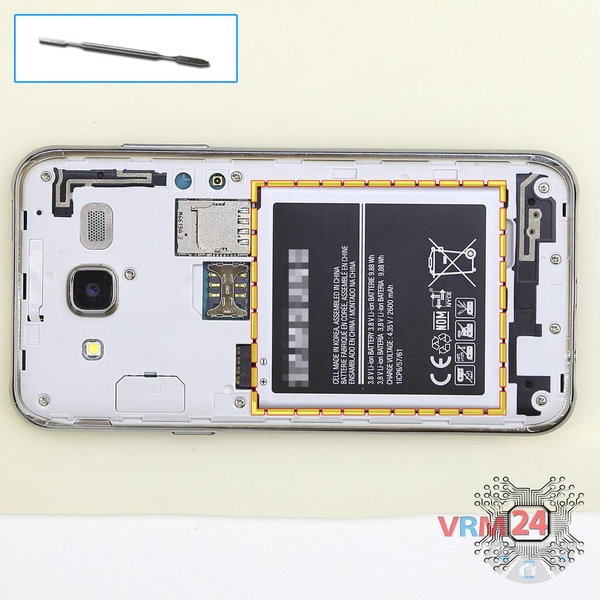

Lift and remove the battery.

How to disassemble Samsung Galaxy J5 SM-J500, Step 3/1

How to disassemble Samsung Galaxy J5 SM-J500, Step 3/2

Step 3.

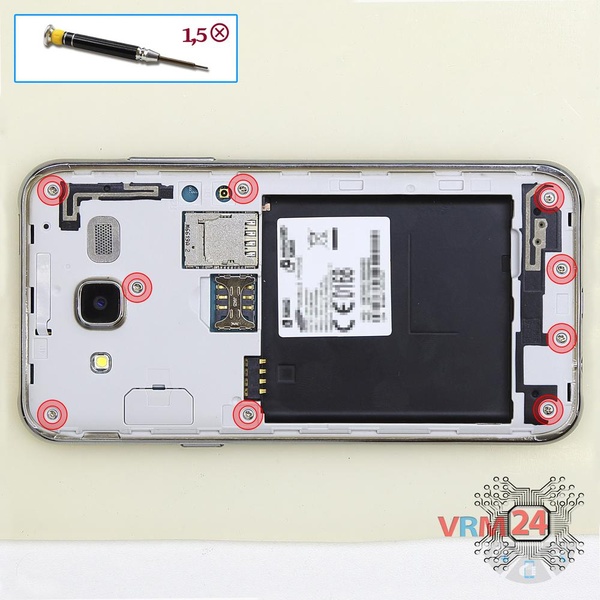

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 9 bolts in the frame of the phone.

How to disassemble Samsung Galaxy J5 SM-J500, Step 4/1

How to disassemble Samsung Galaxy J5 SM-J500, Step 4/2

Step 4.

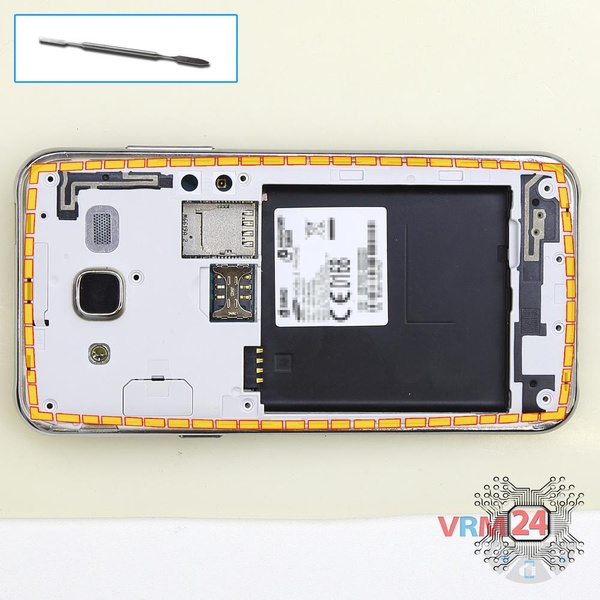

Pry and remove the middle frame.

How to disassemble Samsung Galaxy J5 SM-J500, Step 5/1

How to disassemble Samsung Galaxy J5 SM-J500, Step 5/2

Step 5.

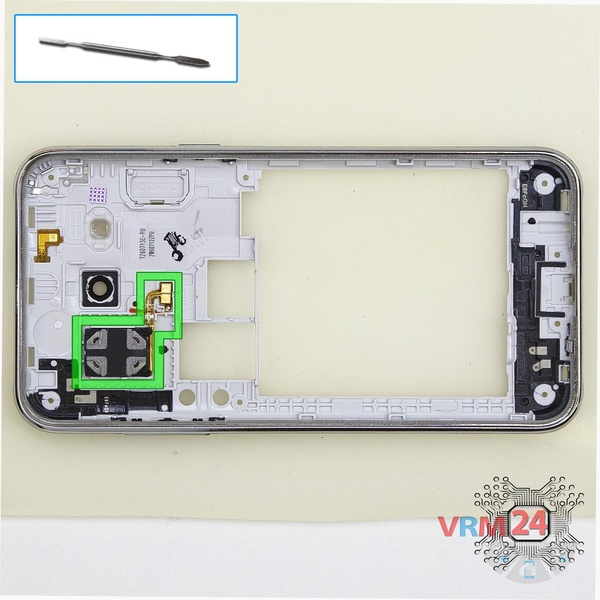

Pry and remove the buzzer (speaker).

How to disassemble Samsung Galaxy J5 SM-J500, Step 6/1

How to disassemble Samsung Galaxy J5 SM-J500, Step 6/2

Step 6.

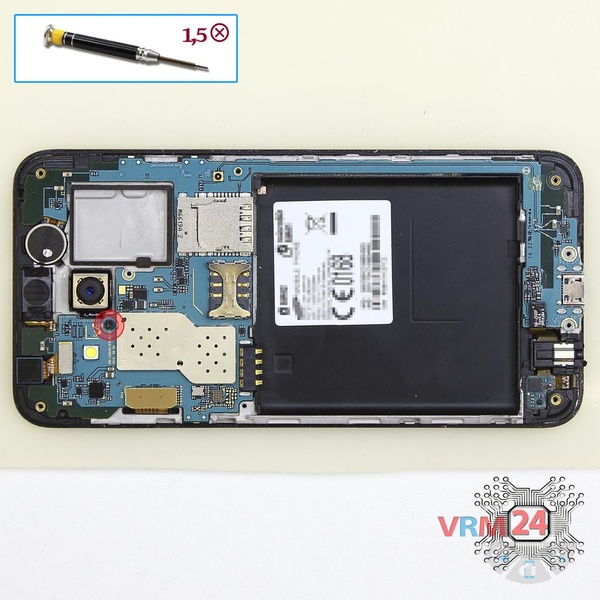

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 1 bolt in the PCB.

How to disassemble Samsung Galaxy J5 SM-J500, Step 7/1

How to disassemble Samsung Galaxy J5 SM-J500, Step 7/2

Step 7.

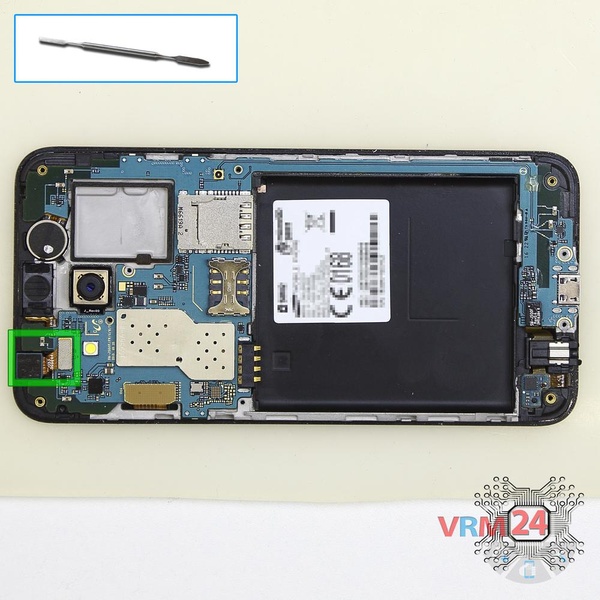

Disconnect the connector on PCB, and remove the front (selfie) camera.

How to disassemble Samsung Galaxy J5 SM-J500, Step 8/1

How to disassemble Samsung Galaxy J5 SM-J500, Step 8/2

How to disassemble Samsung Galaxy J5 SM-J500, Step 8/3

How to disassemble Samsung Galaxy J5 SM-J500, Step 8/4

How to disassemble Samsung Galaxy J5 SM-J500, Step 8/5

Step 8.

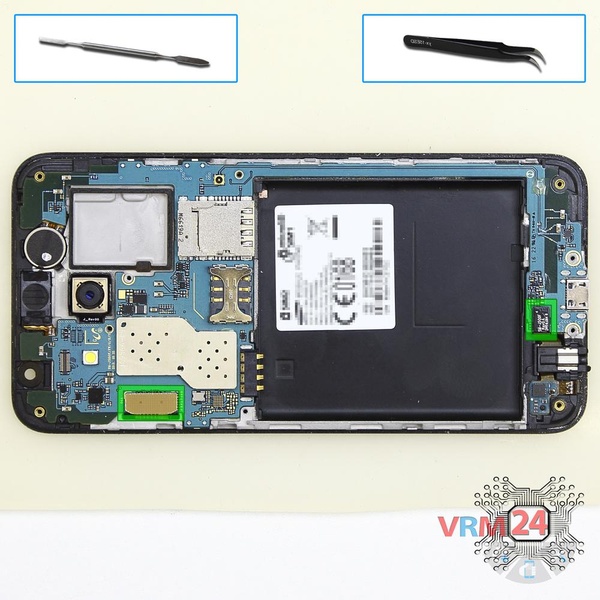

Disconnect connectors on the PCB.

How to disassemble Samsung Galaxy J5 SM-J500, Step 9/1

How to disassemble Samsung Galaxy J5 SM-J500, Step 9/2

Step 9.

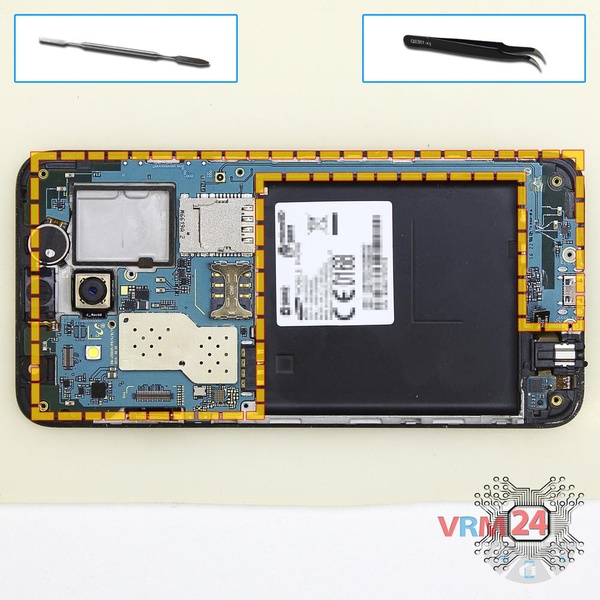

Remove the PCB.

How to disassemble Samsung Galaxy J5 SM-J500, Step 10/1

How to disassemble Samsung Galaxy J5 SM-J500, Step 10/2

Step 10.

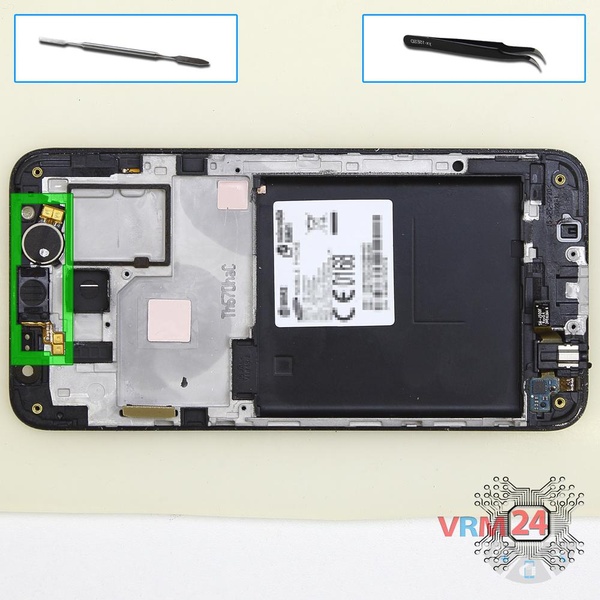

Pry and remove the earpiece (speaker) and vibration motor.

How to disassemble Samsung Galaxy J5 SM-J500, Step 11/1

How to disassemble Samsung Galaxy J5 SM-J500, Step 11/2

How to disassemble Samsung Galaxy J5 SM-J500, Step 11/3

Step 11.

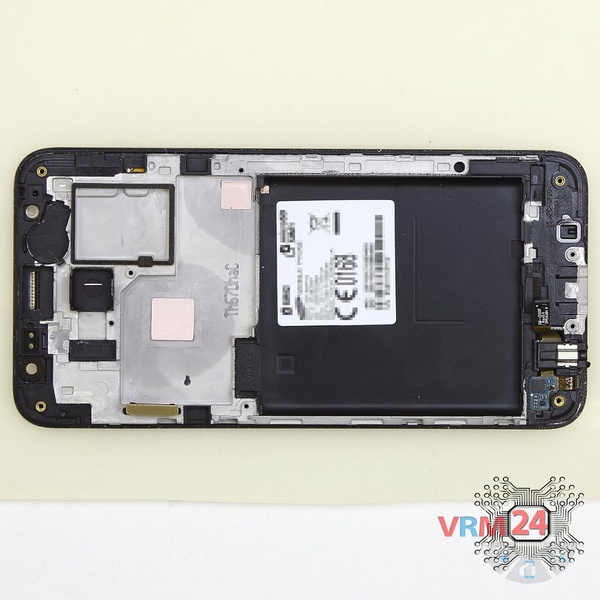

Parts are in the frame of the display module.
