Samsung Galaxy S10 Plus SM-G975

Teardown difficulty:
Moderate

Duration:
10 min

Recommended tools

Heat gun

Screwdriver phillips #000

Opening tool / spudger

Tweezers

Disassembly/Repair of the mobile device Samsung Galaxy S10 Plus SM-G975 (Samsung SM-G975F/DS (Global); SM-G975U (USA); SM-G975W (Canada)) with each step description and the required set of tools.

Vadim Popoff

Quality assurance specialist

Author, currently - Quality Assurance Specialist

How to disassemble Samsung Galaxy S10 Plus SM-G975, Step 1/1

How to disassemble Samsung Galaxy S10 Plus SM-G975, Step 1/2

Step 1.

Using the key tool, open the SIM and Micro SD cards tray and remove it.

⚠️ Warning!

Do not push too hard this may cause damage.

How to disassemble Samsung Galaxy S10 Plus SM-G975, Step 2/1

How to disassemble Samsung Galaxy S10 Plus SM-G975, Step 2/2

Step 2.

Open the back cover.

⚠️ Warning!

For careful separation, we recommend using a heat gun. At the same time, it is necessary to heat carefully in order, not to damage the surface of the device.

How to disassemble Samsung Galaxy S10 Plus SM-G975, Step 3/1

How to disassemble Samsung Galaxy S10 Plus SM-G975, Step 3/2

Step 3.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 16 bolts.

How to disassemble Samsung Galaxy S10 Plus SM-G975, Step 4/1

How to disassemble Samsung Galaxy S10 Plus SM-G975, Step 4/2

Step 4.

Pry and remove the covers with antennas, loudspeaker, and NFC tag.

How to disassemble Samsung Galaxy S10 Plus SM-G975, Step 5/1

How to disassemble Samsung Galaxy S10 Plus SM-G975, Step 5/2

How to disassemble Samsung Galaxy S10 Plus SM-G975, Step 5/3

Step 5.

Disconnect the battery connector. The battery model of Samsung Galaxy S10 Plus SM-G975 is EB-BG975ABU.

⚠️ Warning!

We strongly recommend disconnecting the connector to avoid a possible short circuit during disassembly.

How to disassemble Samsung Galaxy S10 Plus SM-G975, Step 6/1

How to disassemble Samsung Galaxy S10 Plus SM-G975, Step 6/2

Step 6.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 3 bolts in the PCB.

How to disassemble Samsung Galaxy S10 Plus SM-G975, Step 7/1

How to disassemble Samsung Galaxy S10 Plus SM-G975, Step 7/2

How to disassemble Samsung Galaxy S10 Plus SM-G975, Step 7/3

Step 7.

Disconnect the connector on PCB.

How to disassemble Samsung Galaxy S10 Plus SM-G975, Step 8/1

How to disassemble Samsung Galaxy S10 Plus SM-G975, Step 8/2

How to disassemble Samsung Galaxy S10 Plus SM-G975, Step 8/3

Step 8.

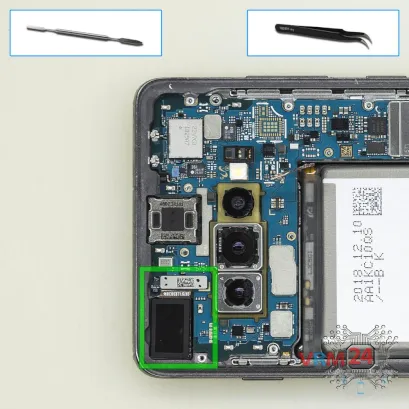

Pry up the connector on PCB and remove the headphone jack/socket.

How to disassemble Samsung Galaxy S10 Plus SM-G975, Step 9/1

How to disassemble Samsung Galaxy S10 Plus SM-G975, Step 9/2

Step 9.

Disconnect the connector on PCB, and remove the assembly of two (front) sefie cameras.

How to disassemble Samsung Galaxy S10 Plus SM-G975, Step 10/1

How to disassemble Samsung Galaxy S10 Plus SM-G975, Step 10/2

Step 10.

Remove the PCB.

How to disassemble Samsung Galaxy S10 Plus SM-G975, Step 11/1

How to disassemble Samsung Galaxy S10 Plus SM-G975, Step 11/2

Step 11.

Disconnect connectors on the PCB, and remove the assembly of three rear (main) cameras.

Detailed disassembly instructions of Samsung Galaxy S10 Plus SM-G975 in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

#instructions #Samsung #Samsung Galaxy S10 Plus SM-G975

Evgenii Kuzmin

Senior maintenance service and repair engineer

Disassembling\Repair has medium complexity and takes about 10 minutes in time.
Our manual is suitable for all models Samsung Galaxy S10 Plus SM-G975 — Samsung SM-G975F/DS (Global); SM-G975U (USA); SM-G975W (Canada) released for markets in different countries.
