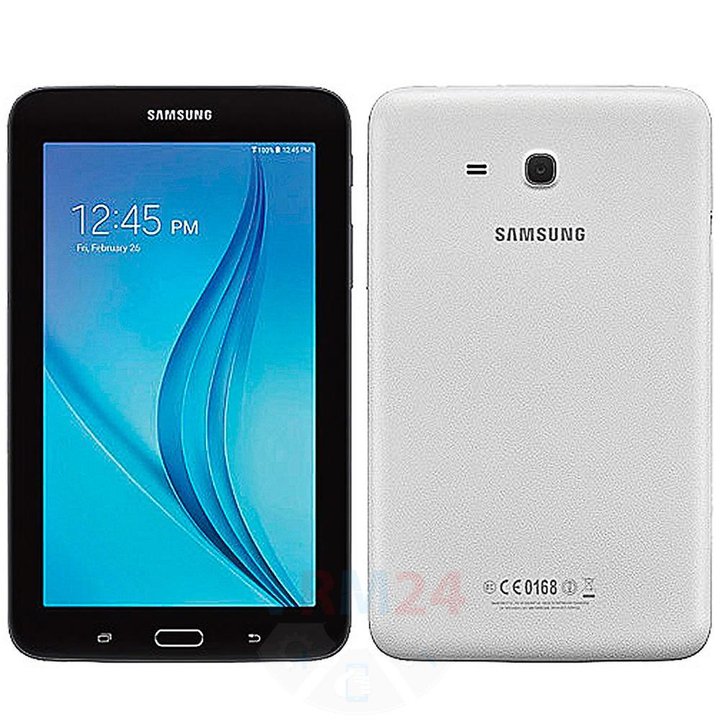

Samsung Galaxy Tab A 7.0'' SM-T280
Samsung Galaxy Tab A 7.0'' SM-T280
Teardown difficulty:
Easy
Duration:
12 min

Recommended tools

Screwdriver Phillips #000 Screwdriver phillips #000
Opening tool / Spudger Opening tool / spudger
Tweezers Tweezers

Disassembly/Repair of the mobile device Samsung Galaxy Tab A 7.0'' SM-T280 with each step description and the required set of tools.

Vadim Popoff

Content specialist with over 10 years of experience in the technology industry.

How to disassemble Samsung Galaxy Tab A 7.0'' SM-T280, Step 1/1 How to disassemble Samsung Galaxy Tab A 7.0'' SM-T280, Step 1/2

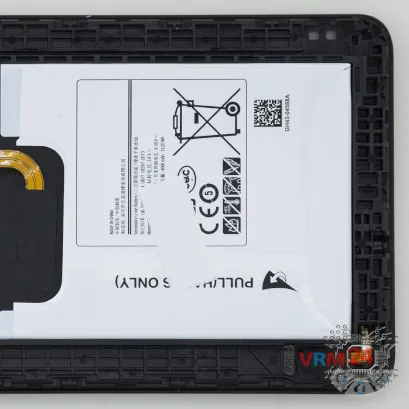

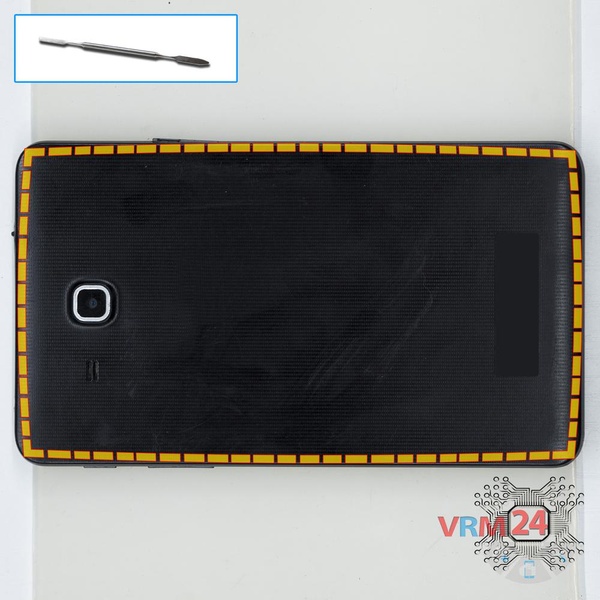

Step 1.

Open the back cover.

How to disassemble Samsung Galaxy Tab A 7.0'' SM-T280, Step 2/1 How to disassemble Samsung Galaxy Tab A 7.0'' SM-T280, Step 2/2 How to disassemble Samsung Galaxy Tab A 7.0'' SM-T280, Step 2/3

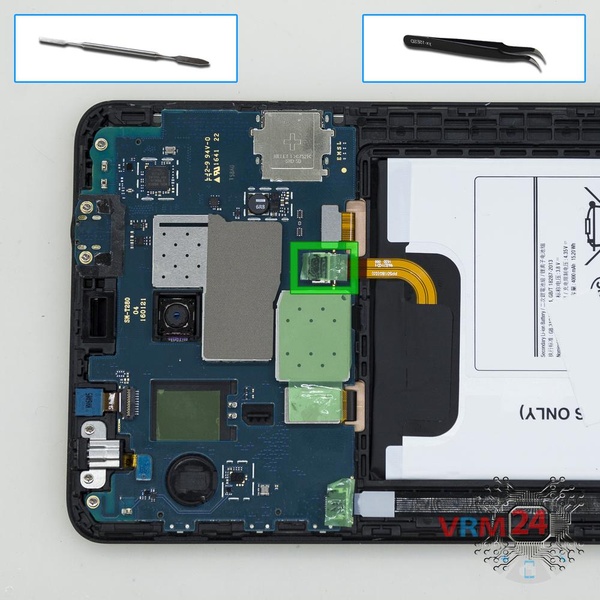

Step 2.

Disconnect the battery connector.

⚠️ Warning!

We strongly recommend disconnecting the connector to avoid a possible short circuit during disassembly.

How to disassemble Samsung Galaxy Tab A 7.0'' SM-T280, Step 3/1 How to disassemble Samsung Galaxy Tab A 7.0'' SM-T280, Step 3/2 How to disassemble Samsung Galaxy Tab A 7.0'' SM-T280, Step 3/3

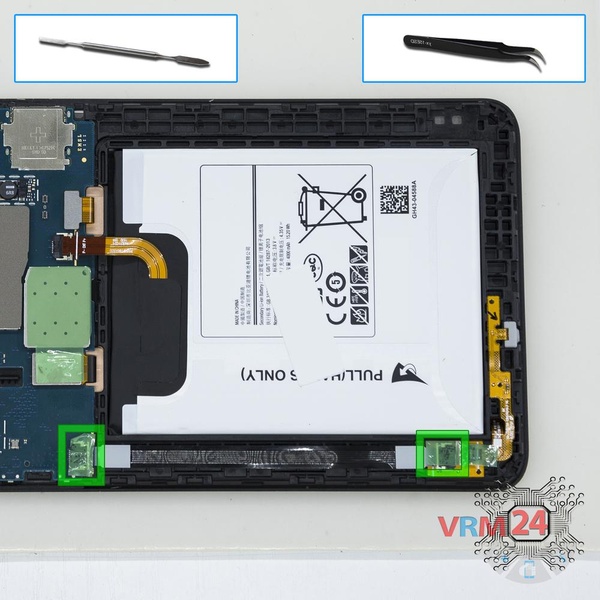

Step 3.

Disconnect connectors and remove the inter-board cable.

How to disassemble Samsung Galaxy Tab A 7.0'' SM-T280, Step 4/1 How to disassemble Samsung Galaxy Tab A 7.0'' SM-T280, Step 4/2 How to disassemble Samsung Galaxy Tab A 7.0'' SM-T280, Step 4/3

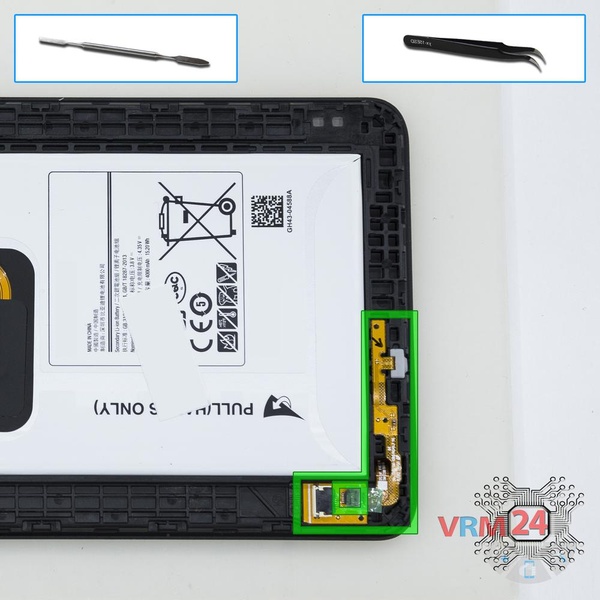

Step 4.

Disconnect the connector and remove the cable with a microphone.

How to disassemble Samsung Galaxy Tab A 7.0'' SM-T280, Step 5/1 How to disassemble Samsung Galaxy Tab A 7.0'' SM-T280, Step 5/2

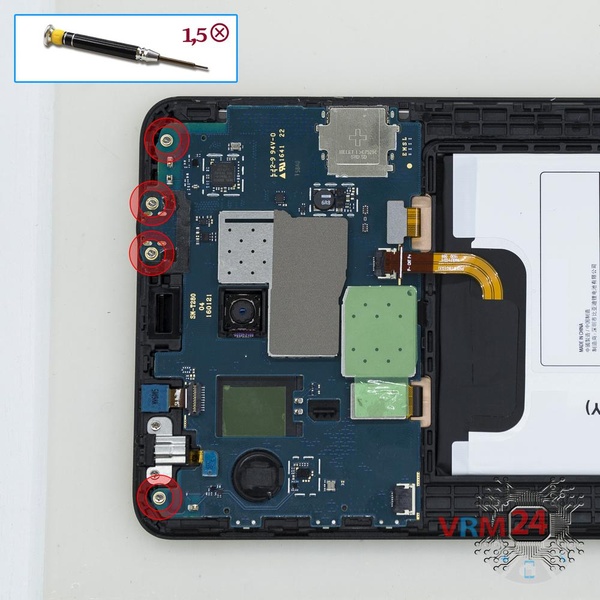

Step 5.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 4 bolts in the PCB.

How to disassemble Samsung Galaxy Tab A 7.0'' SM-T280, Step 6/1 How to disassemble Samsung Galaxy Tab A 7.0'' SM-T280, Step 6/2

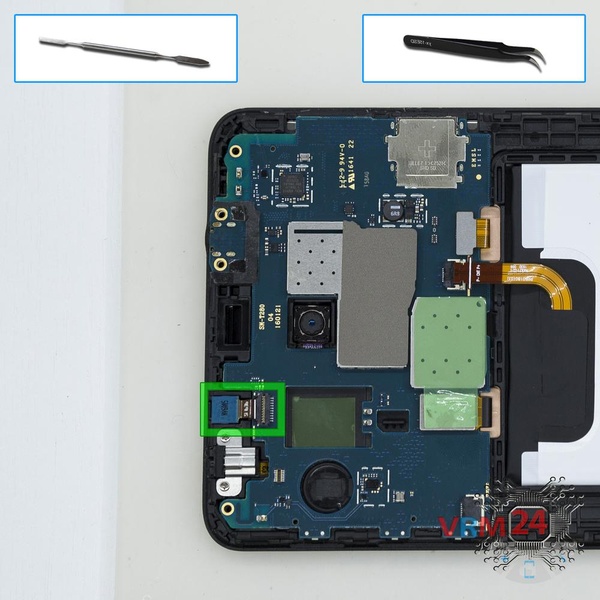

Step 6.

Disconnect the connector on PCB, and remove the front (selfie) camera.

How to disassemble Samsung Galaxy Tab A 7.0'' SM-T280, Step 7/1 How to disassemble Samsung Galaxy Tab A 7.0'' SM-T280, Step 7/2

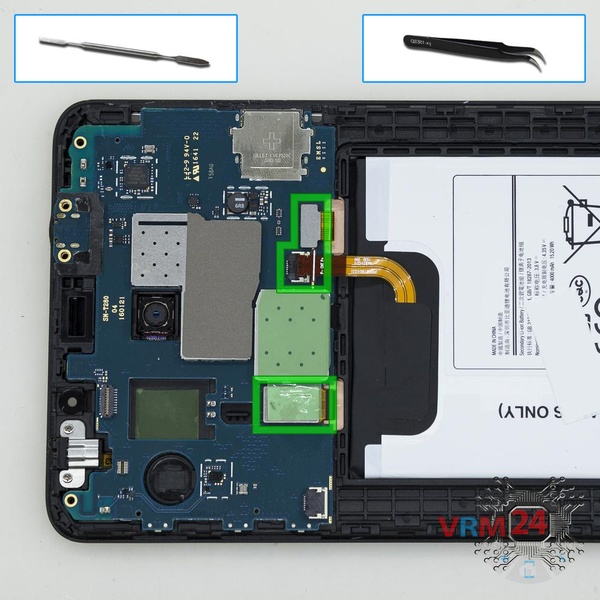

Step 7.

Disconnect connectors on the PCB.

How to disassemble Samsung Galaxy Tab A 7.0'' SM-T280, Step 8/1 How to disassemble Samsung Galaxy Tab A 7.0'' SM-T280, Step 8/2

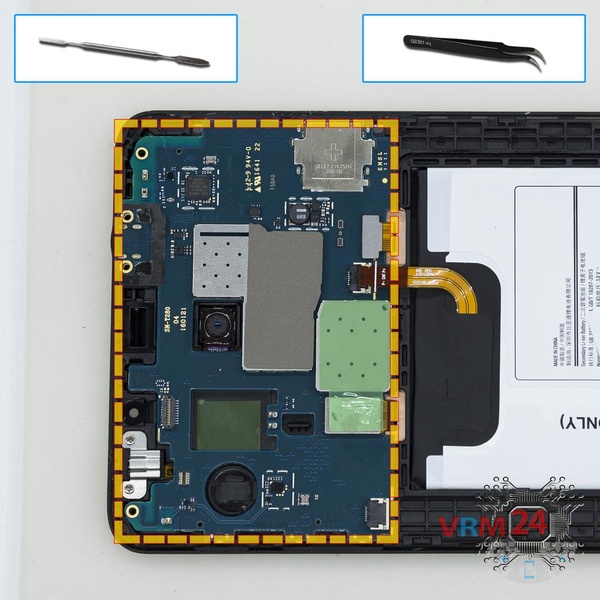

Step 8.

Remove the PCB.

How to disassemble Samsung Galaxy Tab A 7.0'' SM-T280, Step 9/1 How to disassemble Samsung Galaxy Tab A 7.0'' SM-T280, Step 9/2

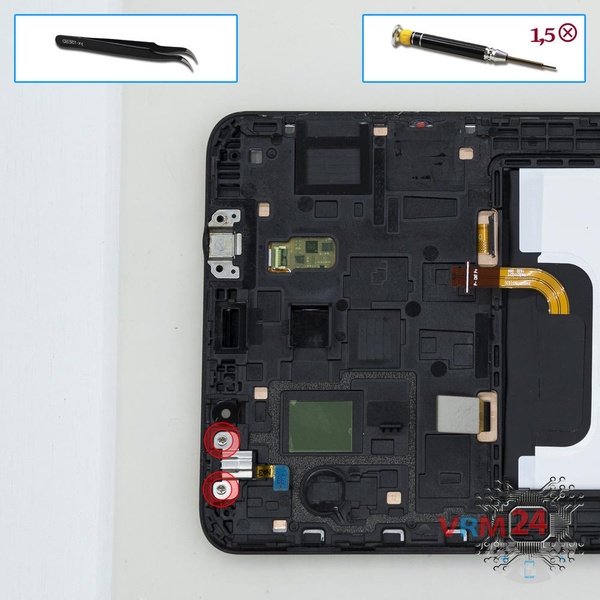

Step 9.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 2 bolts and remove the bracket.

How to disassemble Samsung Galaxy Tab A 7.0'' SM-T280, Step 10/1 How to disassemble Samsung Galaxy Tab A 7.0'' SM-T280, Step 10/2

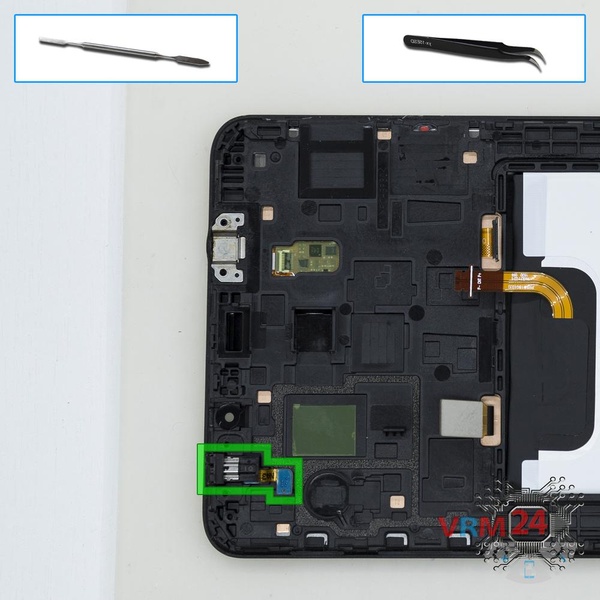

Step 10.

Pry and remove the headphone jack/socket.

How to disassemble Samsung Galaxy Tab A 7.0'' SM-T280, Step 11/1 How to disassemble Samsung Galaxy Tab A 7.0'' SM-T280, Step 11/2 How to disassemble Samsung Galaxy Tab A 7.0'' SM-T280, Step 11/3

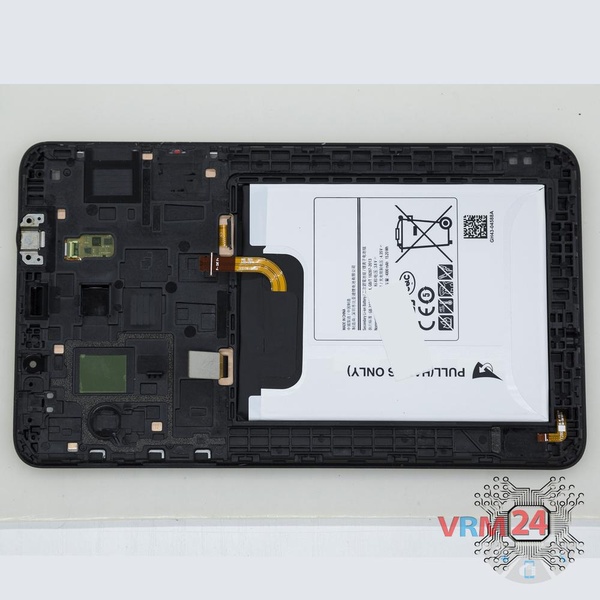

Step 11.

Parts are in the frame of the display module.

Detailed disassembly instructions of Samsung Galaxy Tab A 7.0'' SM-T280 in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

#instructions #Samsung #Samsung Galaxy Tab A 7.0'' SM-T280
Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer

Disassembling\Repair has easy complexity and takes about 12 minutes in time.
Our manual is suitable for all models Samsung Galaxy Tab A 7.0'' SM-T280 released for markets in different countries.
